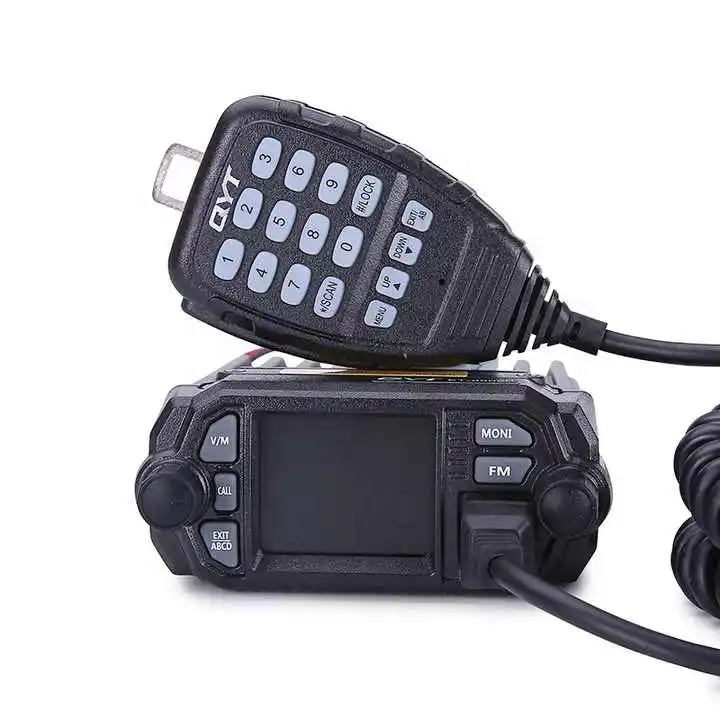

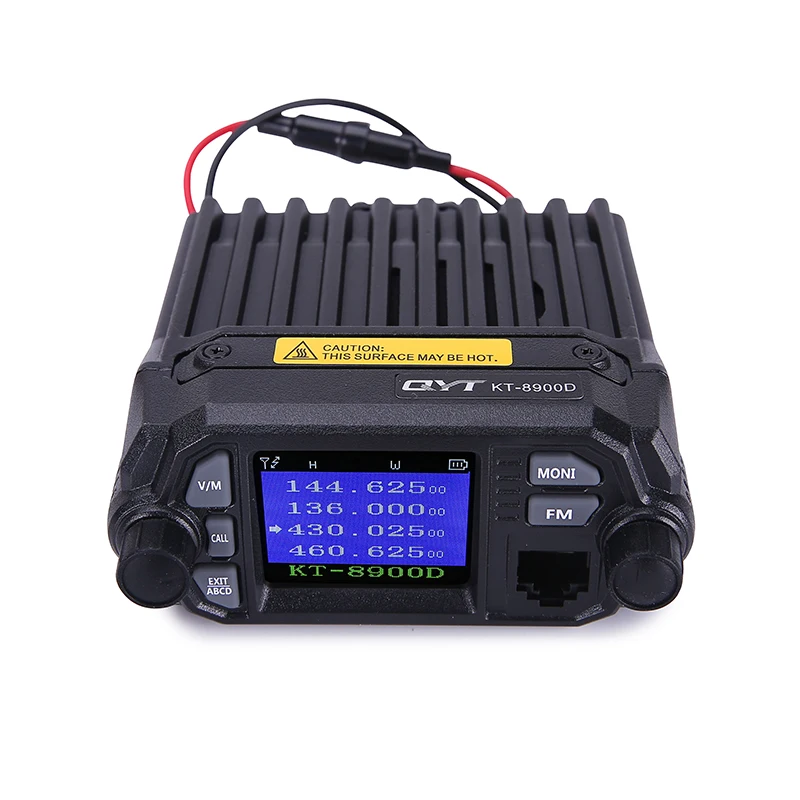

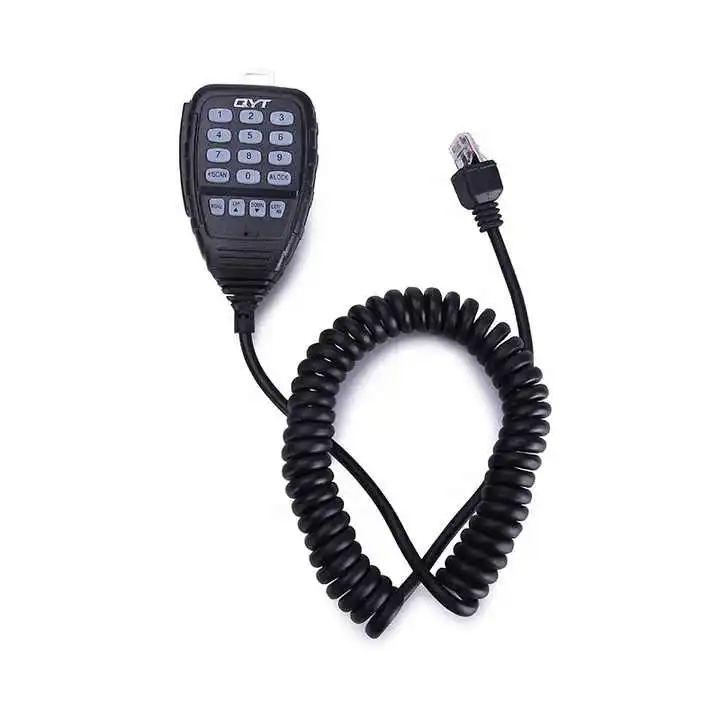

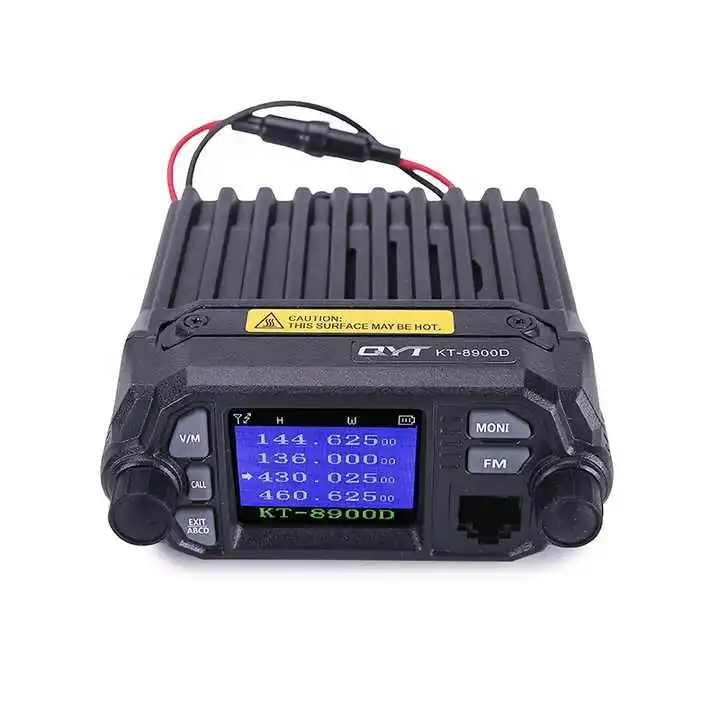

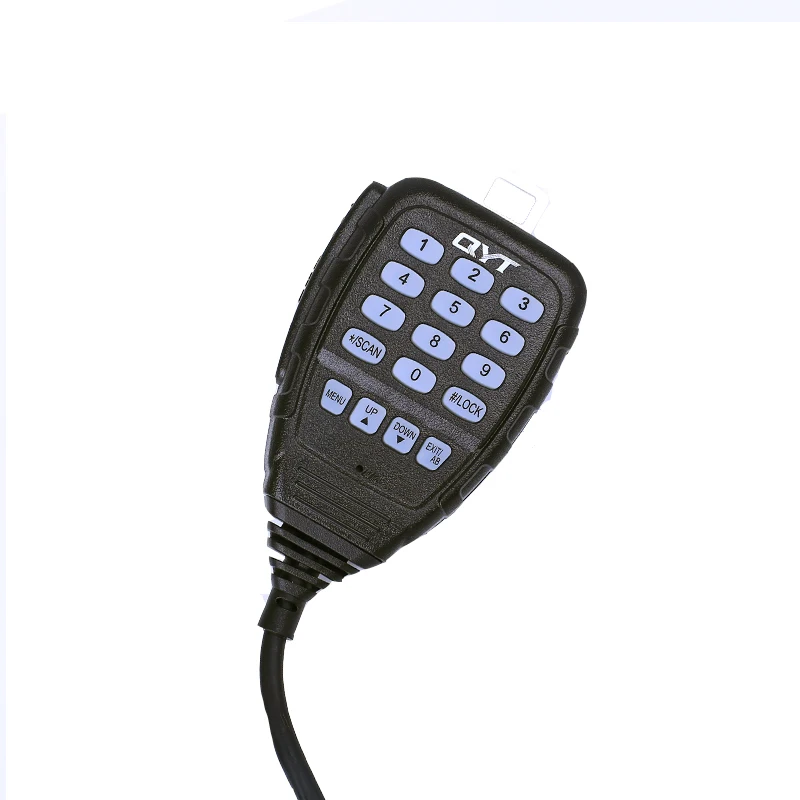

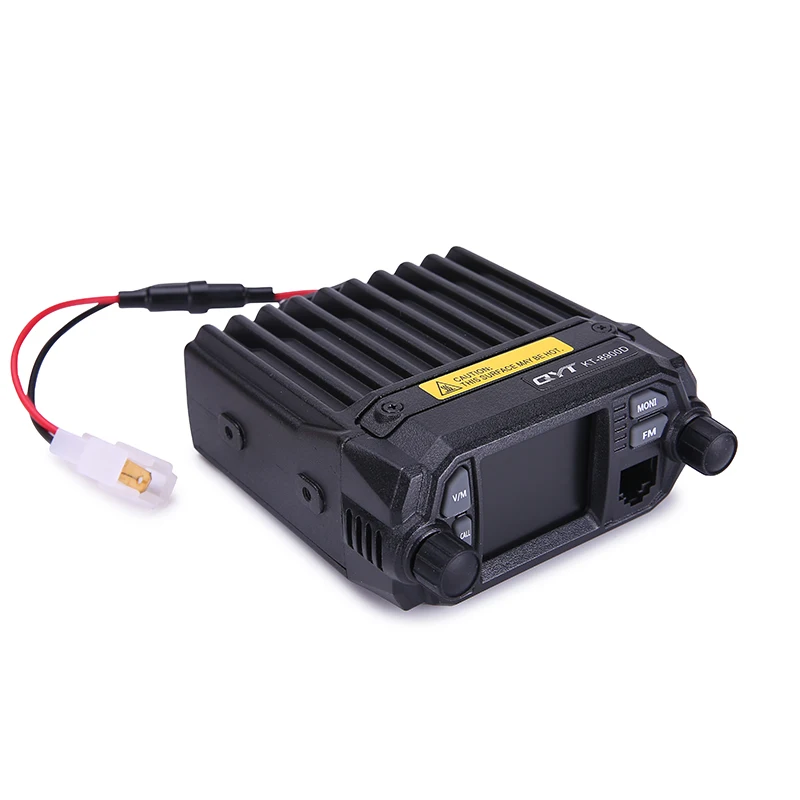

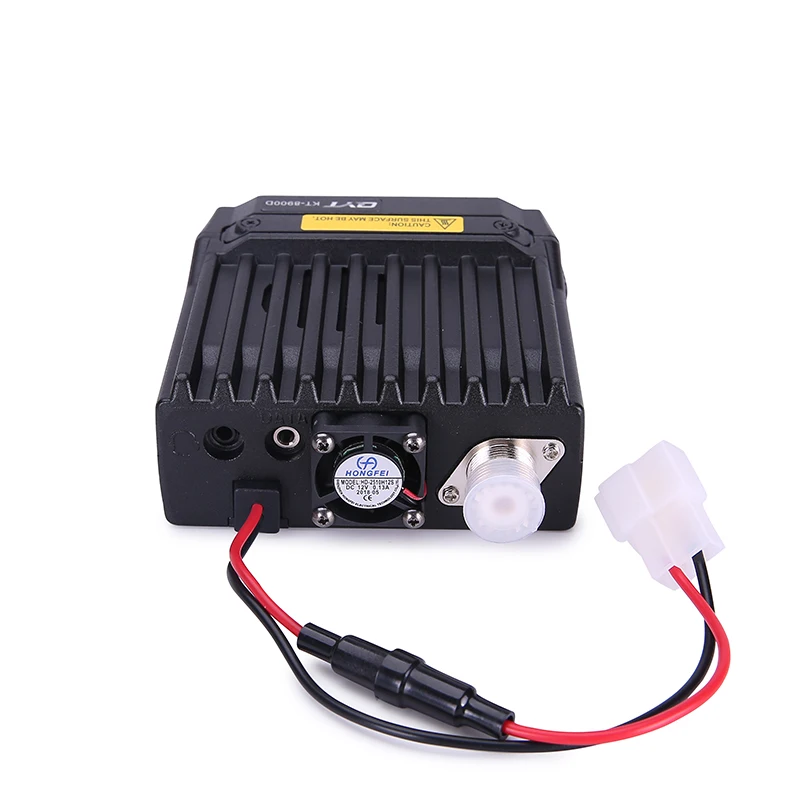

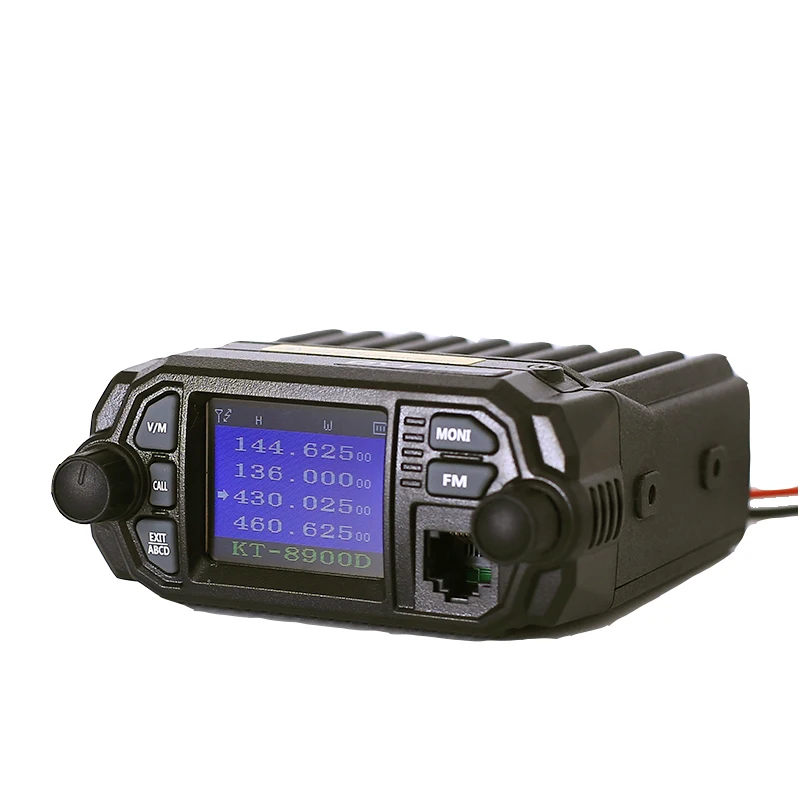

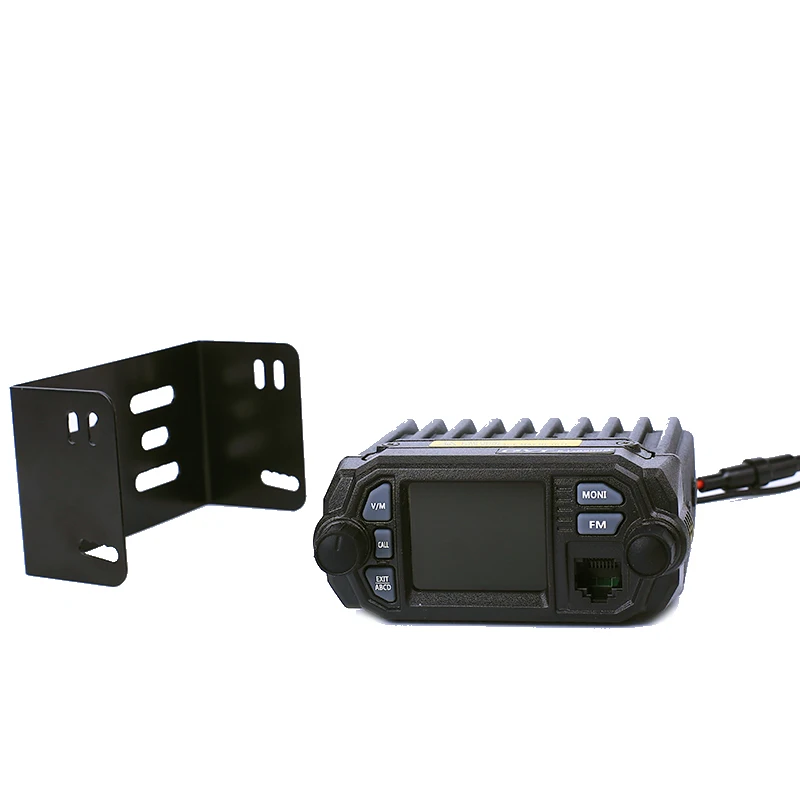

QYT KT 8900D Dual Band Mobile Radio Transceiver Ran Walkie Talkie with 20W Output for Vehicle Car Radio 136 174/400 480MHz
- Category: >>>
- Supplier: Math Mark (fujian) Communication Technology Corp. Ltd.
Share on (1601273221676):
Product Overview
Description
25W car mobile two way radio base vehicular interphone Walkie talkie
Product Description
SPECIFICATIONS
| GENERAL Walkie talkie | |
| Frequency Stability | ±2.5ppm |
| Frequency Range | VHF: 136-174MHz, UHF: 400-480MHz |
| Number of Channel | 200 |
| Input Voltage | 13.8V DC±15% |
| Dimensions (in mm) | 98 ( W ) * 43 ( H ) * 126 ( D ) mm |
| Weight | 448g |
| Phase lock step | 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz |
| Operating Temperature Range | -20℃ ~+60℃ |
| Squelch way | CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF |
| Channel Spacing | 25KHz, 20KHz, 12.5KHz |
| Output power | VHF 25W / UHF 20W |
| Receiver (ETSI EN 300 086 Standardized.Test) Wide Band Narrow band | |
| Sensitivity | ≤0.25μV ≤0.35μV |
| Channel chioce | ≤0.25μV ≥60dB |
| Intermodulation | ≥65dB ≥60dB |
| Spurious Rejection | ≥70dB ≥70dB |
| Audio response | +1~ -3dB ( 0.3~3KHz ) +1~ -3dB ( 0.3~2.55KHz ) |
| Signal to noise ratio | ≥45dB ≥40dB |
| Audio distortion | ≤5% |
| Audio output power | ≥2W±10% |
| Modulation Mode | 16KΦF3E 11KΦF3E |
| Channel Power | ≥70dB ≥60dB |
| Signal noise ratio | ≥40dB ≥36dB |
| Parasitic harmonic | ≥60dB ≥60dB |
| Audio response | +1~ -3dB(0.3~3KHz) +1~ -3dB(0.3~2.25KHz) |
| Audio distortion | ≤5% |
Hot Sale
Company Information

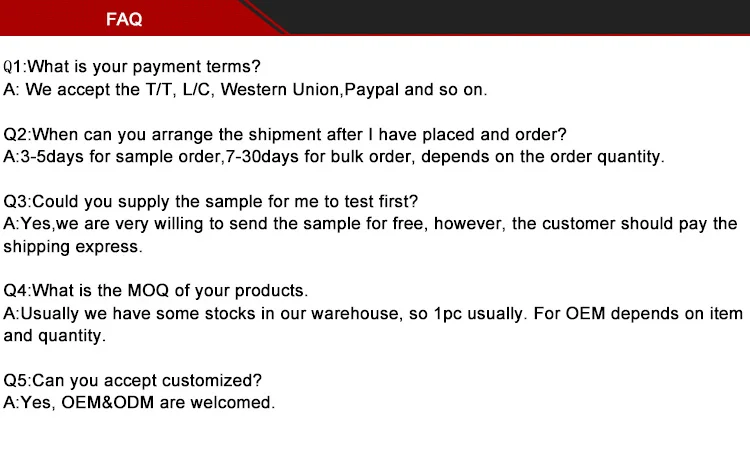

FAQ
