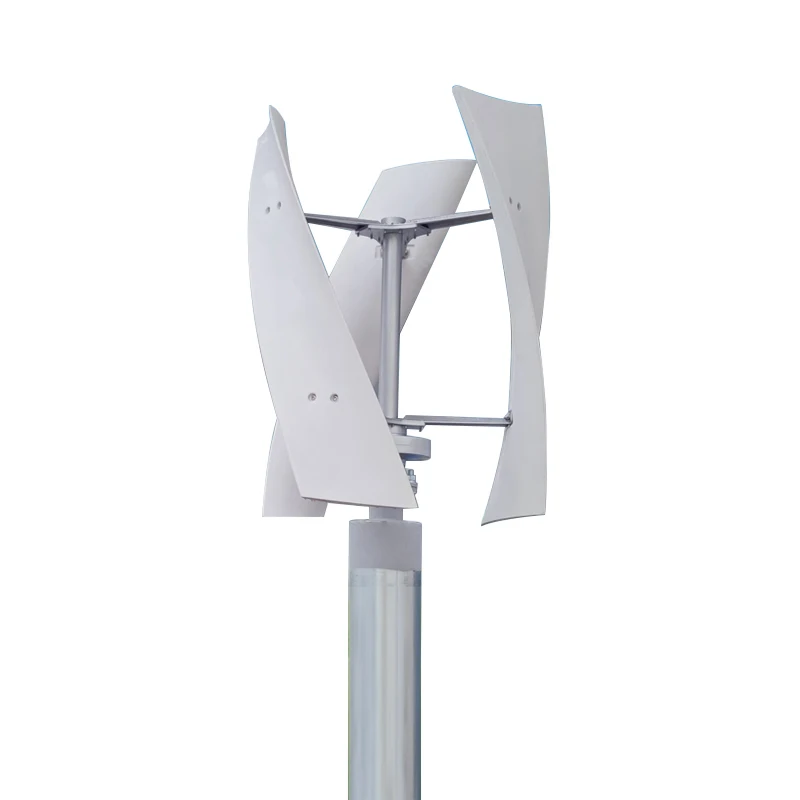

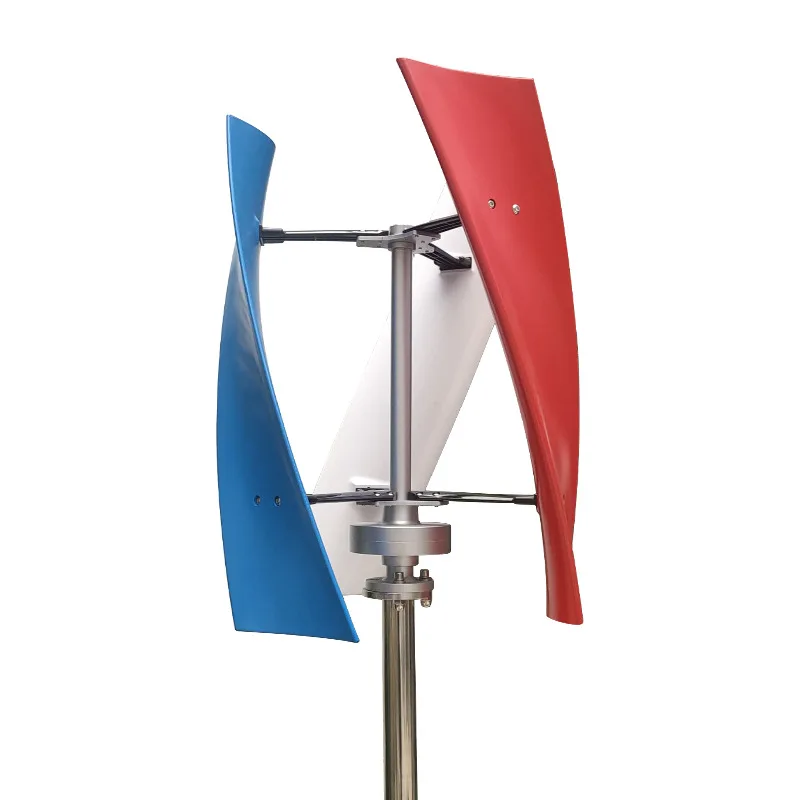

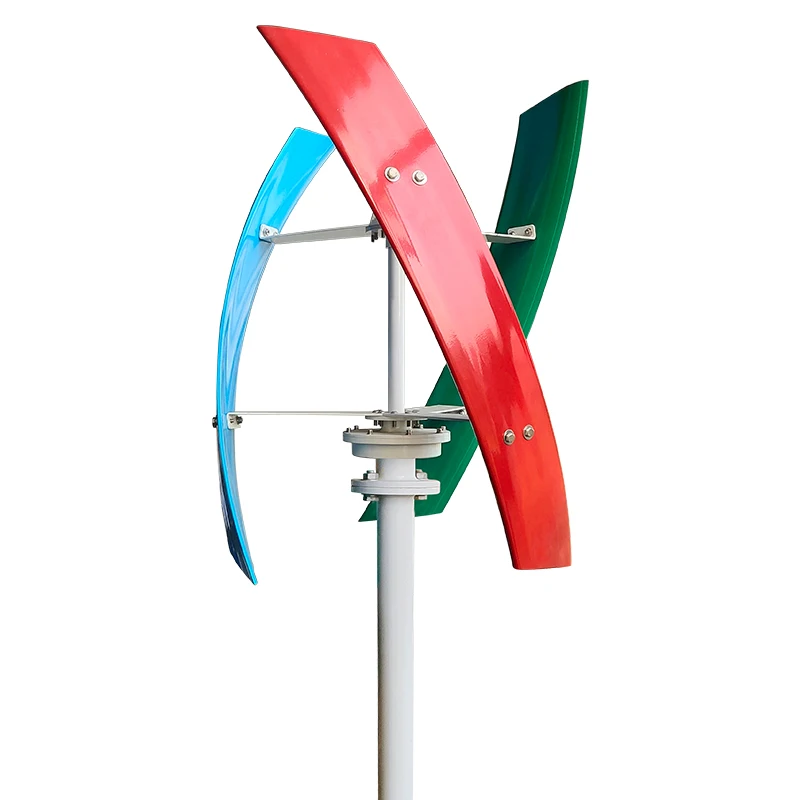

Wholesale Top High Efficiency Wind Solar Hybrid System vertical Axis Wind Turbine
- Category: >>>
- Supplier: Wuxi Yunxinda Technology Co. Ltd.Wuxi Ltd.
Share on (1601273227229):
Product Overview
Description
Products Description
Product Specifications
Model | XYD-1200 HF | YXD-1600 HF | YXD-2000 HF | ||
Average Power(/day) | 1200W | 1600W | 2000W | ||
Maximum power(/day) | 7200W | 9600W | 12000W | ||
Rated voltage | 24/48V | 24/48V | 24/48V | ||
Start up wind speed | 2.0m/s | 2.0m/s | 2.0m/s | ||
Rated wind speed | 10m/s | 10m/s | 10m/s | ||
Survival wind speed | 45m/s | 45m/s | 45m/s | ||
Top net weight | 12kg | 22.5kg | 24kg | ||
Wheel diameter | 0.6m | 0.6m | 0.6m | ||
Blades number | 3 | ||||
Blades material | ABS | ||||
Generator | Three phase permanent magnet ac generator | ||||
Magnetic steel | NdFeB | ||||
Generator case | Die-casting aluminum | ||||
Control system | Electromagnet/ wind wheel yaw | ||||
Speed regulation | Automatically adjust windward | ||||
Working temperature | -40℃～80℃ | ||||
Lubrication | Grease injection | ||||
