Black silicon carbide powder F240 F280 F320 F360/98% SiC grit for grinding & polishing
- Category: >>>
- Supplier: Zhengzhou Haixu Abrasives Co. Ltd.
Share on (1601273228331):
Product Overview
Description
Product Description
Black silicon carbide powder F240 F280 F320 F360/98% SiC grit for grinding & polishing
Black Silicon carbide powder is acid pickled an water separated powder with an extreme hardness after producing at high
temperature in an electric resistance type furnace with quarts sand and petroleum coke.
Black Silicon Carbide is produced by a process involving the electrochemical reaction of silica(SiO2) – in the form of quartz mixed with Carbon(C) in the form of raw petroleum coke. The stoichiometric mixture is reacted in an electrical resistance furnace at a temperature up to 2500℃ to yield high quality crystals. The process is large furnace technology with a graphite electrode in the furnace center. The large crystals are then segregated, crushed, cleaned of magnetic impurities in high intensity magnetic separators and classified into narrow size fractions to suit the end use. Dedicated lines produce products for different applications. The micro powder form silicon carbide from HAIXU Abrasives is with good size distribution, high purity, and low impurities.
temperature in an electric resistance type furnace with quarts sand and petroleum coke.
Black Silicon Carbide is produced by a process involving the electrochemical reaction of silica(SiO2) – in the form of quartz mixed with Carbon(C) in the form of raw petroleum coke. The stoichiometric mixture is reacted in an electrical resistance furnace at a temperature up to 2500℃ to yield high quality crystals. The process is large furnace technology with a graphite electrode in the furnace center. The large crystals are then segregated, crushed, cleaned of magnetic impurities in high intensity magnetic separators and classified into narrow size fractions to suit the end use. Dedicated lines produce products for different applications. The micro powder form silicon carbide from HAIXU Abrasives is with good size distribution, high purity, and low impurities.
Product feature
1.High hardness, retaining hardness and strength at high temperature.
2.High wear resistance.
3.Excellent thermal shock resistance with high thermal conductivity and low linear thermal expansion.
4.Good ability to withstand the strongest alkalis and acids.
2.High wear resistance.
3.Excellent thermal shock resistance with high thermal conductivity and low linear thermal expansion.
4.Good ability to withstand the strongest alkalis and acids.
Products Show
Specification
Chemical Compositions | ||||||
Grain size | SiC | F.C | Fe2O3 | |||
F8-F360 | SIC :98.5%min | F.C :0.2%max | Fe203:0.2%max | |||
F400-F600 | SIC :98.2%min | F.C :0.4%max | Fe203:0.4%max | |||
F800-F1200 | SIC :98.0%min | F.C :0.6%max | Fe203:0.6%max | |||
Typical Physical Properties | ||||||
Hardness: | Mohs:9.2 | |||||
Melting Point: | dissociated at about 2300 °C | |||||
Maximum service temperature: | 1900℃ | |||||
Specific Gravity: | 3.2-3.45 g/cm3 | |||||
Bulk density(LPD): | 1.2-1.6 g/cm3(depends on the size) | |||||
Color: | Black | |||||
Particle shape: | Hexagonal | |||||
Modulus of Elasticity | 58-65x106 psi | |||||
Coefficient of Thermal Expansion | 3.9-4.5 x10-6/ ℃ | |||||
Thermal Conductivity | 71-130 W/MK | |||||
Available Sizes | ||||||
FEPA | F230 F240 F280 F320 F360 F400 F500 F600 F800 F1000 F1200 F1500 F1200 | |||||
JIS | 240# 280# 320# 360# 400# 500# 600# 700# 800# 1000# 1200# 1500# 2000# 2500# 3000# 4000# 6000#8000# | |||||
FEPA-microgrits Sizes | ||||||
Grit designation | Mean grain size ds50-value in μm | |||||
F 230 | 53.0 ± 3 | |||||
F 240 | 44.5 ± 2 | |||||
F 280 | 36.5 ± 1.5 | |||||
F 320 | 29.2 ± 1.5 | |||||
F 360 | 22.8 ± 1.5 | |||||
F 400 | 17.3 ± 1 | |||||
F 500 | 12.8 ± 1 | |||||
F 600 | 9.3 ± 1 | |||||
F 800 | 6.5 ± 1 | |||||
F 1000 | 4.5 ± 0.8 | |||||
F 1200 | 3.0 ± 0.5 | |||||
Applications
1.Ceramic products like silicon carbide ceramic seal.
2.Lapping, polishing.
3.Insulation
4.Wire sawing
5.Cutting material such as stone, silicon wafers.
6.Raw material of Knife Grinder, Whetstone, oilstone, grinding stone, honing, sharpening sticks, etc.
7.Material of Polishing wax, polishing fluid, grinding powder, grinding fluid and so on
8.Wear-resisting floor and non-slip coating such as additive for epoxy resin floors.
2.Lapping, polishing.
3.Insulation
4.Wire sawing
5.Cutting material such as stone, silicon wafers.
6.Raw material of Knife Grinder, Whetstone, oilstone, grinding stone, honing, sharpening sticks, etc.
7.Material of Polishing wax, polishing fluid, grinding powder, grinding fluid and so on
8.Wear-resisting floor and non-slip coating such as additive for epoxy resin floors.
9.Brake linings.
10.Semiconductor industry.
10.Semiconductor industry.
sharpening stone
jade lapping
silicon carbide accessories
Production Process

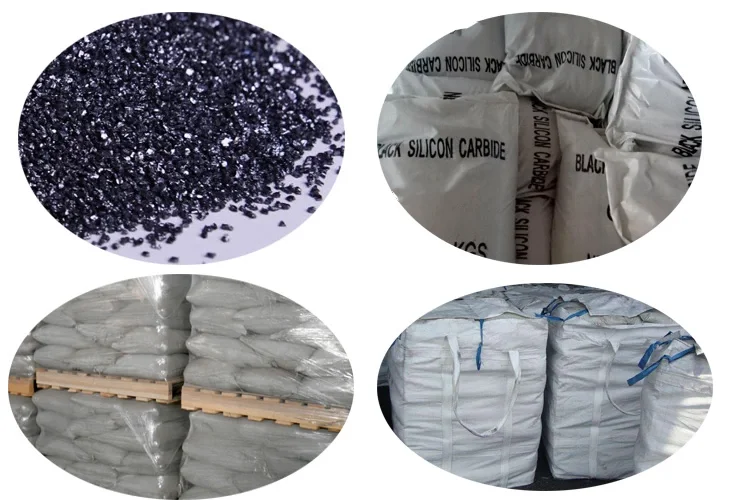

Packing & Delivery
Company Profie
Factory
Certificate：
Warehouse
Sales service Team
TUV
ISO9001
SGS
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Q:Which region is your main market？
A:We have many customers from South Korea, Japan, Russia, North America. Most of those clients cooperated with us more than 10 years. silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder silicon carbide powder
