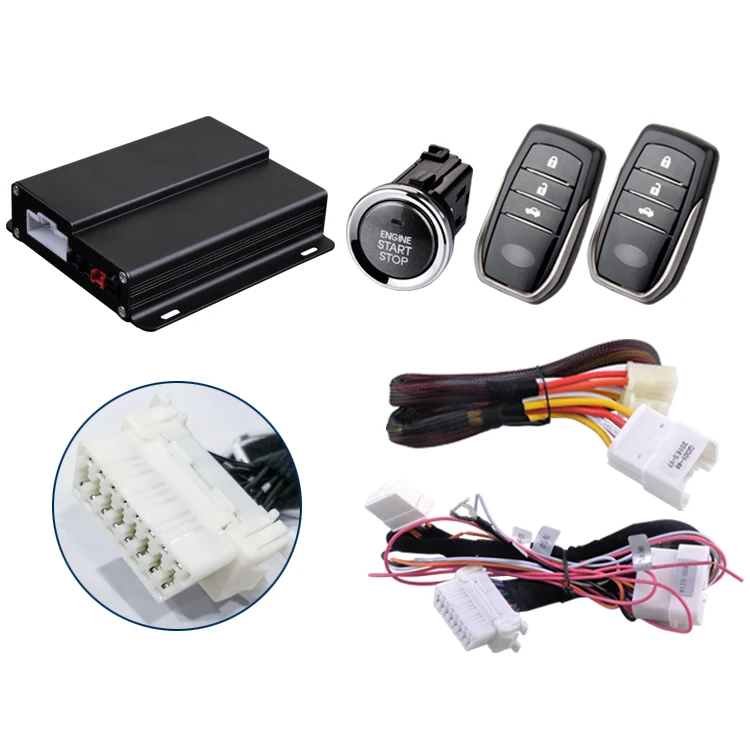

OVI Factory Wholesale Price: Plug and Play NFC Keyless Entry Car Alarm System with Engine Start Button for Toyota RAV4

Product Overview

Description

                                            Technical Data

Main Unit System	Starting System	Remote Control
Working Voltage:DC12V±2V	Working Voltage:DC12V±2V	Working Voltage:DC 2-3.5V
Static Current:20mA	ACC Current:30A	Static Current:8μA
Induced Emission Current:45mA	ON Current:30A	Battery Specifications CR2032
Working Frequency: 433.92MHz 125khz	Start Current:30A	Working Frequency:433.92MHz 125khz





Technical Parameters

Control Module:

Working Voltage: 12V + 2V

Static Current: 20mA

Induction Current: 45mA

Working Frequency: 433.92Mhz / 125Khz

Start System:

Working Voltage: 12V + 2V

ACC Current: 30A

ON Current: 30A

Start Current: 30A

Remote Control:

Working Voltage: 2-3.5V

Static Current: 8uA

Battery Specs: CR2032

Working Frequency: 433.92Mhz / 125Khz



lntroduction to 8100

1. Plug and play, no damage to the original car circuit, CAN bus compatible.

2.Although our equipment is designed on a plug and play basis, we do not provide installation services directly, if you are inexperienced in installing car alarms, we strongly recommend that you seek a trained person or a professional car alarm installer to perform the installation to ensure the best results and safety.

3. Furthermore, the parts you receive may vary slightly from those shown in the picture, which is normal as parts can differ among different car models.

Main Features:

1.Plug and play, CAN BUS compatible

2.PKE - passive keyless entry

3.Manual arm/lock & disarm/unlock

4.Mute/audible alarm

5.Remote trunk release

6.Panic mode

7.Valet mode on/off setting

8.Remote engine start/stop

9.Anti-hijacking

10.Central door locking automation

11.Password/NFC to lock or unlock the car

12.Emergency override

13.Automatic window closing

14.Password revise & reset

15.Parameter prolong setting

16.Programming method

17.Dome light supervision (optional)

18.Alarm trigger by illegal door opening

19.Power off memory

20.Door unlock warning

21.ACC ON warning

22.Power saving & car battery low power protection



Attention!!

Dear Customer:

Please read the following instructions carefully before purchasing:

Differences between 8100 and 9100:

The 9100 is a general-purpose version,  you need to manually connect all the wires;  The 8100 kit has a plug-and-play design .

The 8100-Toyota RAV4  plug-and-play PKE system is designed for the  2014 to 2019 Toyota  RAV4 models.

To ensure that the correct software version is installed for your vehicle, please inform us of the year your car was built.

We also offer a wide range of plug-and-play products for other Toyota models.

If you have any needs or questions, please feel free to contact us!
