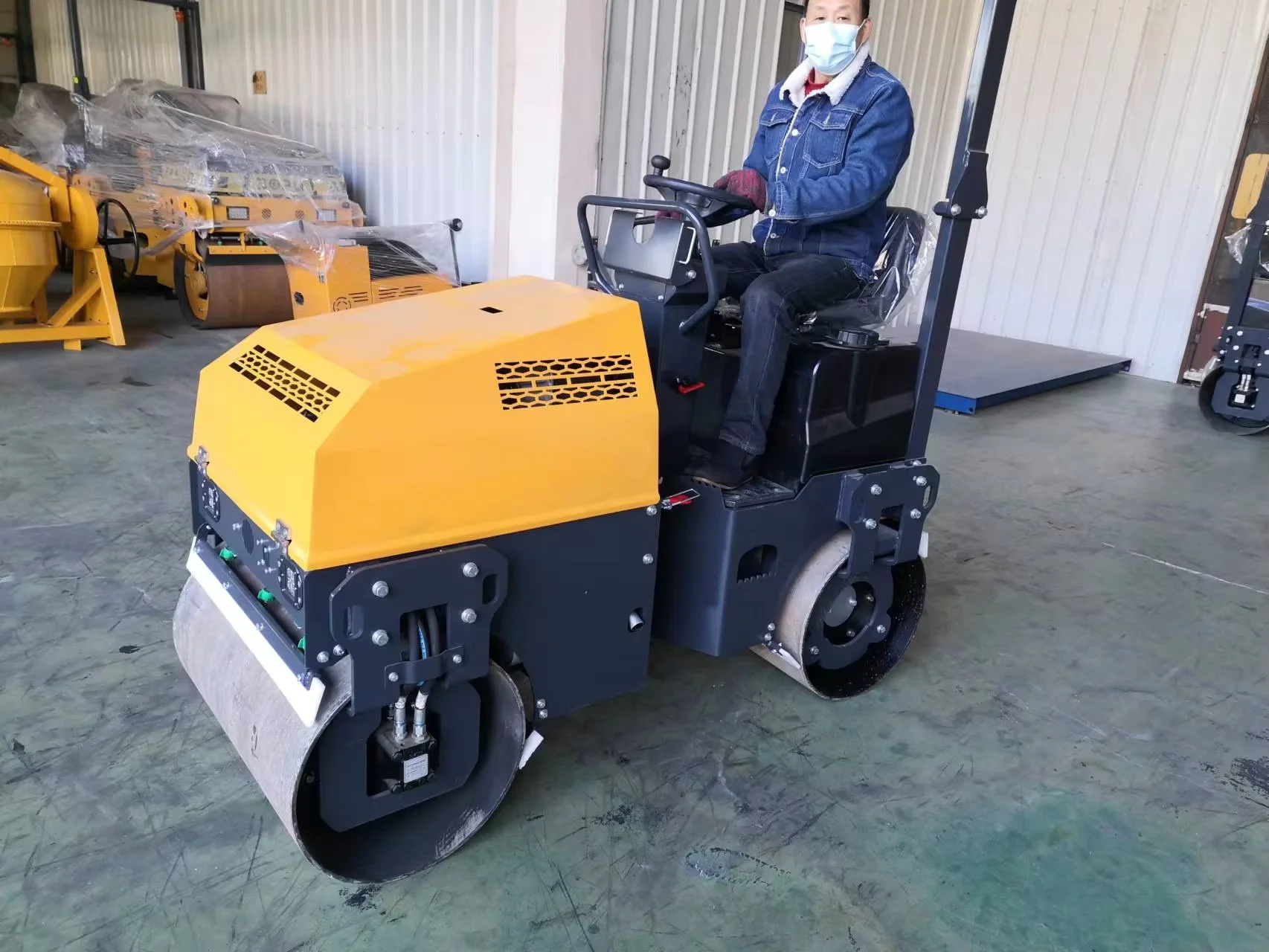

20KN Ride On Double Drum Wheel Hydraulic Drive Type Asphalt Concrete Vibrator Compactor Drivable Small Road Roller Machine
- Category: >>>
- Supplier: Ningbo Bopu Engineering Machinery Co. Ltd.
Share on (1601273290183):
Product Overview
Description
Details Images
Model | RZ212V |
Weight | 1050kg |
Max.Working Weight | 1200kg |
Triction | |
Rated Speed | 0-7km/h |
Vertical Pendulum Angle | ±7° |
Gradeability | 35% (no vibration) |
Compacting | |
Centrifugal Force | 20KN |
Static Line Force | 77 / 79 N/cm |
Vibration Frequency | 60Hz |
Water Tank Capacity | 50L |
Engine | |
Manufacturer | HAIRUN 198FE |
Type | Single Cylinder Air-Cooled Diesel Engine |
Rated Power | 10.5Kw |
Oil Capacity | 5.5L |
Hydraulic System | |
Drive Type | Hydraulic Cylinder Motor Drive |
Vibration Type | Hydraulic Vibrate |
Steering Type | Hydraulic Steering |
Damping Type | Rubber Damping At The Wheel Edge |
Measurement | |
Whole Machine Size | 1900×882×2118mm |
Packing Size | 1900×882×2118mm |
Drum Size | 500×800mm |
HAIRUN 198FE
Adopting Single Cylinder Air-Cooled Diesel Engine with superior performance and certain advantages High power and high efficiency.
Scraper
Road roller equipped with scraper device can keep the wheel clean when the roller is equipped with the roller.
Hydraulic Motor
Hydraulic system, convenient operation, high efficiency and long service life.
Spray-coated treated
The surface is sprayed with plastic, with strong anti-rust ability and beautiful appearance.
Climbing ability 35%
High frequency vibration, strong compaction ability, compact structure and small welt distance.
Driver's seat
The driving roller has strong power, saving time and effort, and it is safer with emergency braking.
Recommend Products
Road Roller : It can be used for compacting soil, asphalt roads, sidewalks, bridges and culverts, parking lots, sports grounds and narrow-site compaction operations. Vertical vibration, high excitation force and high compaction efficiency are the ideal equipment for roads, streets and squares built by highways and municipal departments.
