Product Description

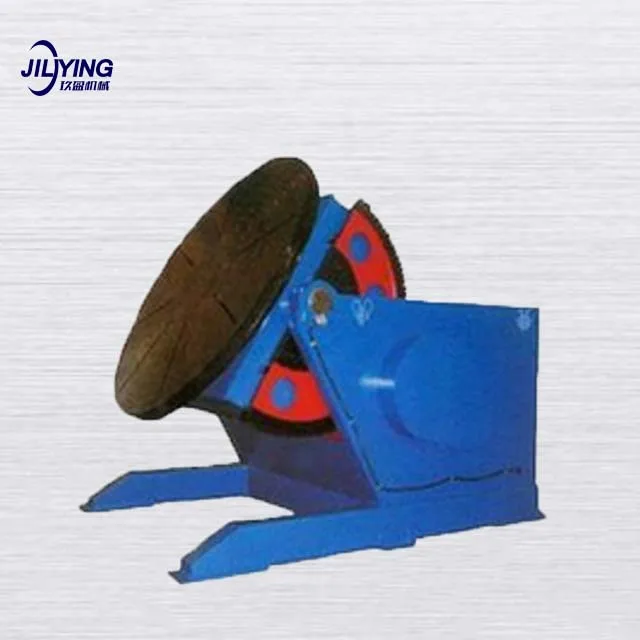

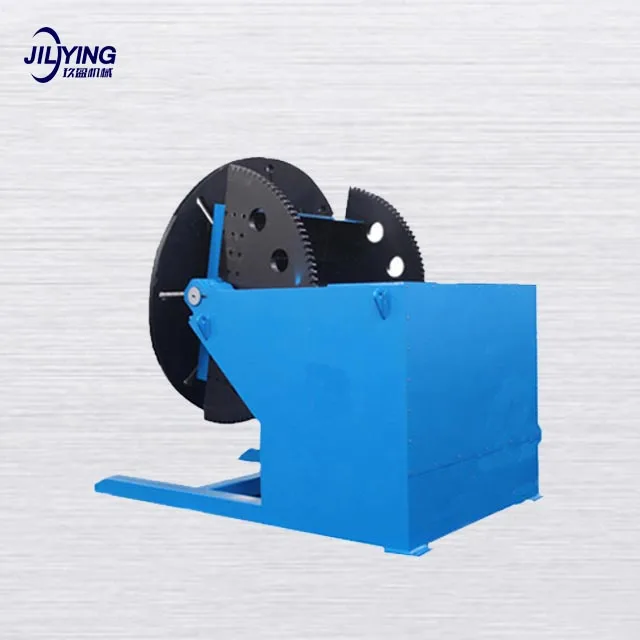

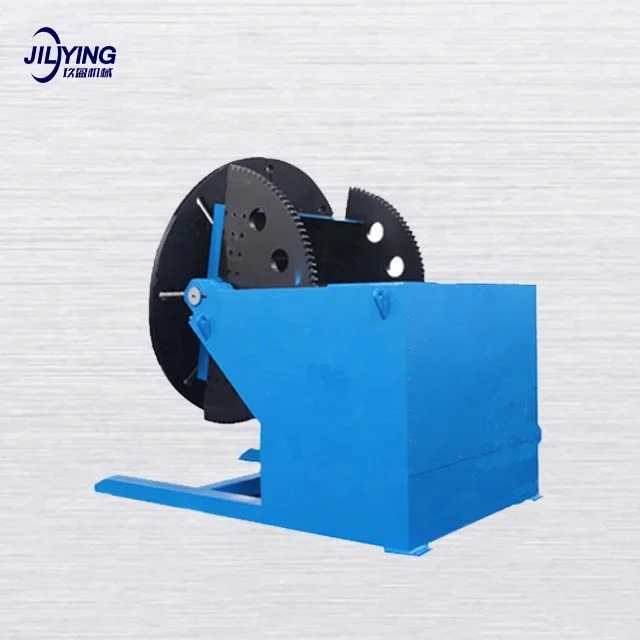

For Sell Table Manual Welding Positioner Turntable
The positioner is a special welding auxiliary equipment, which is suitable for the welding position of the rotary work to obtain the ideal processing position and welding speed. It can be used with manipulators and welding machines to form an automatic welding center. It can also be used for workpiece displacement during manual operations. The table rotation adopts frequency converter stepless speed regulation, with high speed regulation accuracy. The remote control box can realize the remote operation of the workbench, and can also be connected with the operating machine and the welding machine control system to realize the linkage operation.
The positioner can work together with the welding column and arm to realize the automation of the dedicated welding center.
As a peripheral device of the robot, it can also work with the robot to realize automatic welding.
Automatic tilt positioning machine/turntable series can be divided into side tilting type, head and tail rotating type, head and
tail rack lifting and rotating type, head and tail rack tilting type, and double rotating type positioning machine.
As a peripheral device of the robot, it can also work with the robot to realize automatic welding.
Automatic tilt positioning machine/turntable series can be divided into side tilting type, head and tail rotating type, head and
tail rack lifting and rotating type, head and tail rack tilting type, and double rotating type positioning machine.
The automatic tilt positioning machine/turntable is mainly composed of a table turning unit and a tilting unit.
The worktable is lifted, tilted and rotated, and the workpiece is fixed on the worktable, which can be placed in the ideal
position for welding and assembly.
We can design custom positioners according to customers' workpieces and welding processes.
The worktable is lifted, tilted and rotated, and the workpiece is fixed on the worktable, which can be placed in the ideal
position for welding and assembly.
We can design custom positioners according to customers' workpieces and welding processes.
Product Details
1. Through rotating or tilting the work table, Block-type positioner is the device making the weld seam in a horizontal or
boat-shaped position.

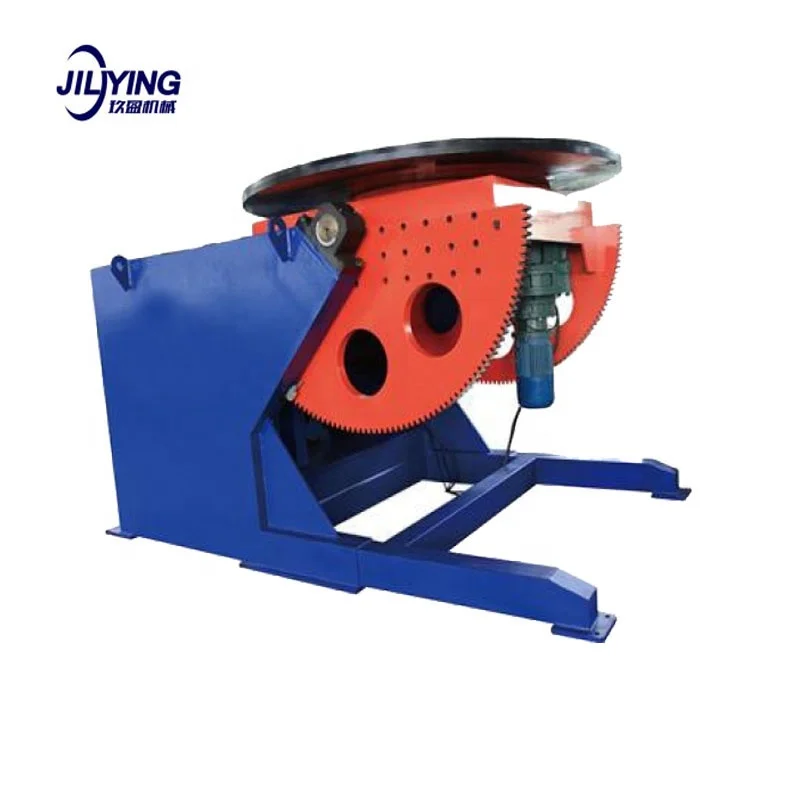

2. Work table rotate by using frequency conversion stepless, while the sector gear and hydraulic cylinder drive table tilt.
3. Table turning angle is 0 ° ~ 120 °.
boat-shaped position.
2. Work table rotate by using frequency conversion stepless, while the sector gear and hydraulic cylinder drive table tilt.
3. Table turning angle is 0 ° ~ 120 °.
Specification
Model No. | BW-6 | BW-40 | BW-50 | BW-100 | BW-150 | BW-200 | ||
Basic loading(kg) | 600 | 4000 | 5000 | 10000 | 15000 | 20000 | ||
Rotating speed r/min | 0.05-0.5 | 0.03-0.3 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 | ||
Turning speed r/min | 0.75 | 0.37 | 0.25 | 0.2 | 0.15 | 0.15 | ||
Turning angle | 0-120 | 0-120 | 0-120 | 0-120 | 0-90 | 0-90 | ||
Work table diameter(mm) | 800 | 1400 | 1600 | 2000 | 2200 | 2500 | ||
Height of work table(mm) | 1000 | 1600 | 1800 | 2100 | 2300 | 2600 | ||
Allow workpiece | Eccentricity | 150 | 200 | 200 | 200 | 200 | 200 | |
off-center(mm) | Centroidal distance | 200 | 300 | 300 | 540 | 500 | 600 | |
Rotating motor power(kw) | 0.37 | 2.2 | 2.2 | 5.5 | 4 | 5.5 | ||
Turning motor power(kw) | 0.75 | 3 | 3 | 3 | 7.5 | 11 | ||
