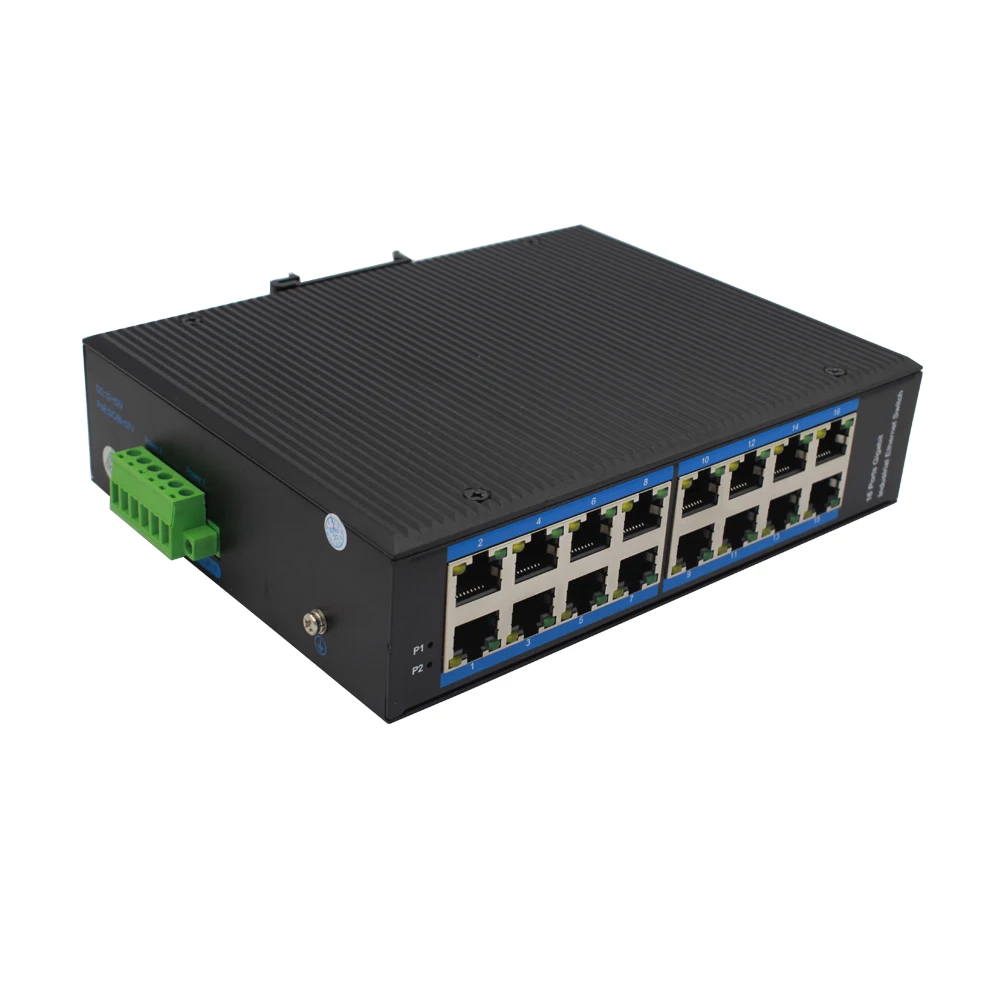

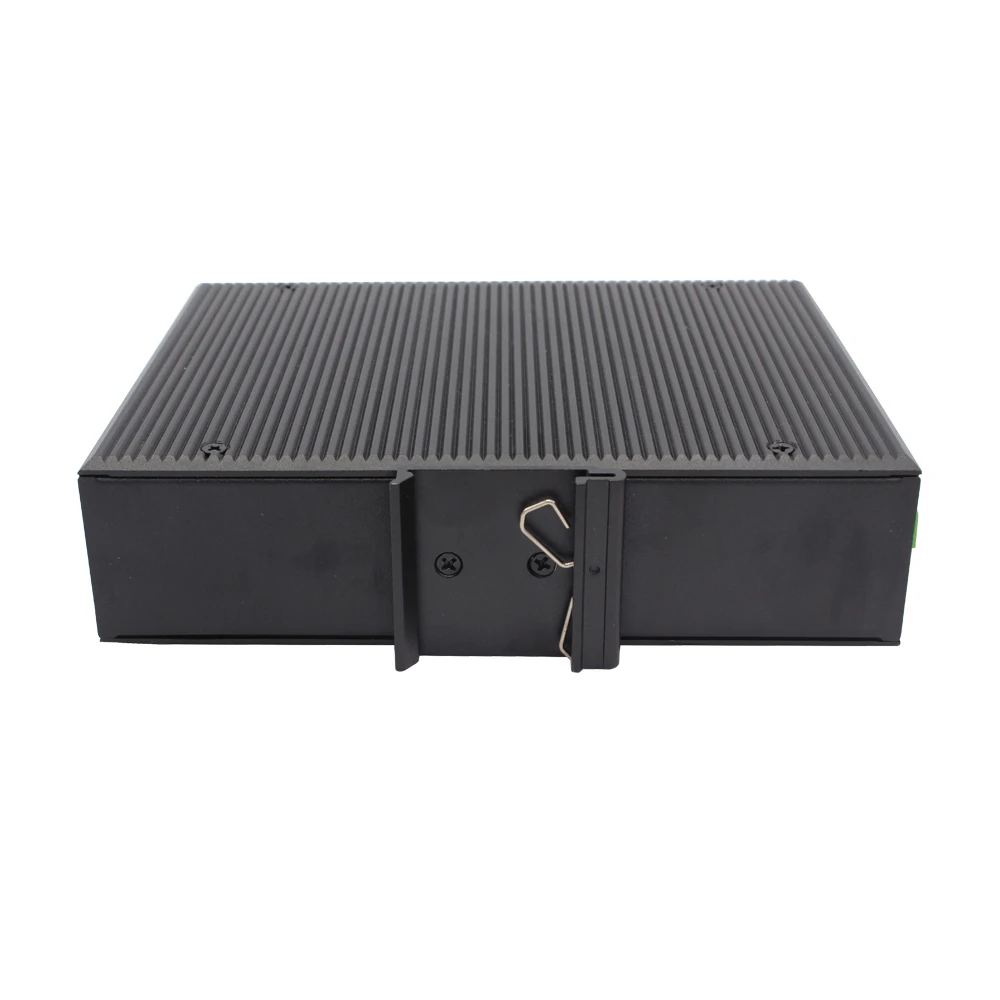

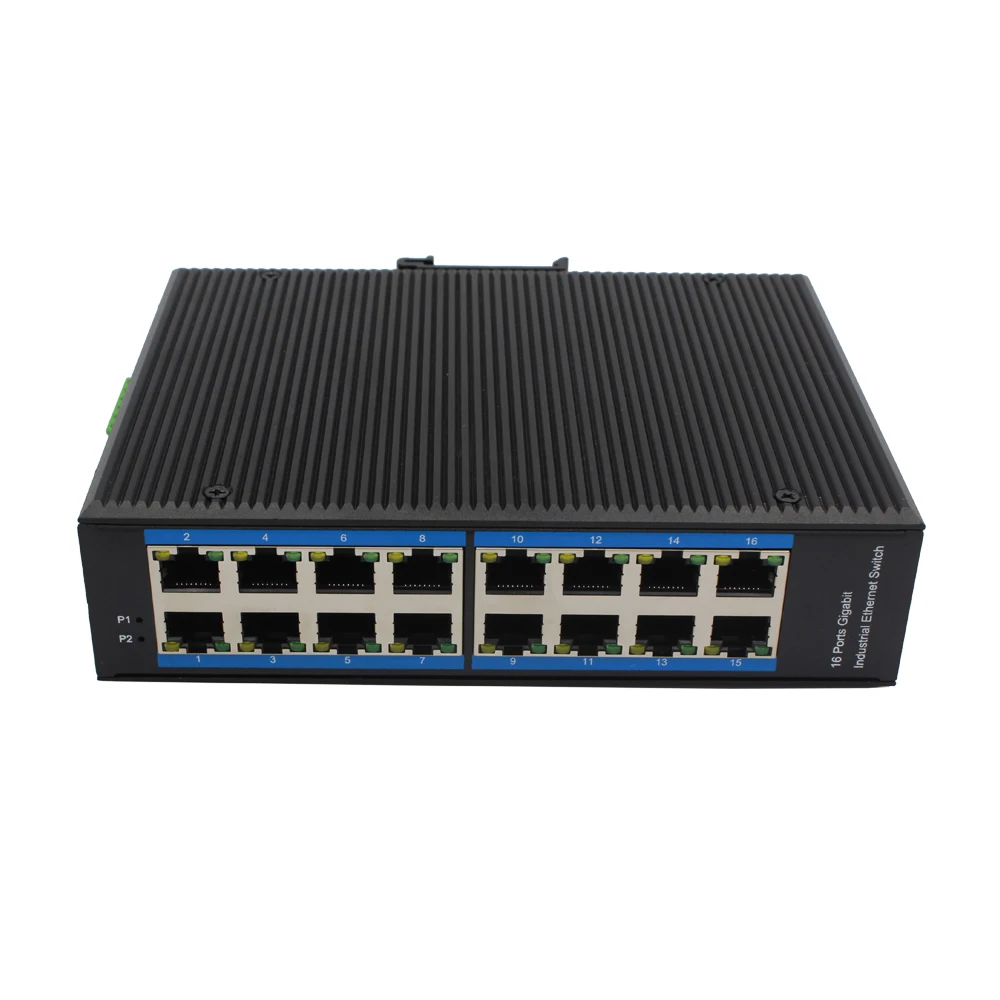

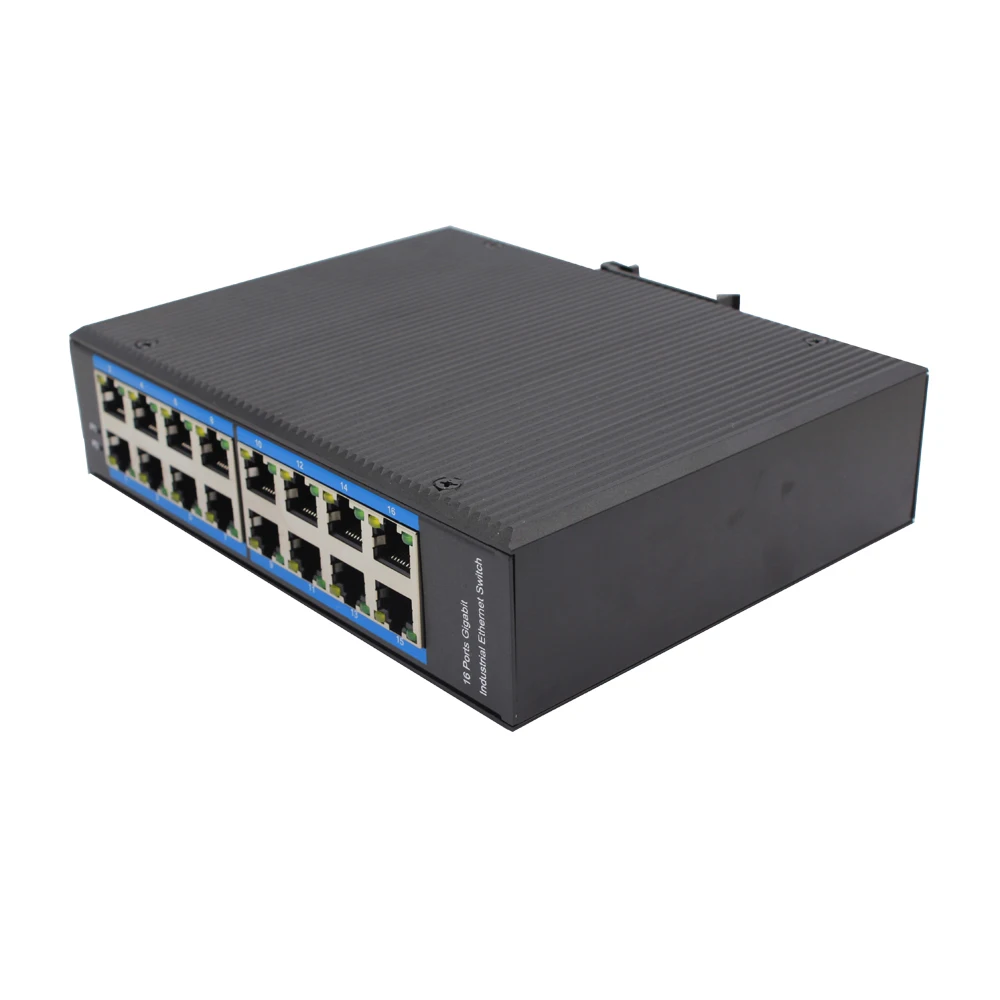

Gigabit 16 port Switch Industrial Grade 10/100/1000Base T 16 UTP Port 24V Supply Din Rail Mount for outdoor CCTV
- Category: >>>
- Supplier: Shenzhen Nufiber Technology Co. Ltd.
Share on (1601273293746):
Product Overview
Description

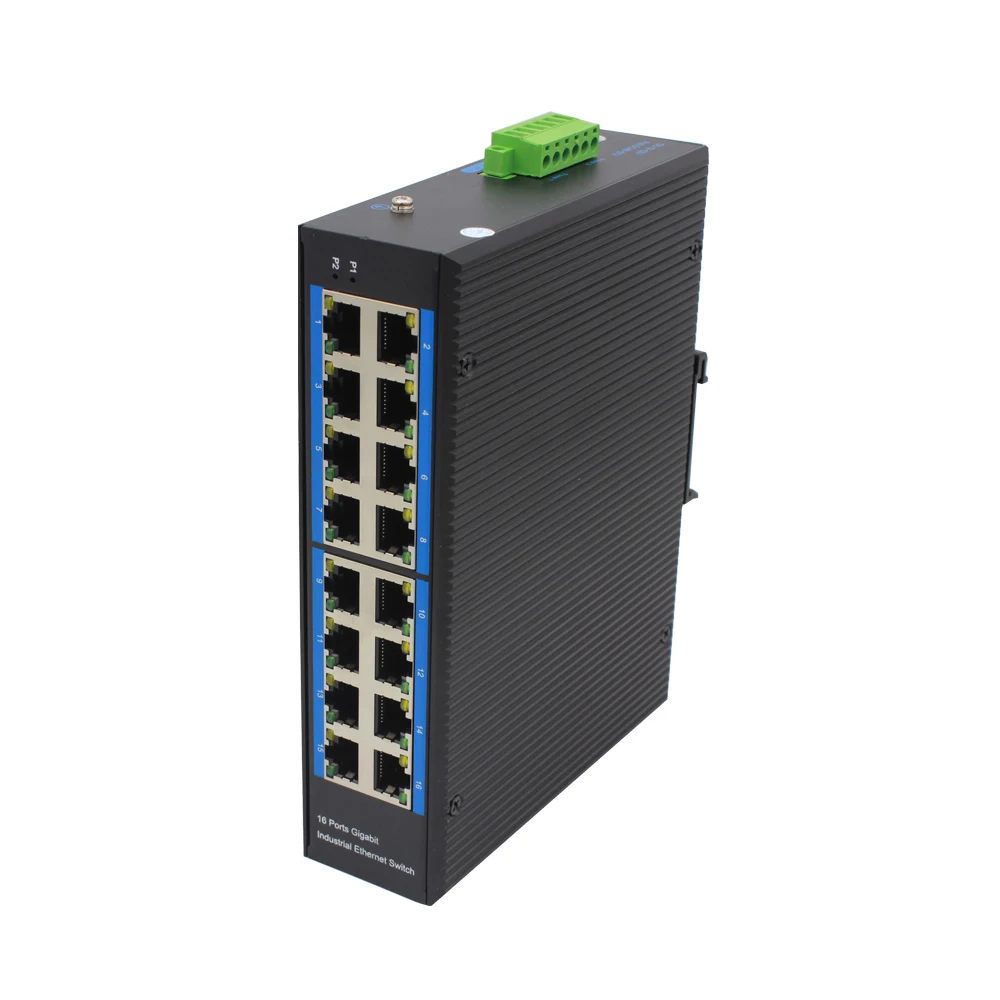

Gigabit 16-port Switch Industrial Grade 10/100/1000Base-T 16 UTP Port 24V Supply Din Rail Mount for outdoor CCTV
Product Description
NF5016G an hardened 16-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 16-port 10/100/1000BASE-TX RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.
The NF5016G series provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
Key Feature
16Port 10/100/1000Mbps Ethernet with Auto Uplink™ |
Automatic MAC address learning and aging |
Automatically support IGMP (Multicasting) |
10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X |
LED indicators for monitoring power/link/activity |
Supports 10/100/1000Mbps-Full/Half-duplex |
Supports Wall-mount and DIN-Rail installation for lightning protection |
Supports Broadcast Storm Control |
Super lightening protection, IP40 protection |
Excellent heat elimination without cooling fan |
| Redundant dual DC power inputs |
Redundant Power Inputs |
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City. |
Harsh industrial environment or higher requirement |
-40℃-85℃ operating temperature range |
3-Year Warranty |
Technical Parameter
| Product Name | 16 Port 10/100/1000Base Industrial Ethernet Switch |
| Product Model | NF5016G |
| Interface | 16x10/100/1000Base-T Ethernet port with Auto Uplink™ |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Performance Specification | Bandwidth: 56Gbps Packet Buffer Memory:12M Packet Forwarding Rate:42Mpps MAC Address Table: 8K |
| Forwarding Mode | Store-and-Forward |
| Protection | Lightening protection, IP40 protection |
| LED Indicators | Power: PWR; Link; Link/Act |
| Power Supply | Input Power: 48~57VDC (Terminal Block) |

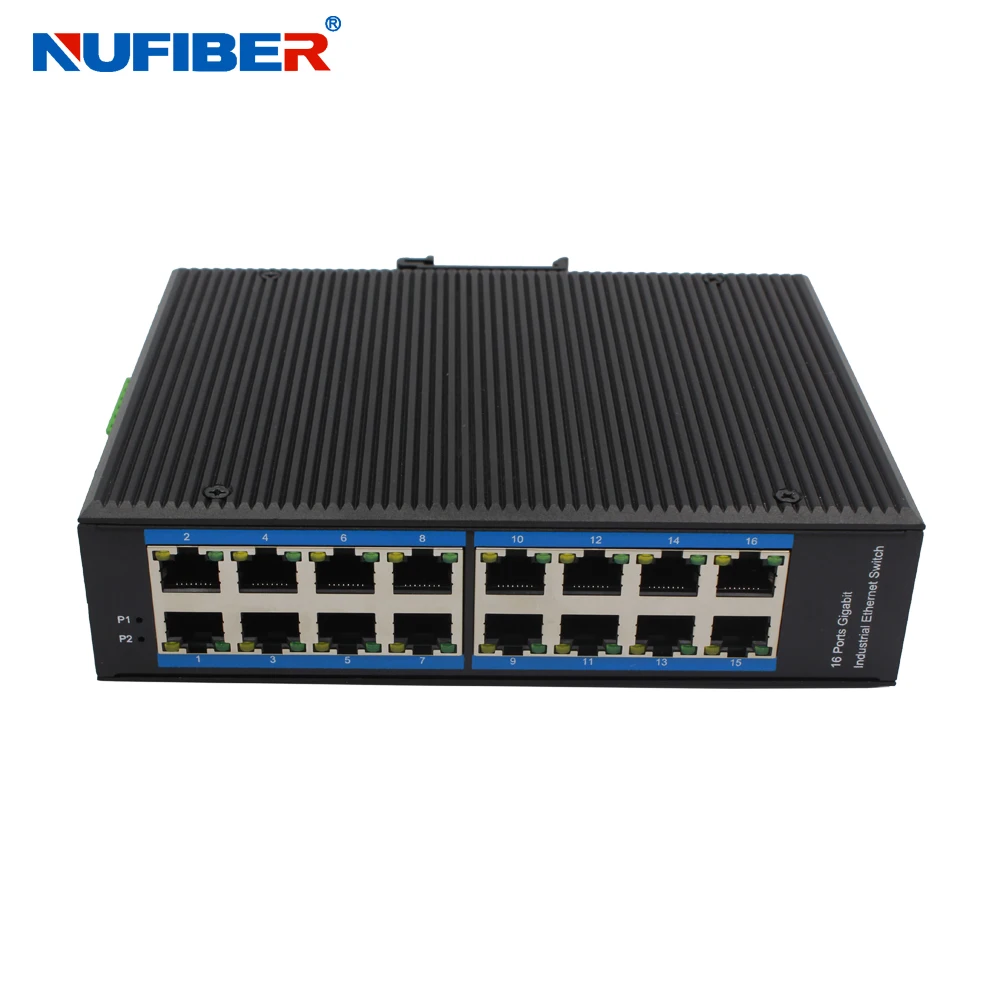

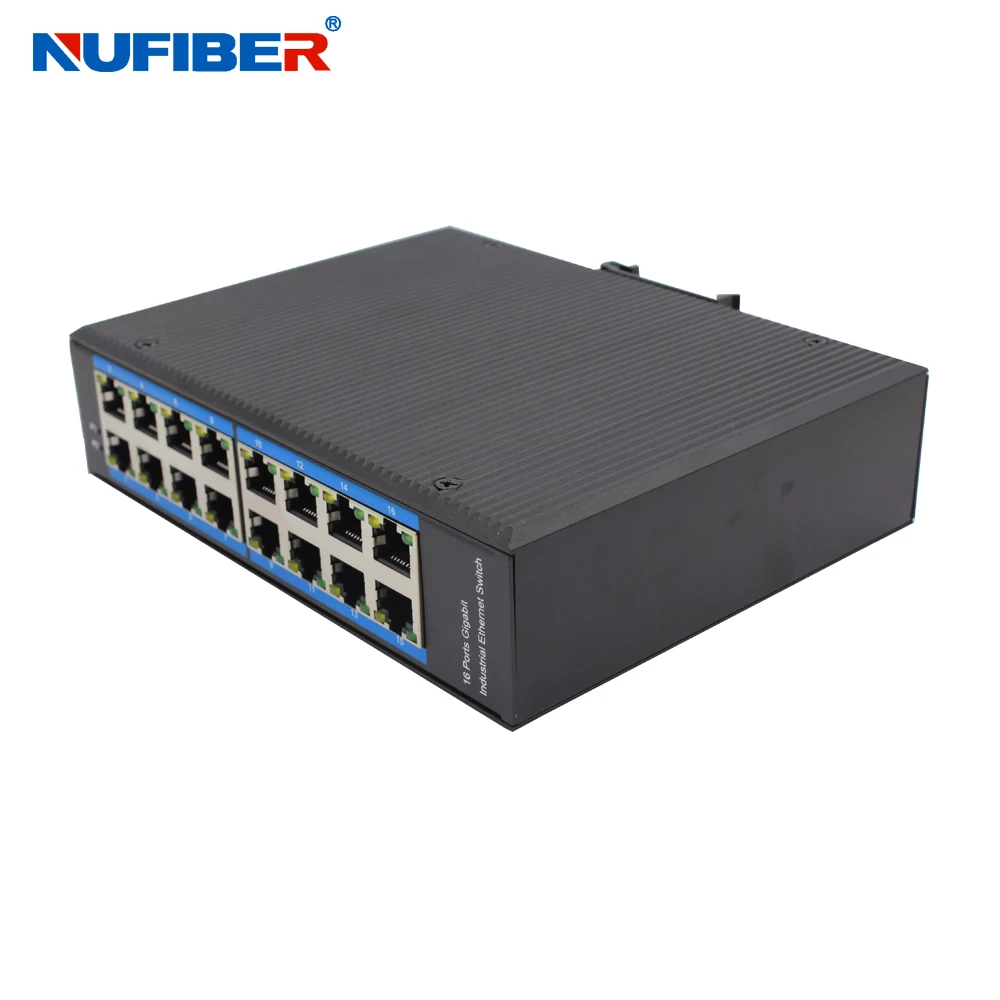

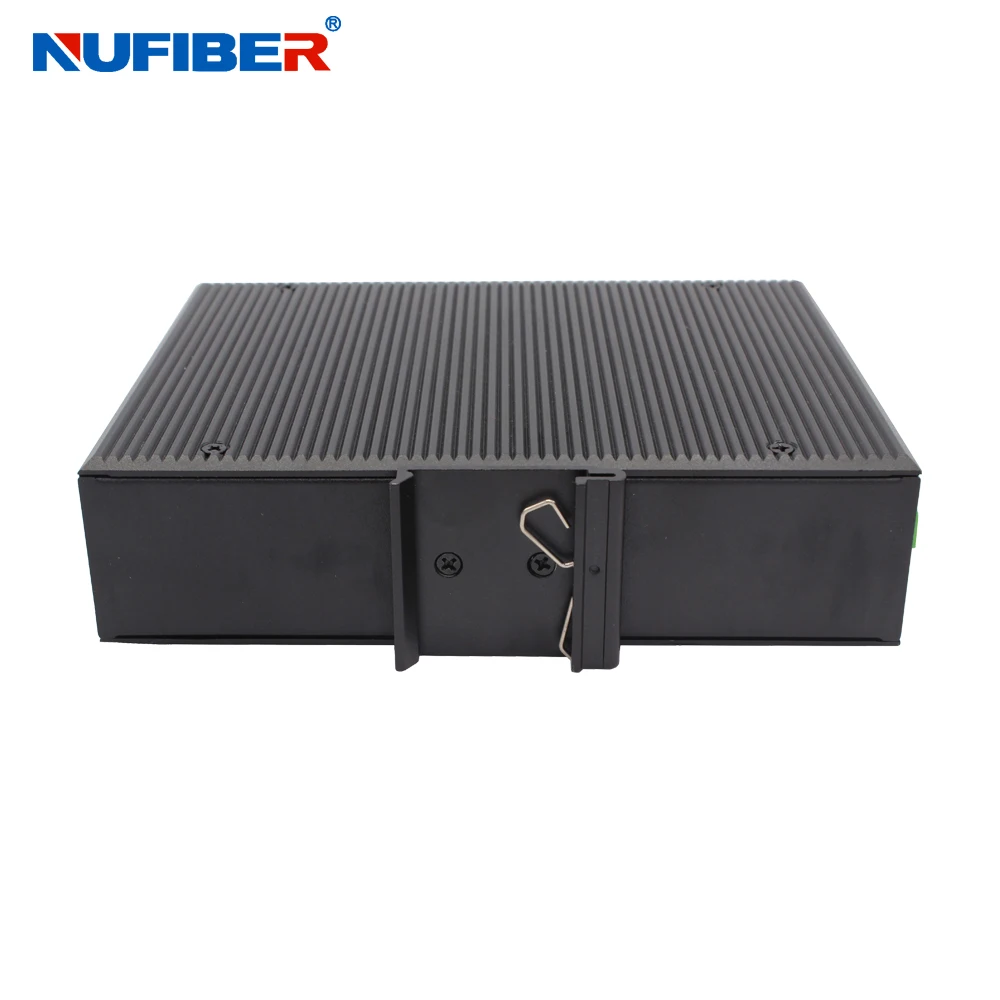

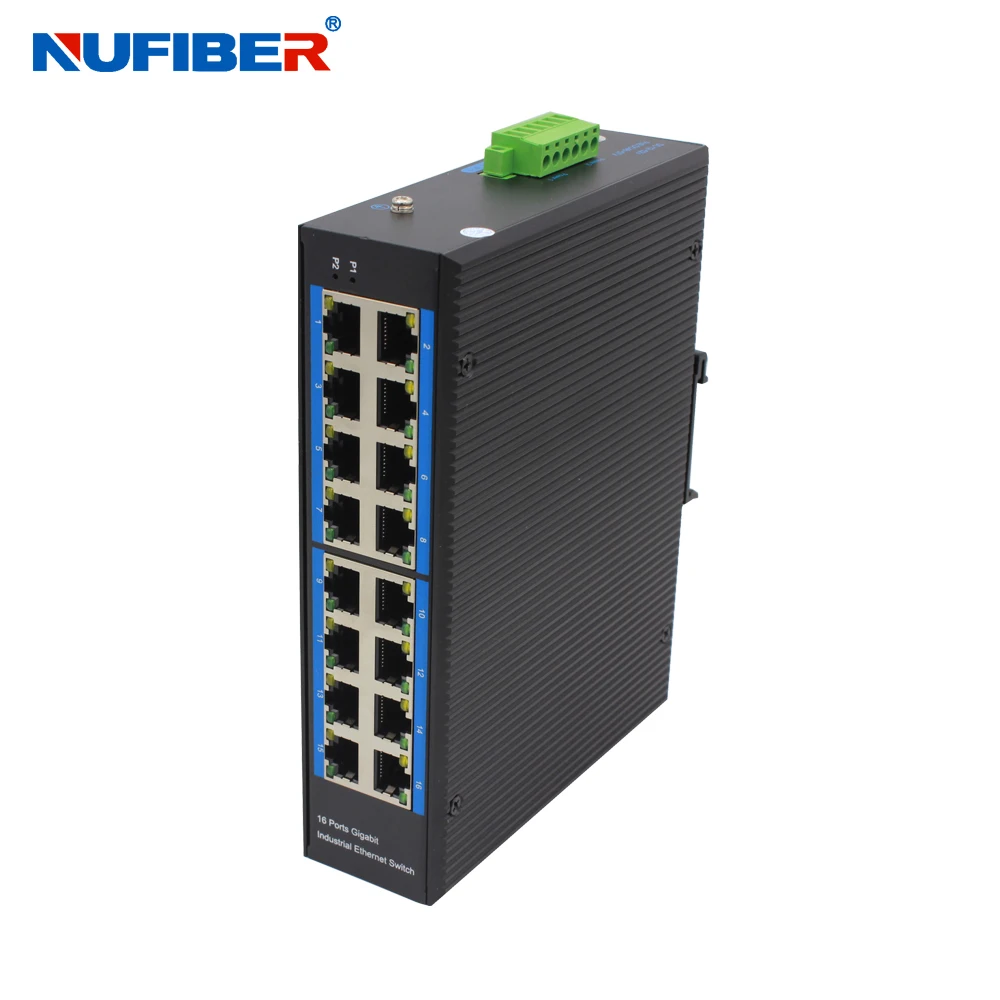

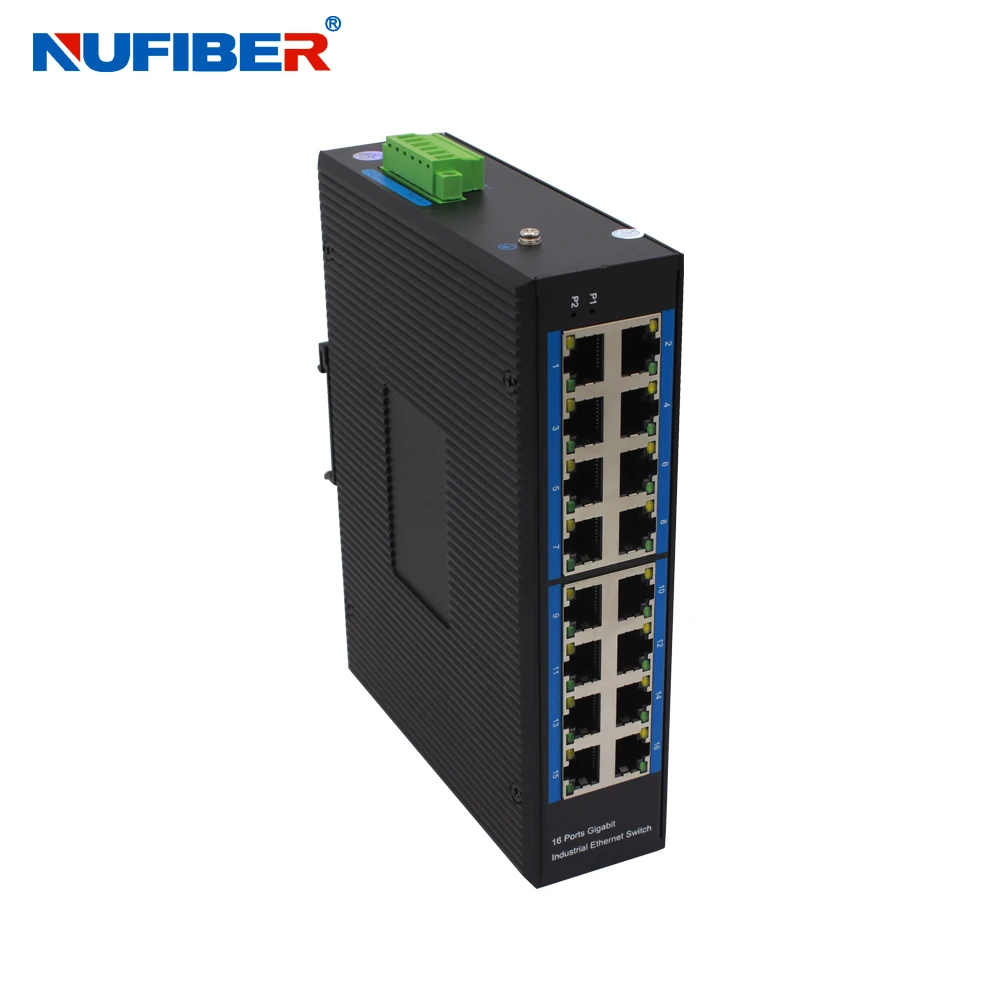

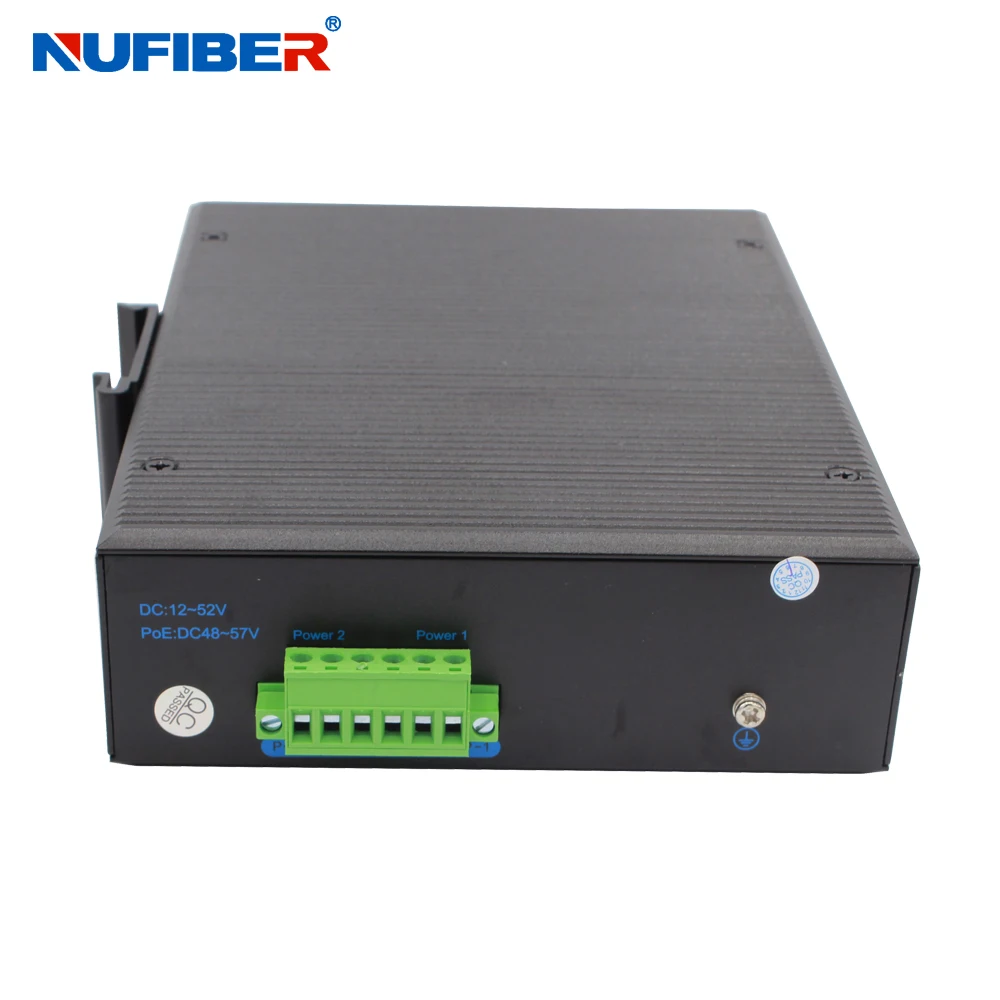

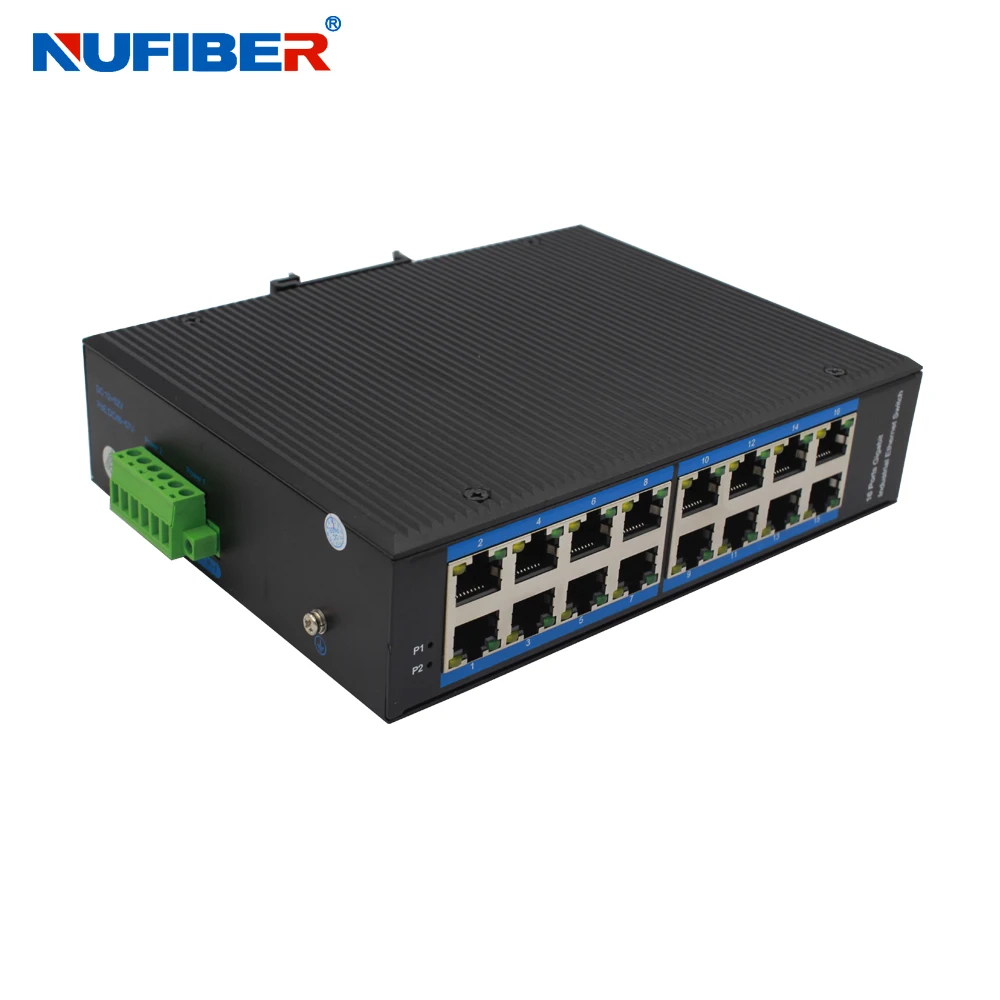

Product Show
Packaging & Shipping
Advantages

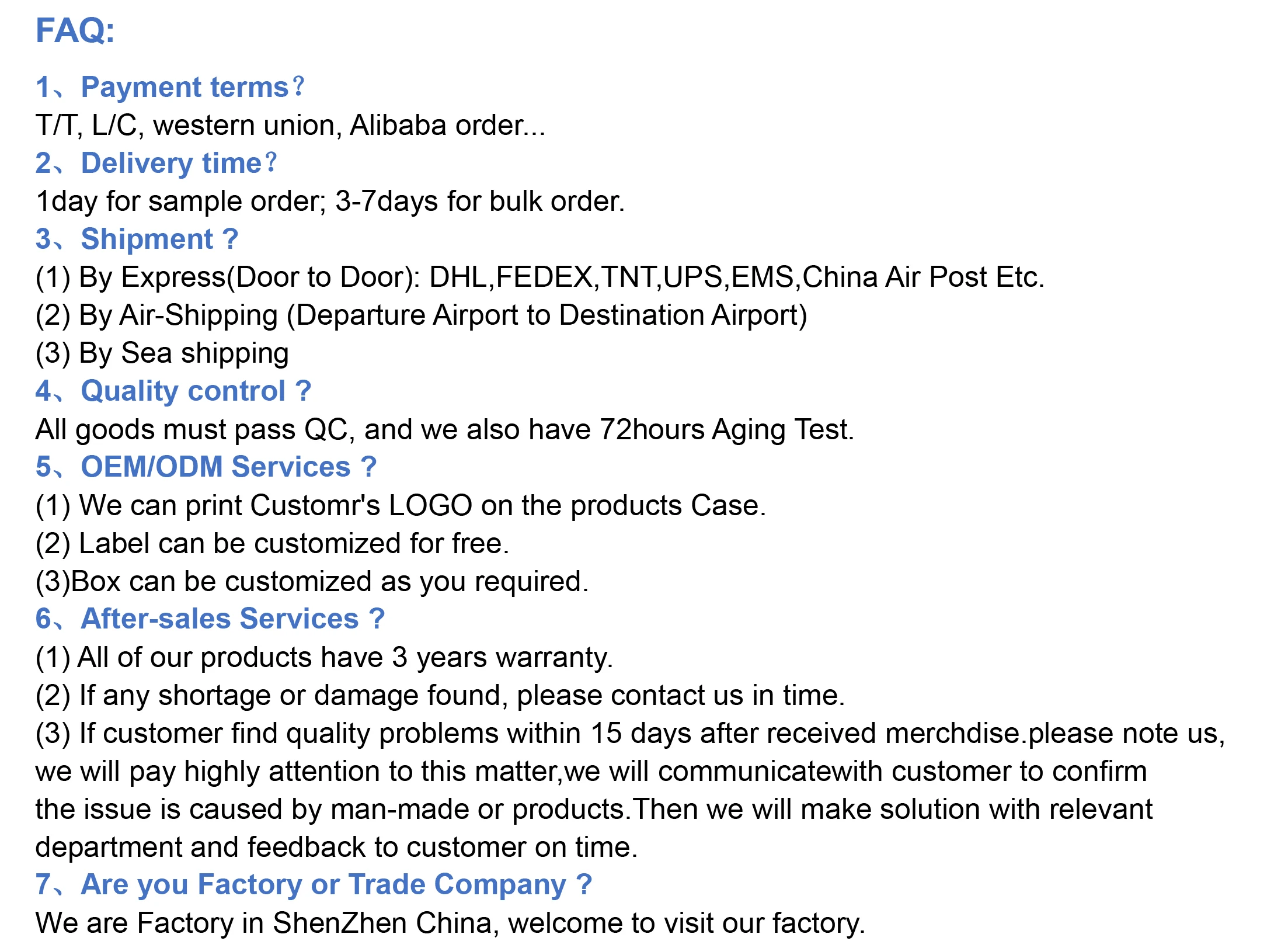

FAQ
Welcome to send us inquiry.OEM and customization are welcome.
