Product Overview

Description

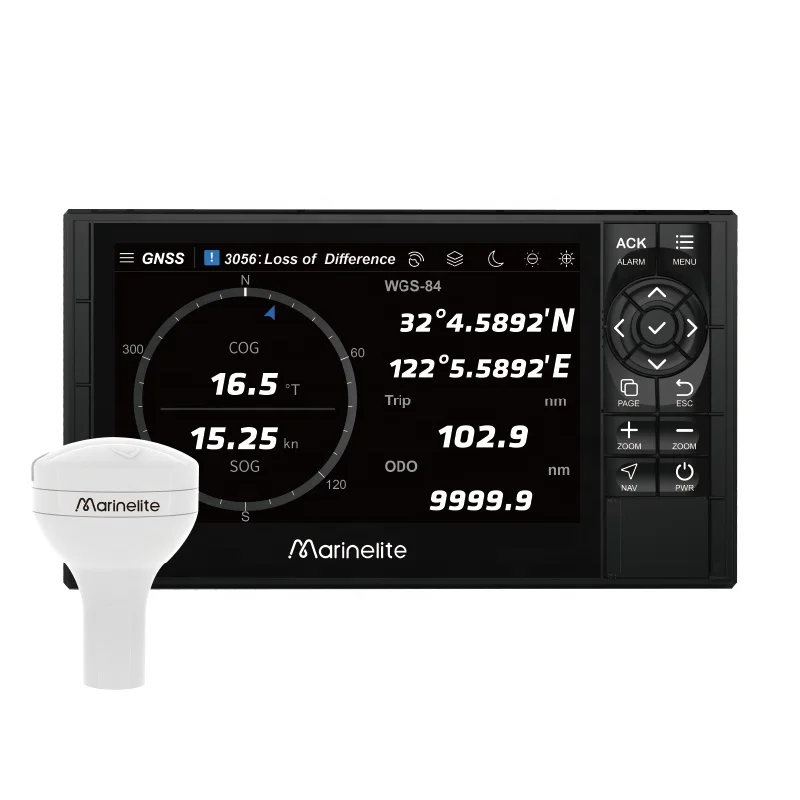

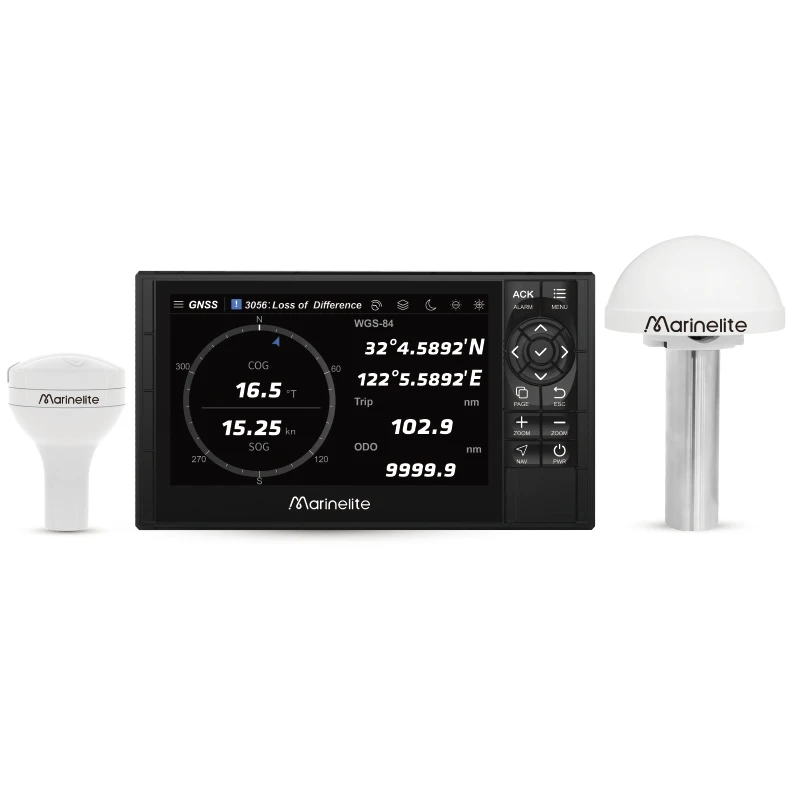

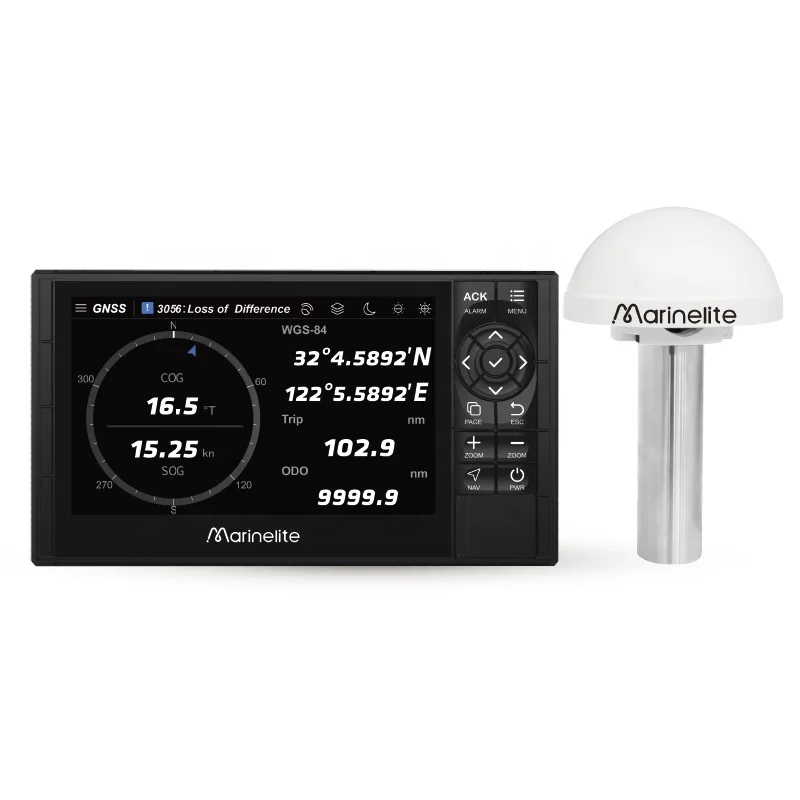

GN9000 MARINE GNSS NAVIGATOR





Performance Parameter
Model	GP9000/GP190
Power Supply	DC24V
POS accuracy	Horizontal:25m(95%)Vertical30m(95%)
Receiver Sensitivity accuracy	Acquisition:-130dBm~-120dBm
RXFrequency	BDS:B1I:1561.098MHz GPS:L1 1575.42MHz GLonass: G11602.916MHz
Tracking Capacity	-133dBm
Compass Safe Distance	Antenna Unit:55cm Data display & processing unit:45cm
Degree of Protection of Enclosure	AntennaUnit:IP56 Display unit:IP20





• Multi-star system, with faster orientation speed, more accurate orientation;


• Advanced speed heading filtering technology, making data more smooth;


• Multi-way NMEA0183 output, providing high accuracy and precision ship motion information for radar, plotter, Autopilot, fish finder, sonar and other navigation equipment;


• Equipped with 7-inch high-definition color display, supporting a variety of display modes, more intuitive data and more convenient equipment;


• Excellent industrial product design, fashionable appearance, simple installation, maintenance-free, not affected by water temperature and salinity, need to guard against wind and rainstorm complex sea conditions.
