GPPS Raw Polystyrene Granules GPPS plastic raw material GPPS Pellets
- Category: >>>
- Supplier: Shanxi Aojiang Technology Co. Ltd.
Share on (1601273386182):
Product Overview
Description
Products Description

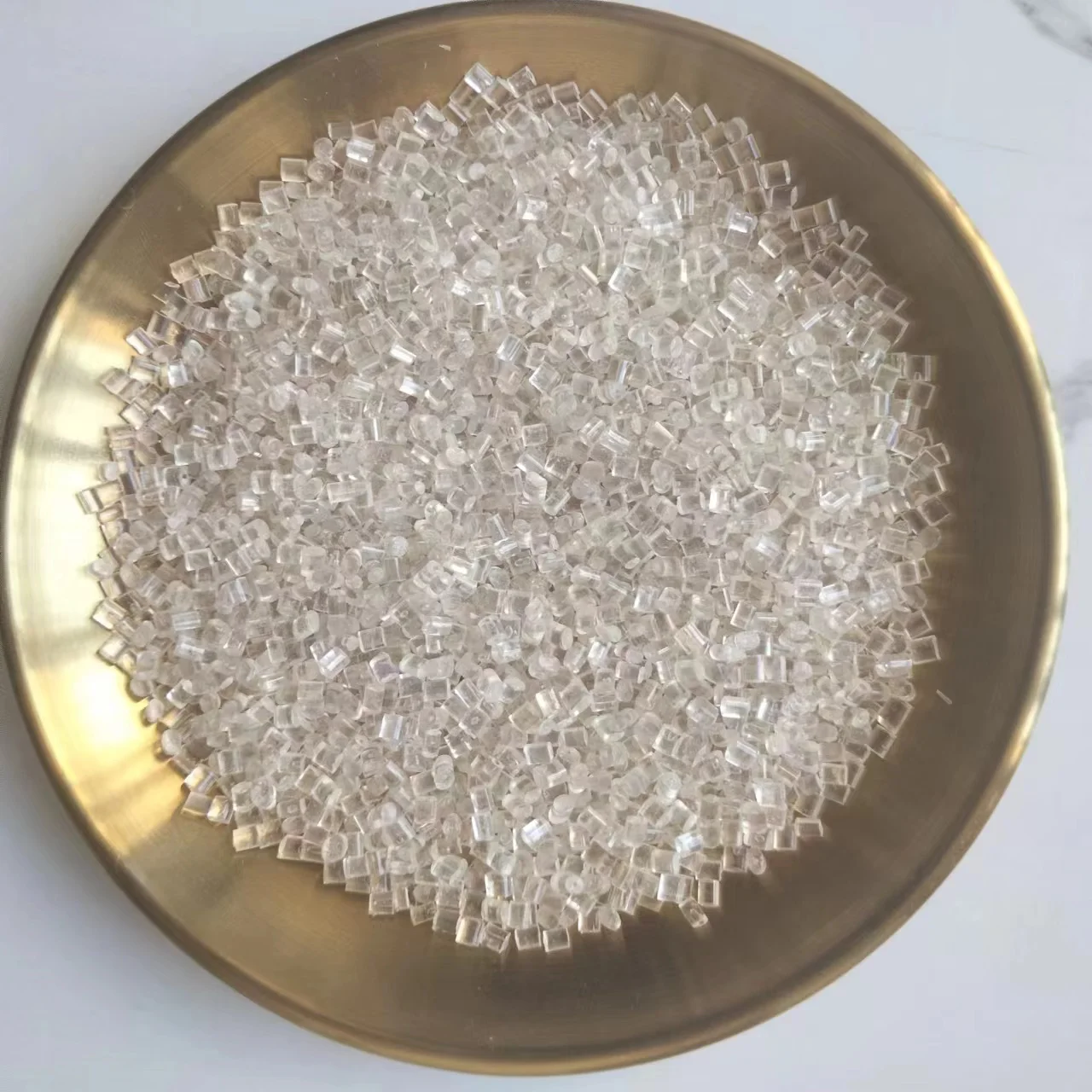

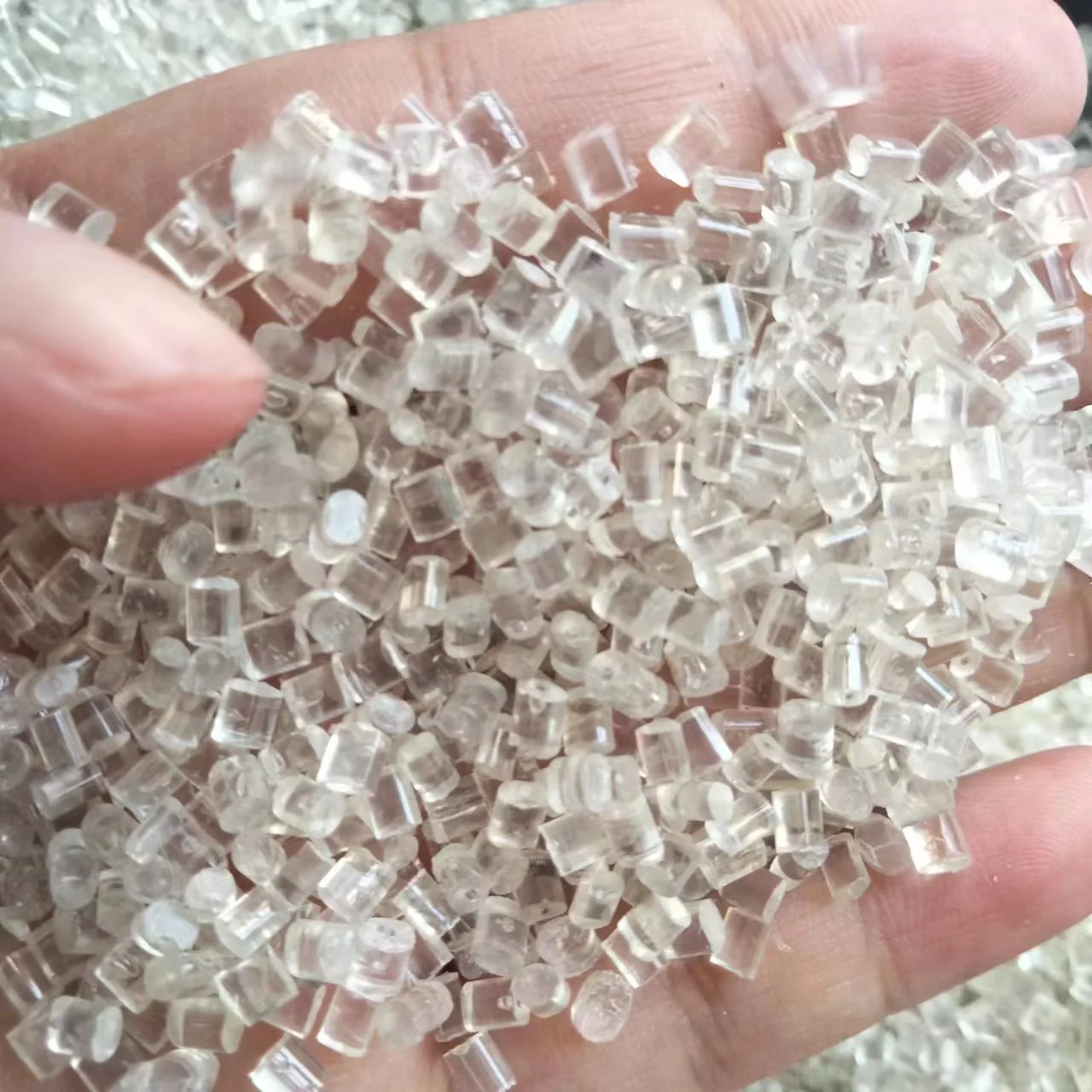

General grade polystyrene is a thermoplastic resin, colorless, odorless, tasteless and shiny, transparent beads or granular solid.
Density 1.04 ~ 1.09, transparency 88% ~ 92%, refractive index 1.59 ~ 1.60. Under the action of stress, birefringence occurs, which is called stress-optical effect. The melting temperature of the product is 150 ~ 180ºC, the thermal decomposition temperature is 300ºC, the thermal deformation temperature is 70 ~ 100ºC, and the long-term use temperature is 60 ~ 80ºC. At 5 ~ 6ºC lower than the thermal deformation temperature, the stress can be eliminated and the thermal deformation temperature can be increased after annealing treatment. If a little α -methyl styrene is added in the production process, the heat resistance grade of universal polystyrene can be improved.
Density 1.04 ~ 1.09, transparency 88% ~ 92%, refractive index 1.59 ~ 1.60. Under the action of stress, birefringence occurs, which is called stress-optical effect. The melting temperature of the product is 150 ~ 180ºC, the thermal decomposition temperature is 300ºC, the thermal deformation temperature is 70 ~ 100ºC, and the long-term use temperature is 60 ~ 80ºC. At 5 ~ 6ºC lower than the thermal deformation temperature, the stress can be eliminated and the thermal deformation temperature can be increased after annealing treatment. If a little α -methyl styrene is added in the production process, the heat resistance grade of universal polystyrene can be improved.
Physical property | Standard | Value | Unit |
Density 23℃ | ASTM D792 | 1.04 | g/cm³ |
Melt Index 200℃ 5kg | ASTM D1238 | 6.5 | --- |
Residual Monomer | --- | 700 | ppm |
Mechanical behavior | Standard | Value | Unit |
Tensile Modulus 23℃ | ASTM D638 | 31000 | kg/cm² |
Tensile Modulus 23℃ | ASTM D638 | 3036 | MPa |
Tensile Strength 23℃ | ASTM D638 | 430 | kg/cm² |
Tensile Strength 23℃ | ASTM D638 | 40 | MPa |
Elongation 23℃ | ASTM D638 | 2 | % |
Flexural Strength 23℃ | ASTM D790 | 850 | kg/cm² |
Flexural Strength 23℃ | ASTM D790 | 84 | MPa |
Flexural Modulus 23℃ | ASTM D790 | 32000 | kg/cm² |
Flexural Modulus 23℃ | ASTM D790 | 3136 | MPa |
lzod Notch Impact 23℃ 6.4mm | ASTM D256 | 1.4 | kg-cm/cm |
lzod Notch Impact 23℃ 6.4mm | ASTM D256 | 14 | J/m |
Thermal | Standard | Value | Unit |
HDT Annealed 3.2mm Annealed at 80℃ for 2 hours | ASTM D648 | 86 | ℃ |
Vicat Softening Temperature Annealed 3.2mm Annealed at 80℃ for 2 hours | ASTM D1525 | 95 | ℃ |
Flammability | Standard | Value | Unit |
Flame Rating Al Color 1.5~1.7mm | UL94 | HB | --- |
UL | Standard | Value | Unit |
UL FlameRating All 1.5~17mm | UL94 | HB | --- |
HWI ALL 1.5~17mm | UL746A | 3 | PLC |
HAI ALL 1.5~1.7mm | UL746A | 0 | PLC |
RTI Elec ALL 1.5~1.7mm | UL746B | 50 | ℃ |
RTI Elec ALL 3.0mm | UL746B | 50 | ℃ |
RTI Imp ALL 15~1.7mm | UL746B | 50 | ℃ |
RTI Imp ALL 3.0mm | UL746B | 50 | ℃ |
RTI Str ALL 15~1.7mm | UL746B | 50 | ℃ |
RTI Str ALL 3.0mm | UL746B | 50 | ℃ |
Comparative Tracking Index | IEC 60112 | 1 | PLC |
HVTR | UL746A | 1 | PLC |
Arc Resistance | ASTM D495 | 6 | PLC |

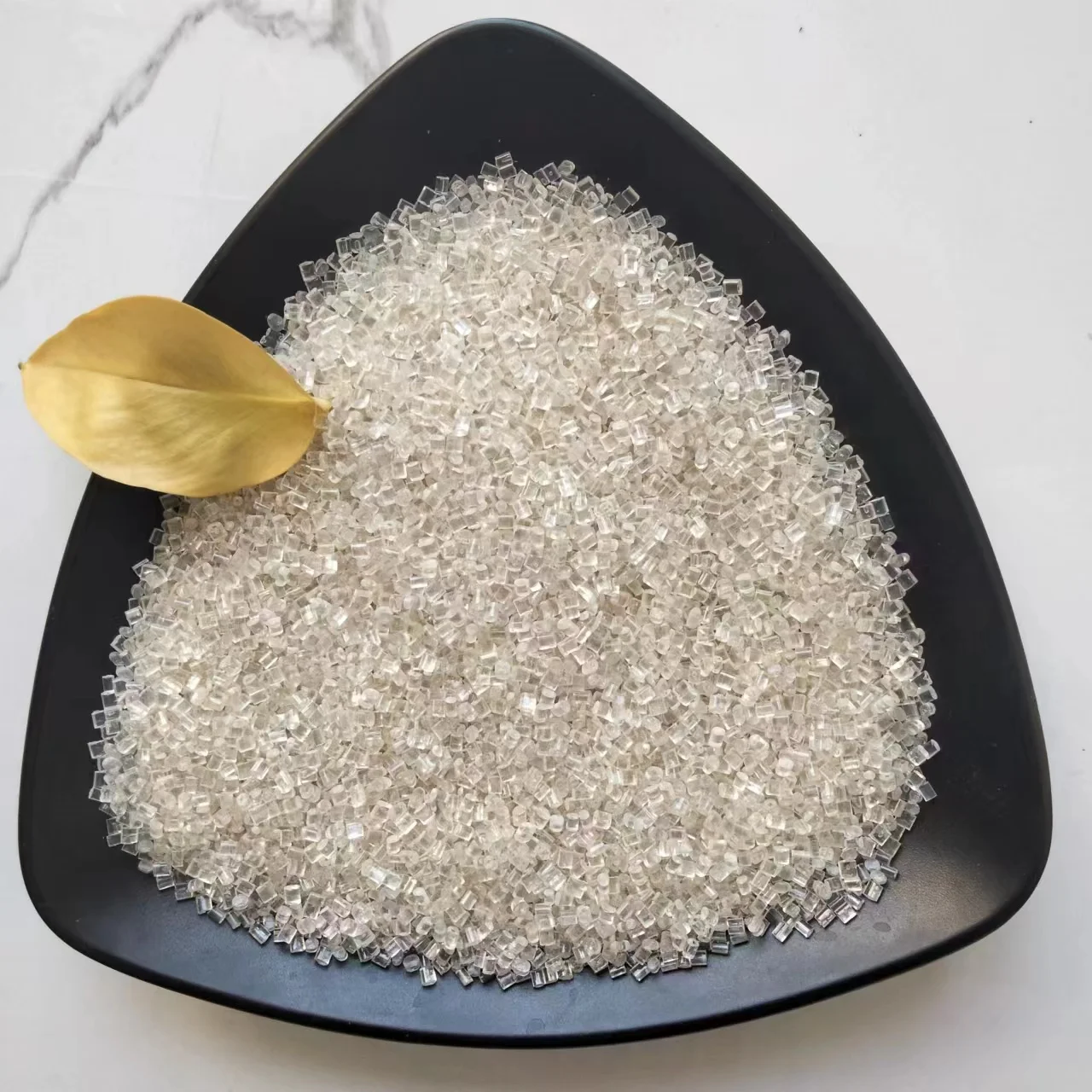

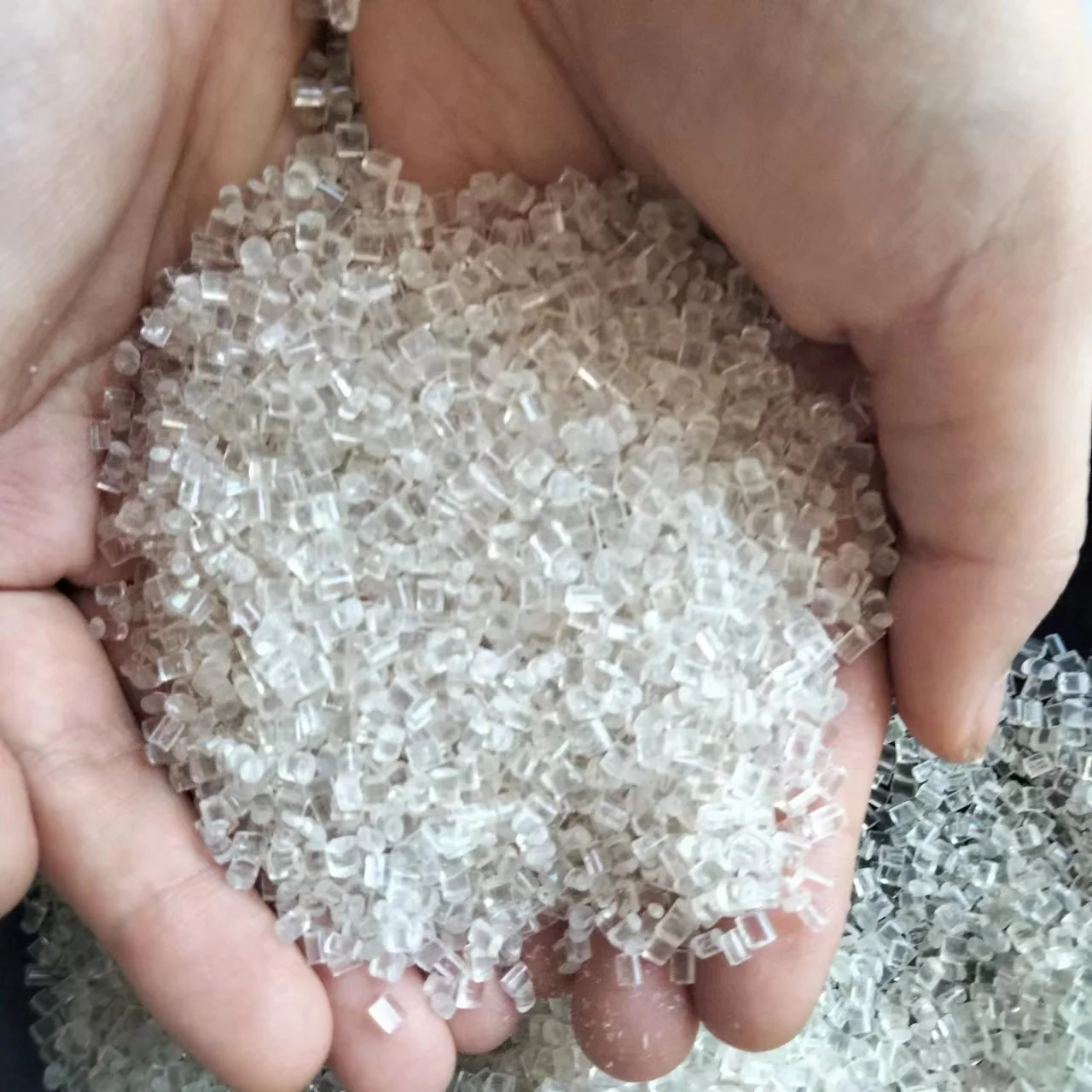

Details Images
Application
Polystyrene has a broad application prospect in food packaging because of its transparent and excellent rigidity, electrical
performance and printing performance, especially its good sanitation and low price. In the mechanical and electrical

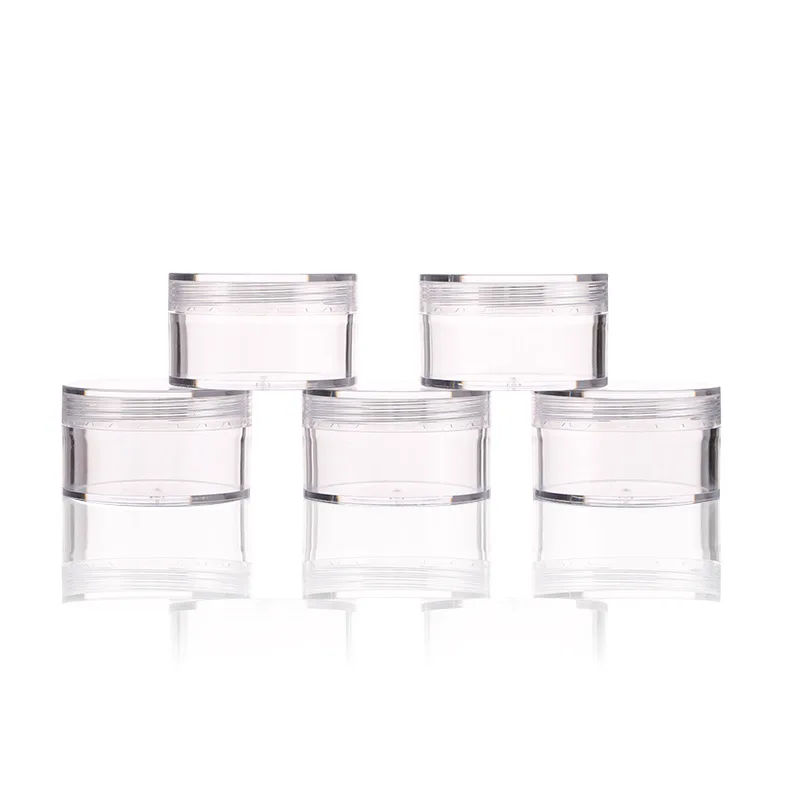

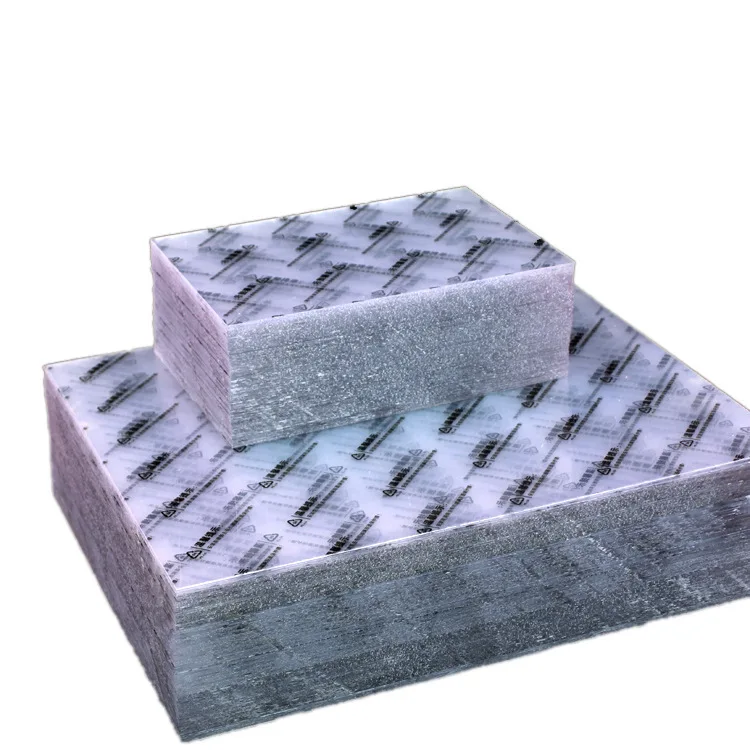

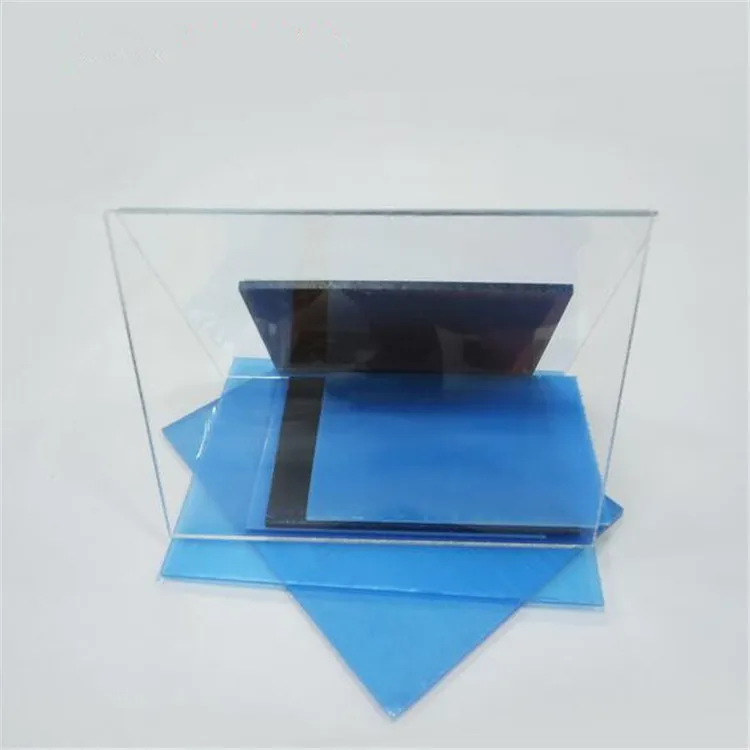

industry,instrumentation, communication equipment industry and other aspects has been widely used in a variety of instrument shell, lamp cover, optical parts, instrument parts, transparent window mirror, transparent model, chemical acid storage tank, acid conveying tank, telecommunications parts, high frequency capacitor, high frequency insulation pad, bracket, insert and frozen insulation materials. Also widely used in a variety of daily necessities, such as bottle caps, containers, decorations, buttons,combs,toothbrushes, soap boxes, cigarette boxes and toys, etc.
Main products

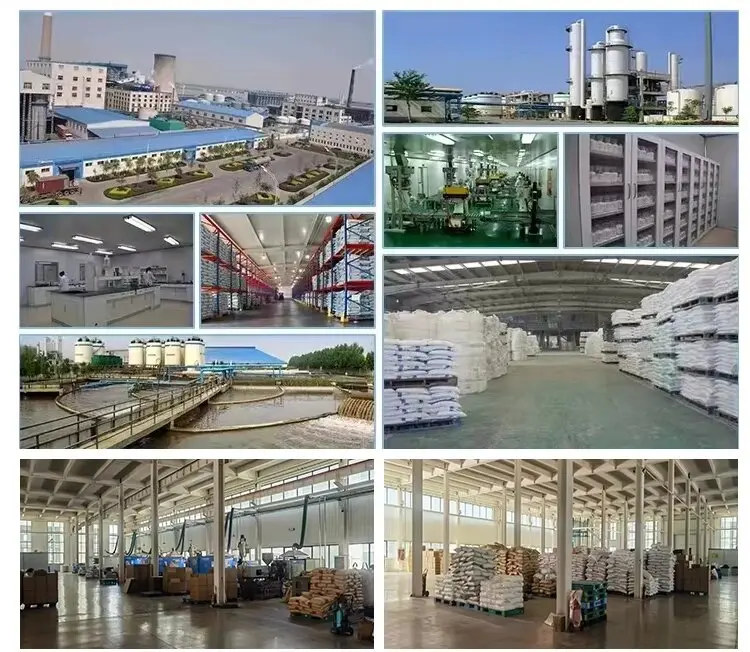

Company Profile
Shanxi Aojiang Technology Co., Ltd. is located in Taiyuan City, Shanxi Province. It is a diversified service company integrating domestic trade and international trade. Our goal is to provide customers with high-quality solutions and a one-stop purchasing experience. Our vision is to make plastic more accessible to everyone. Our products include general plastics, engineering plastics, special engineering plastics, injection molds and injection molding machines. Products are widely used in automobiles, home appliances, office supplies, mobile phone accessories, routers, food, medical and other fields.

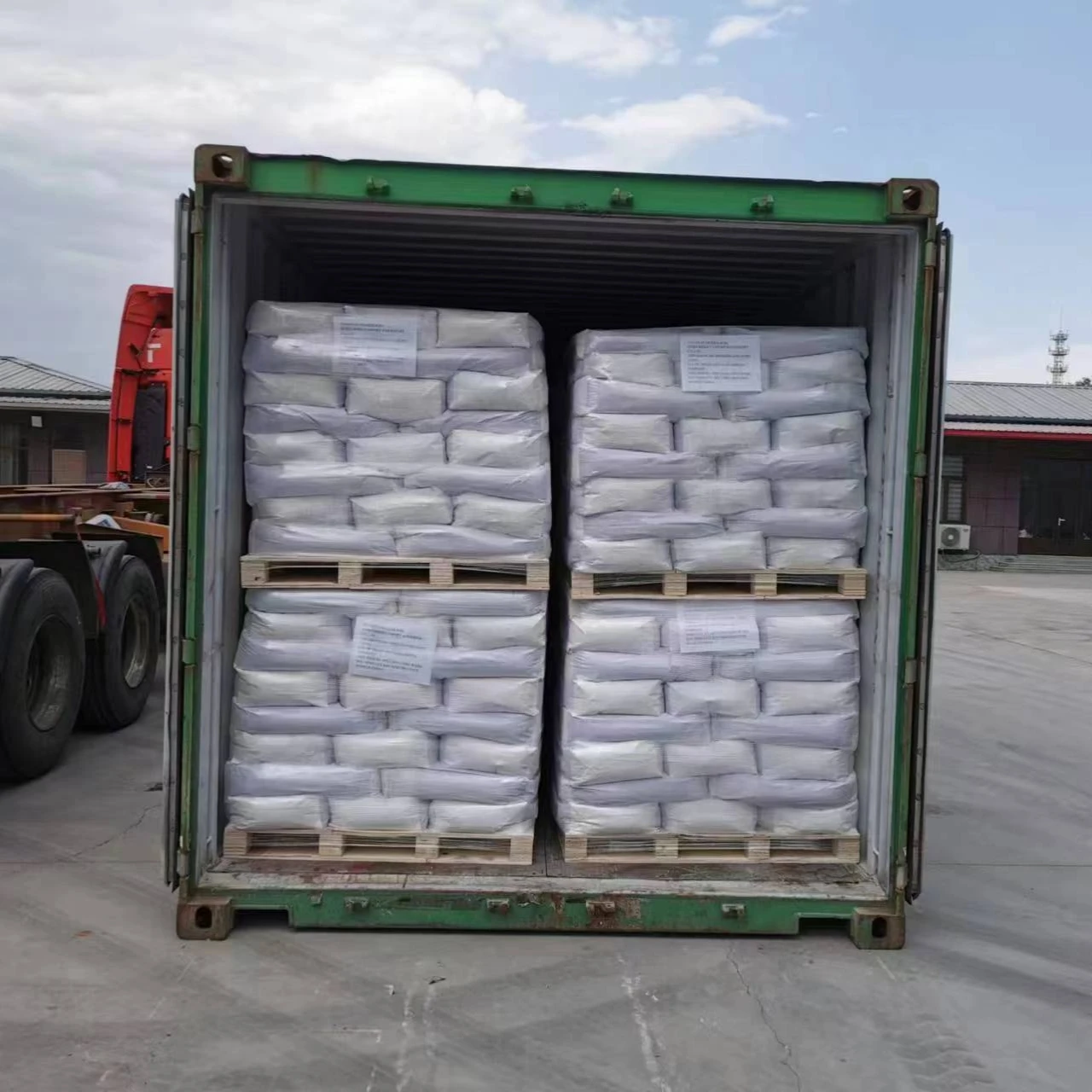

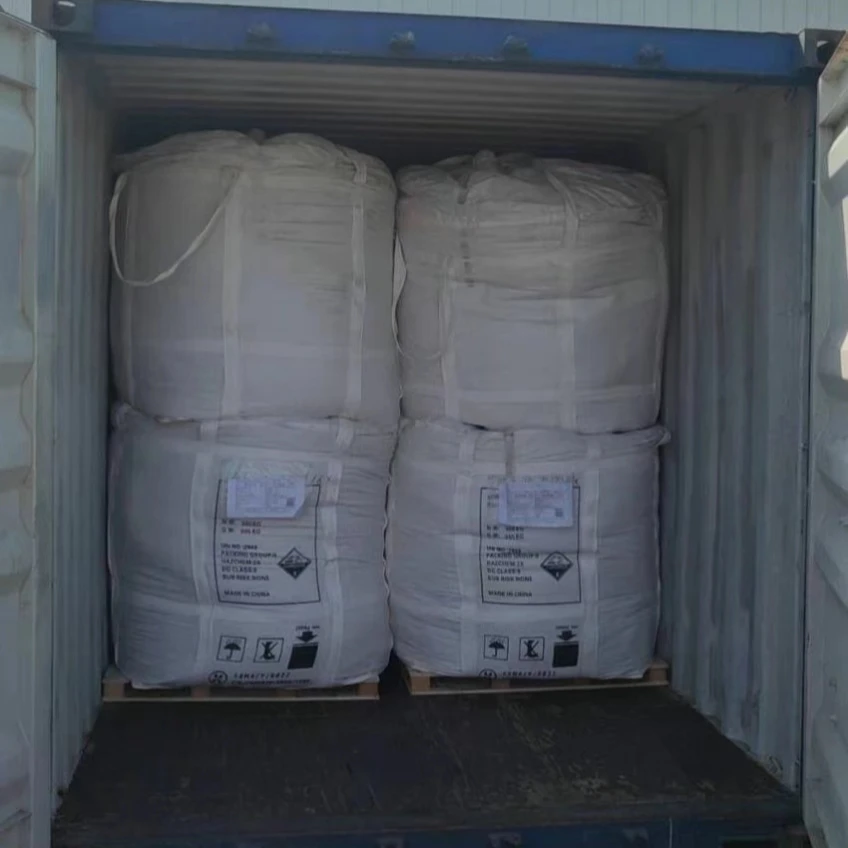

Packaging & Shipping
Why Choose Us
FAQ
1. Are you trading company or Manufacturer ?
We are factory.
2.About Sample
Under 500g we provide free of charge.
3. About Material
We can customize the material according to customers' requirement.
4. About Quality
All the products must be tested strictly according to the testing procedure before shipment.
5. About Delivery Period
Small goods within 7 working days, large goods can be negotiated.
6. About Payment term
It's flexible, T/T, L/C at sight,30% in advance, the balance by copy B/L.
We are factory.
2.About Sample
Under 500g we provide free of charge.
3. About Material
We can customize the material according to customers' requirement.
4. About Quality
All the products must be tested strictly according to the testing procedure before shipment.
5. About Delivery Period
Small goods within 7 working days, large goods can be negotiated.
6. About Payment term
It's flexible, T/T, L/C at sight,30% in advance, the balance by copy B/L.
