Product Overview
Description
Product Description
Qingzhou KEDA Environment Protection Machinery Co., Ltd
We are a professional manufacturer of dredgers with more than 10 years of design and development experience.
We have many type dredger:Cutter suction dredger, bucket chain dredger, amphibious dredger, sand jet suction dredger.

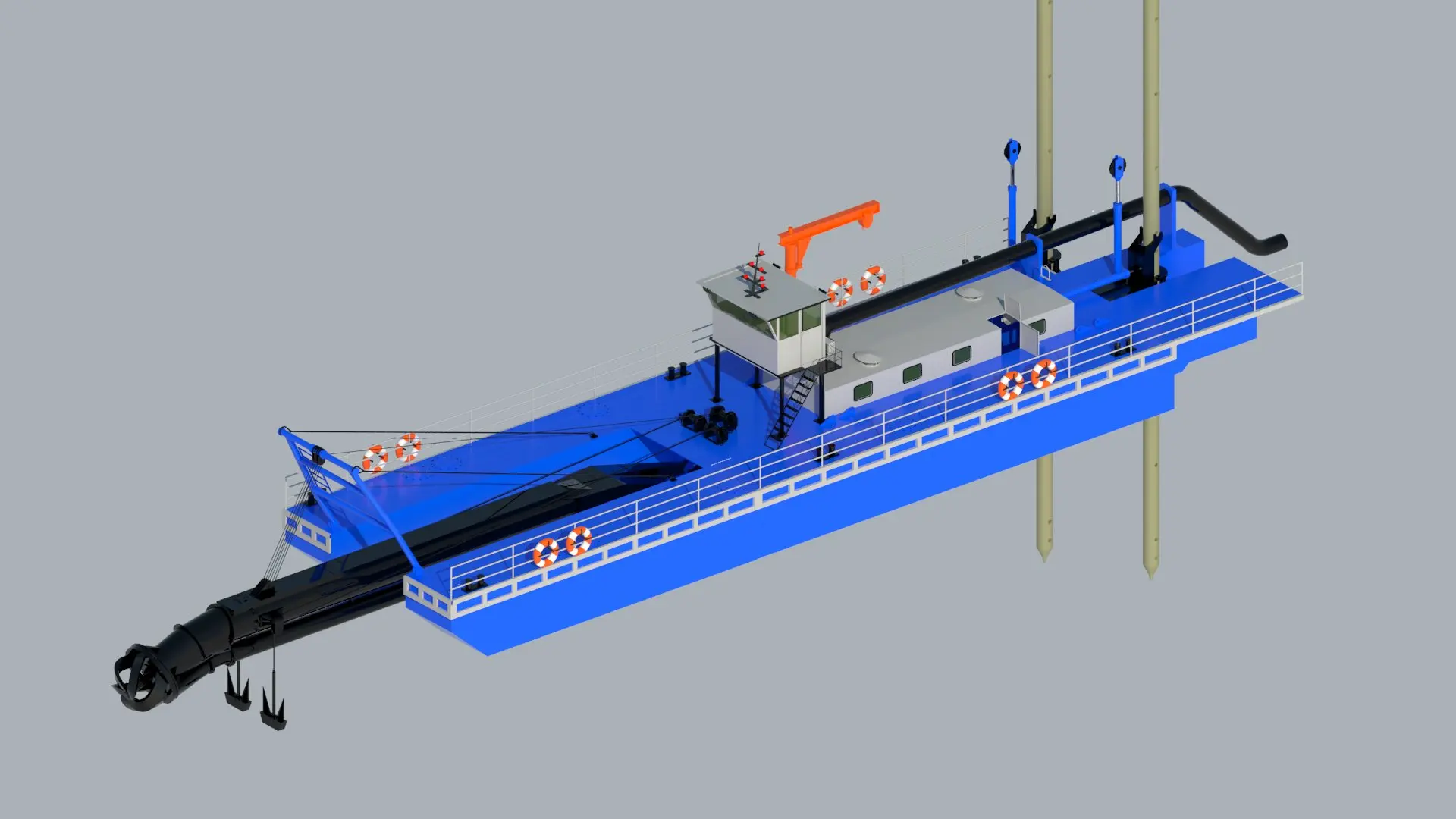

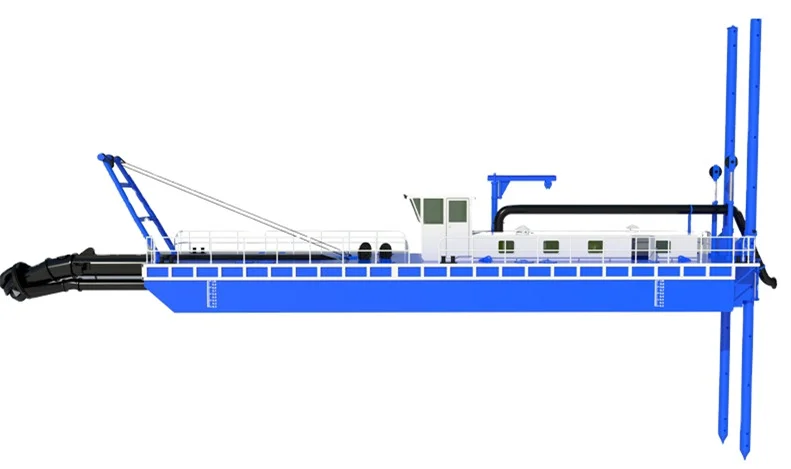

Modular structure -Easy to install
1. Floating body (double)
2. Bridge

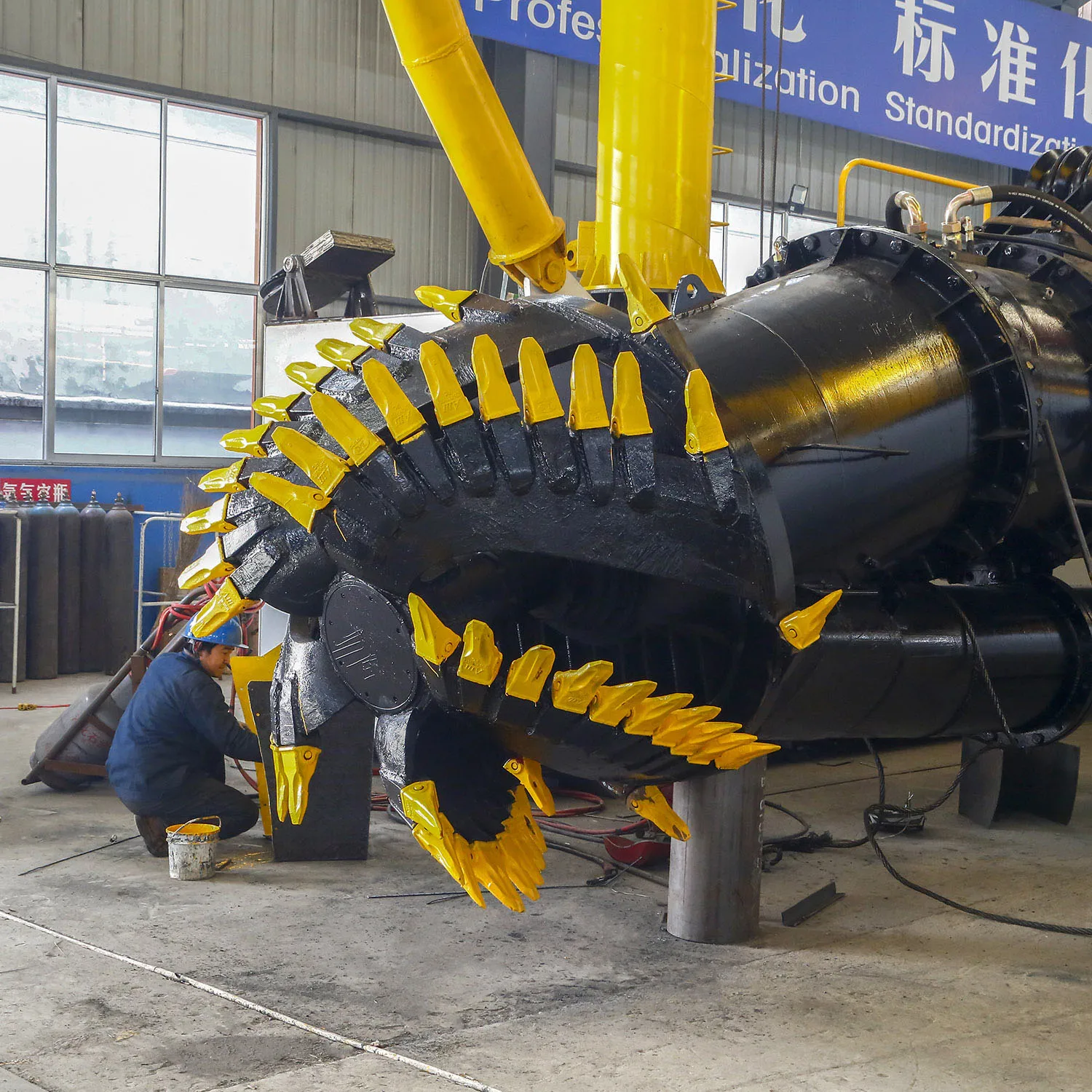

3. Reamer head
4. Cockpit
5. Locating pile
Professional Design
1. Customized on demand
2. Professional and technical team
3. One-stop solution
4. Variety of professional programs
Product parameters
Model | Work Capacity | Dredging Depth | Head | Discharge Distance |
CSD150 | 450m3/h | 5m | 36m | 500m |
CSD200 | 750m3/h | 6m | 49m | 700m |
CSD250 | 1100m3/h | 10m | 56m | 1000m |
CSD300 | 2200m3/h | 12m | 57m | 1500m |
CSD350 | 3000m3/h | 12m | 58m | 2000m |
CSD450 | 4000m3/h | 15m | 55m | 2000m |
CSD500 | 5000m3/h | 16m | 62m | 2500m |
Detailed Images

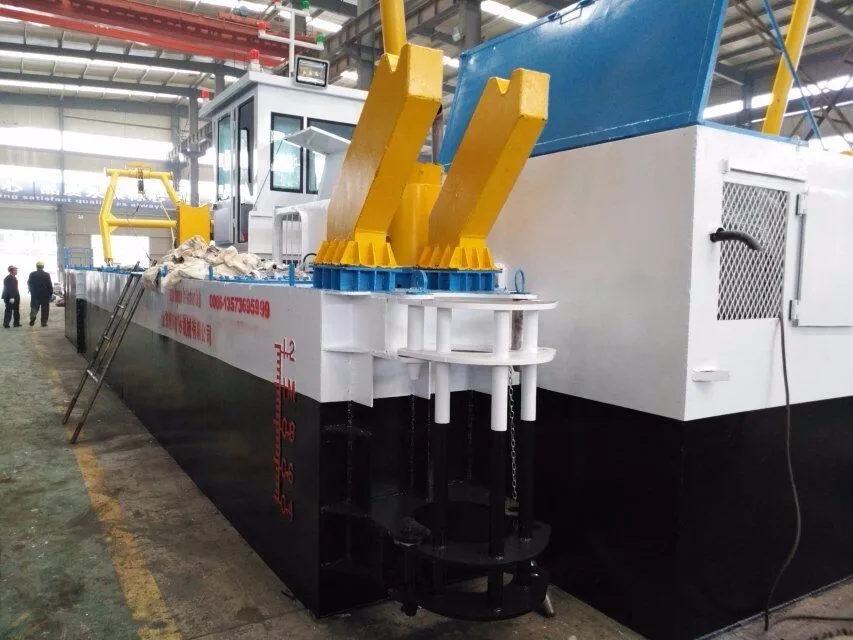

Pontoon for Effective and Powerful Dredging Machine Sand Dredger
The dredger pontoon is with dismantle type and box-like structure, In order to transported convenient by truck, easy installation at working site.
And it is sandblasted and painted by 4 layers of marine epoxy paint suitable for saltwater service.The Zinc anode can be used to give better anti-corrosion function.

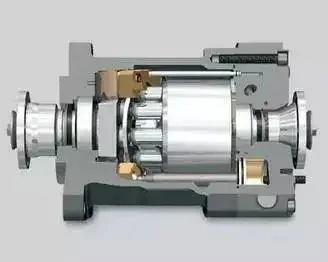

Hydraulic system for Effective and Powerful Dredging Machine Sand Dredger
Our dredges use efficient, high-quality hydraulic systems. All motions of the dredger are hydraulically driven. The reamer head rotation, winch rotation and positioning pile lifting are all driven by the hydraulic system.While ensuring the stable operation of the dredger, it can also protect the components of the dredger.
Our hydraulic system has high precision, fast response, large driving force, wide speed regulation range, various speed control modes and long service life.

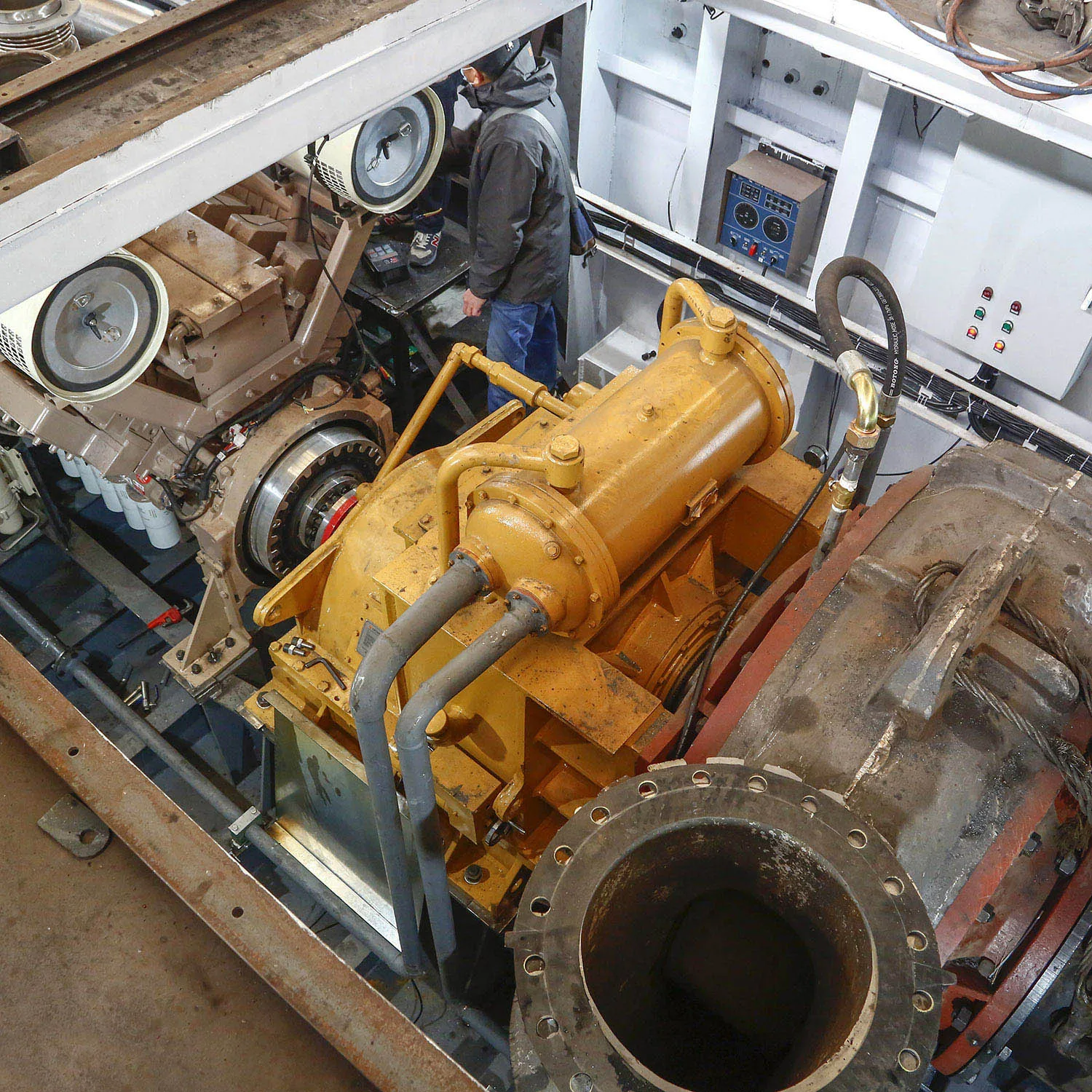

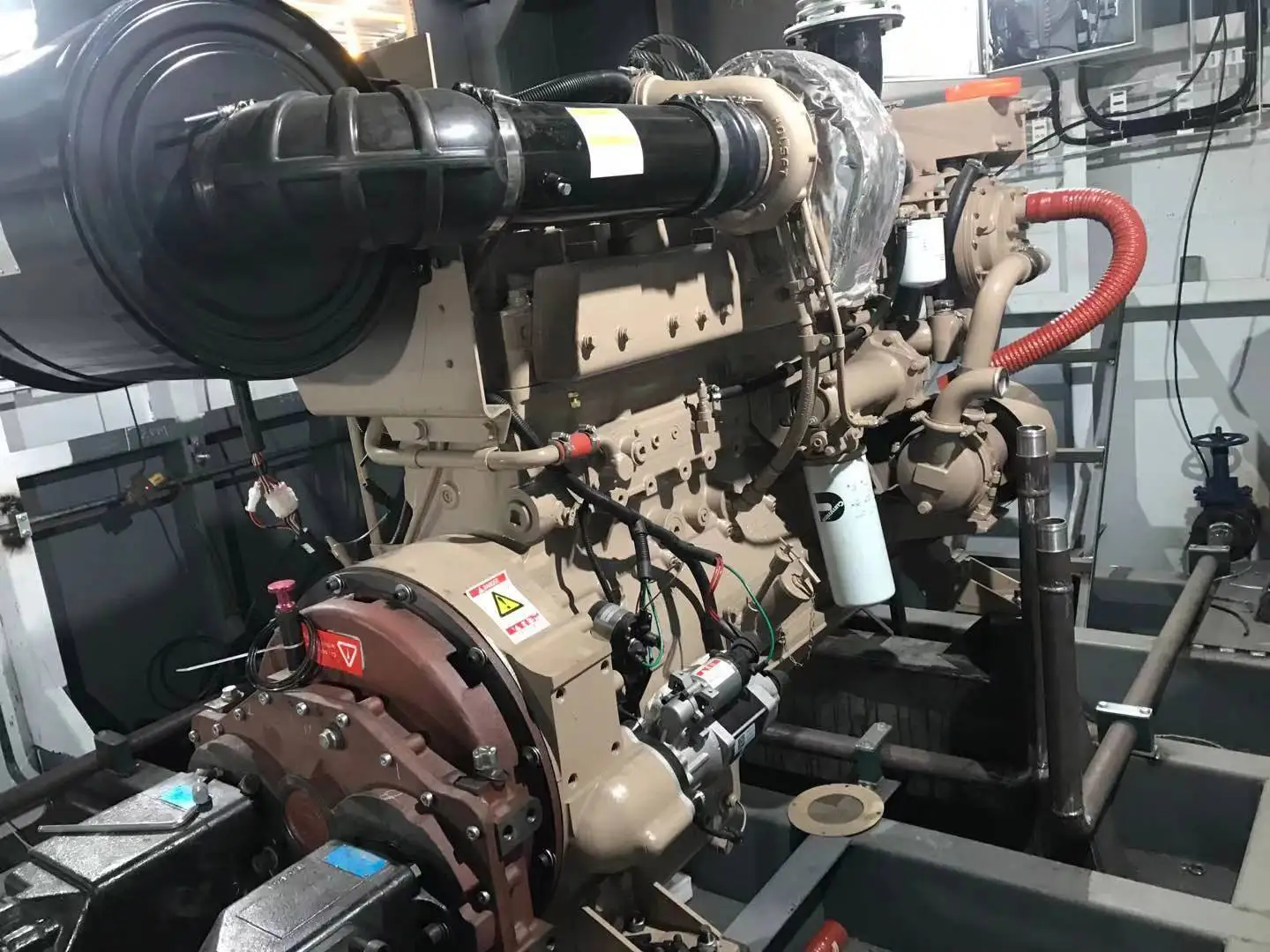

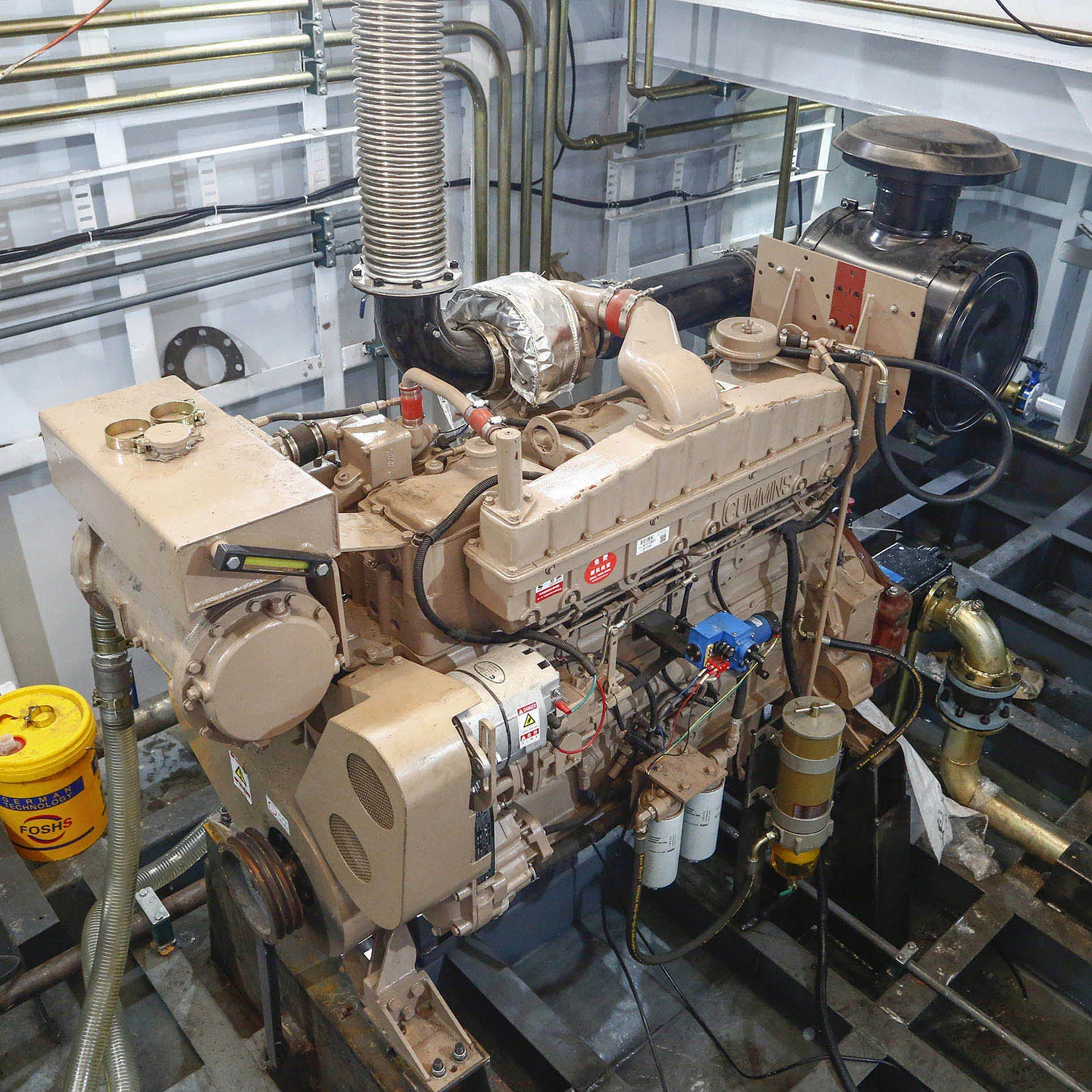

High efficiency marine engine
Our dredgers are equipped with high-efficiency and energy-saving marine engines and high-quality gearboxes to ensure energy conservation and environmental protection while providing sufficient power.
We commonly use engine brands are Cummins, Weichai and Yuchai. Customers can choose the brand of engine according to their own needs.

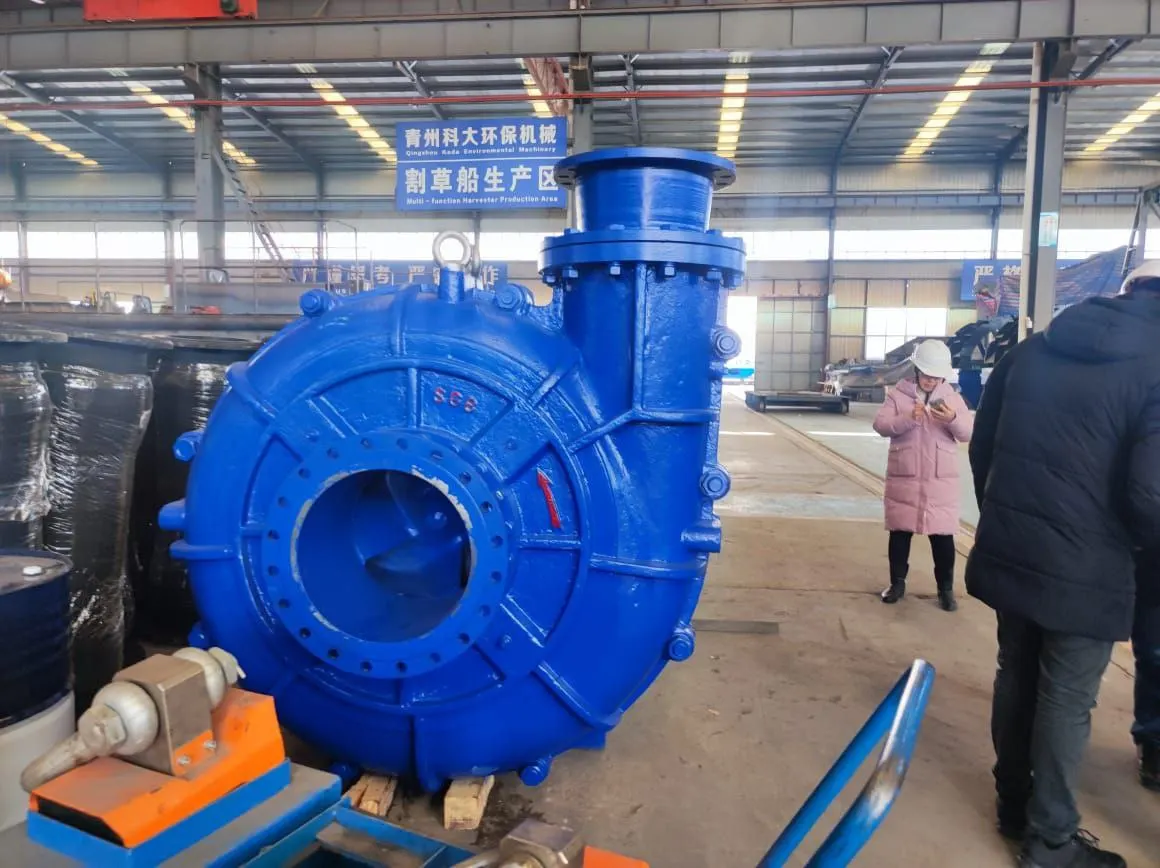

Pump for Effective and Powerful Dredging Machine
Shijiazhuan Pump adopt advanced woma technology.
1.Structure good,WN dredger pump adopts semi double shell structure, which reduces unnecessary auxiliary structure and process structure.
2.Advanced hydraulic model, the efficiency is high. The efficiency of the WN mud pump is 2-3 percentage point higher than before. In this way, lower energy consumption can be achieved at the same output.
3.Good wear resistance with long life.
Also can install Imported Original Pump from Abroad.

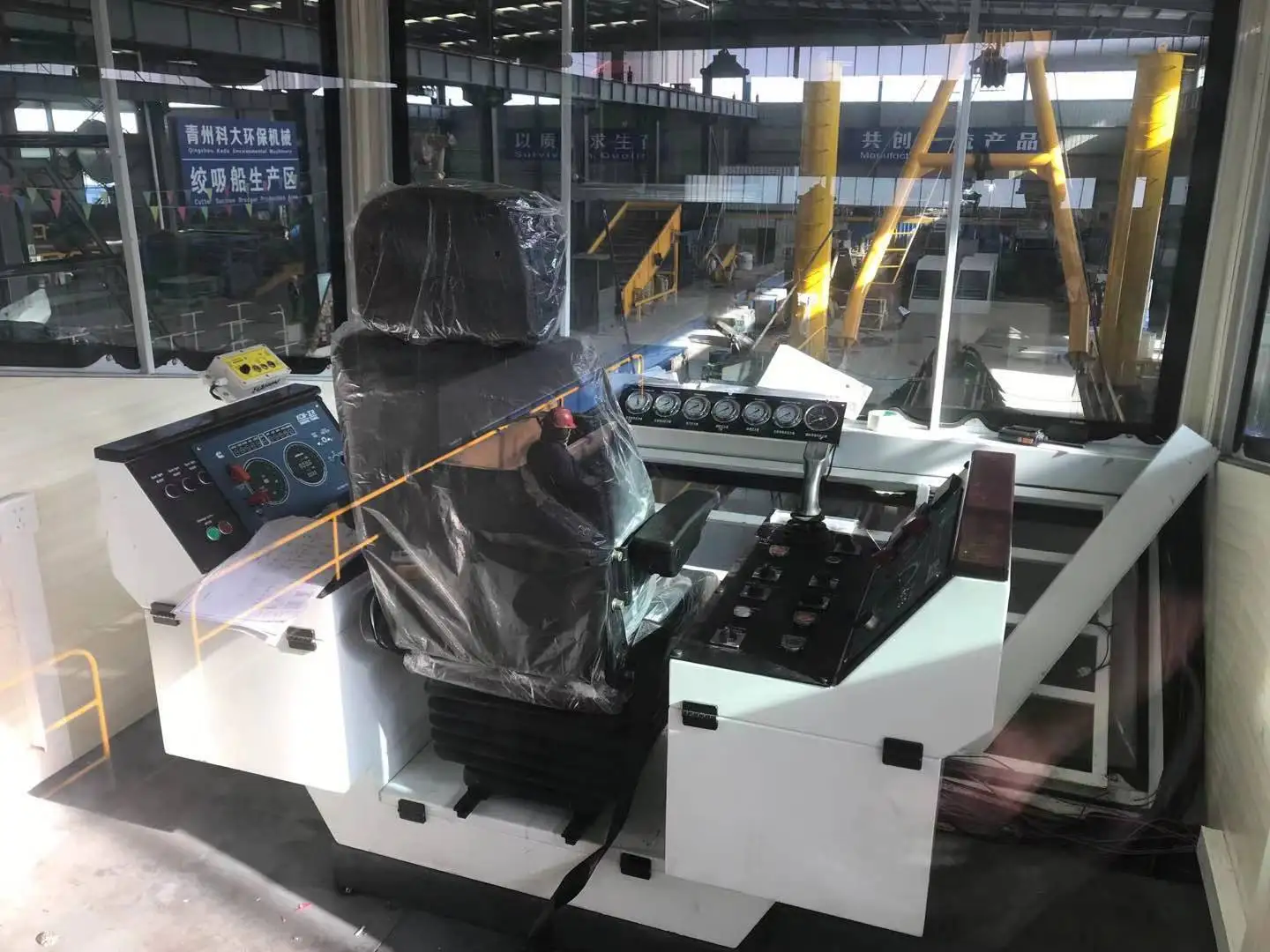

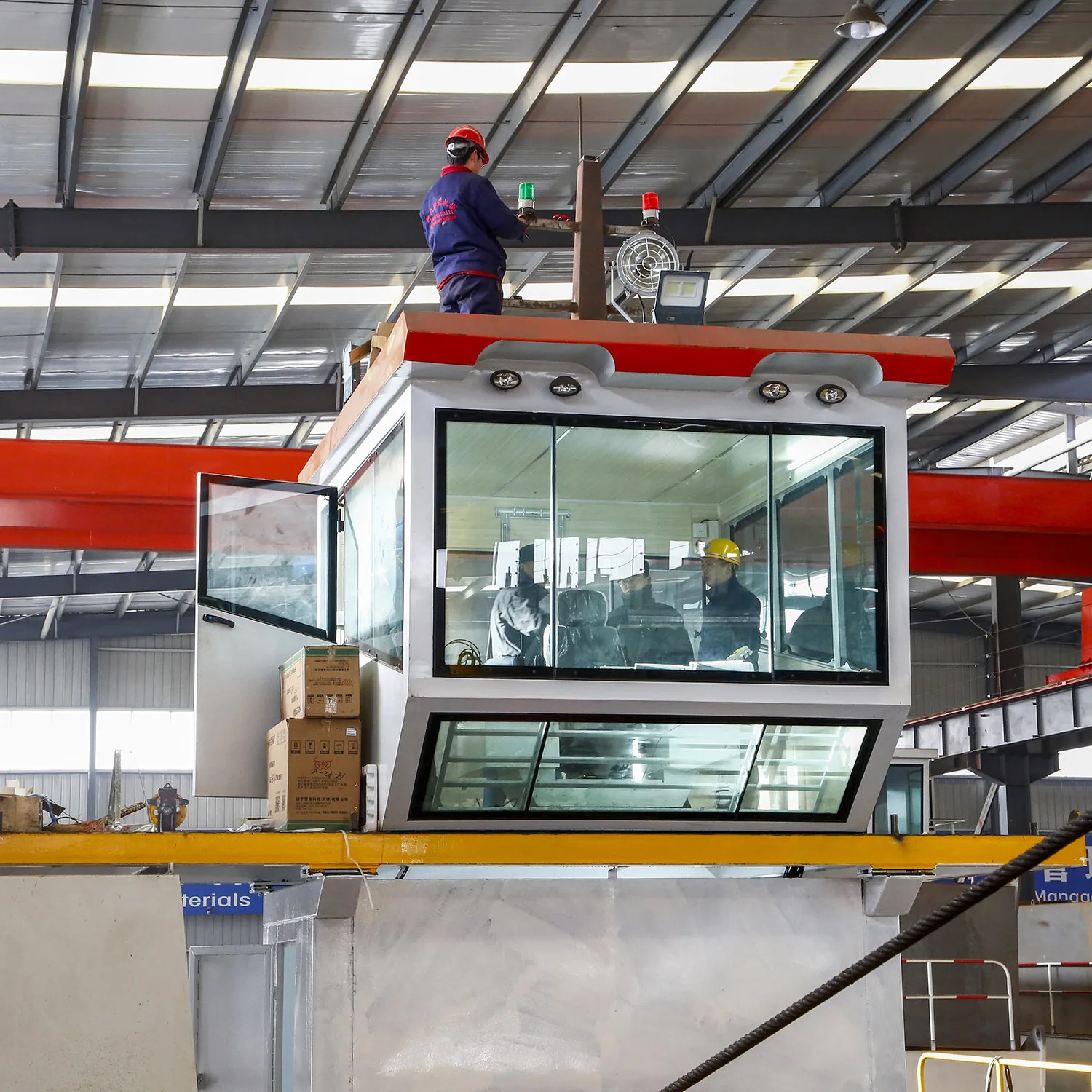

Dredging Control System for Effective and Powerful Dredging Machine Sand Dredger
1.User-friendly touch screen control.
2.Remote servicing possibilities.
3.Proven and reliable PLC/SCADA technology.
4.Fully automatic and easy to operate. The operator can control all operations of the dredger in the cab.
5.The operator can see the operation of all equipment in the engine room from the cab.
6.Advanced seats and air conditioning make the operator more comfortable.
Transportation pipe for Effective and Powerful Dredging Machine Sand Dredger
We maintain long-term strategic cooperation with the best pipe laying companies in China. If customers need, we can provide the best pipes at excellent prices.
Our Service
♦ Pre-sale services: Develop the most perfect dredger scheme
We will tailor the most perfect dredger scheme for customers according to their working conditions and requirements.
♦ Production and inspection: Strict production and inspection system
Strictly implement ISO9001 system in the production process.Before delivery, it will be launched and tested in the factory to ensure that a perfect dredger is provided to customers.
♦ After-sale services: Faithfulness
Our technicians will go overseas for assembly, commissioning and training. We will provide lifetime free technical services for our dredgers. At the end of the warranty period, provide original accessories at a low price.

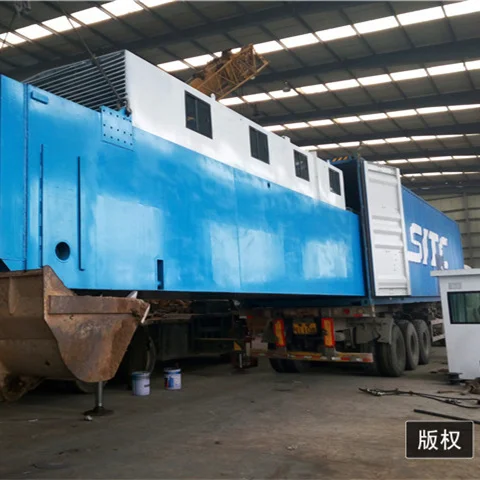

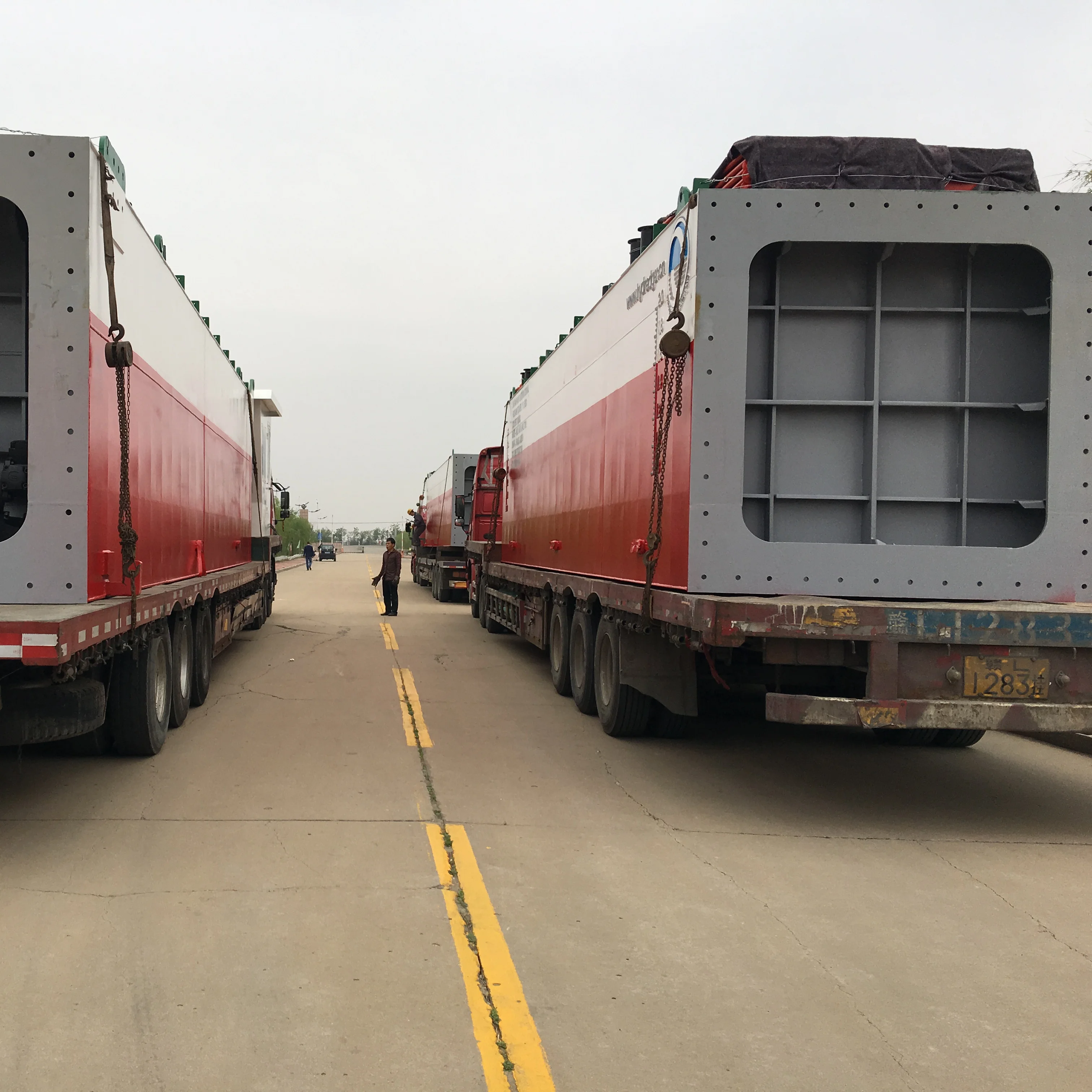

Packing & Delivery
Packing Details : In bulk or in Standard container. The spare parts will be in professional box.
Delivery Details : 40-60 days after the down deposit.

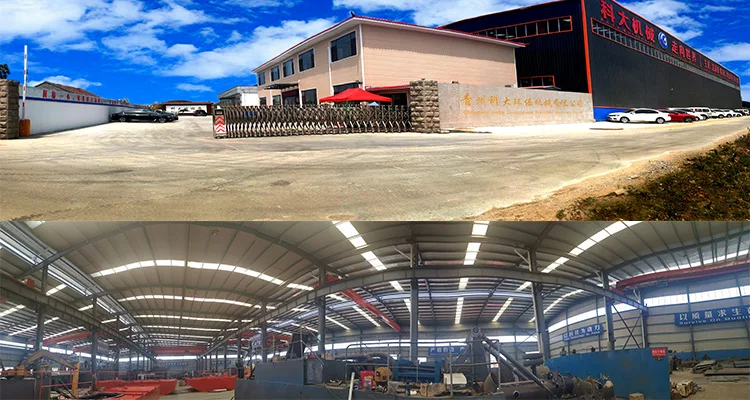

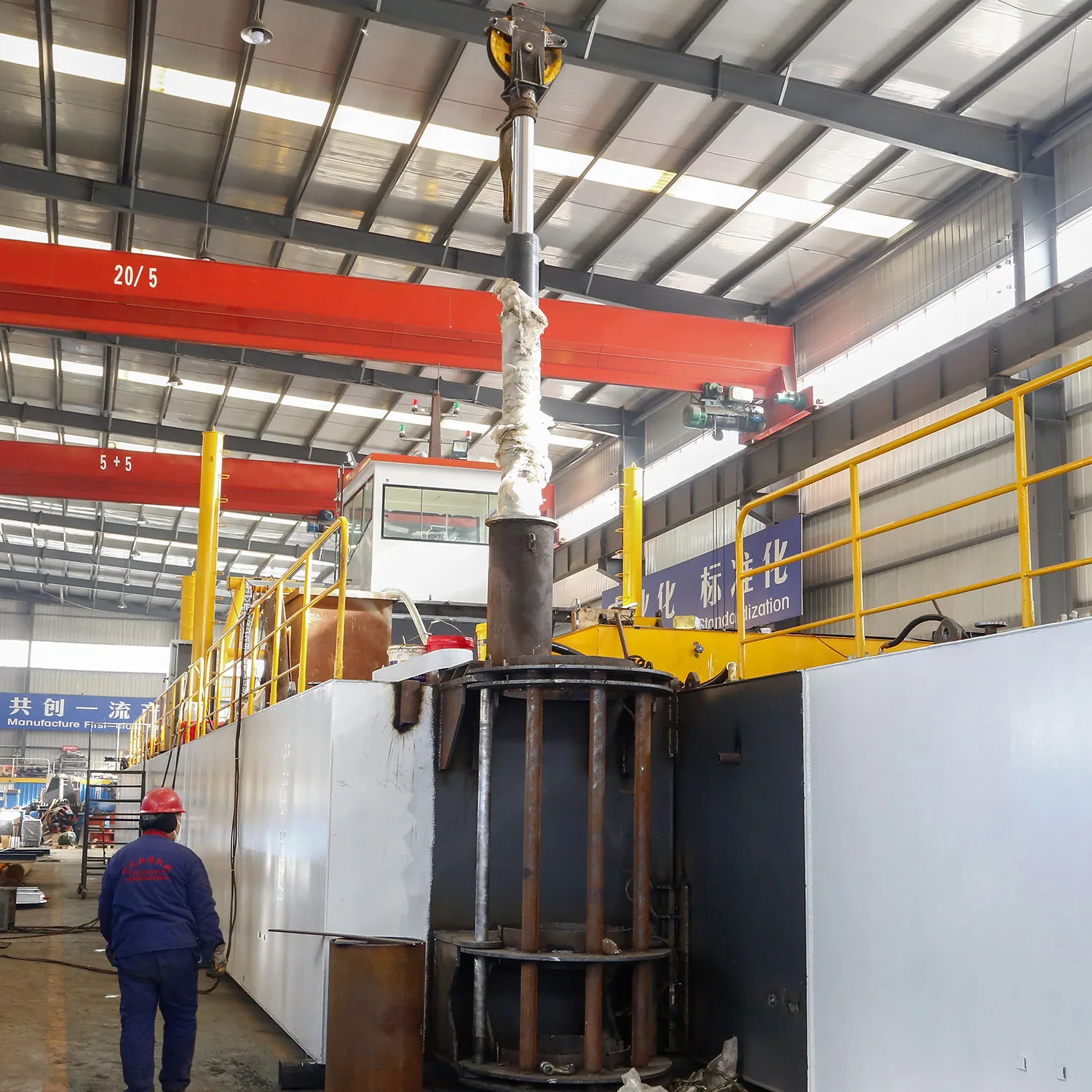

Our Factory
1. Qingzhou Keda Mining Machine Co., Ltd. mainly produces iron selecting equipment, kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher etc.
2. We design produce various of products according to the customers requirement and geographical condition. It is a modern large-scale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
3. Our company had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.
FAQ
1) I never used this kind of machine, is it easy to operate?
Our engineers will guide you in the installation and use, and there are english manual and guide video that show how to use machine.
2) What should I do if the machine has any problems after I order it?
Free parts send to you in machine warranty period if machine have any problem.Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you solution from phone and skype.
