Product Overview

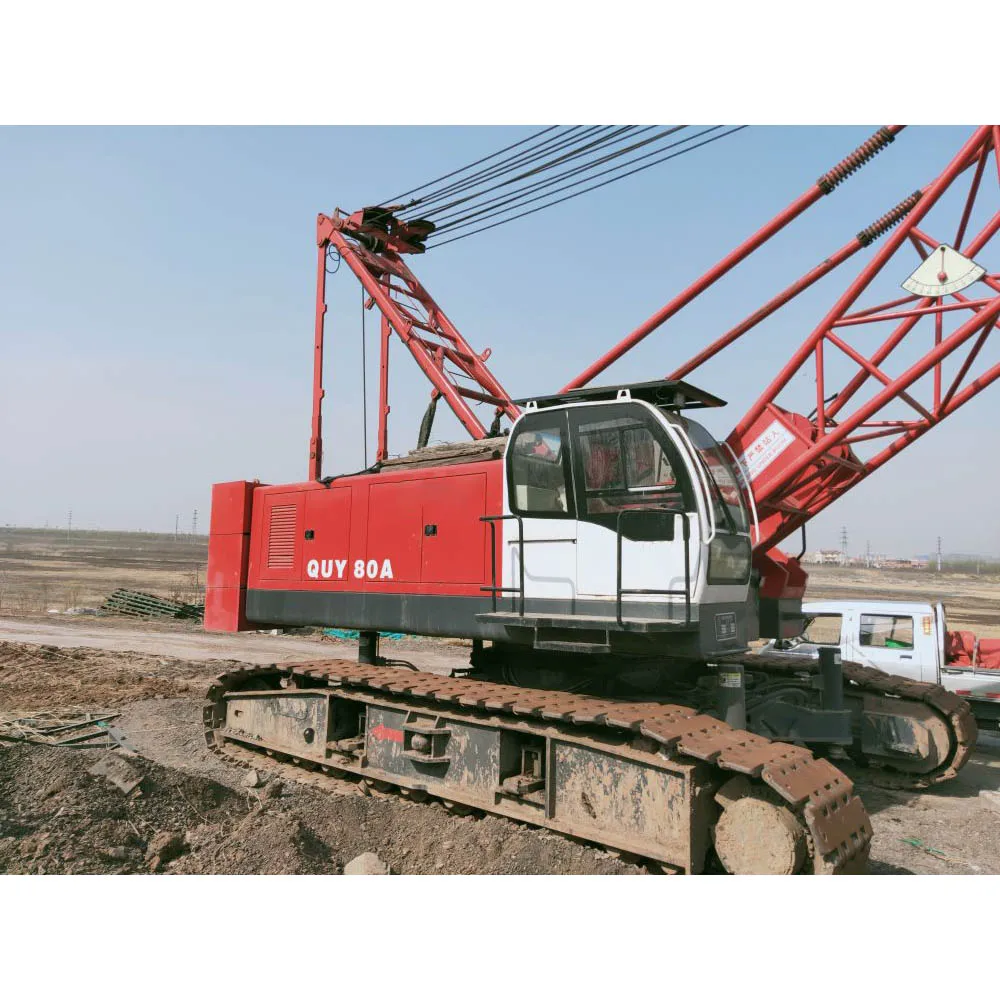

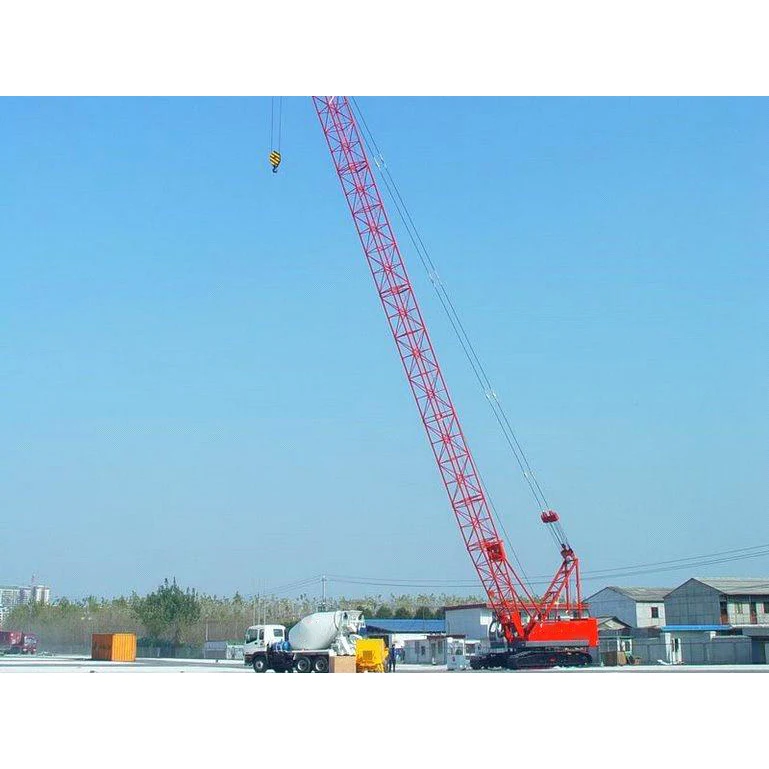

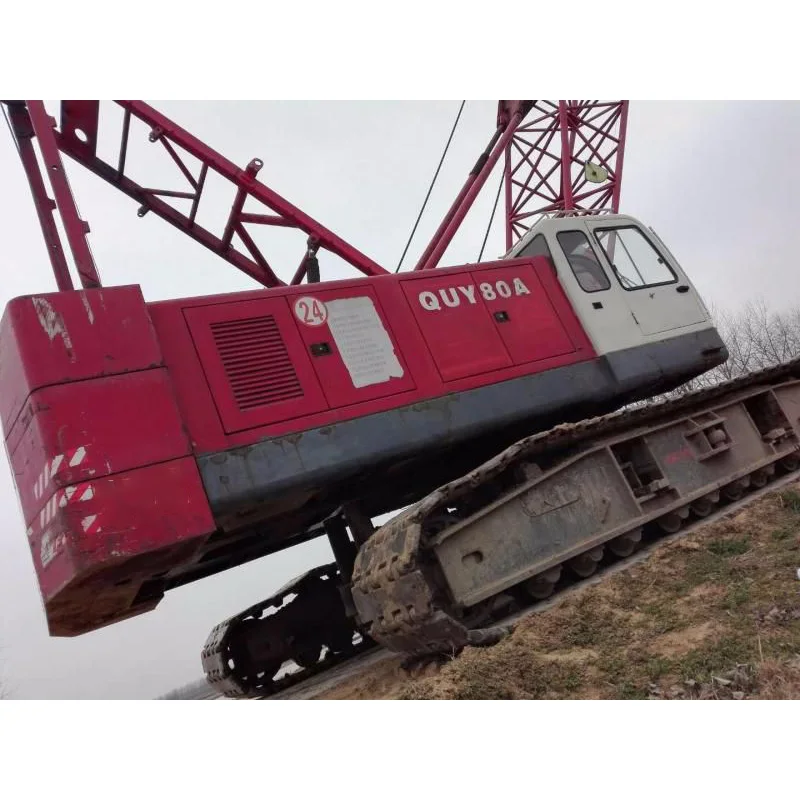

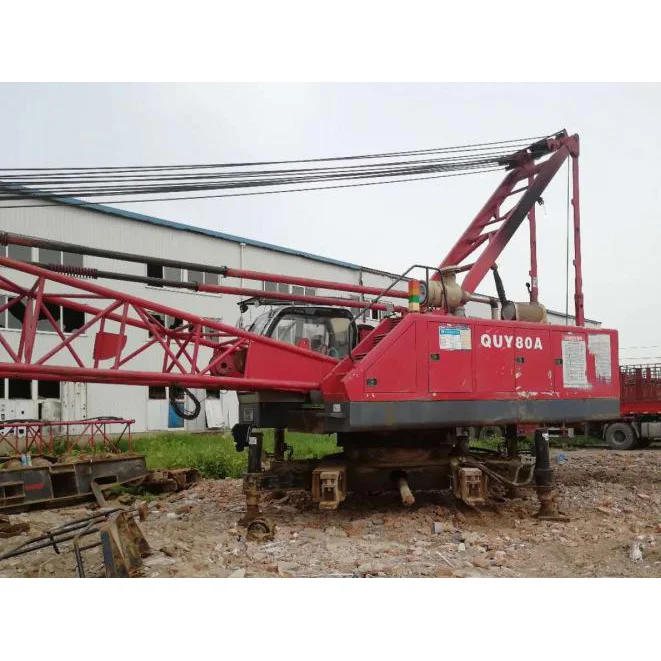

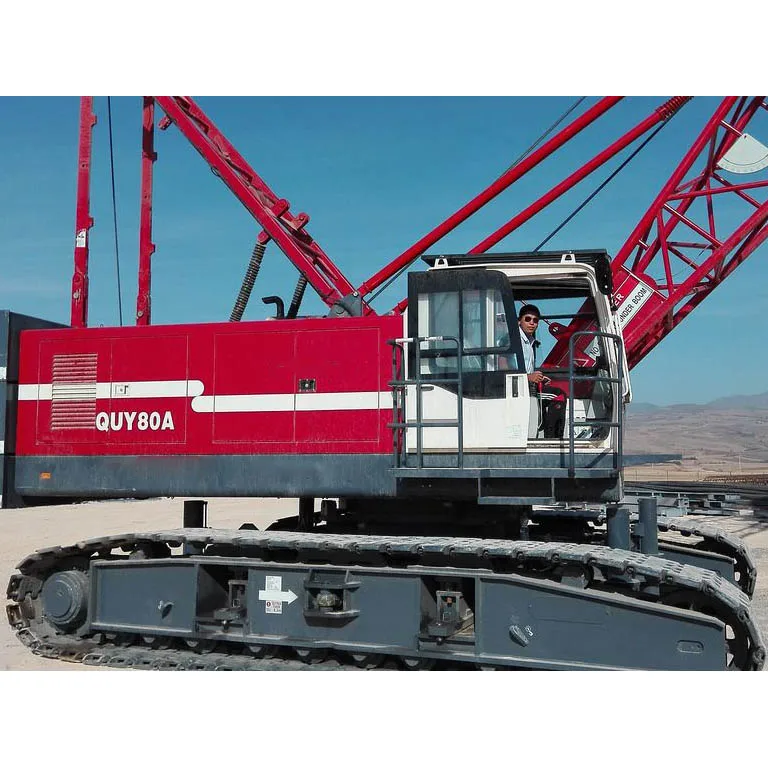

China Top Brand Truck Cranes QUY80A Crawler Crane 80Ton Jib Cranes with Multi-complex Operation
Feature：1. Optimized hydraulic system design
* Integrated design to reduce failure points, while reserve open space for assembly/ disassembly and maintenance.
* Use of highly integrated LUDV main valve, with the functions of multi-com- plex operation, control
of combined flow, high/low speed selection, to ensure operation efficiency.
of combined flow, high/low speed selection, to ensure operation efficiency.
* Optional unique independent bypass filtration in the industry, strong magnetic adsorption device, strengthened hydraulic system filtration, and anti-emulsifying ability.
2. Main/auxiliary hook one-key-switch-over function
* One-key-switch is used to easily achieve main/auxiliary hook switch-over, for wider range of applications.
3. Universal and modular design
* Common platform products with fixed jib, single top, both-sided counterweight, luffing mechanism, hydraulic pump and main valve block can achieve universal and interchangeable use, greatly reduce purchase, transport and maintenance costs.
Product Paramenters
Item | Value | Remarks | ||||
Max. lifting capacity × Radius t × m | 80×4 | |||||
Deadweight with basic boom t | 70.8 | |||||
Main boom length m | 13~58 | |||||
Fixed jib length m | 6~18 | |||||
Max. lifting capacity of fixed jibt | 7 | |||||
Offset angle of fixed jib° | 10,30 | |||||
Max. length of main boom with fixed jib m | 49+18 | |||||
Max. speed of single rope on drum | 120 | 120 | The 4th rope layer | |||
120 | 120 | The 4th rope layer | ||||
61 | 45 | The 4th rope layer | ||||
Slewing speedrpm | 1~2 | |||||
Traveling speed km/h | 1~1.68 | |||||
Gradeability% | 30 | |||||
Ground pressureMPa | 0.083 | |||||
Overall dimensions (L×W×H) m | 13.5×3.4×3.2 | Incl. mast, boom bottom section | ||||
Engine | 199/2200 | 153/2200 | ||||
1100/1200~1600 | 929/1300 | |||||
EU Stage III | TIER 3 | |||||
Crawler gauge × ground contact length × track shoe widthmm | 4200×5440×800 | Crawler carrier retracted | ||||
2600×5440×800 | Crawler carrier extended | |||||
