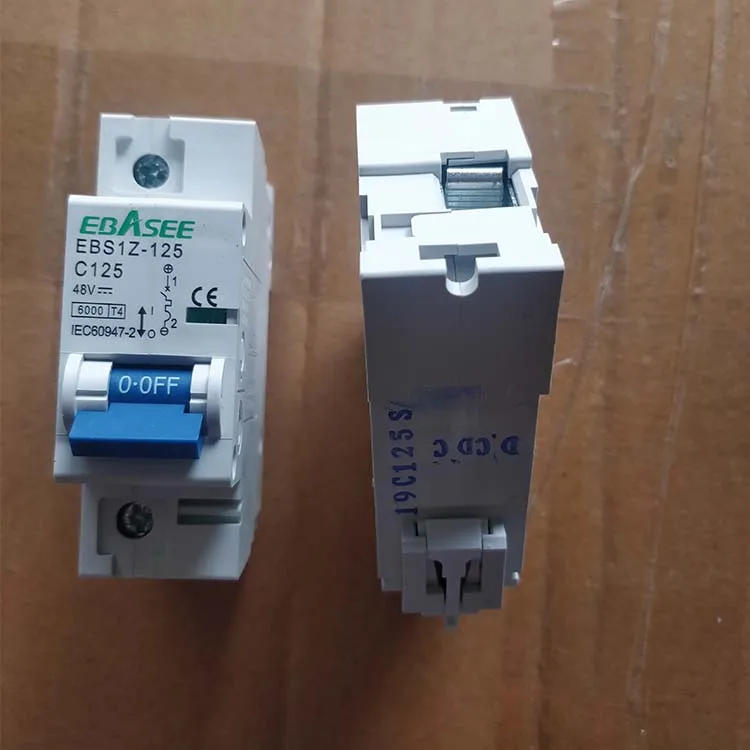

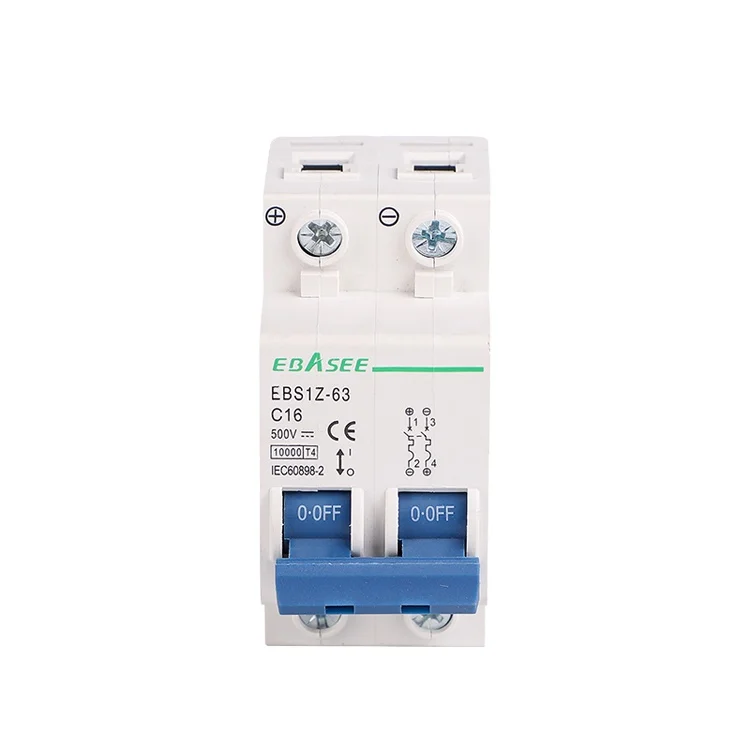

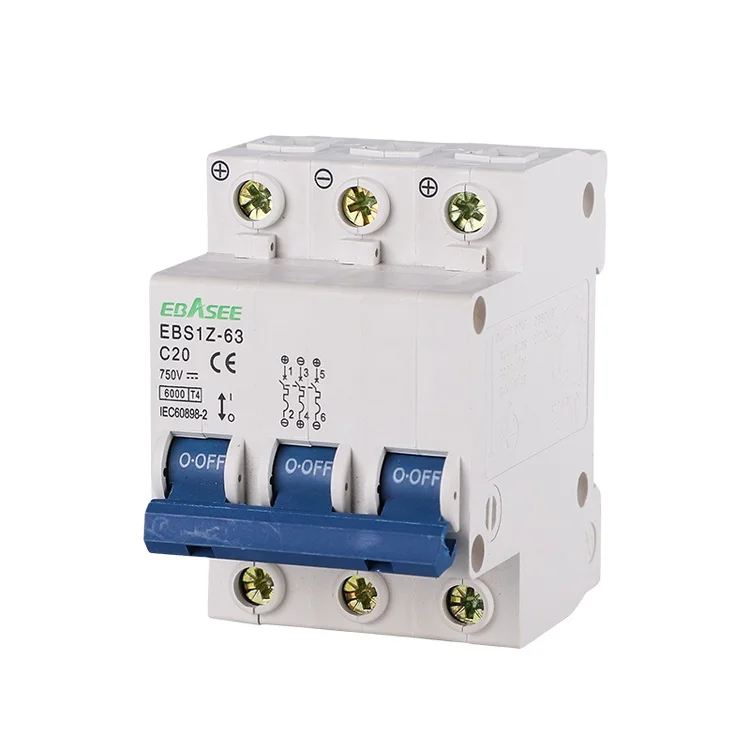

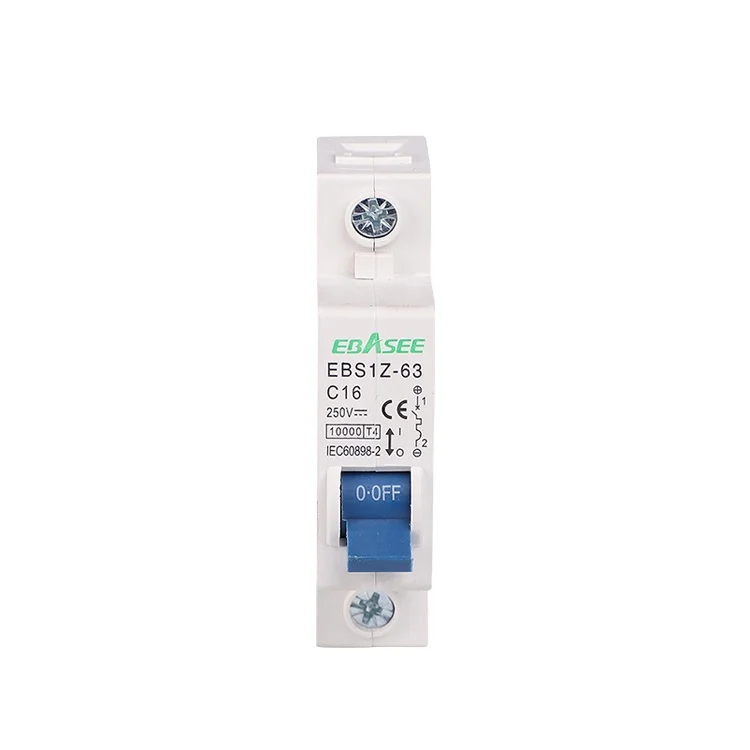

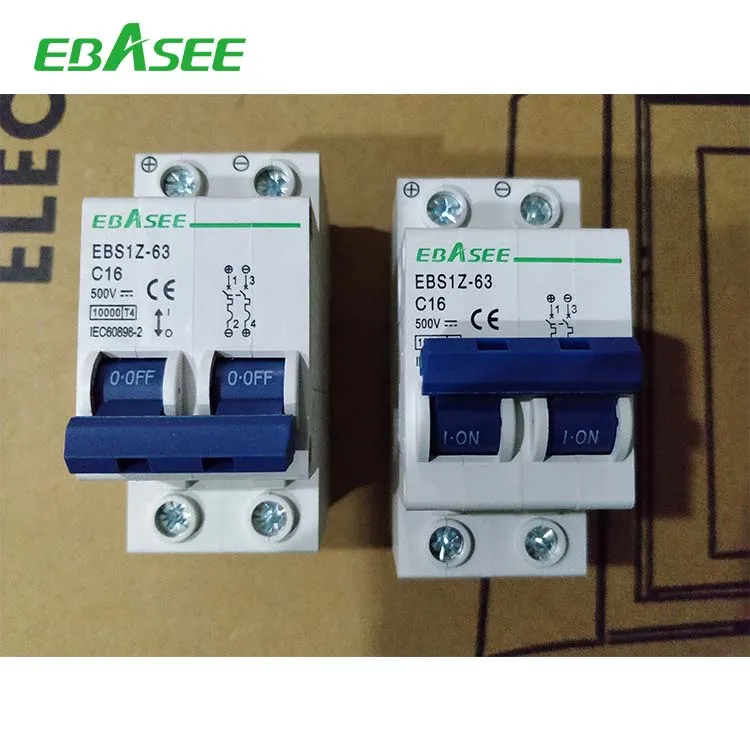

dc solar energy system 1 2 3 4 poles 2 pole dc 500V 800V1000v 63 125A amp dc mcb
- Category: >>>
- Supplier: Shanghai Ebasee Electric Co. Ltd.
Share on (1601273532788):
Product Overview
Description
Related Products
Product Description

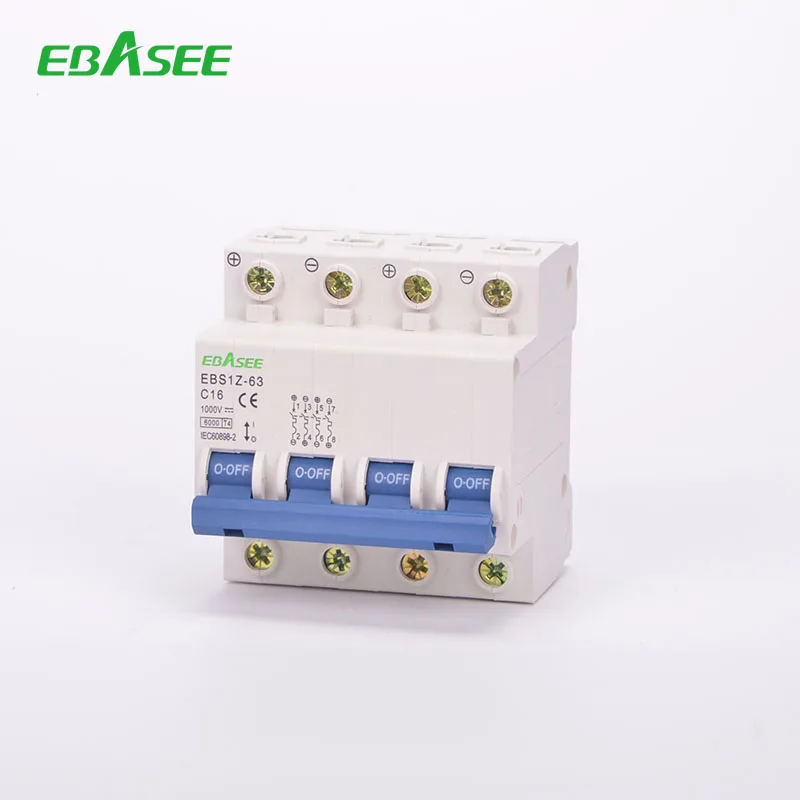

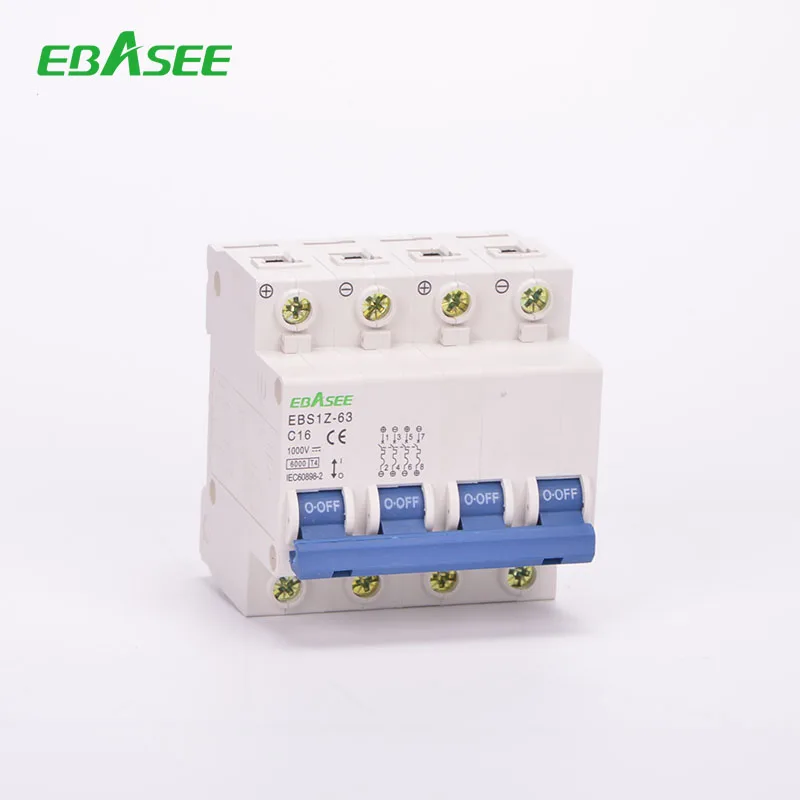

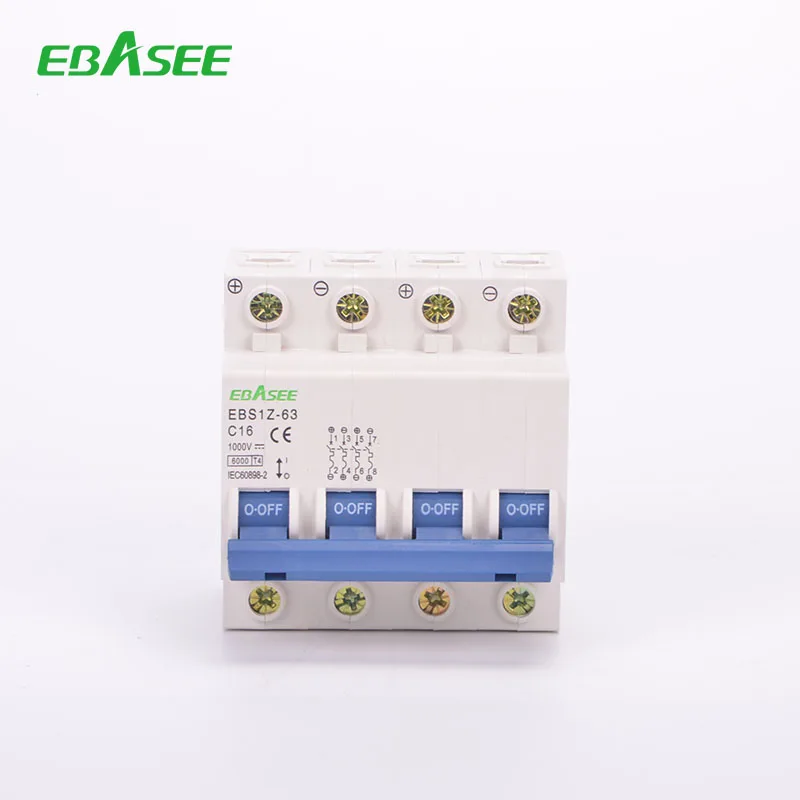

Miniature Circuit Breaker
Function
EBS1Z miniature circuit breaker is applied to low-voltage terminal power distribution system with AC rated voltage 230/400V.
1. Short-circuit, over-load and isolation
2. ON/OFF status indicator
3. Double wiring terminals could be connected cable, U type and needle type busbar
4. Easy installation and changing on 35mm DIN-rail
Technical Parameter
Model name |
| EBS1Z |
Standard |
| IEC60898-1 |
Poles |
| 1P, 2P, 3P, 4P |
Rated current In(A) |
| 1~63Amp |
Rated voltage Un(V) |
| DC 250V 500V 750V 1000V |
Tripping characteristic |
| B, C, D |
Breaking capacity |
| 6,000A |
Protection level |
| IP20 |
Electrical life |
| 15,000 times |
Installation |
| Installed on 35mm DIN-rail |
Features
1. Adopt global leading product platform, stable performance
2. Full and new accessories, full protection functions
3. Breaking capacity is 6kA for full series, superior performance
4. Add 1P+N, 3P+N, full specifications
Applicable Working and bus bar connection
Ambient temperature |
| -5~+40℃, the average value cannot exceed to +35℃ within 24h |
Altitude |
| ≤2,000m |
Relative humidity |
| ≤95% |
Pollution level |
| II. |
Installation location |
| Mount on the place where has no obvious vibration or impact |
