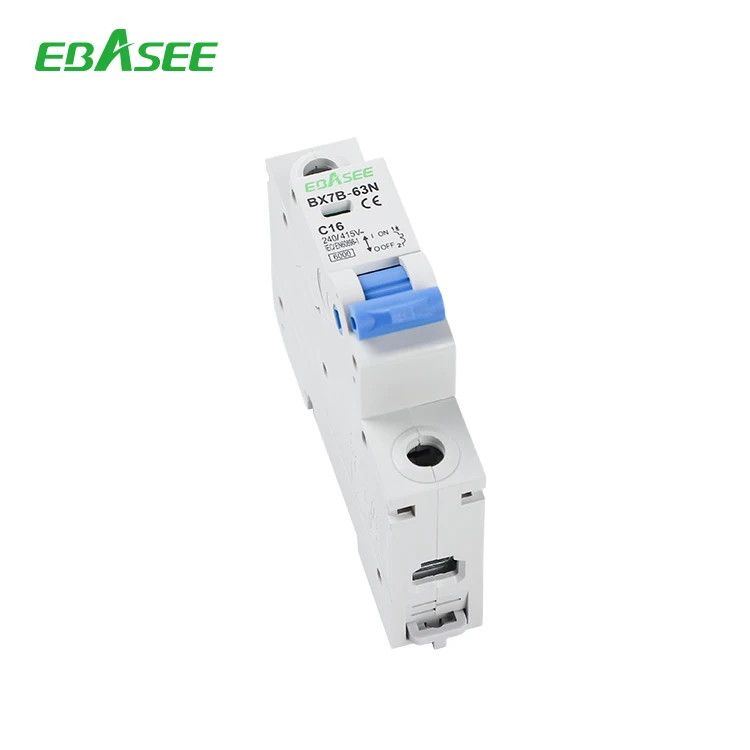

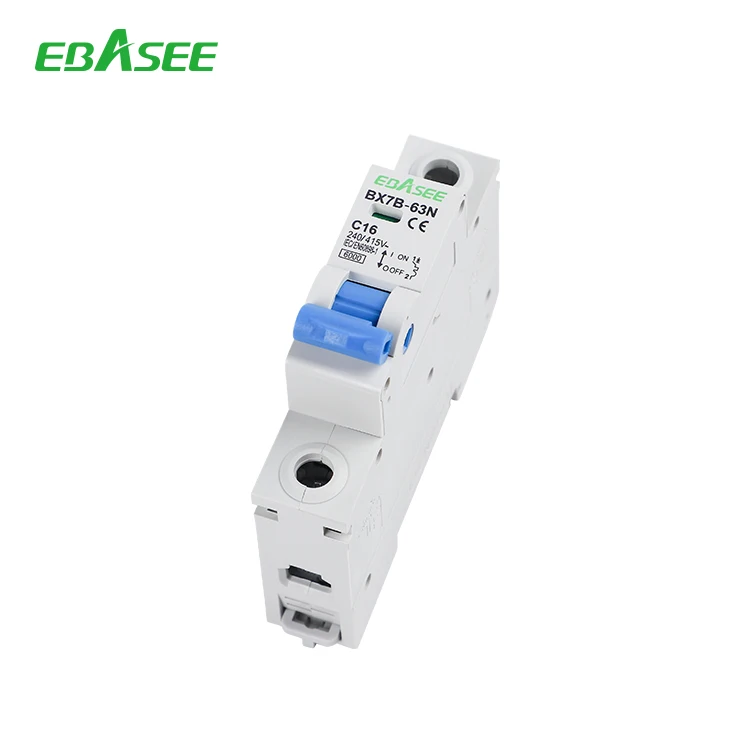

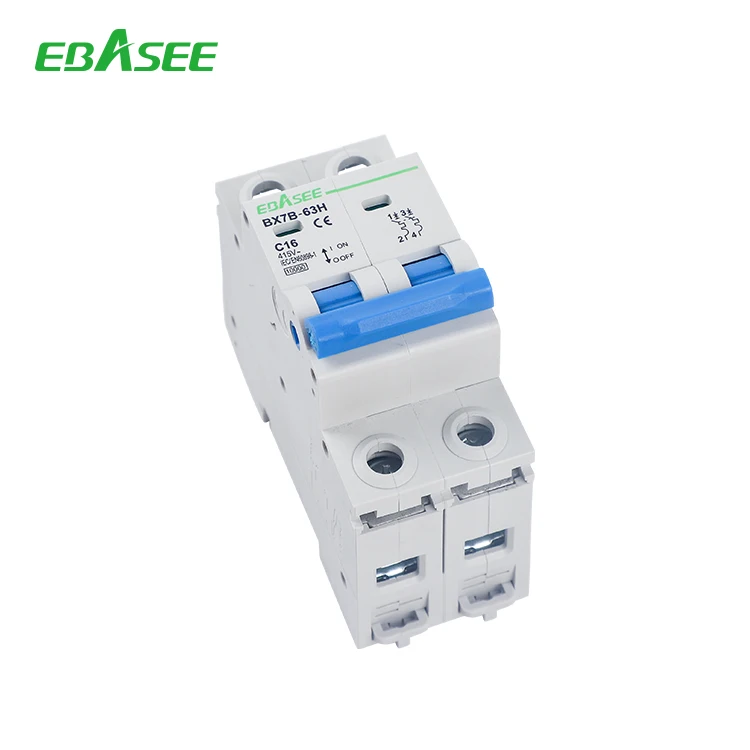

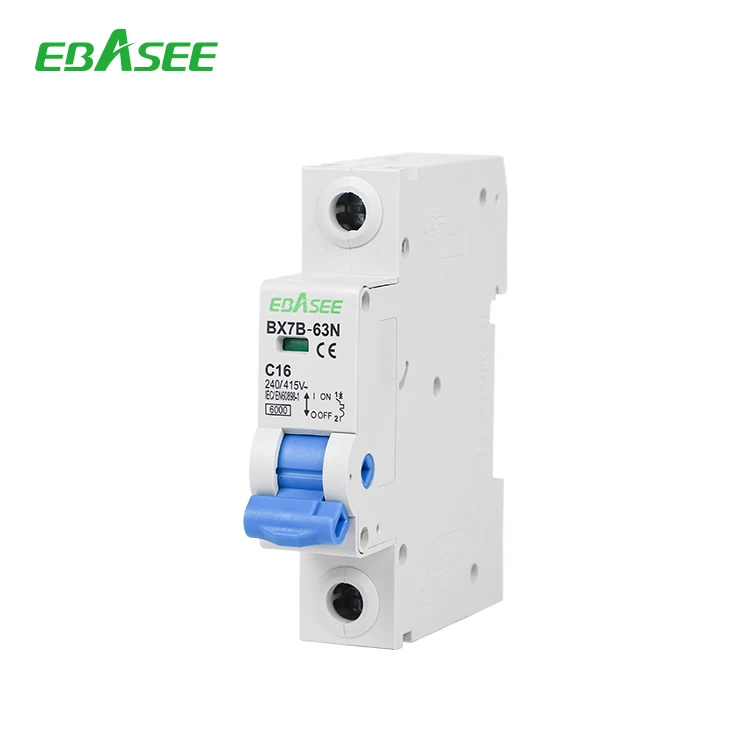

  • EBASEE high quality 4.5/6/10KA BX7B 63 1P 2P 3P 4P MCB
EBASEE high quality 4.5/6/10KA BX7B 63 1P 2P 3P 4P MCB

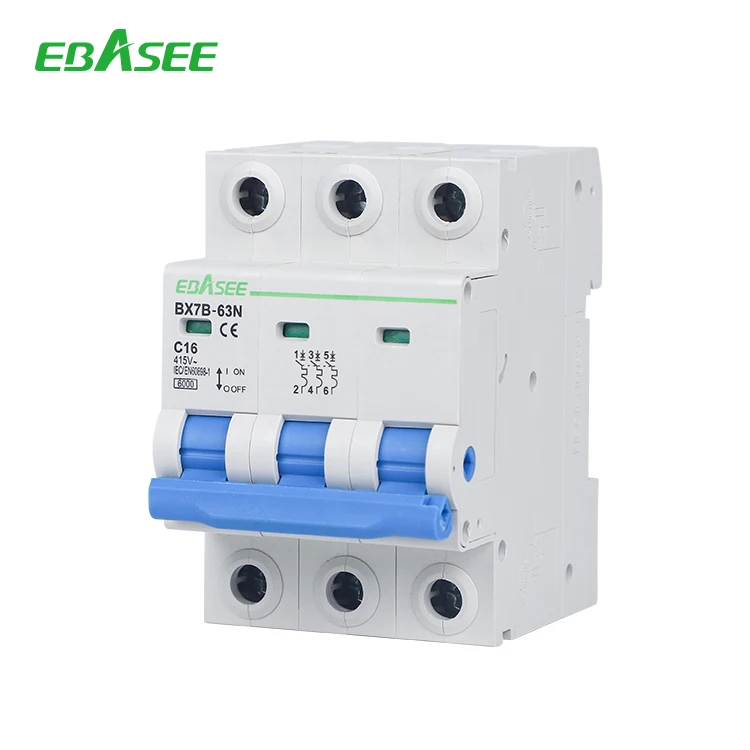

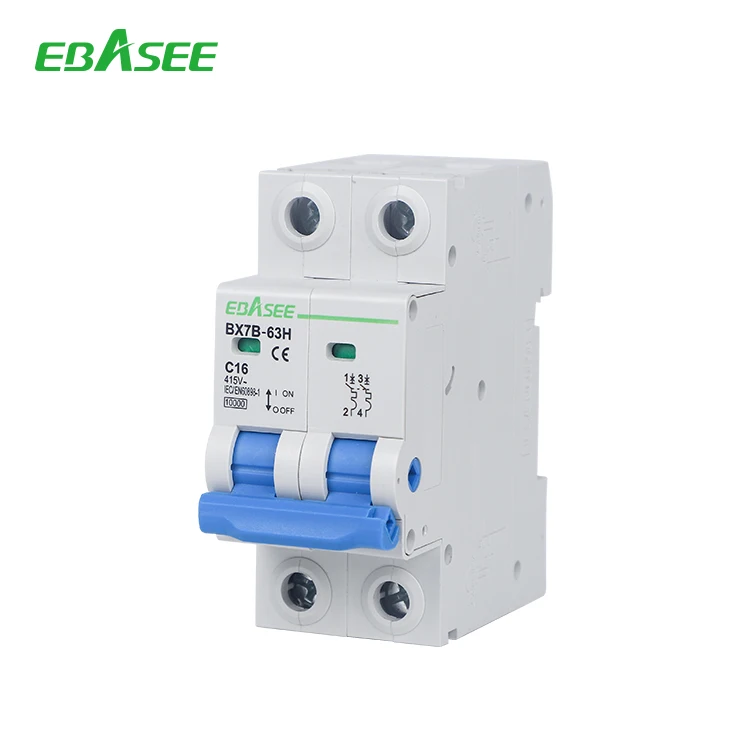

EBASEE high quality 4.5/6/10KA BX7B-63 1P 2P 3P 4P MCB
EBASEE high quality 4.5/6/10KA BX7B-63 1P 2P 3P 4P MCB
EBASEE high quality 4.5/6/10KA BX7B-63 1P 2P 3P 4P MCB
EBASEE high quality 4.5/6/10KA BX7B-63 1P 2P 3P 4P MCB
EBASEE high quality 4.5/6/10KA BX7B-63 1P 2P 3P 4P MCB
EBASEE high quality 4.5/6/10KA BX7B-63 1P 2P 3P 4P MCB

EBASEE high quality 4.5/6/10KA BX7B 63 1P 2P 3P 4P MCB

Share on (1601273548747):


Price:$0.68 - $2.75

Quantity:


Product Overview

Description







VR


Products Description




Model name
BX7B-63
Standard
IEC60898-2
Poles
1P  2P 3P 4P
Rated current In(A)
1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Rated voltage Un(V)
110/220V  220/440V
Breaking capacity
 6KA 4.5KA 10KA
Tripping characteristic
B C D


ACB / Air Circuit Breaker
Poles:3P, 4P
Rated current In(A):Up to 6300A
Rated voltage Un(V):1000V
Making time (ms):30
Electrical life (times):6,000
Mechanical life (times):10,000
Breaking capacity:100kA
Rated Current of N-pole:100% In

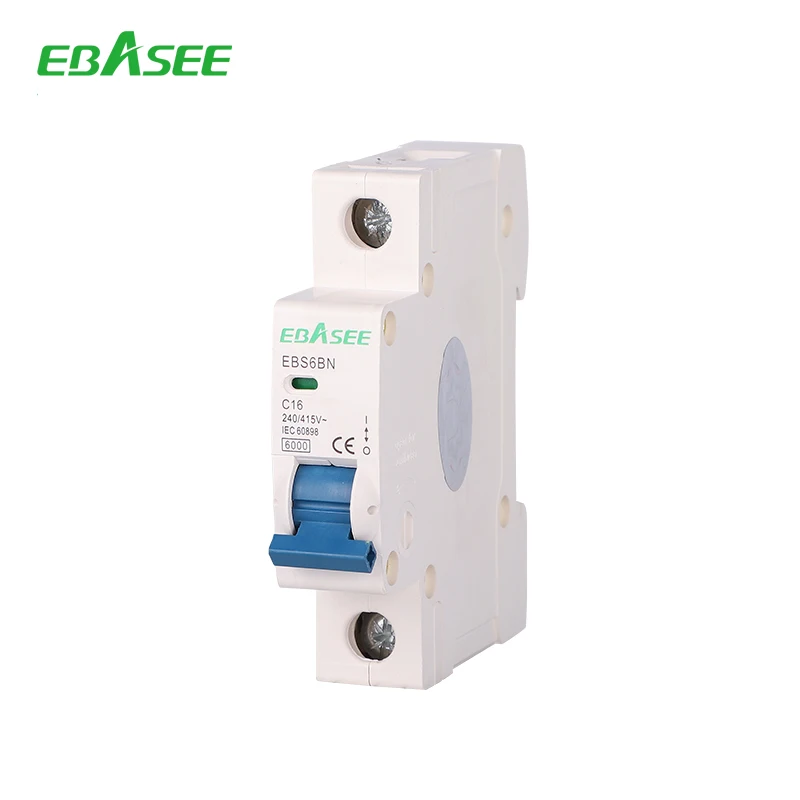

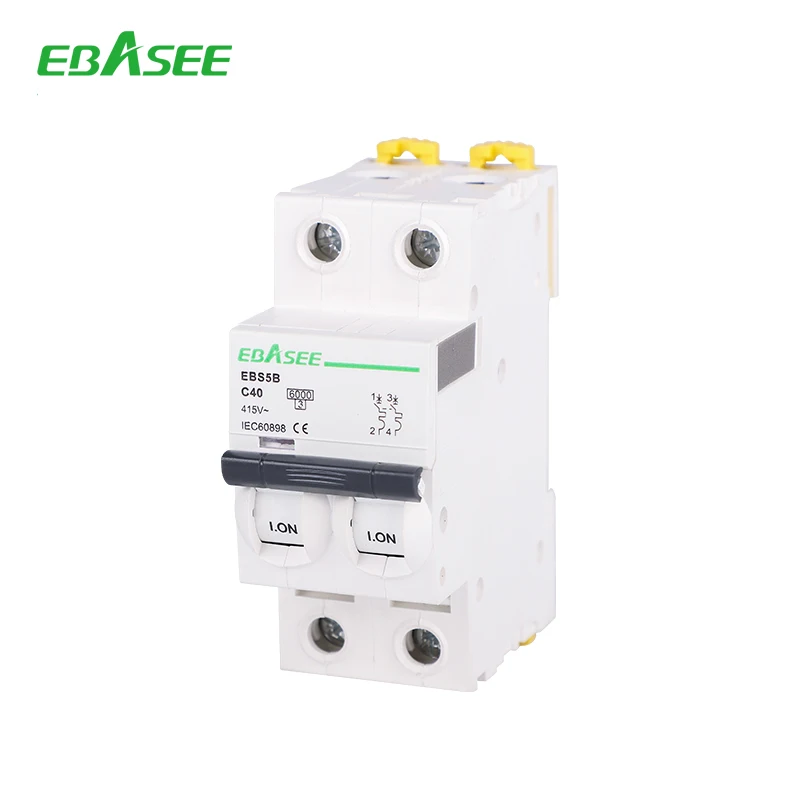

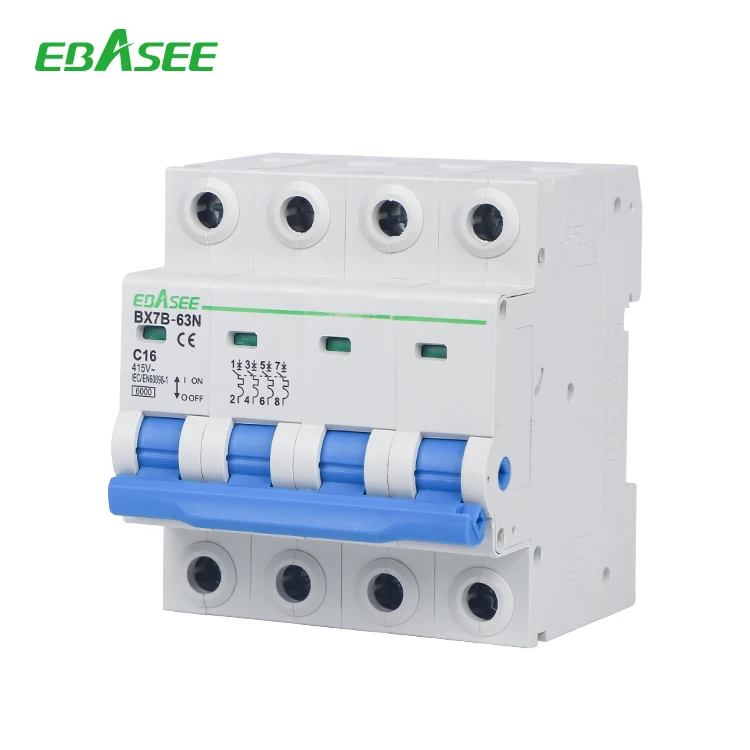

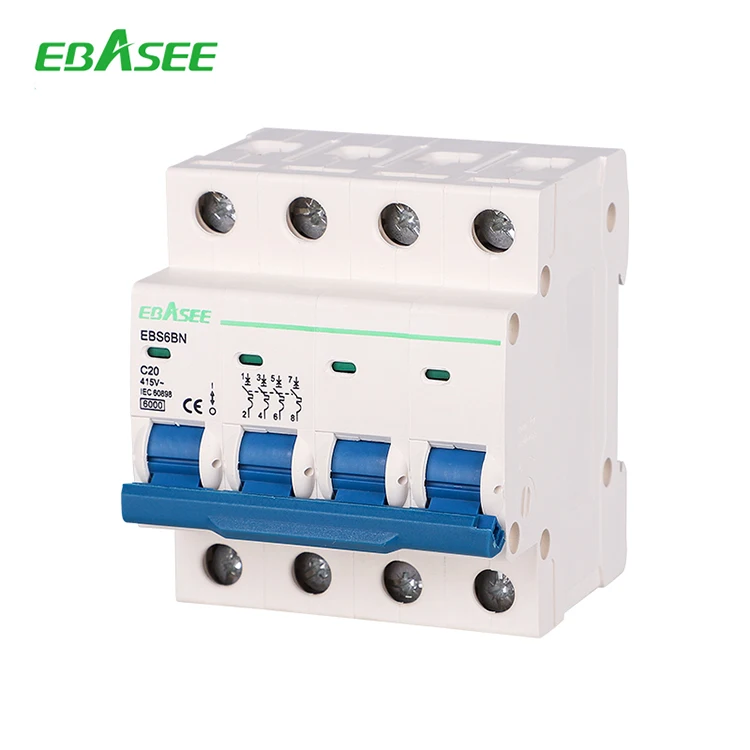

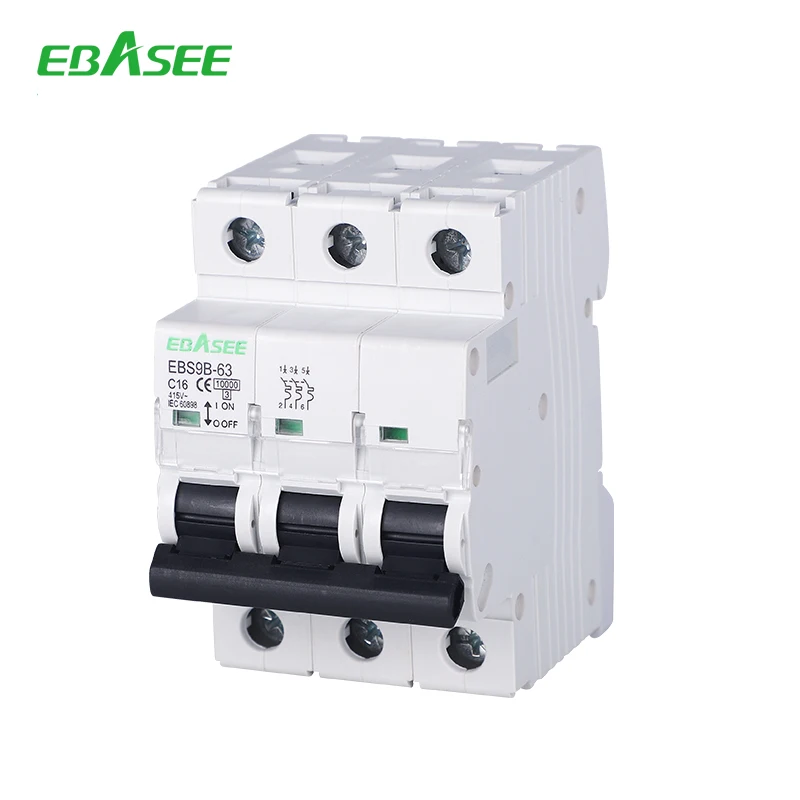

MCB / Mini Circuit Breaker / Miniature Circuit Breaker
Poles: 1P, 2P, 3P, 4P, 1P+N, 3P+N
Rated Current(A): 1 - 63 amp
Rated voltage(V): 240/415V AC 50/60Hz
Tripping sensitivities: B C D
Breaking capacity: 6000A
Protection Grade: IP20
Installation: Installed on 35mm DIN rail

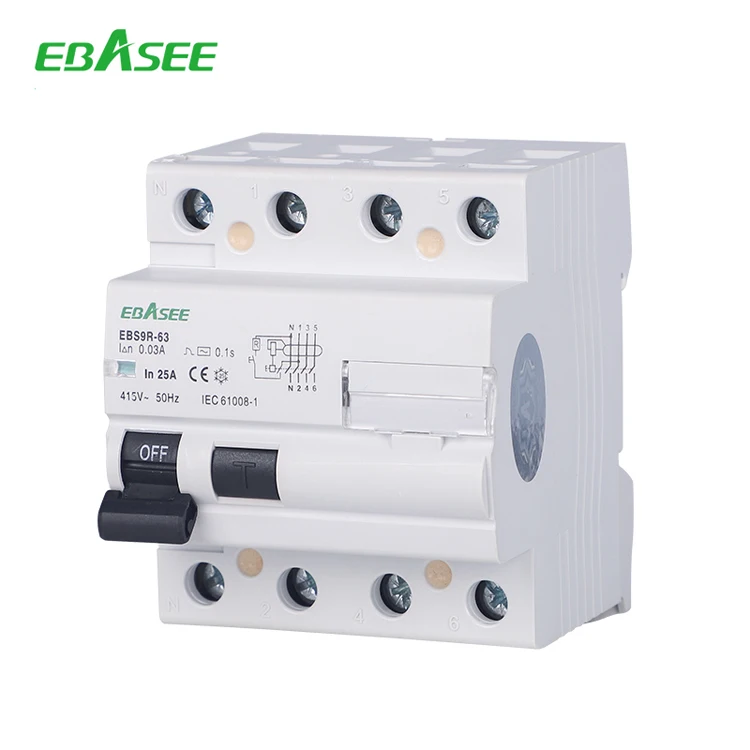

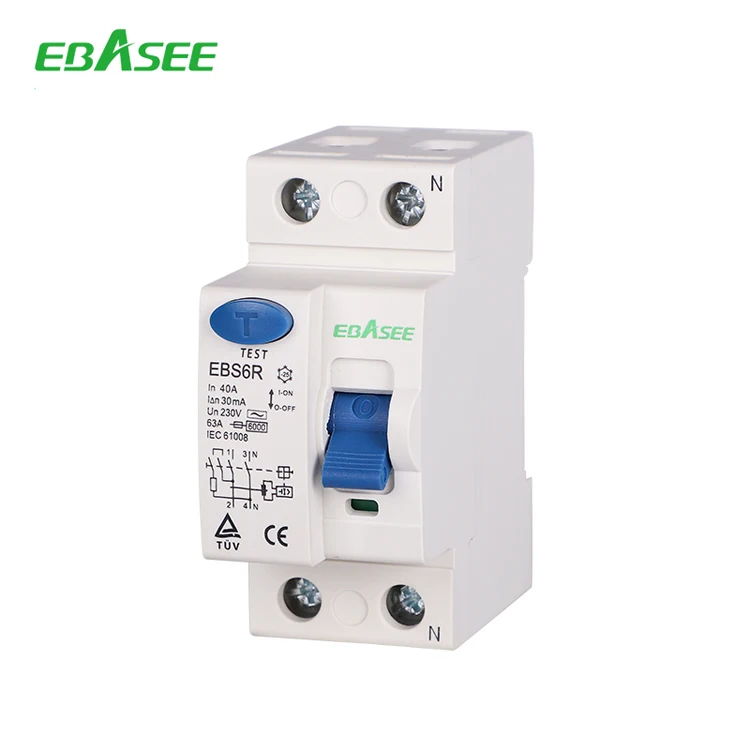

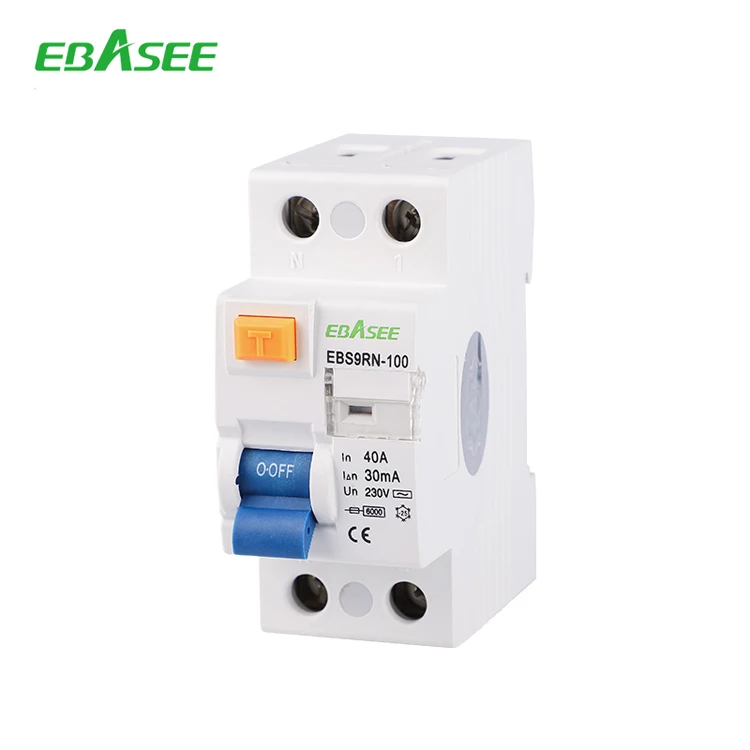

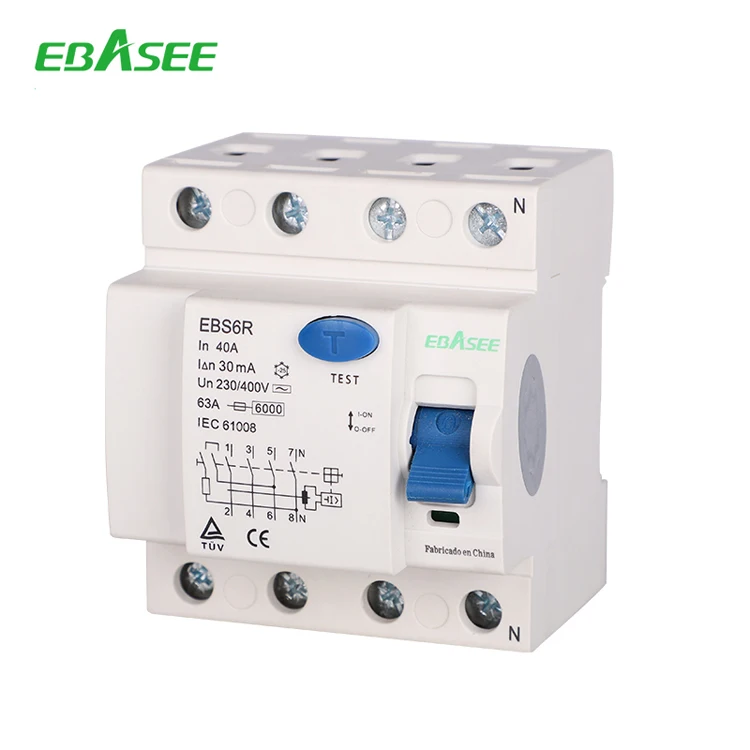

RCCB / Residual Current Circuit Breaker / ElCB / Earth Leakage Circuit Breaker
Poles: 2P 4P
Rated current In(A): 25 32 40 50 63
Rated voltage Un(V) 2P:230V 4P:400V
Rated residual current In(mA):10,30,100,300
Installation: Installed on 35mm DIN rail

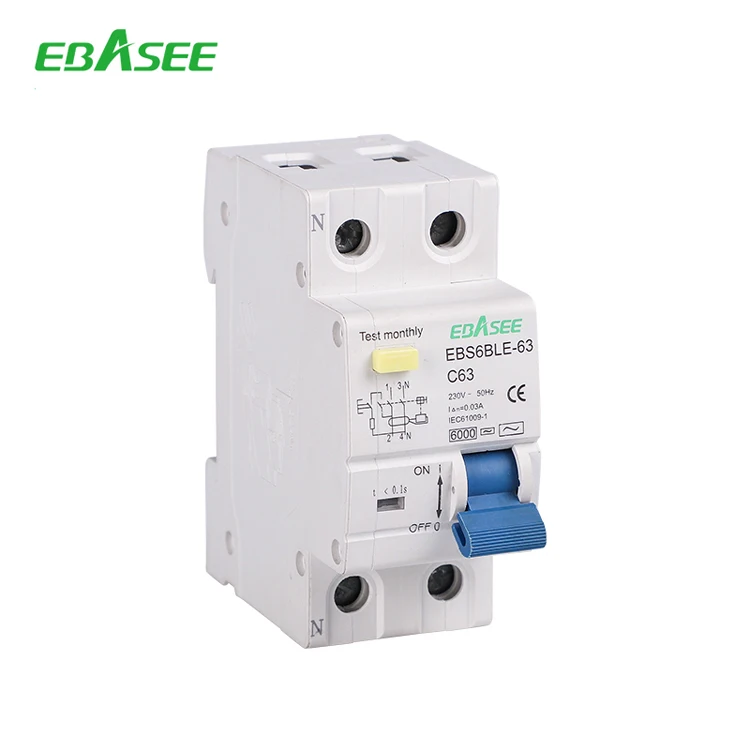

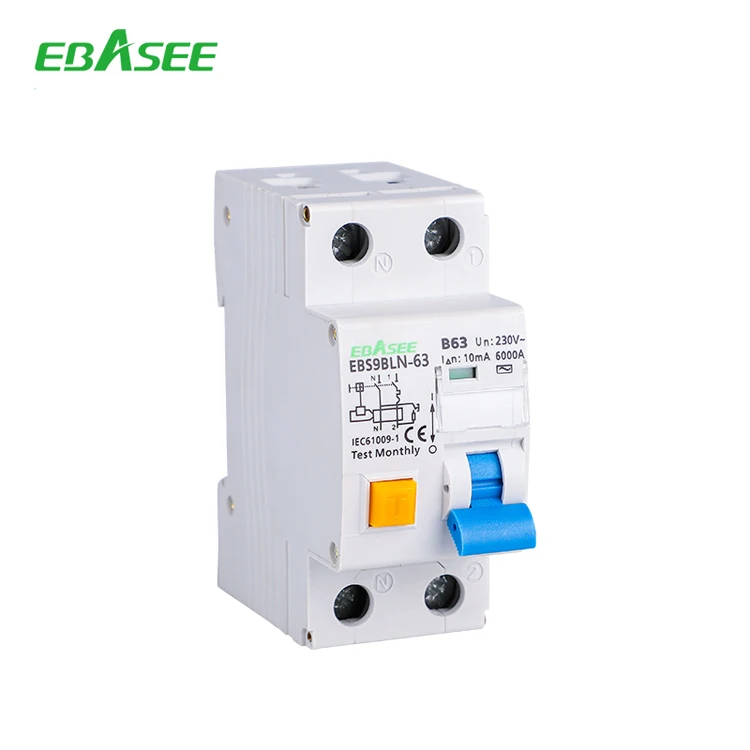

RCBO / Residual Current Operated Circuit Breaker
Poles:DNP
Tripping curve:B,C
Rated short circuit capacity(kA):3,4,5,6
Rated current(A):6,10,16,20,25,32A
Rated voltage:240V AC 50/60HZ
Rated residual operating current(mA):30
Installation:Installed on 35mm DIN rail

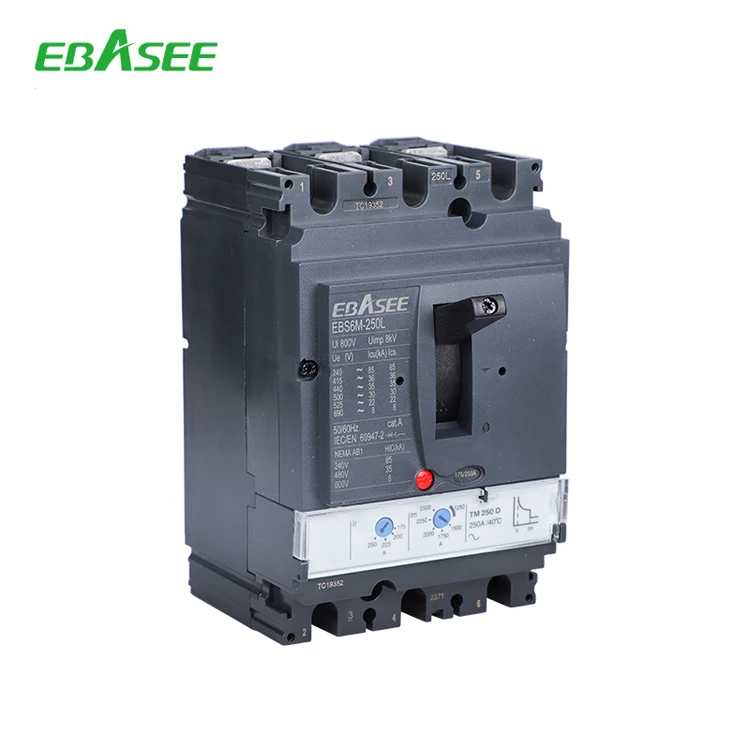

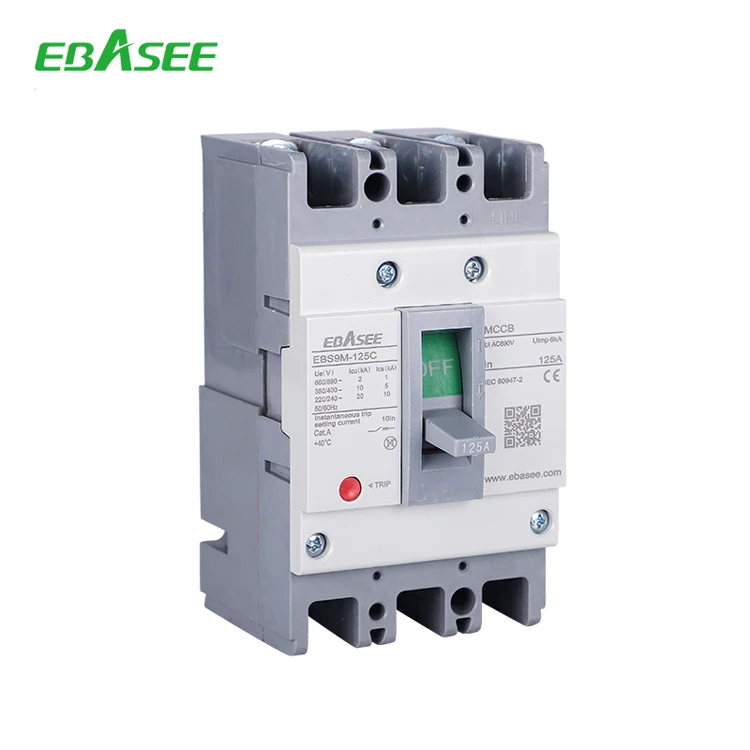

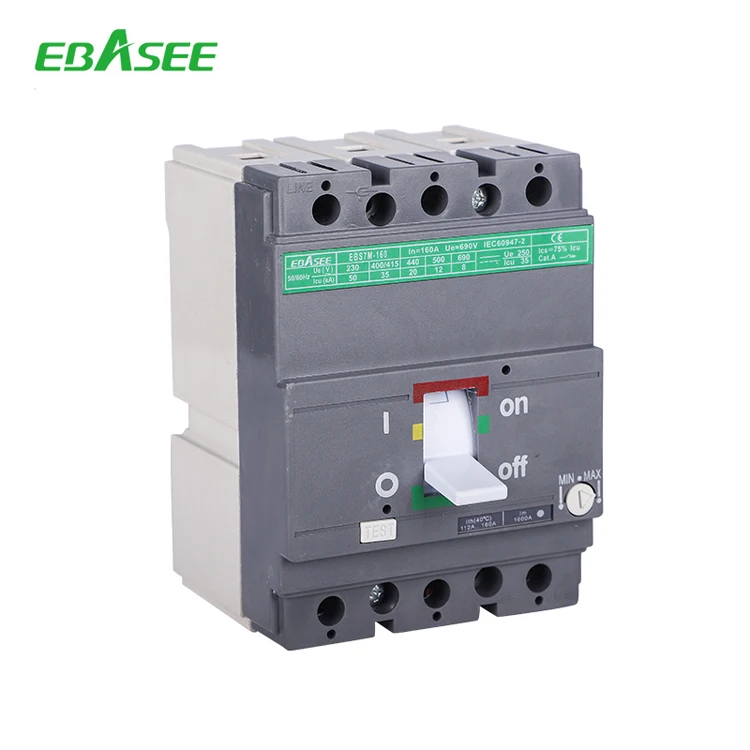

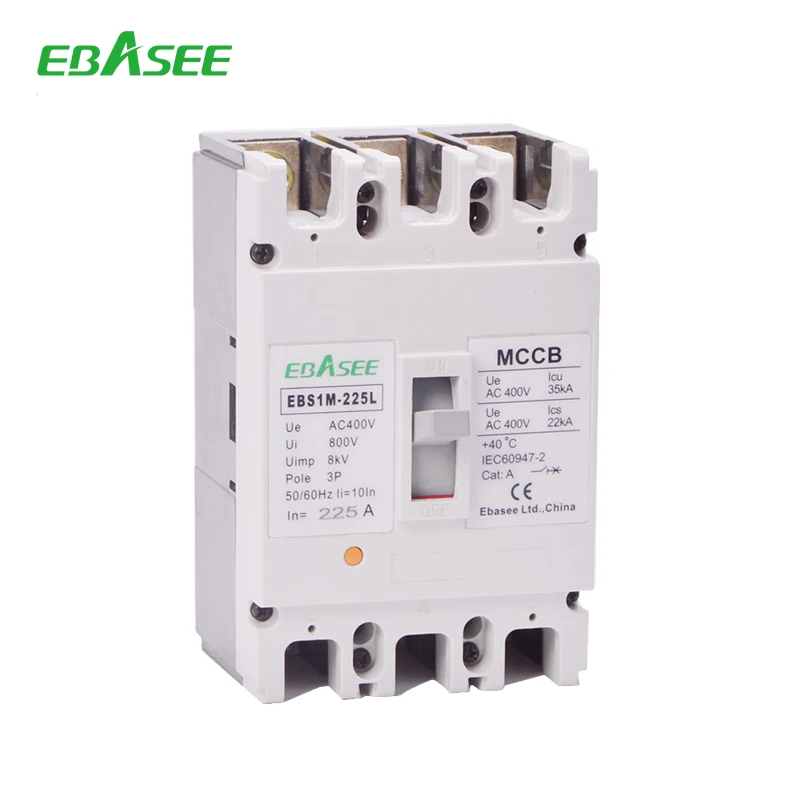

MCCB / Moulded Case Circuit Breaker
Poles:3P, 4P
Rated operational current In(A):Up to 800Amp
Rated operational voltage Un(V):690V
Frame type:6~63A 16~100A 630~800A
Material:PA66/PC
Release type:Thermal Magnetic
Breaking capacity:100kA
Installation:Fixed

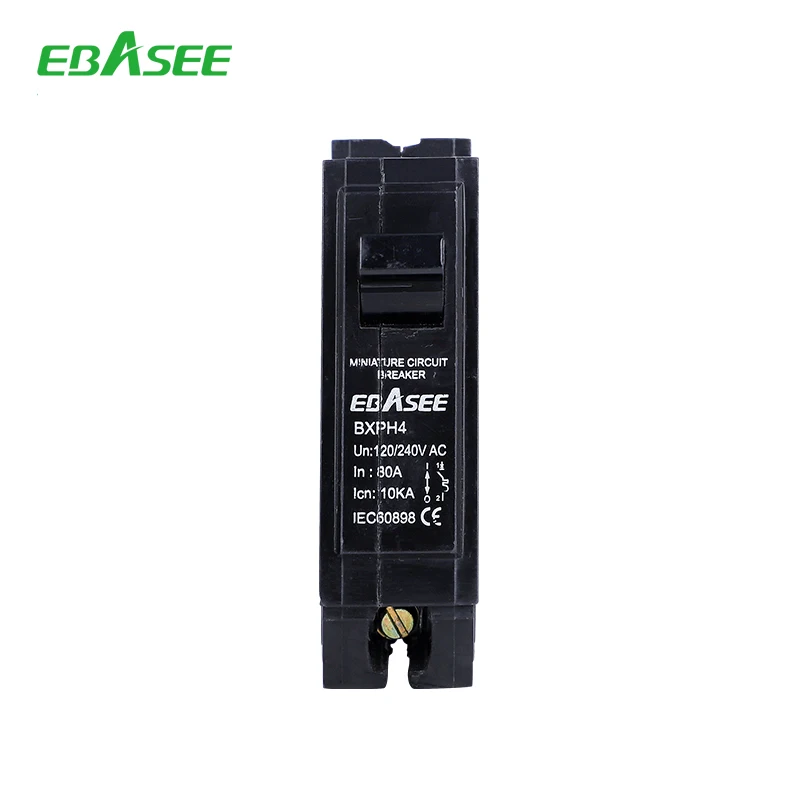

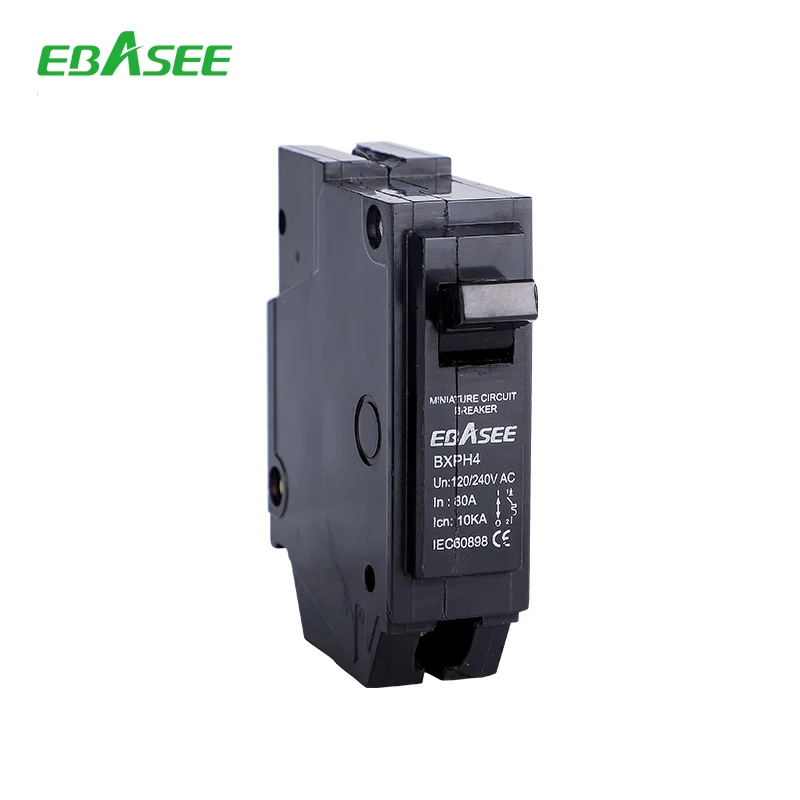

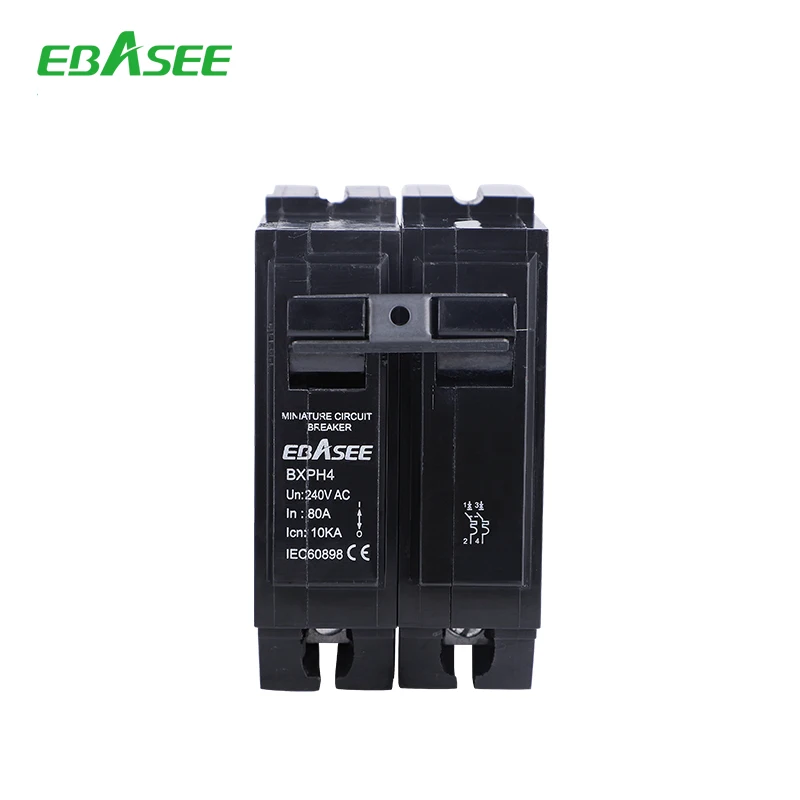

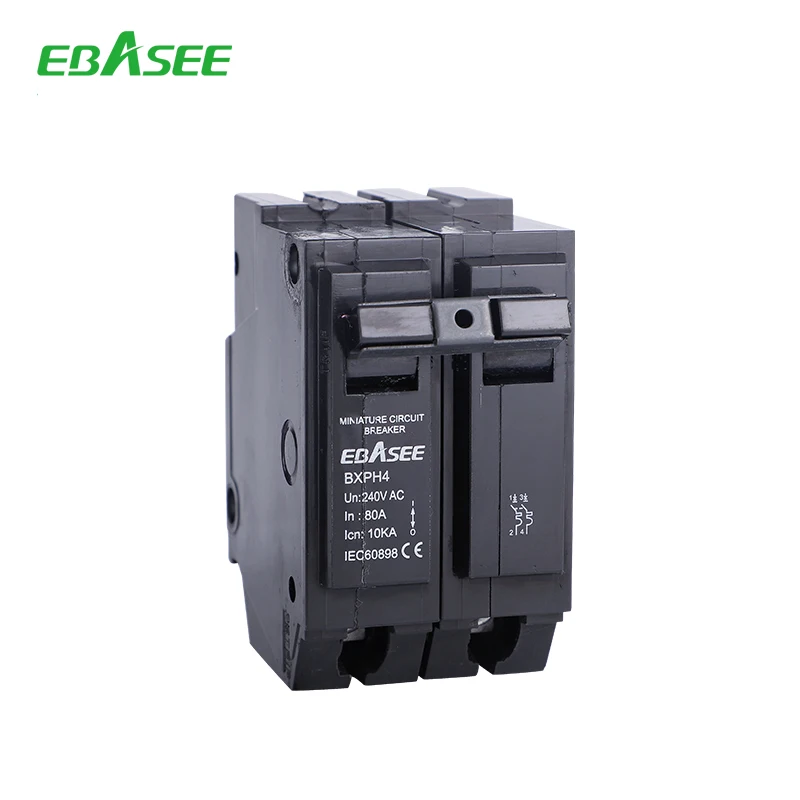

Plug-In Circuit Breaker
Poles:1P,2P,3P
Rated current In(A):6A,10A,15A,20A,25A,30A,40A,50A,60A,70A,80A,100A
Rated voltage Un(V):110/220(1P), 240/415(2P), 415(3P)
Trip Function:LI
120 Vac Interrupting:10 KAIC
120/240 Vac Interrupting Rating:10 KAIC
Product Line:Q-Line (Plug-In)


Electrical circuit breaker 1p 1 2 pole 30a 2a mcb breaker




Company Profile

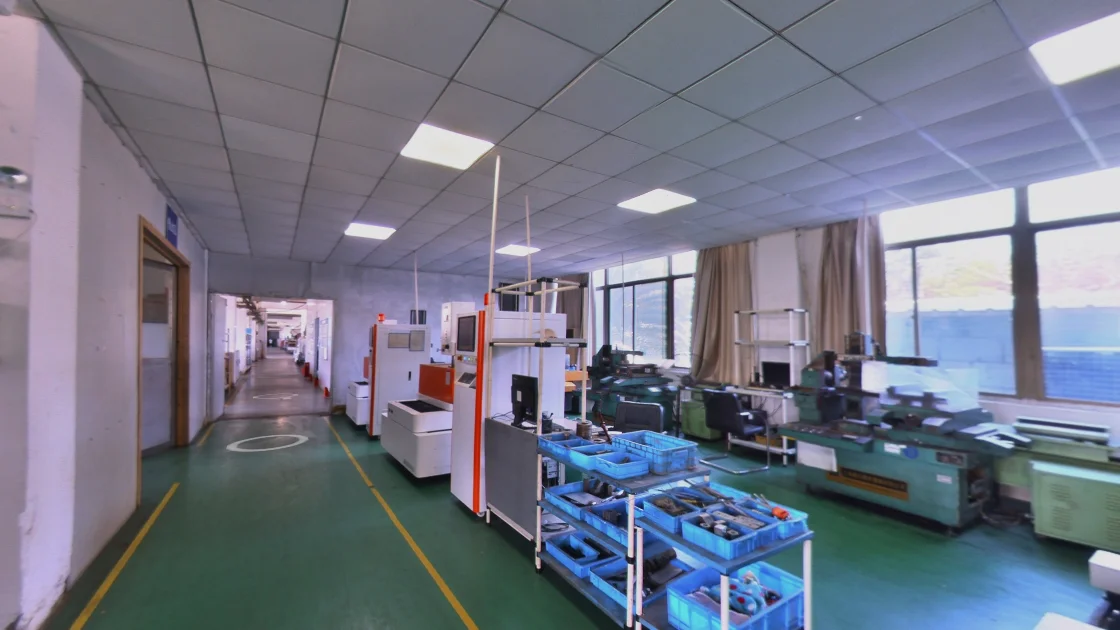

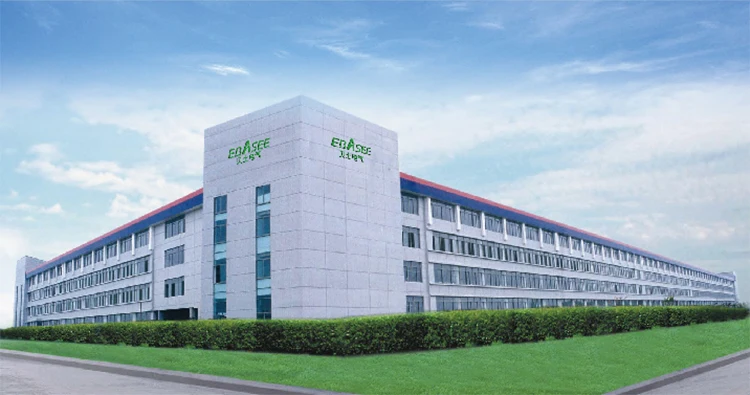

Shanghai EBASEE Electric Co., Ltd. has been committed to low voltage electric products’ designing, R&D, manufacturing and marketing for decades. EBASEE factory locates in Shanghai,China, covering an area of 5000 m2.There are 300 well-trained workers, more than 30 rich experience production and R&D engineers. EBASEE product portfolio have 4 lines and 8000+ items in application of power distribution, circuit protection, electricity control and power measuring.
QUALITY is our CULTURE. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV, KEMA. CNAS approved laboratory enables EBASEE to develop and test new products to meet variable markets’ tailored demands. EBASEE branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 60+ countries and districts.
