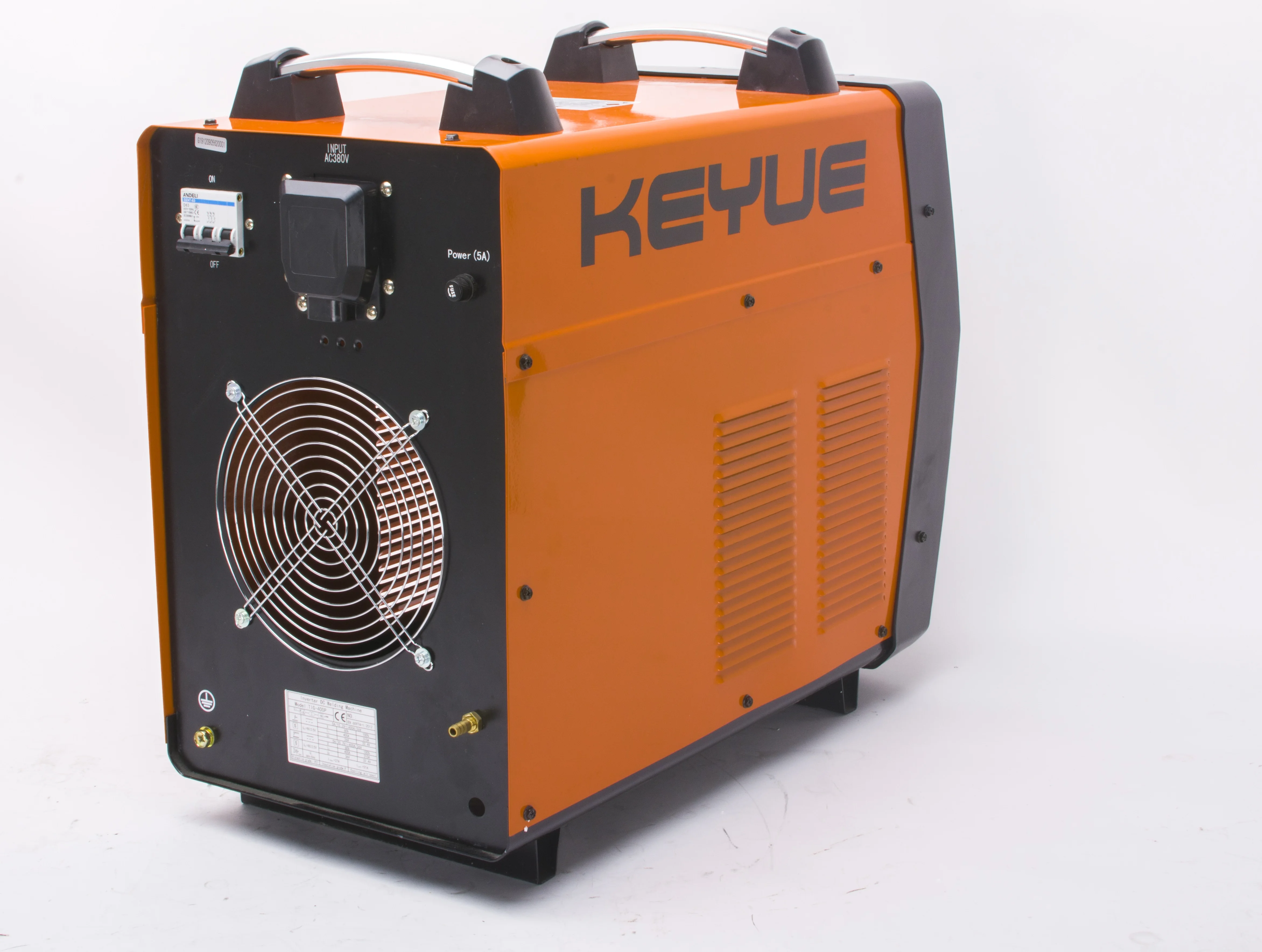

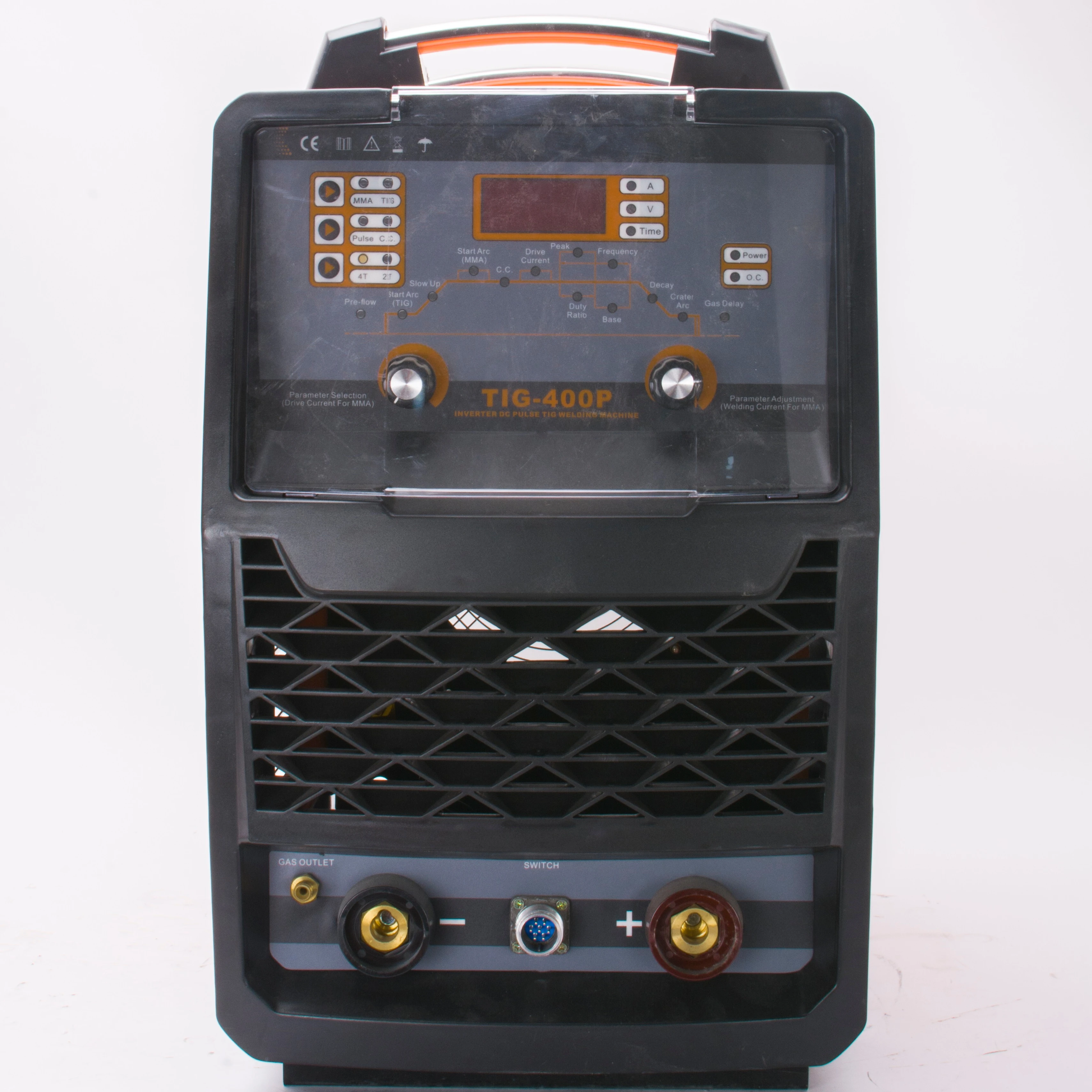

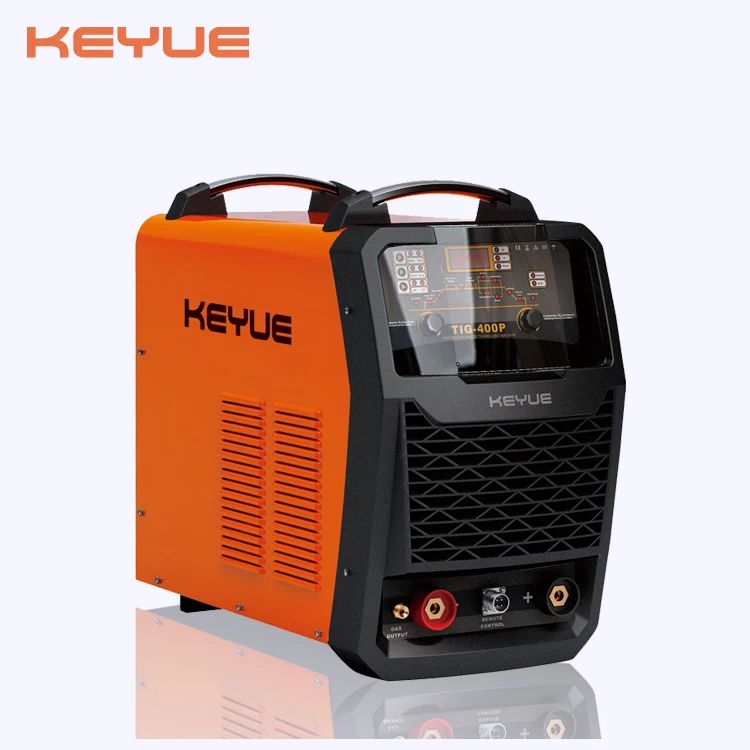

New design High frequency Pulse DC inverter TIG welder ac dc tig 400 welding machine ac dc
- Category: >>>
- Supplier: Keyue Welding Equipment Co. Ltd.
Share on (1601273590885):
Product Overview
Description
Product Description
Product Description
Product Description
Product feature
- Support: TIG, PULSE TIG and MMA
- HF TIG arc starting

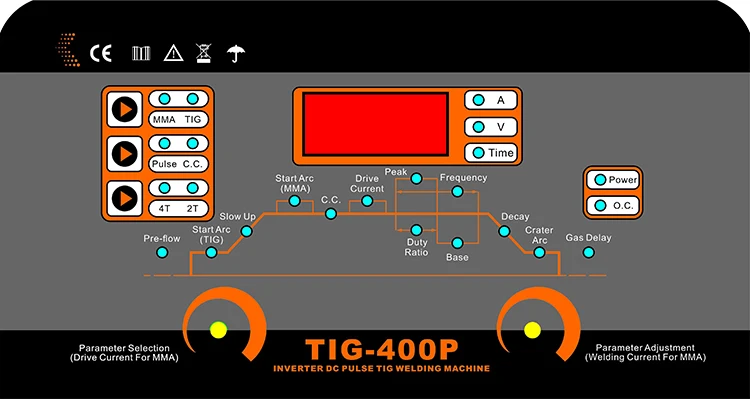

- Function: 2T/4T, gas pre-flow, gas delay, slow-up, slow-down, peak, base, duty ratio, frequency etc.
- Protection: over-heat and over current.
- Material: Stainless steel, Carbon steel and so on
Model TIG-400p Input voltage(V) 3PH AC380V±15% Input power(KVA) 17.8@ MMA; 13.2 @TIG Input current (A) 27A@MMA; 20A@TIG Rated output 26V/400A Output current(A) TIG:5-400
MMA:5-400
No-load voltage (V) 80±5 Duty Cycle% (40℃ 10min) 400A 60% 310A 100% Efficiency (%) 80 Protection grade IP21 Insulation grade F Net weight (KG) 30 Gross weight (KG) 41 Dimension of machine (mm) 690*335*575 Dimension of package (mm) 740*400*630
Performance
Material | Sheet thickness (mm) | Tungsten diameter (mm) | Current range(A) | Model |
Carbon steel, stainless steel, low alloy steel | 0.3-6 | 1.6-2.4 | 20-175 | TIG-160 |
0.3-10 | 0.8/1.0 | 20-190 | TIG-200 | |
0.3-12 | 1.0/1.2 | 20-220 | TIG-250 | |
| 0.3-12 | 2.5-3.2 | 5-400 | TIG-400P | |
Copper | 0.3-14 | 2.5/3.2/4.0 | 5-500 | TIG-500P |
0.5-5.0 | 2.5-3.2 | 5-400 | TIG-400P | |
0.5-60 | 2.5/3.2/4.0 | 5-500 | TIG-500P | |
Carbon steel Stainless steel Low alloy steel Aluminum | 1.5-5 | 2.5/3.2 | 5-315 | TIG-315PAC/DC |
1.5-10 | 2.5/3.2/4.0 | 20-500 | TIG-500PAC/DC |
