Manufacturer supplied DWT fiberglass explosion proof roof fan factory exhaust ventilation low noise axial flow fan
- Category: >>>
- Supplier: Qingdao Damuyuan Machinery Manufacturing Co. Ltd.
Share on (1601273602335):
Product Overview
Description
Product Description

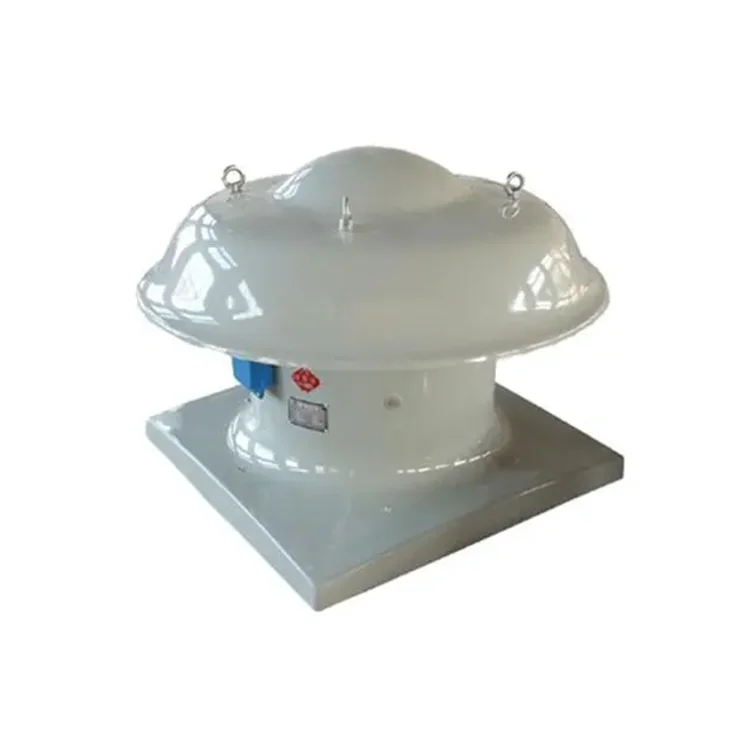

FRP Roof axial flow exhaust fan
Product Introduction:
Roof axial flow exhaust fan： Various specifications and forms, wide application range: the following two types of fans can be selected according to the pressure, air volume and noise of the application occasions:
a. The code is DWT_ Type I, suitable for medium and low pressure, large flow applications. At the same time, according to the needs of users, it can also be designed as bidirectional rotary reversible type, which has the characteristics of equivalent positive and negative working conditions (the product has obtained the national patent)
b. Centrifugal roof fan: code named dwt-ii type, suitable for small air volume and high pressure requirements.
a. The code is DWT_ Type I, suitable for medium and low pressure, large flow applications. At the same time, according to the needs of users, it can also be designed as bidirectional rotary reversible type, which has the characteristics of equivalent positive and negative working conditions (the product has obtained the national patent)
b. Centrifugal roof fan: code named dwt-ii type, suitable for small air volume and high pressure requirements.
Advantage of roof axial flow fans
1.High efficiency, low noise
1.High efficiency, low noise
2. Light weight, high strength and corrosion resistance
3.Stable operation and long service life
4.it has wide application
5.beautiful appearance
6. Service conditions: the temperature of the medium does not exceed 60C, the gas does not contaiexcessive viscous substances, and the dust content is less than 10mg / m³
3.Stable operation and long service life
4.it has wide application
5.beautiful appearance
6. Service conditions: the temperature of the medium does not exceed 60C, the gas does not contaiexcessive viscous substances, and the dust content is less than 10mg / m³

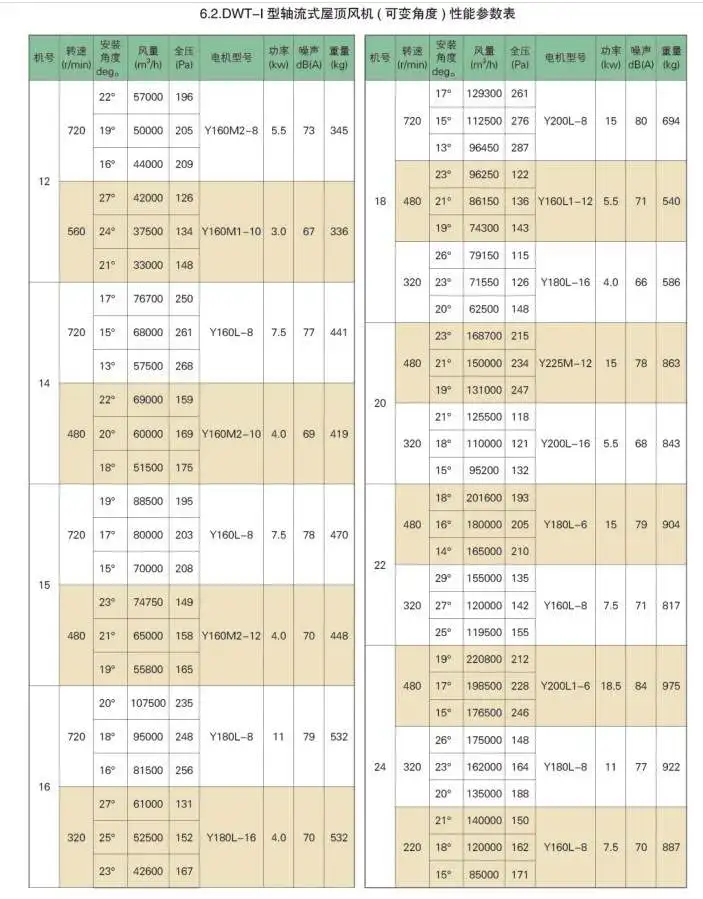

Specification
MODEL DWT-I ROOF AXIAL FAN | ||||||||
Size(NO) | Power(KW) | Speed(r/min) | volumeFlow(M3/h) | Total Pressure(Pa) | ||||
3 | 0.37 | 2800 | 3300-2600 | 181-232 | ||||
0.06 | 1400 | 1650-1450 | 62-72 | |||||
0.04 | 1400 | 800-1100 | 25-37 | |||||
3.5 | 0.75 | 2800 | 4150-4788 | 150-230 | ||||
0.37 | 1400 | 3320-2565 | 100-150 | |||||
4 | 0.75 | 2800 | 7450-5300 | 193-250 | ||||
0.55 | 1400 | 5700-4580 | 176-190 | |||||
0.25 | 960 | 3000-3800 | 69-86 | |||||
4.5 | 0.37 | 1400 | 6067-4968 | 110-130 | ||||
0.55 | 1400 | 6320-5220 | 125-140 | |||||
5 | 0.55 | 1400 | 8000-5600 | 135-191 | ||||
0.37 | 960 | 7000-6400 | 113-131 | |||||
0.25 | 720 | 4100-6000 | 88-96 | |||||
6 | 1.5 | 1400 | 15000-13000 | 232-267 | ||||
1.1 | 960 | 11000-9100 | 168-193 | |||||
0.55 | 720 | 8500-7600 | 111-136 | |||||
7 | 1.5 | 960 | 17500-12500 | 165-212 | ||||
0.75 | 720 | 12000-9200 | 141-177 | |||||
0.55 | 560 | 7200-9300 | 83-102 | |||||
8 | 2.2 | 960 | 27000-23000 | 175-228 | ||||
1.5 | 720 | 20000-16000 | 129-167 | |||||
0.75 | 560 | 15750-12250 | 78-121 | |||||
9 | 3.0 | 960 | 34500-24000 | 202-256 | ||||
2.2 | 720 | 32000-24000 | 126-177 | |||||
1.1 | 560 | 24000-18600 | 102-126 | |||||
10 | 5.5 | 960 | 50000-39000 | 251-317 | ||||
3.0 | 720 | 46000-35000 | 141-183 | |||||
1.5 | 560 | 28000-20000 | 111-133 | |||||
11 | 5.5 | 960 | 56900-40400 | 253-322 | ||||
3.0 | 720 | 52500-40000 | 138-183 | |||||
1.5 | 560 | 32000-25000 | 111-142 | |||||
Packing & Delivery
We can pack the goods in wooden cases and iron frames according to the requirements of customers, which is convenient for shipping or air transportation.
Company Profile
Qingdao Damuyuan Machinery Manufacturing Co., LTD is the source manufacturer and exporter of Axial Flow Fan,Greenhouse Fan, Exhaust Fan,Garden Greenhouse,Roof Fan etc. we keep exporting fans for more than eight years.We have products ranges include centrifugal fans, axial fans, roof fans，misting fans.，And fan accessories. We are not only specialized in standard & bulk fans & blowers manufacture but also the project solution and fan type selection.Meanwhile we provide custom, semi-custom, OEM fans. We have advanced processing equipments (Laser cuttings, CNC lathers & bendings, Rolling. Dynamic balance) and experienced workers, they ensure the fans with high quality. And the fans be test by airway system so their technical parameters are truth & reliable.
FAQ
Why choose Qingdao Damuyuan Machinery Manufacturing Co., LTD?
1. Good quality, Competitive price, Fast delivery.
2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5. If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.
1. Good quality, Competitive price, Fast delivery.
2. We have a R&D team who have average 10 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4. All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5. If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.
