1KW to 10KW Smart MPPT Controller for Renewable Energy Vertical Wind Turbine Generator
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.
Share on (1601273622629):
Product Overview
Description
You May Like
Products Description

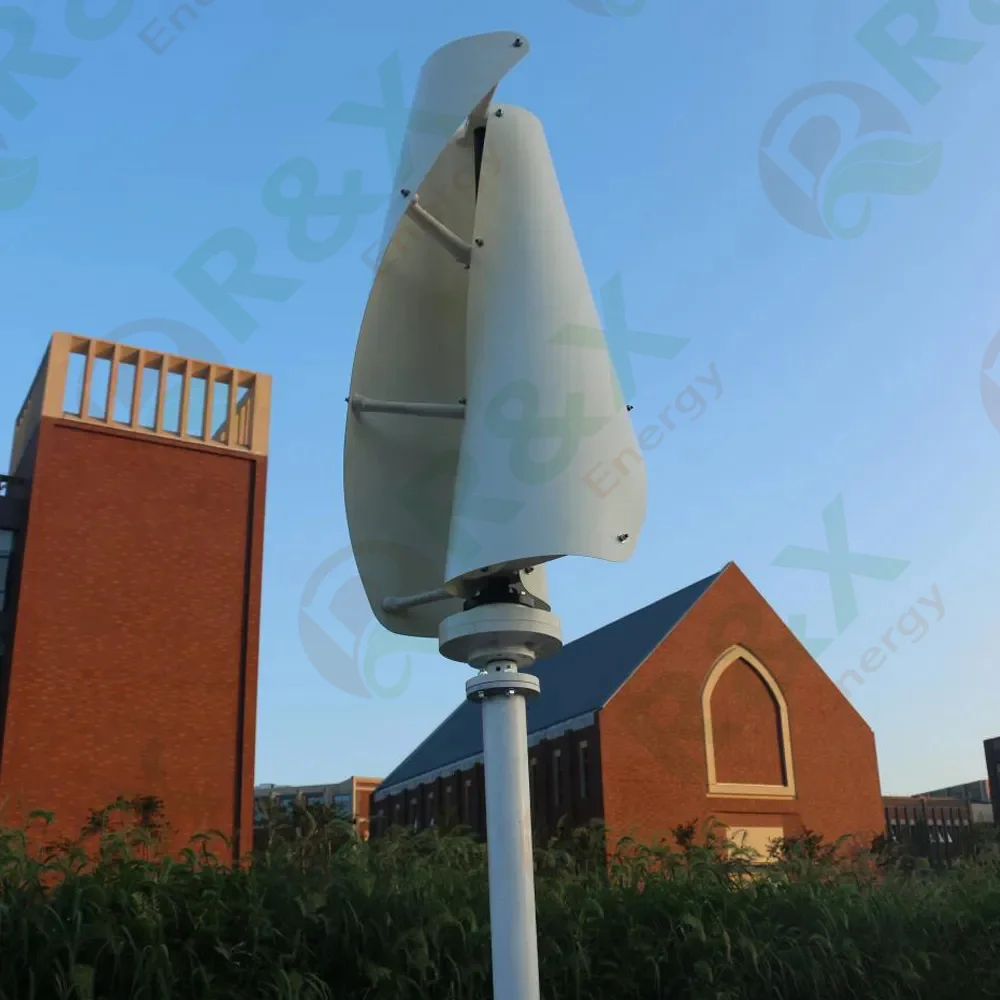

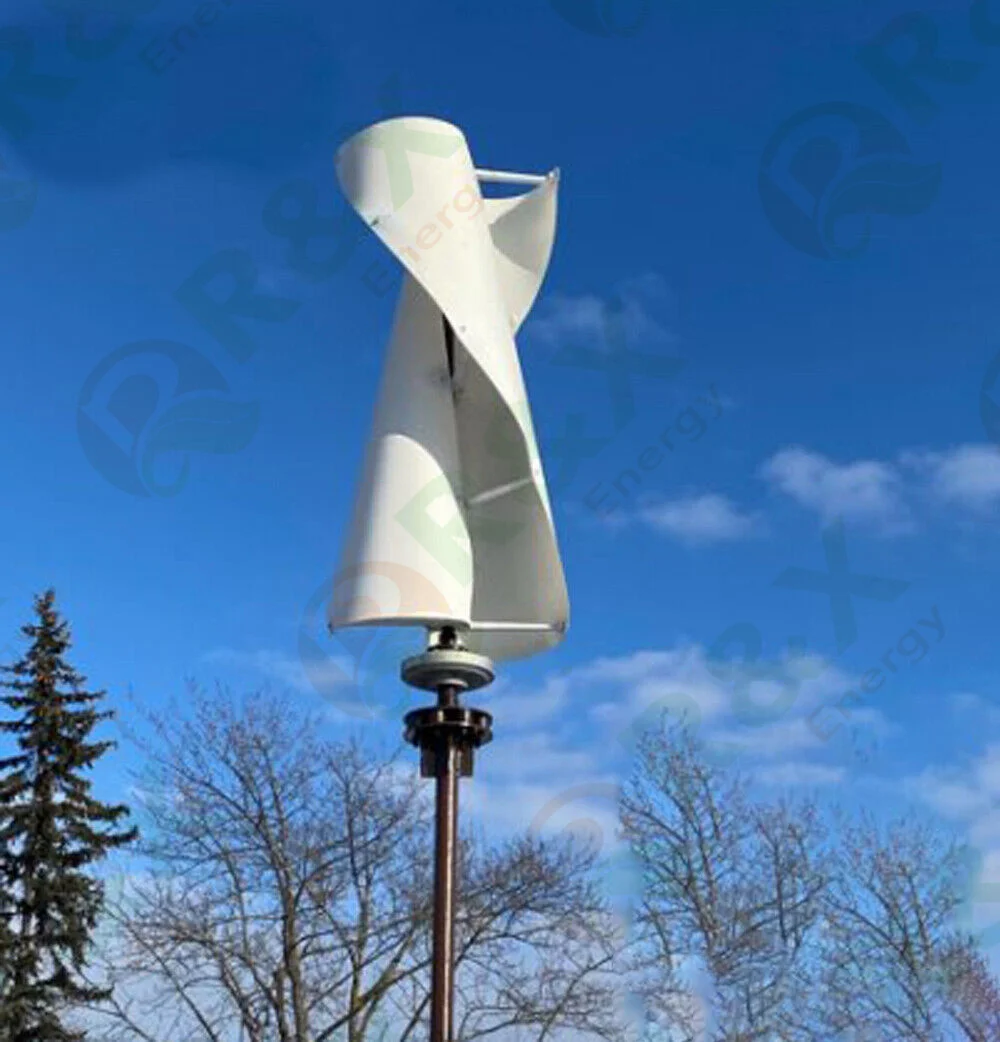

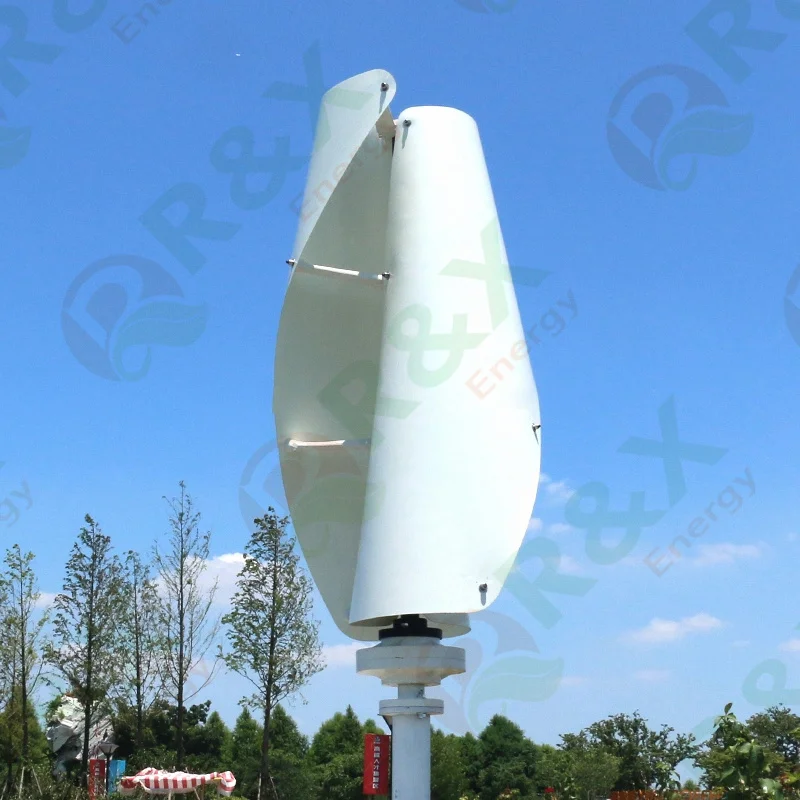

5KW Vertical Wind Turbine Spiral Shape
1. Low start up speed; high wind energy utilization; beautiful appearance; low vibration
2. Human friendly design, easy installation, maintenance and repair.
3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such
advantages: high utilization of wind energy which contributes to the annual energy output.
4.The generators, adopting patented maglev generator,with a special kind of stator design, efficiently decrease resistance torque.
Meanwhile, it makes the wind generators match the generators quite well and increase its reliability.
2. Human friendly design, easy installation, maintenance and repair.
3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such
advantages: high utilization of wind energy which contributes to the annual energy output.
4.The generators, adopting patented maglev generator,with a special kind of stator design, efficiently decrease resistance torque.
Meanwhile, it makes the wind generators match the generators quite well and increase its reliability.
Recommended for

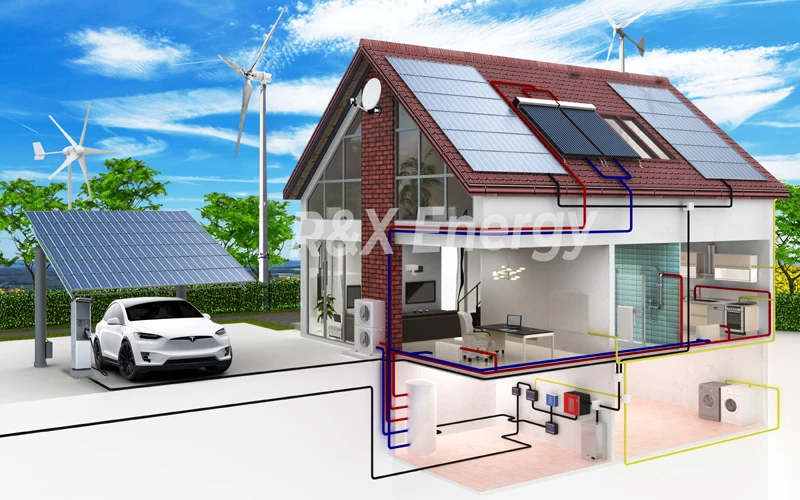

--Household,Garden,Farm,Urban,Rooftop
--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection
--Automatic speed reduction protection
Wiring Diagram
Power curve
Specification
Rated power | 5000w |
Max power | 5100w |
Rated Voltage | 48V-380V |
Blade Length | 3M |
Rotor diameter | 1M |
Weight | 180kg |
Start up wind speed | 2 m/s |
Rated wind speed | 11 m/s |
Survinval wind speed | 50 m/s |
Blade quantity | 2pieces |
Blade material | FRP(glass fiber) |
Packing | Carton/wooden box |
Generator type | Three phase AC permanent magnet generator |
Braking mode | Electromagnetism |
The wind adjustment | Automatically adjust to windward |
Noise level | <50dBA |
Degree of protection | IP54 |
Temperature | -20℃-50℃ |
Design life | 20 years |

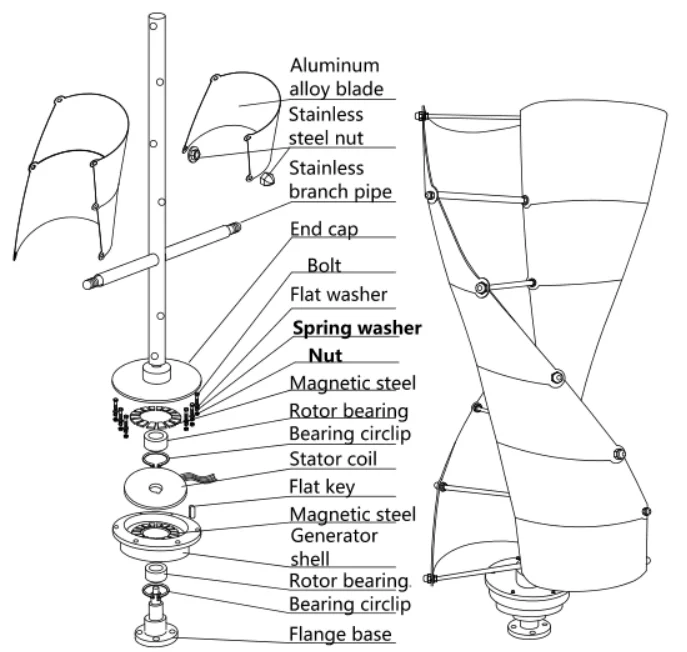

Drawing

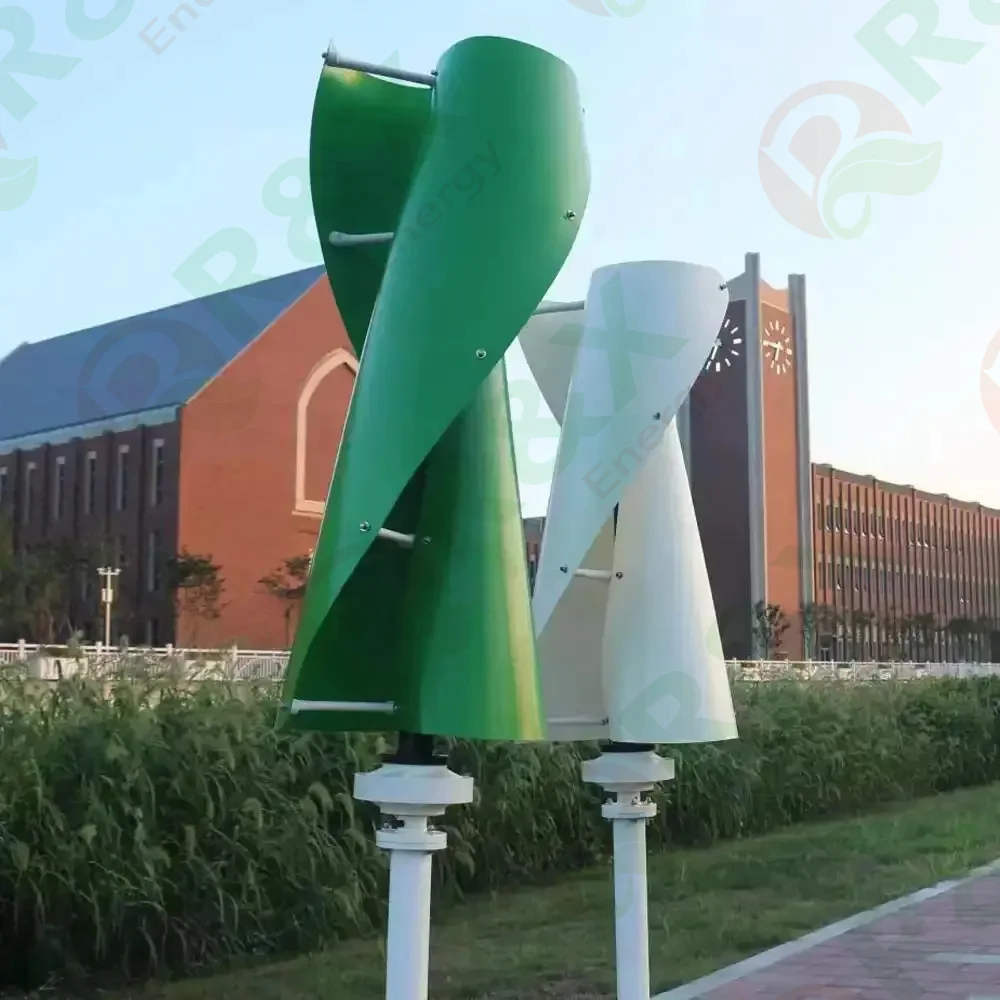

Project Photos Show
