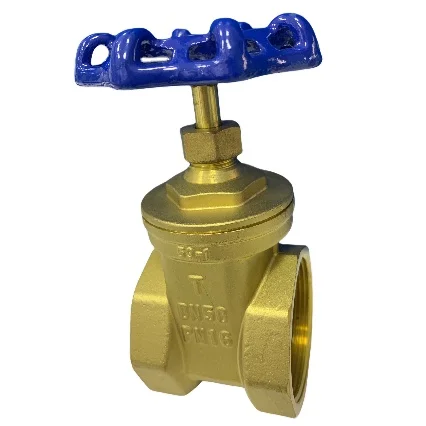

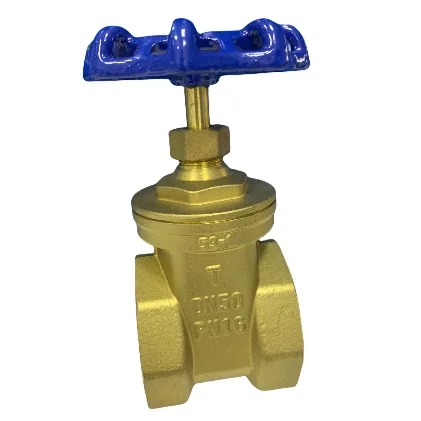

30years factory manufacture brass gate valve copper bronze non rising stem female thread brass gate valve
- Category: >>>
- Supplier: Sichuan Jinhongshun Fluid Technology Co. Ltd.
Share on (1601273669680):
Product Overview
Description

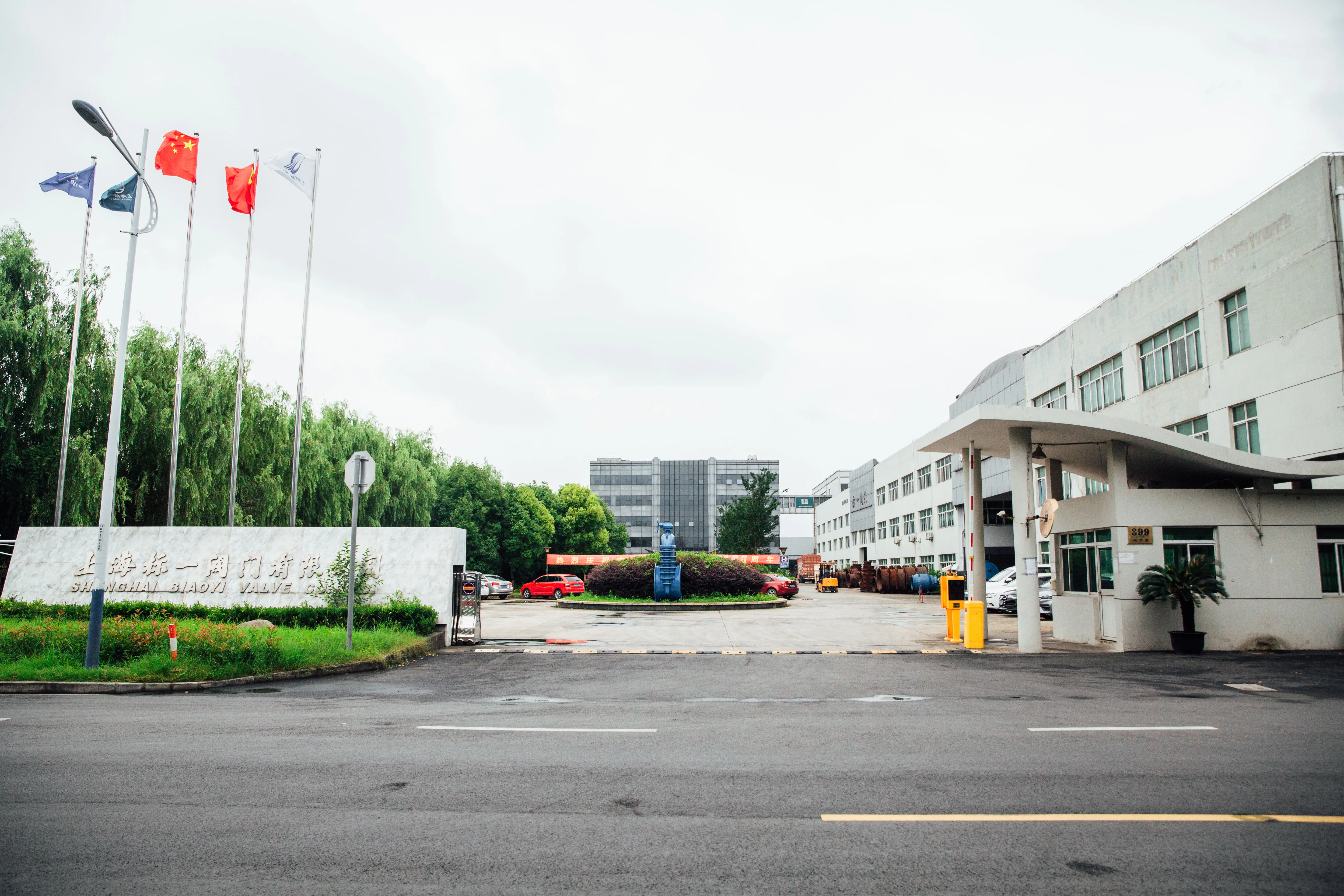

Company Profile
Canton Fair.
Due to different materials, pressures and sizes, the prices of valves cannot be displayed one by one. Please contact customer service to give a correct quotation.
Why Choose Us
Accept customization
1. Material customization
2. Size customization
3. Color customization
4. Pressure customization
5. Logo customization
3. Color customization
4. Pressure customization
5. Logo customization
Please tell our customer service about your needs, and we will give you a suitable quotation as soon as possible according to your needs! thank you!
Our company participates in large-scale urban construction projects in China.
1. Project of China Railway
2. Project of GREENTOWN CHINA HOLDINGS LTD.
3. Project of Hangzhou asian games village
4. Project of Shenzhen Fangda Plaza
3. Project of Hangzhou asian games village
4. Project of Shenzhen Fangda Plaza
Products Description

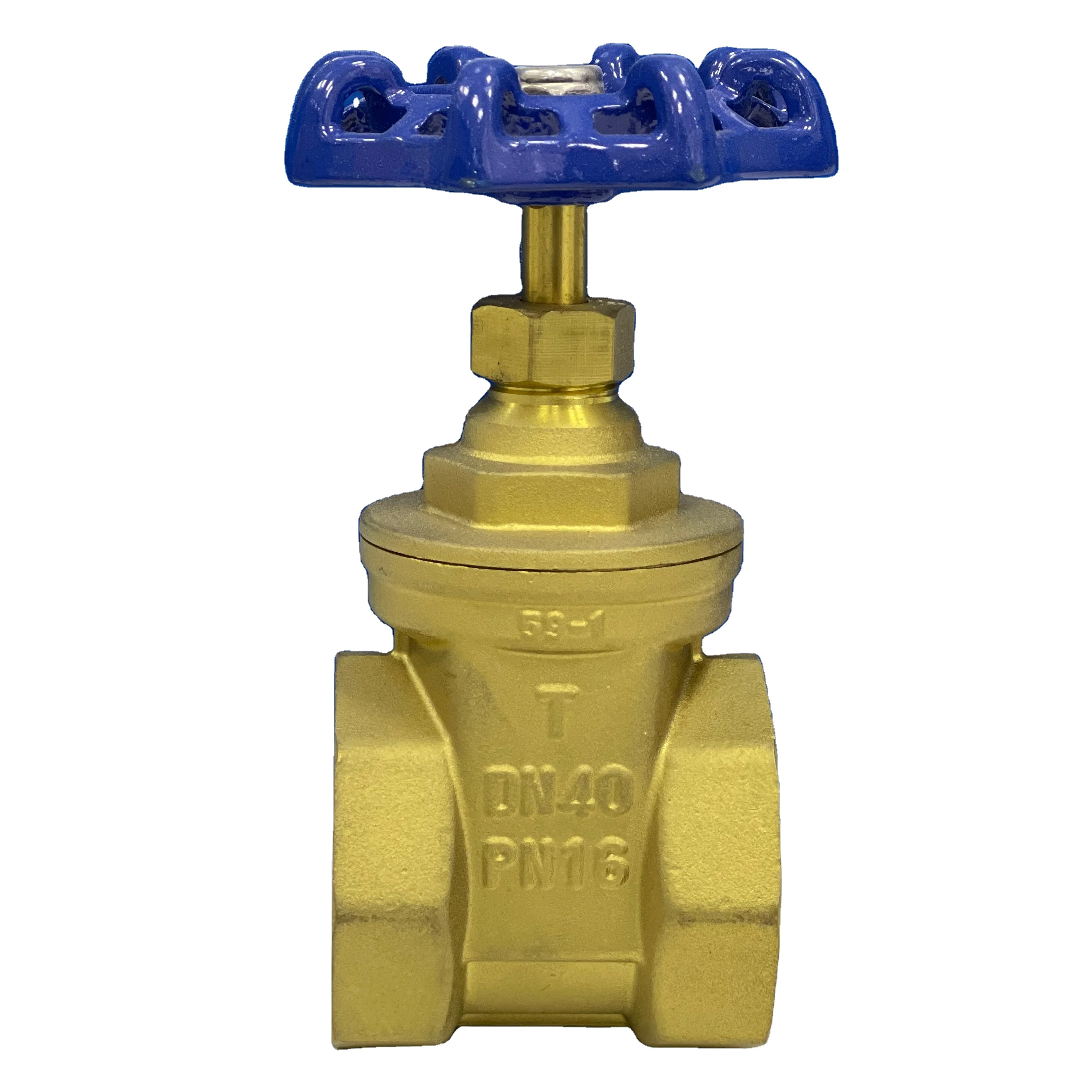

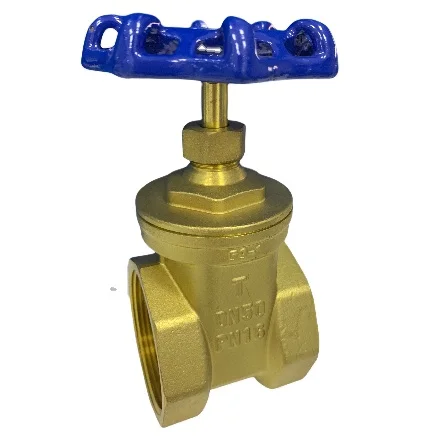

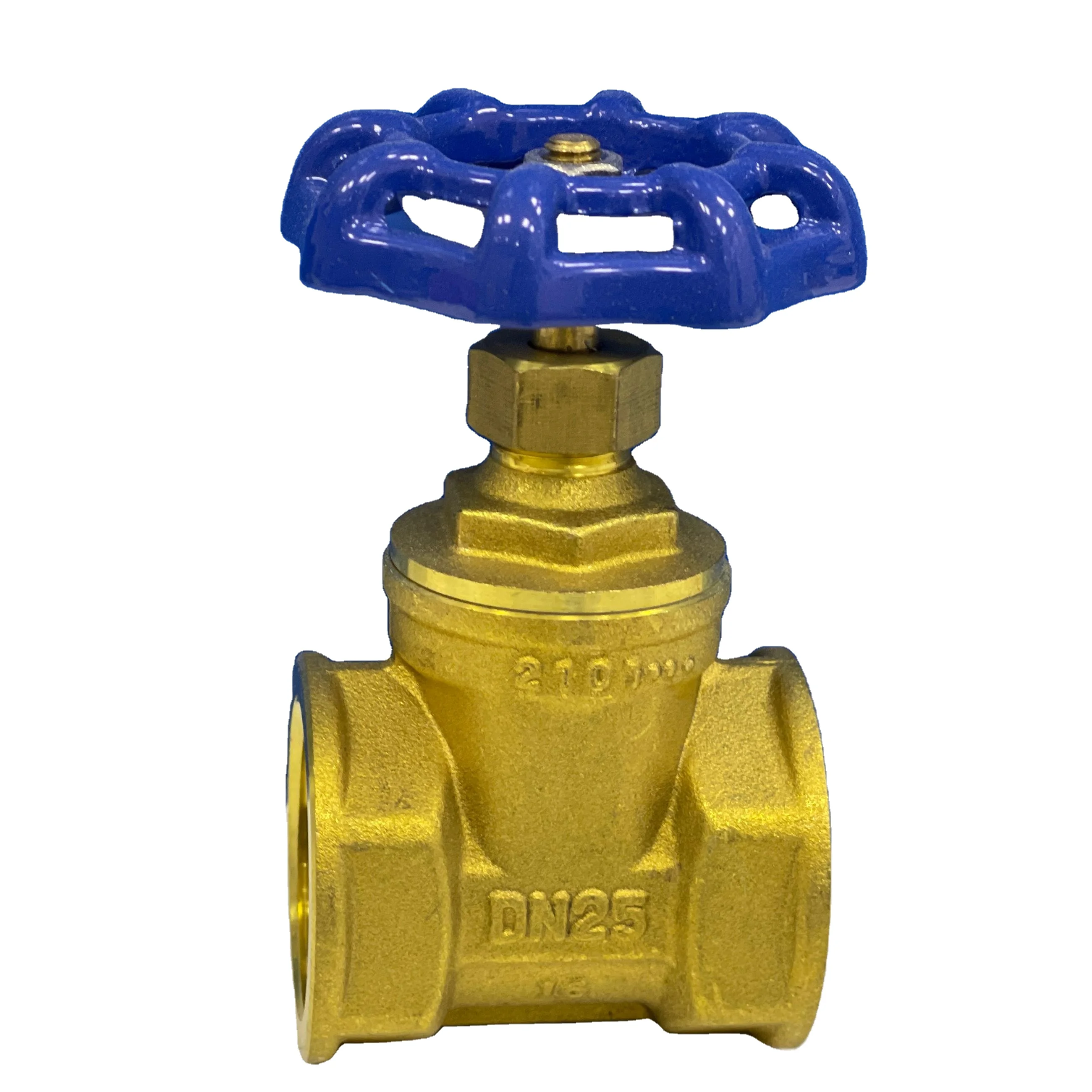

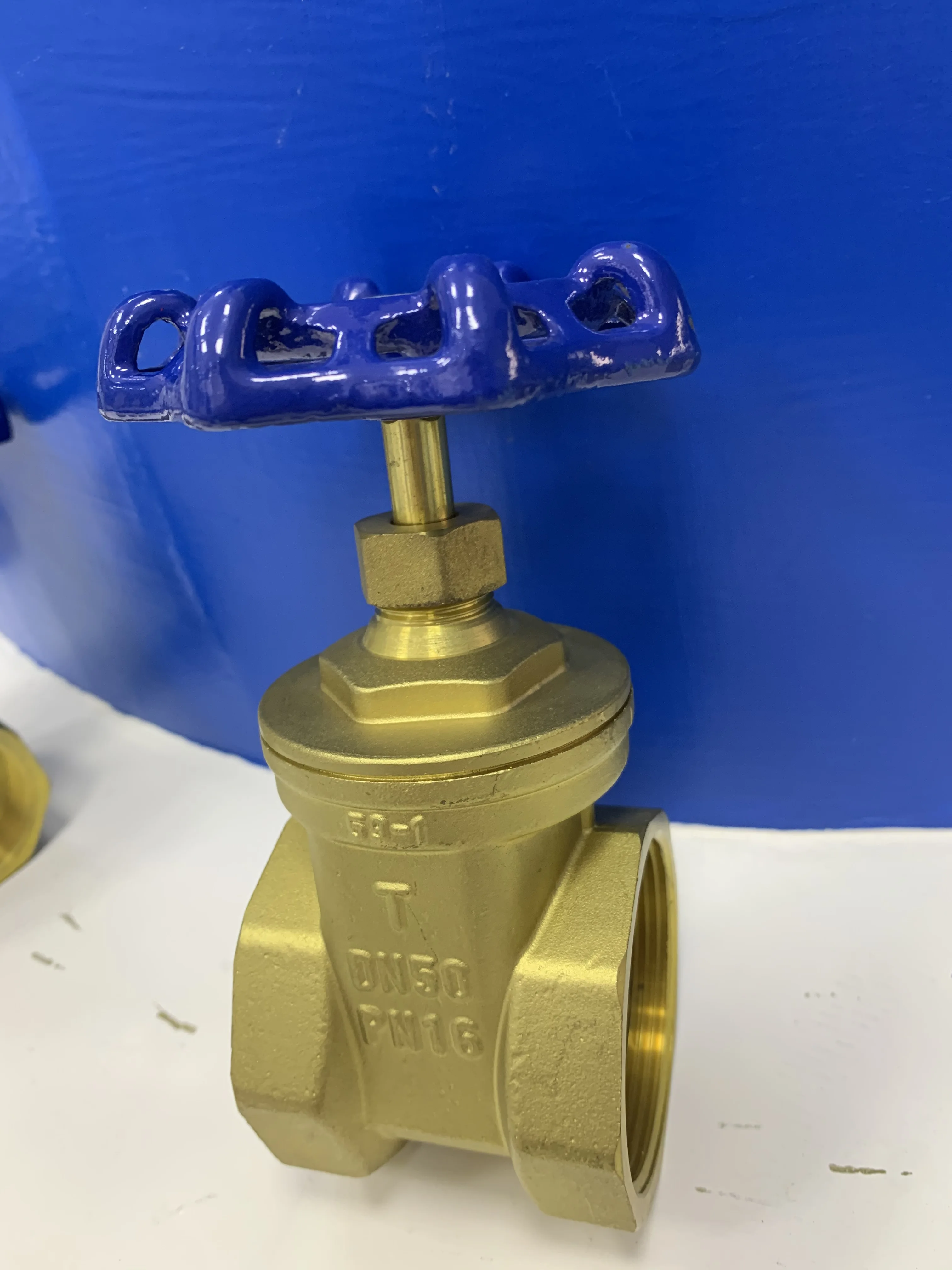

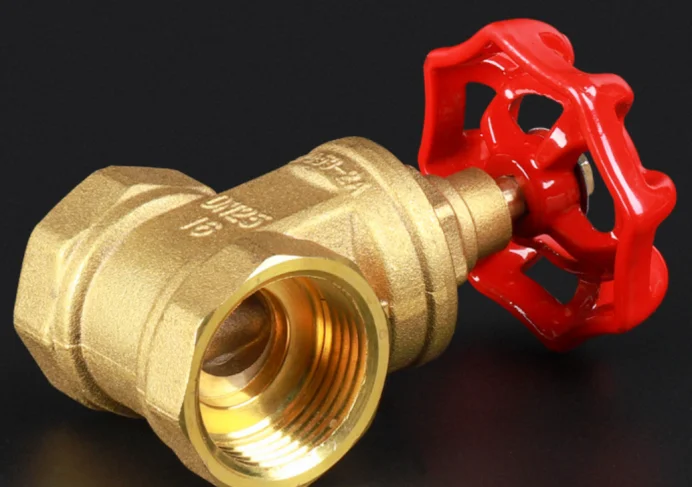

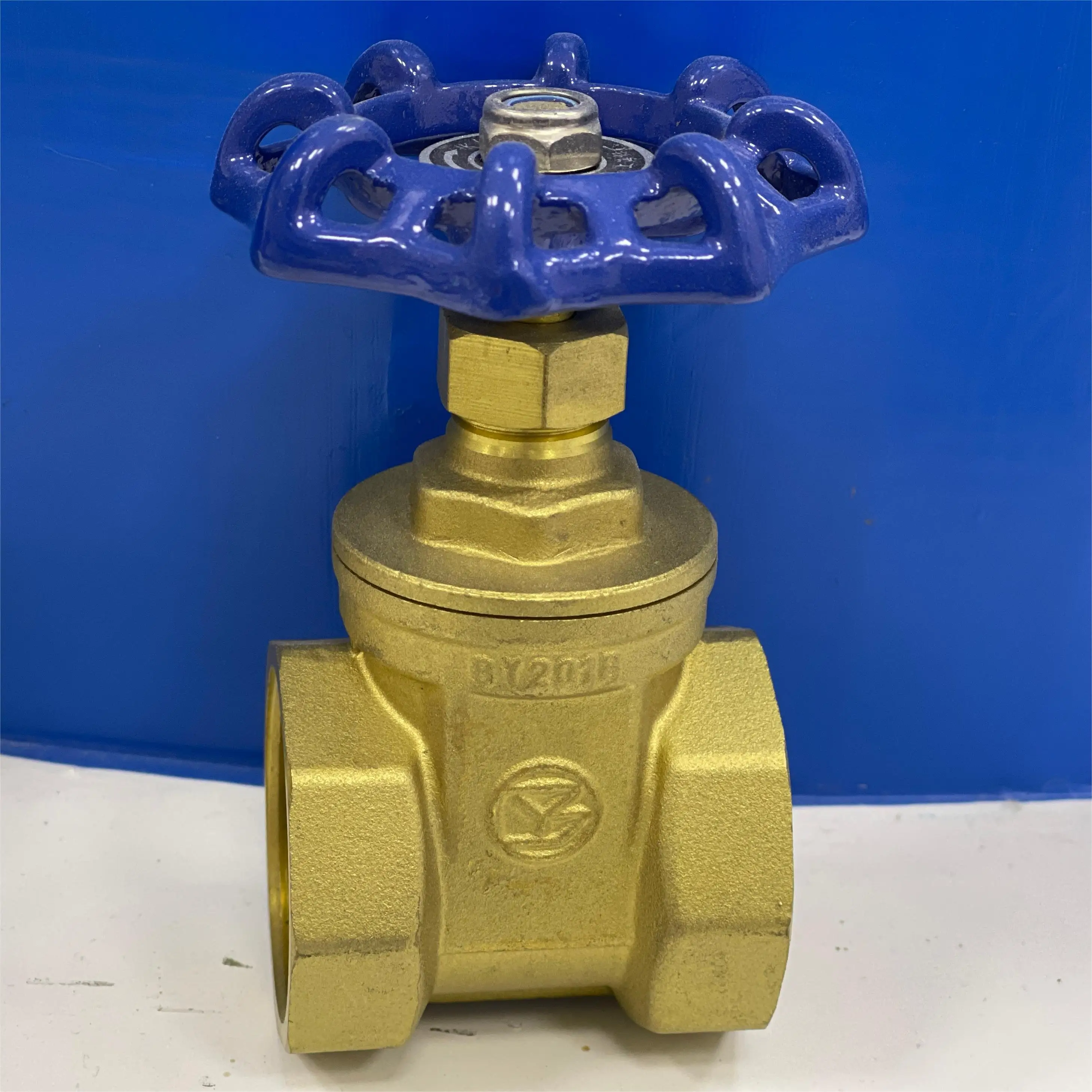

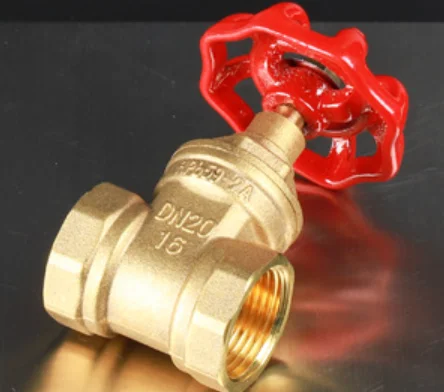

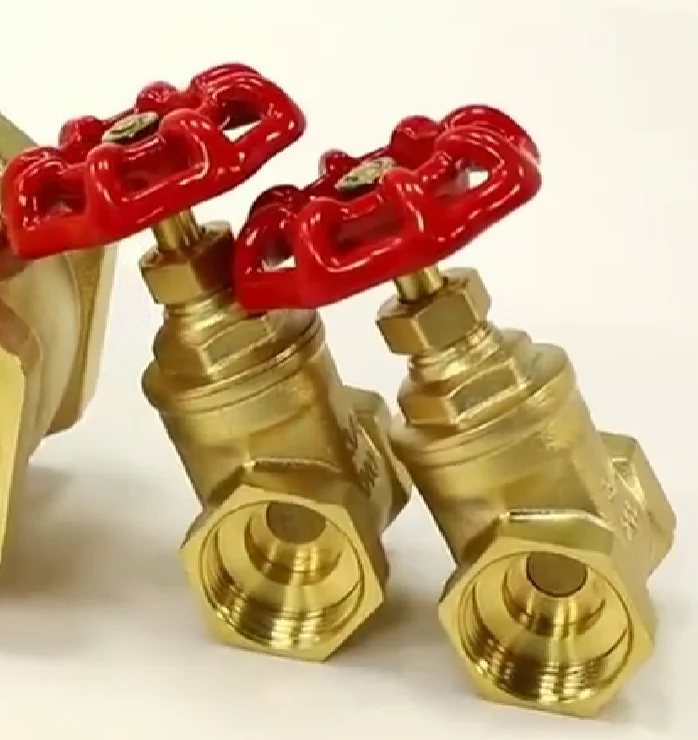

Z15W-16T internal thread copper gate valve, valve body, valve cover, gate, stem and other materials are all made of copper material. Can be used in non-corrosive water, steam, gas, liquid.
The valve body and valve cover are made of die casting technology with high strength and beautiful appearance. Internal thread connection, easy to install. Wedge shaped gate with good sealing effect.

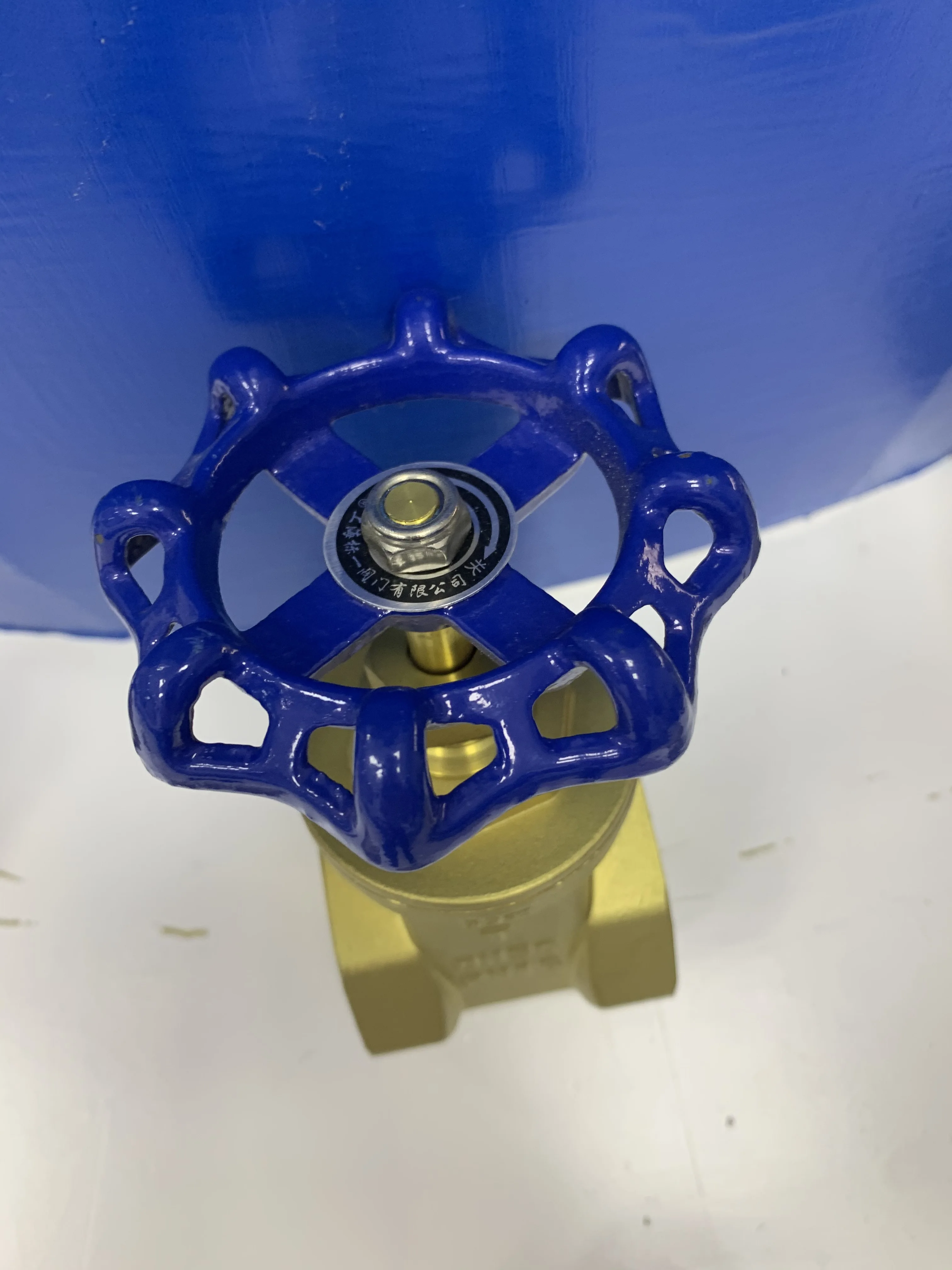

The gate valve adopts dark rod structure, which keeps the same height when opened, saving installation space. Turn the handwheel to open and close the valve, easy to use.
Z15W-16T internal thread copper gate valve parts are all made of copper material, long service life. Widely used in household water supply, industrial water supply and urban heating.
Main features
1. The special heat treatment can effectively prevent the crack of the valve caused by the alternating action of cold and hot water medium.
2. The valve stem is connected with left screw thread, and it is dark rod type.
3. The stem seal adopts metal and nonmetal to improve the sealing quality.
4. The fluid resistance is small, the medium channel inside the gate valve body is direct, the medium does not change its flow direction when flowing through.
5. Small opening and closing torque, gate valve opening and closing gate plate movement direction and medium flow direction vertical, compared with the globe valve, gate valve opening and closing effort saving.
6.Medium flow direction is not restricted, no turbulence, no pressure reduction. Medium can flow from both sides of the gate in any direction, can achieve the purpose of use, more suitable for the medium flow direction may change in the pipeline.
7. Good sealing performance, small erosion of sealing surface when fully open. Gate valve sealing surface has self-sealing ability, its spool by medium pressure tightly contact with the valve seat sealing surface, to tight leakage.
Relevant implementation standards
Nominal pressure: 1.6mpa
Operating temperature: -20~170℃
Working medium: water, non-corrosive liquid saturated steam (≤ 0.6mpa)
Cylindrical pipe thread: conform to ISO228 standard
Gate valve design standard: GB/ T8644-1998, GB T13819-1992, GB/T15117-94
Gate valve inspection standard: GB/T13927-2008, JB T9092-1999, JB8858-2004, API598-2009
Gate valve thread standard: G, NPT, BSPT, BSP DIN259/2999, IS0228
Operating temperature: -20~170℃
Working medium: water, non-corrosive liquid saturated steam (≤ 0.6mpa)
Cylindrical pipe thread: conform to ISO228 standard
Gate valve design standard: GB/ T8644-1998, GB T13819-1992, GB/T15117-94
Gate valve inspection standard: GB/T13927-2008, JB T9092-1999, JB8858-2004, API598-2009
Gate valve thread standard: G, NPT, BSPT, BSP DIN259/2999, IS0228
Main parts and materials:
Materials | ||||||
Body/cover | Stem | Packing | handwheel | |||
Hot forging brass | Brass | polytetrafluoroethylene | Cast iron | |||

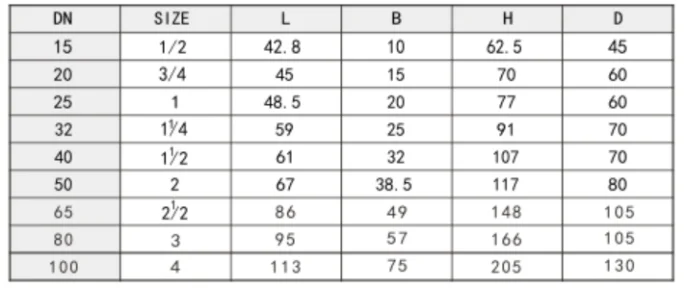

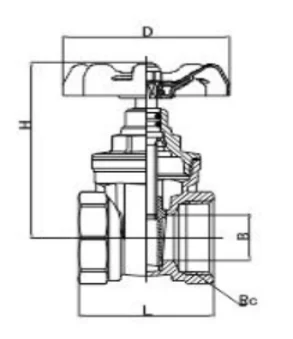

Main structure and connection dimensions

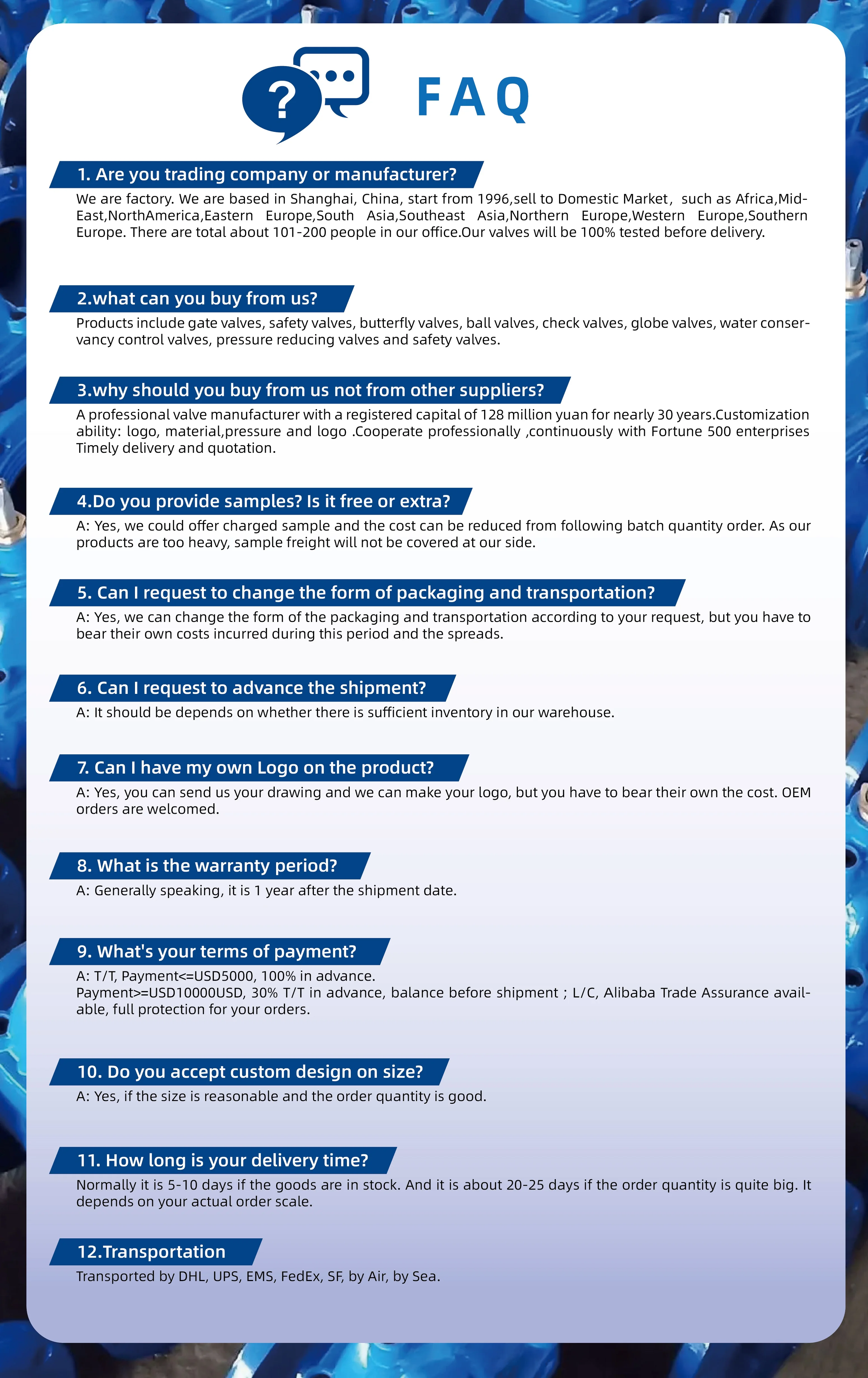

FAQ
