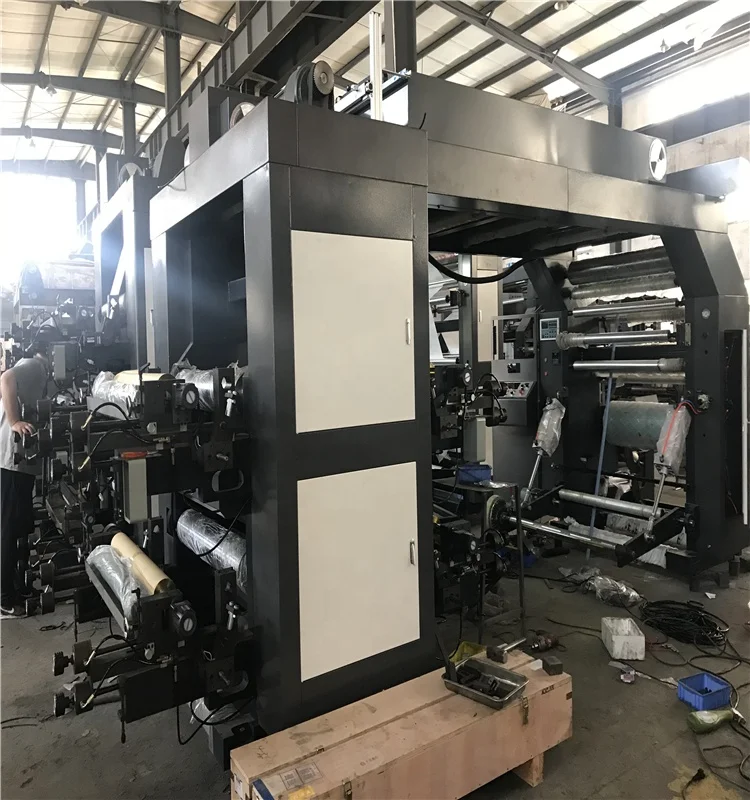

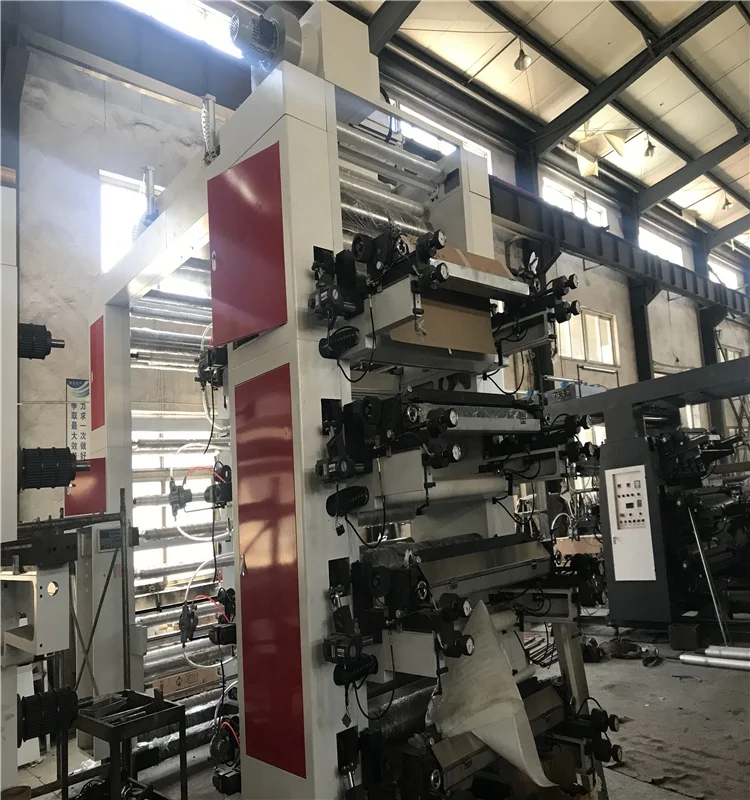

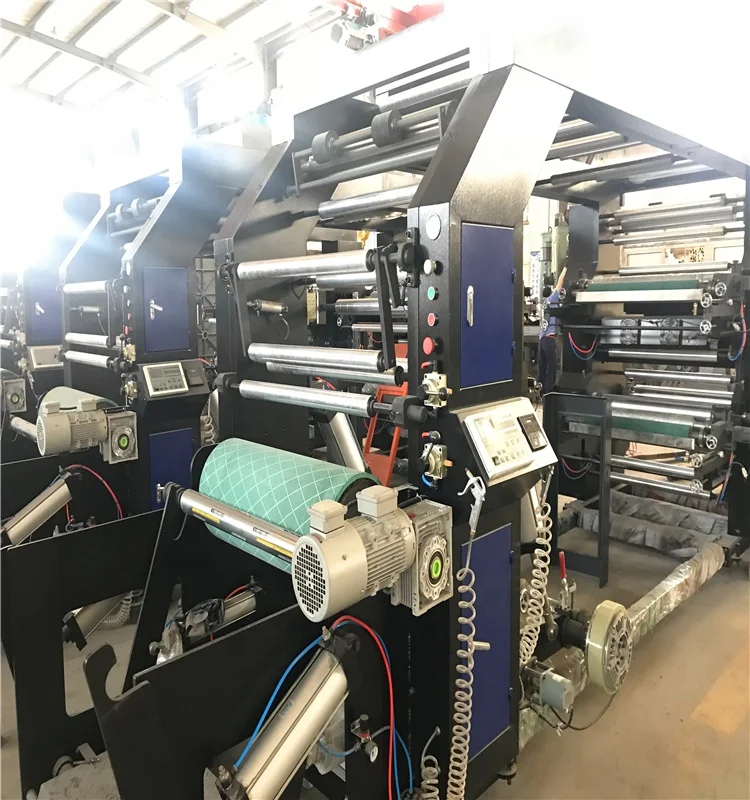

Four Color Flexo Printing Machine with Stack Structure

Four Color Flexo Printing Machine with Stack Structure

Category: >>>
Supplier: Wenzhou Jiamao Machinery Co. Ltd.

Price:$15,800.00

Quantity:

Product Overview

Description

OUR FACTORY

Wenzhou Jiamao Machinery Company locates in economic vibrant Ruian City on the southeast coast of Zhejiang Province.

It is a professional manufacturer of soft packaging machinery, such as roto printing machine, flexo printing machine, lamination machine, film blowing machine, bag making machine and recycling machine, etc.

MAIN
MARKETS

With long producing experlence, good quality and perfect after-sell service, we get consistent praise and gain great market. Our products are exported to Southeast Asia, the Middle East, Africa, Russia, America and Europe. Now we are expanding the market in South America.

Our Advantages

EXPERIENCE

More than 10 years experienced factory.

ADVANTAGES

SERVICE

1 year guarantee and good after sell service.

PRICE

Competitive price.

QUALITY

Top quality with CE & SGS.

DELIVERY TIME

High production capaticy, delivery products on time.

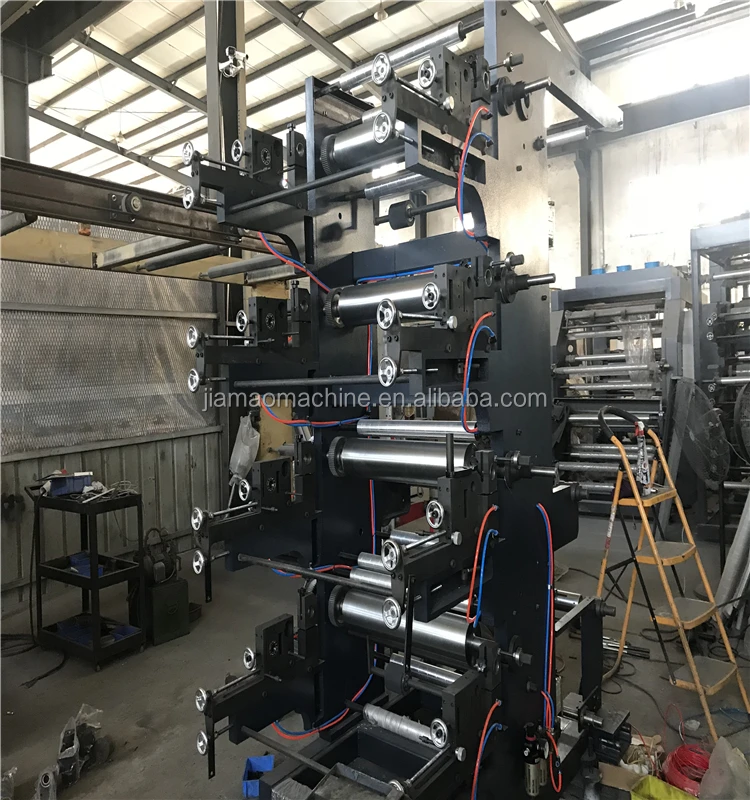

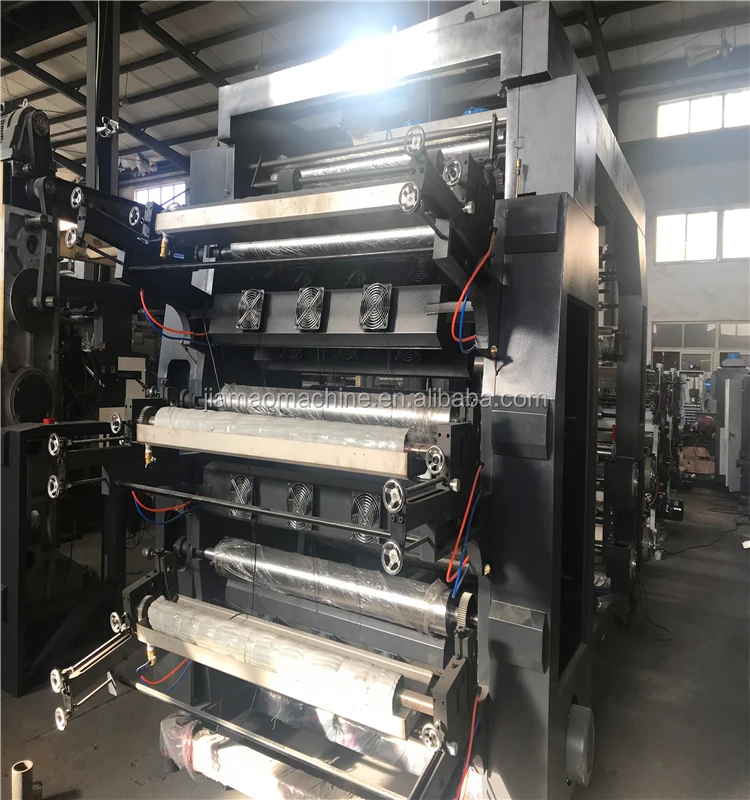

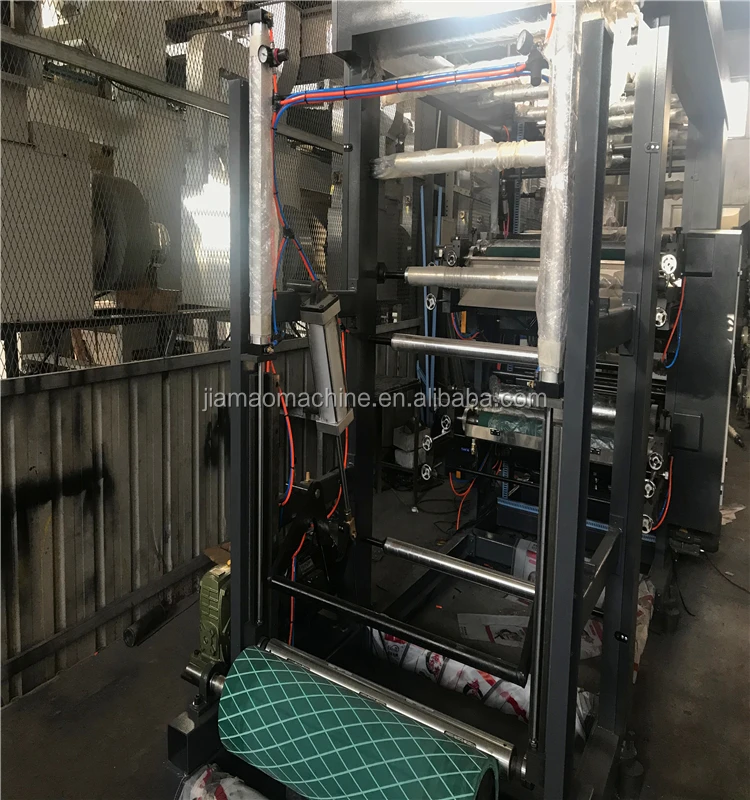

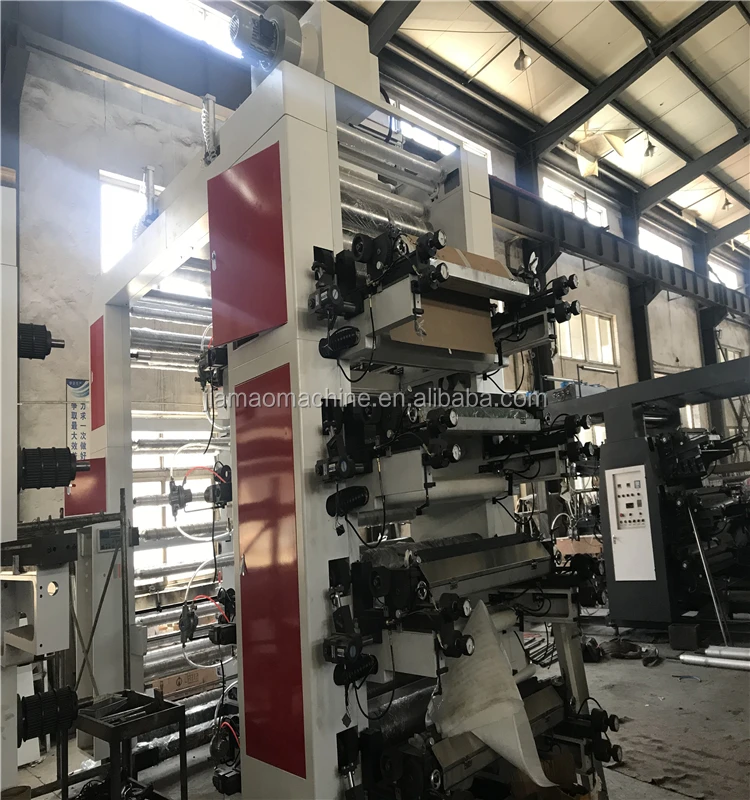

Product Description

Characteristics:

This flexible printing machine is suitable for printing such packing materials as polyethylene, polypropylene plastic bag, cellophane and roll paper, etc. And it is a kind of ideal flexo printing equipment for producing paper packing bag for food, supermarket carry bag ,vest bag and clothes bag, etc.

1.Easy operation, flexible starting, accurate color register.

2.The meter counter can set printing quantity according to the requirements Stop the machine automatically at the set quantity or when the material is cut off.

3.Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.

4.The printing ink is spread by the knurled cylinder with even ink color.

5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6.360 continuous and adjustable register device.

7.The imported frequency control of motor speed adapts to different printing speeds.

8.There are Inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Main Technical Variables:

Model	YT-B4600	YT-B4800	YT-B41000
Printing color	4 colors	4 colors	4 colors
Thickness of Plate	2.28mm	2.28mm	2.28mm
Max Width of Material	600mm	800mm	1000mm
Max.Width of Printing	560mm	760mm	960mm
Length of Printing	220-1000mm	220-1000mm	220-1000mm
Machinery mechanical speed	90m/min	90m/min	90m/min
Max.Speed of Material Printing	70m/min	70m/min	70m/min
Machine weight	3600kg	3800kg	4000kg
Machine dimension(L×W×H)	4.5×1.8×2.3m	4.5×2.0×2.3m	4.5×2.2×2.3m

uv flexo printing machine 6 colors

Certifications

OUR CERTIFICATES

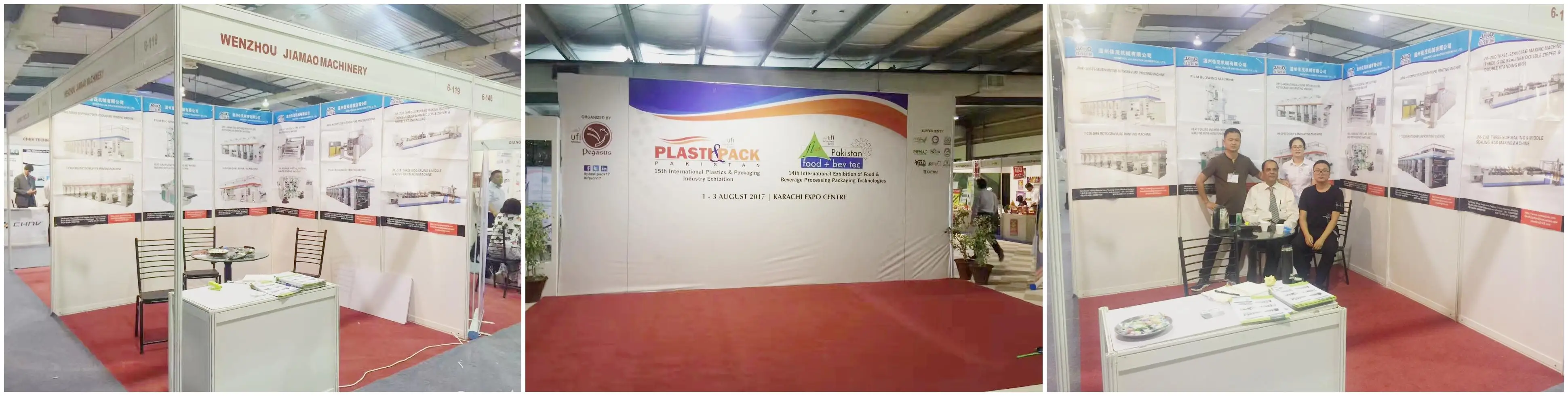

Exhibition

uv flexo printing machine 6 colors

FAQ

Are you a factory or trading company?

We are an actual factory and manufacturer in the line of printing and packing machine for 20 years.

Where is your factory loaded? How can I visit there?

Our factory located in Rui’an city, Zhejiang Province, China. By plane: around 1.5h from Shanghai to WENZHOU AIRPORT. By high speed train: around 4 hours from Shangai to RUIAN STATION.

Which industries are widely used in of your machine?

Food packaging, industry and agriculture, etc.

How about the payment term?

Our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery. 100% irrevocable L/C at sight is acceptable.

What about your main market?

Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.

How does your factory do regarding quality control?

Quality is the most important principle. GREAT WALL always attaches great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.

What about the installation services?

Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

What about the after sales service?

We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
