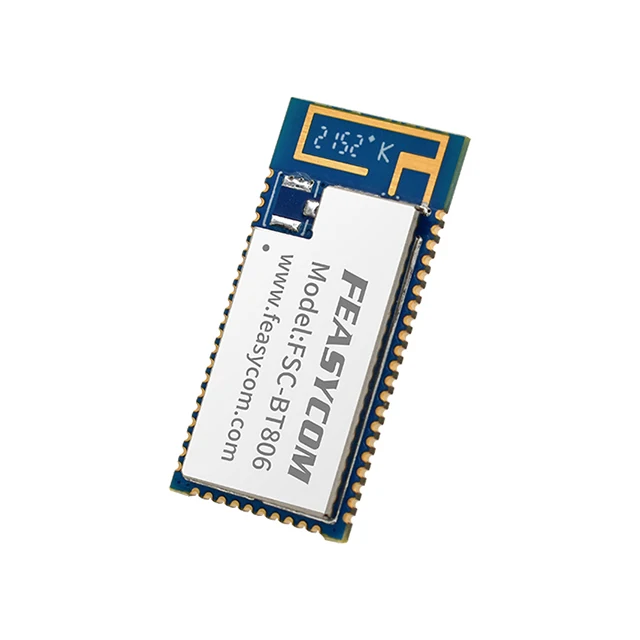

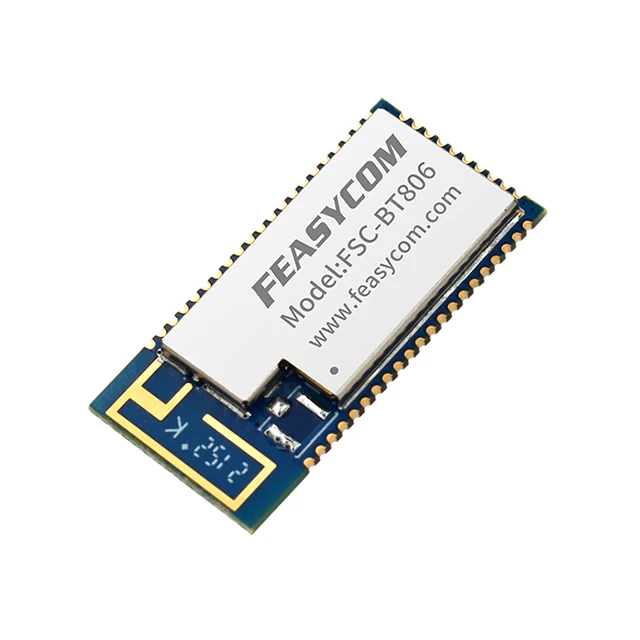

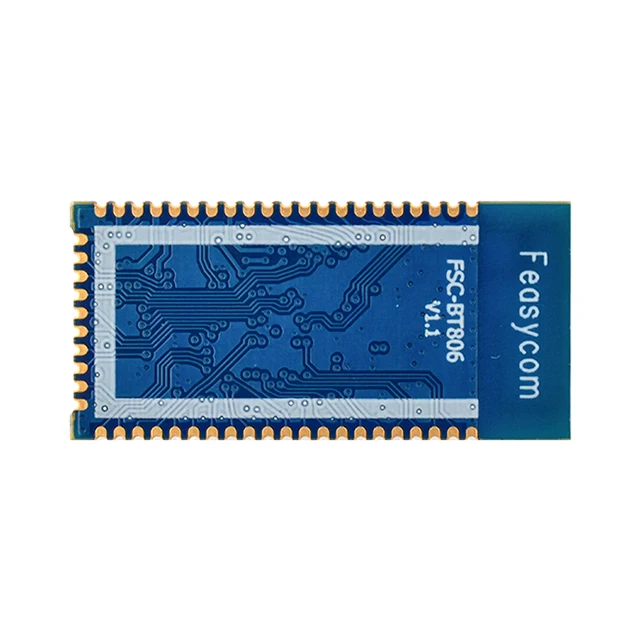

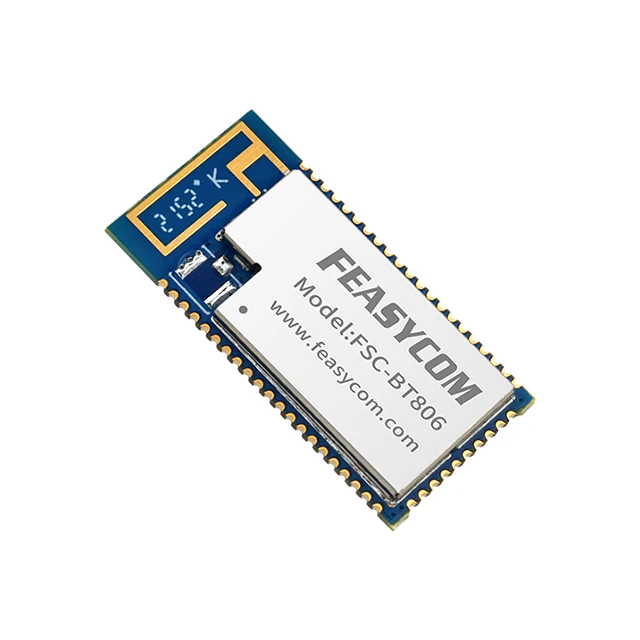

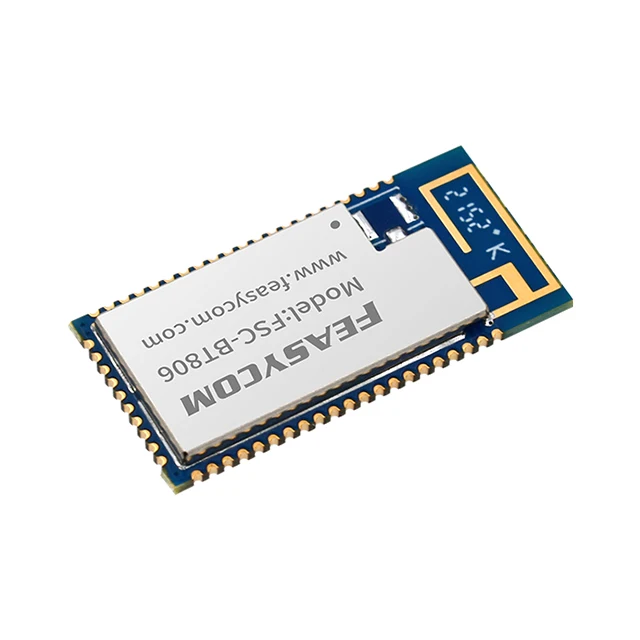

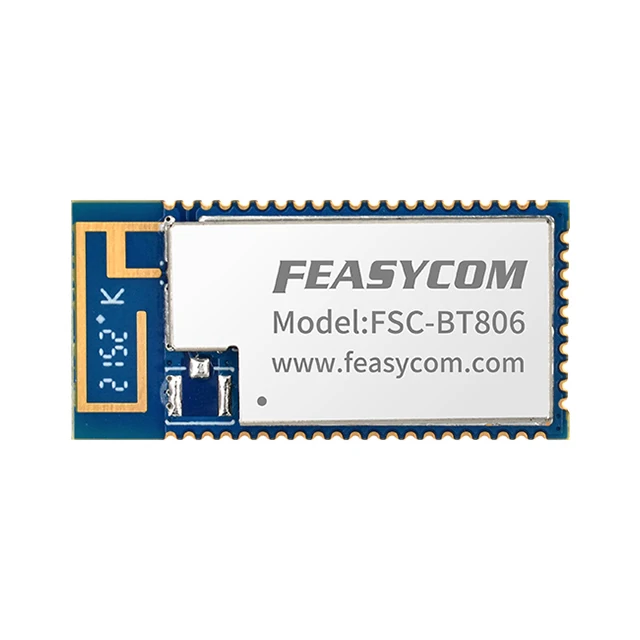

Feasycom FSC BT806B CSR8675 Master & Slave Tx Rx BT5.0 Ultra low power Dual mode SPP BLE MFI Serial SoC Bluetooth Audio Module
- Category: >>>
- Supplier: Shenzhen Feasycom Co. Ltd.
Share on (1601273736802):
Product Overview
Description
Products Description
FSC-BT806B is a Bluetooth 5.0 dual-mode module that provides a Bluetooth Low Energy fully compliant system for audio and data communication with the Feasycom stack. It integrates an ultra-low-power DSP and application processor with embedded flash memory, a high-performance stereo codec, a power management subsystem, I²S, LED drivers, and ADC I/O in a single SOC IC.
The dual-core architecture with flash memory enables manufacturers to easily differentiate their products with new features without extending development cycles.
By default, the FSC-BT806B module comes with powerful and easy-to-use Feasycom firmware, allowing users to access Bluetooth functionality via simple ASCII commands over a serial interface, similar to a Bluetooth modem.
Features
* Bluetooth v5.0/4.0/3.0/2.1/2.0/1.2/1.1, Class 1.5
* 80MHz RISC MCU and 80MIPS Kalimba DSP
* Stereo codec with 2 channels of ADC and up to 4 microphone inputs (includes bias generators and digital microphone support)
* Support for CSR’s latest CVC technology for narrow-band and wideband voice connections including wind noise reduction
* Audio interfaces: I²S/PCM and SPDIF
* Music Enhancements: SBC, MP3, AAC and AAC+, Faststream codec, aptX, 5-band EQ, 3D stereo separation and so on.
* Support HSP, HFP, A2DP, AVRCP, PBAP, MAP, SPP, BLE profile
* Multipoint support for HFP connection to 2 handsets for voice
* Multipoint support for A2DP connection to 2 A2DP source for music playback
* 3 Hardware LED controllers (for RGB)
* UART, I²C, SPI, PIO, AIO, USB control interfaces
* Postage stamp sized form factor
* MFI Support
* Built-in RF combo filter, Built-in PCB antenna to support external antenna
* Fast charging support up to 200mA with no external components
* RoHS compliant
* Industrial temperature range from -40°C to +85°C
* 80MHz RISC MCU and 80MIPS Kalimba DSP
* Stereo codec with 2 channels of ADC and up to 4 microphone inputs (includes bias generators and digital microphone support)
* Support for CSR’s latest CVC technology for narrow-band and wideband voice connections including wind noise reduction
* Audio interfaces: I²S/PCM and SPDIF
* Music Enhancements: SBC, MP3, AAC and AAC+, Faststream codec, aptX, 5-band EQ, 3D stereo separation and so on.
* Support HSP, HFP, A2DP, AVRCP, PBAP, MAP, SPP, BLE profile
* Multipoint support for HFP connection to 2 handsets for voice
* Multipoint support for A2DP connection to 2 A2DP source for music playback
* 3 Hardware LED controllers (for RGB)
* UART, I²C, SPI, PIO, AIO, USB control interfaces
* Postage stamp sized form factor
* MFI Support
* Built-in RF combo filter, Built-in PCB antenna to support external antenna
* Fast charging support up to 200mA with no external components
* RoHS compliant
* Industrial temperature range from -40°C to +85°C
Applications
* Smart watches & Bluetooth bracelets
* Bluetooth headphones
* Smart remote controllers
* Wired or wireless sound bars
* Wired or wireless speakers
* Wearable audio with sensors (health and well-being applications)
* Stereo (AV) Transmitter
* Automotive Hands-Free Kits
* Bluetooth headphones
* Smart remote controllers
* Wired or wireless sound bars
* Wired or wireless speakers
* Wearable audio with sensors (health and well-being applications)
* Stereo (AV) Transmitter
* Automotive Hands-Free Kits

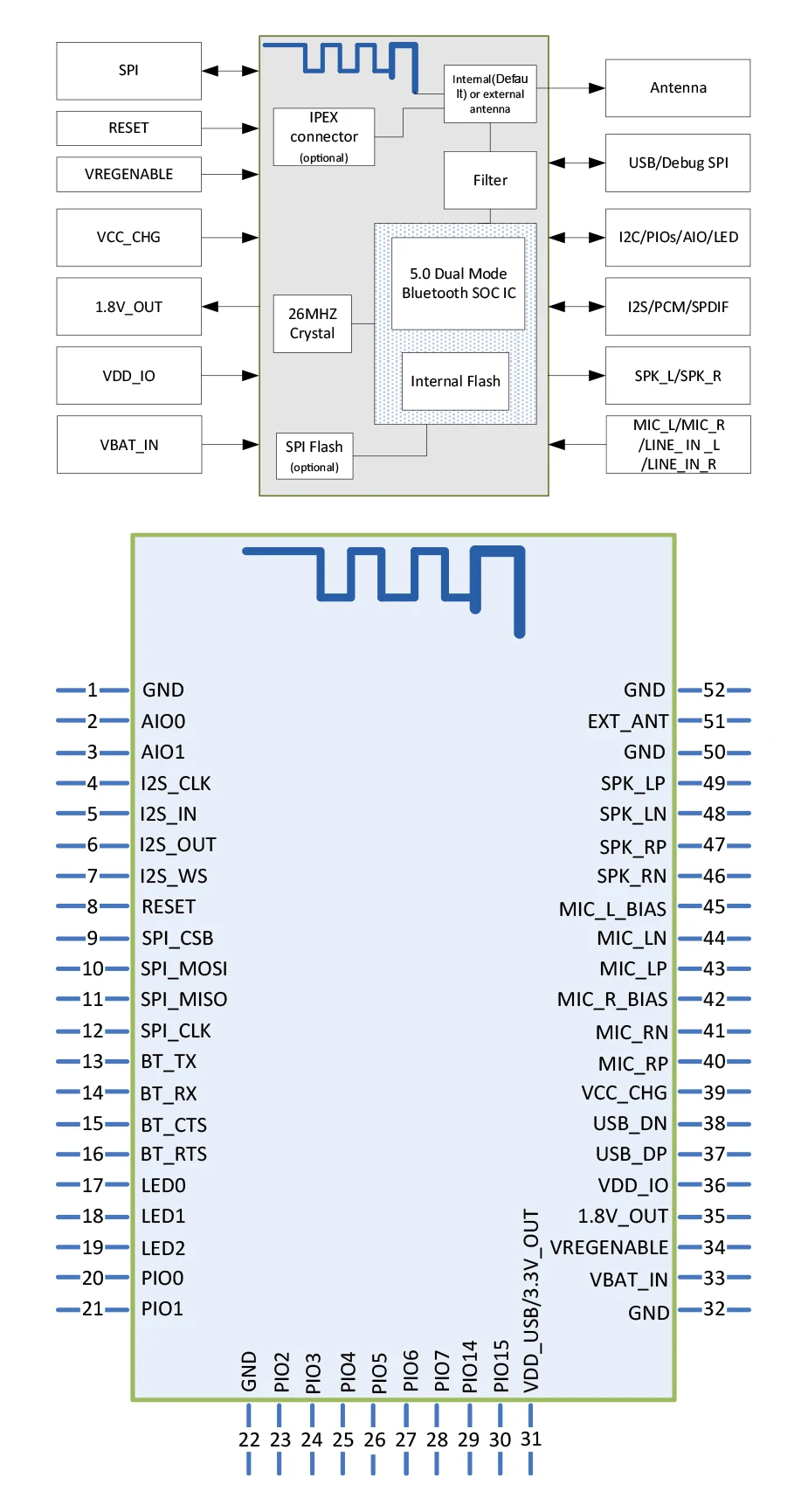

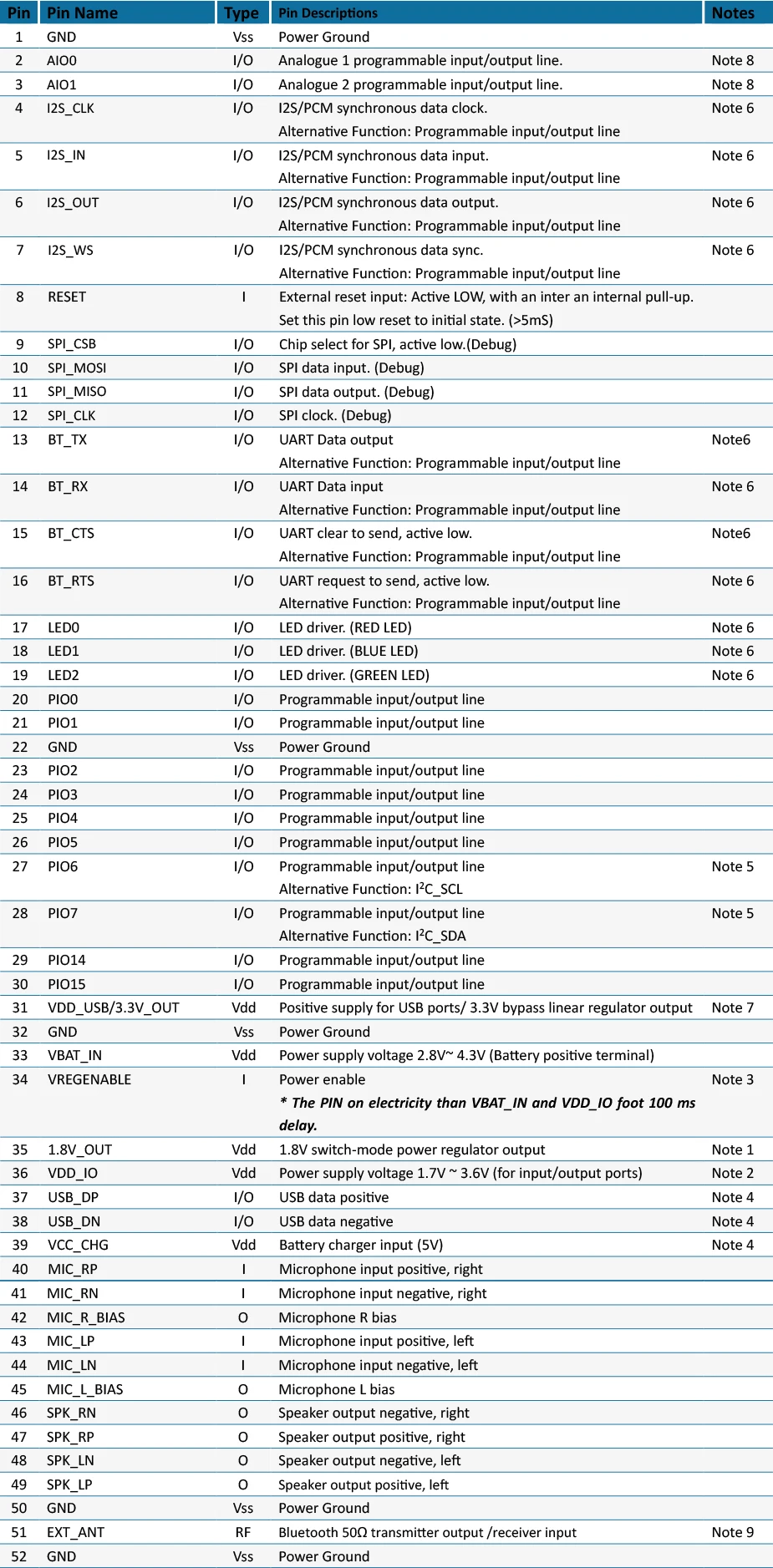

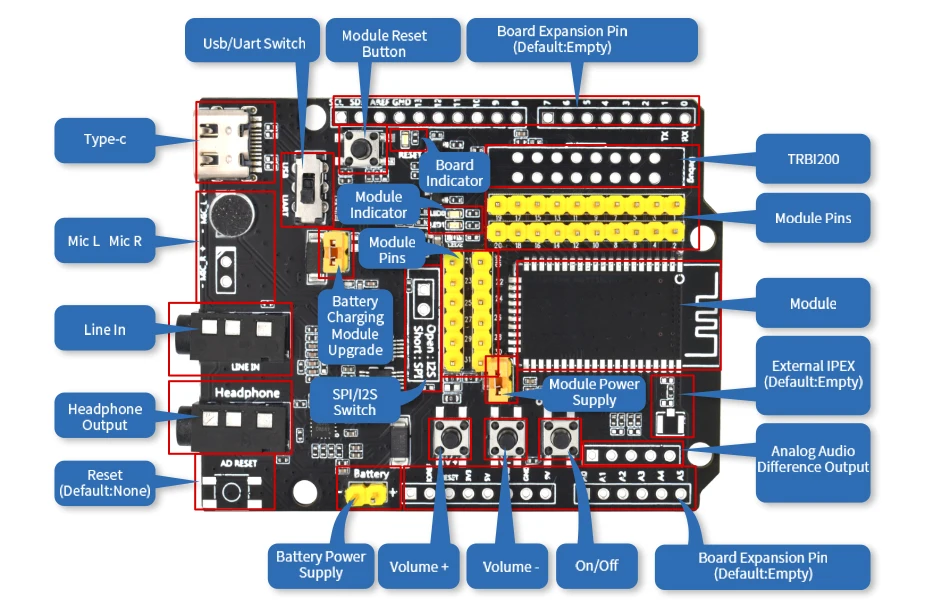

* We can provide development board FSC-DB200 for developers to test directly, please contact us if you need to purchase extra.
Specification
Categories | Features | Implementation | |
On-board Chip | CSR8675 | ||
V5.0 Dual-mode Bluetooth low energy radio | |||
Software complies with the Bluetooth Core v5.0 Specification | |||
Support for Bluetooth basic rate / EDR and low energy Connections | |||
3 Bluetooth low energy connections at the same time as basic rate A2DP | |||
Frequency | 2.402 ~ 2.480 GHz | ||
Transmit Power | +10 dBm (Maximum) | ||
Receive Sensitivity | -88 dBm (Typical) | ||
Real-time digitised RSSI available to application | |||
Raw Data Rates (Air) | 3 Mbps (Classic BT - BR/EDR) | ||
UART Interface | TX, RX, CTS, RTS | ||
General Purpose I/O | |||
Default 115200, N, 8, 1 | |||
Baudrate support from 1200 to 921600 | |||
8 data bit character | |||
23(maximum – configurable) lines | |||
O/P drive strength (4 mA) | |||
Pull-up resistor (33 KΩ) control | |||
Read pin-level | |||
I²C Interface | 1 (hardware I²C interface). Up to 400 kbps Master and slave I²C interface | ||
SPI Interface | SPI debug and programming interface with read access disable locking | ||
ADC Interface | Analog input voltage range: 0~ 1.3V | ||
Supports single a 10-bit ADC and a 10-bit DAC | |||
1 channels (configured from GPIO total) | |||
USB Interface | 1 full-speed (12 Mbps) | ||
Digital audio parameters | 80MHz RISC MCU and 120MIPS Kalimba DSP Up to 120MIPS DSP for intensive digital signal processing algorithms | ||
24-bit audio | |||
Supported sample rates of 8, 11.025, 16, 22.05, 32, 44.1, 48, 96kHz and 192kHz (DAC only) | |||
BR/EDR | SPP (Serial Port Profile) - Up to 600 Kbps | ||
A2DP/AVRCP/HFP/HSP/HID/PBAP/SPP Profiles support | |||
Bluetooth Low Energy | GATT Client & Peripheral - Any Custom Services | ||
Simultaneous BR/EDR and BLE support | |||
Maximum Connections | BR/EDR | up to 7 active slaves | |
Bluetooth Low Energy | 1 connection as peripheral , up to 5 connections as central | ||
Via UART | |||
USB | |||
SPI | |||
Supply Voltage | Supply | VDD_IO: 1.7V ~ 3.6V ; VBAT_IN: 2.8V ~ 4.3V | |
Max Peak Current (TX Power @ +10dBm TX): 85mA | |||
Standby Doze (Wait event) - <1mA (TBD) | |||
Deep Sleep - ~300uA(TBD) | |||
Physical | Dimensions (mm) | 13 × 26.9 × 2.2; Pad Pitch 1.0 | |
Environmental | Operating | -40°C to +85°C | |
Storage | -40°C to +105°C | ||
Miscellaneous | Lead Free | Lead-free and RoHS compliant | |
Warranty | One Year | ||
Humidity | 10% ~ 90% non-condensing | ||
MSL Grade | MSL 3 (With JEDEC J-STD-020) | ||
Human Body Model: Class-2 | |||
Machine Model: Class-200V | |||
Charged Device Model: Class II | |||
