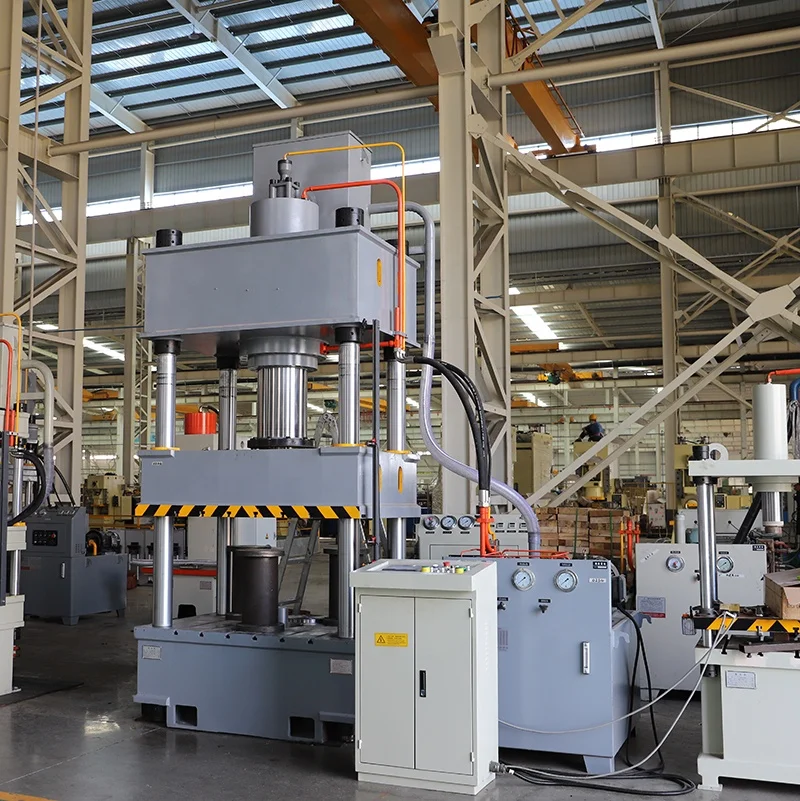

YQ32 300 ton Four column metal sheet forming hydraulic press machine
YQ32-300 ton Four column metal sheet forming hydraulic press machine
YQ32-300 ton Four column metal sheet forming hydraulic press machine
YQ32-300 ton Four column metal sheet forming hydraulic press machine
YQ32-300 ton Four column metal sheet forming hydraulic press machine
YQ32-300 ton Four column metal sheet forming hydraulic press machine
YQ32-300 ton Four column metal sheet forming hydraulic press machine

YQ32 300 ton Four column metal sheet forming hydraulic press machine

Share on (1601273750397):


Price:$16,000.00 - $16,500.00

Quantity:


Product Overview

Description



YQ32-300 ton Four column prensa hidraulica metal sheet forming hydraulic press machine


Product Description



The main performance characteristics:
YQ32-300 ton Four column prensa hidraulica metal sheet forming hydraulic press machine , Hydraulic control adopts to insert set valve integrated system, decrease let out Point.Movement reliability, durable and long life span, It is constant pressure to realize with calm in the first place and calm procedure two develop technology, have to insure press the function of delay time, The route of working pressure may be regulated in assigned scope, adopt buttons for centralized control, Can realization manual, Semi-automatic, automatic 3 operate form.

Application field:
YQ32-300 ton Four column prensa hidraulica metal sheet forming hydraulic press machine of plastic materials, such as stamping, bending, flanging and thin stretching, etc. It can also be used for the correction, press-fit, plastic products and powder products.


Product Paramenters


Specification
Unit
Y32-315T
Nominal force
KN
3150
Max. pressure of liquid
MPa
25
Stroke of slider
mm
600
Max. opening height
mm
1000
Working table size
mm*mm
1000 x 1000
Speed of slider
Descent speed
mm/s
100
Working speed
mm/s
6-12
Return speed
mm/s
60
Motor power
KW
15
Ejecting force
KN
630
Ejecting stoke
mm
250
Weight
T
8


Detailed Photos

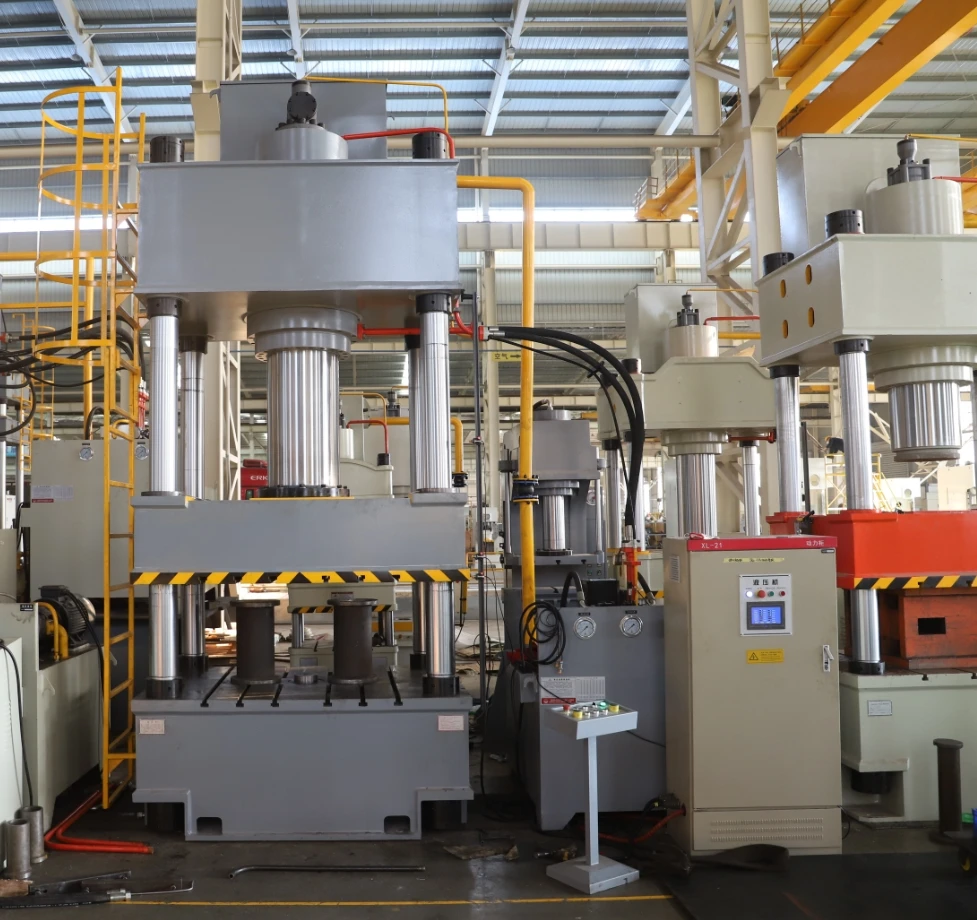

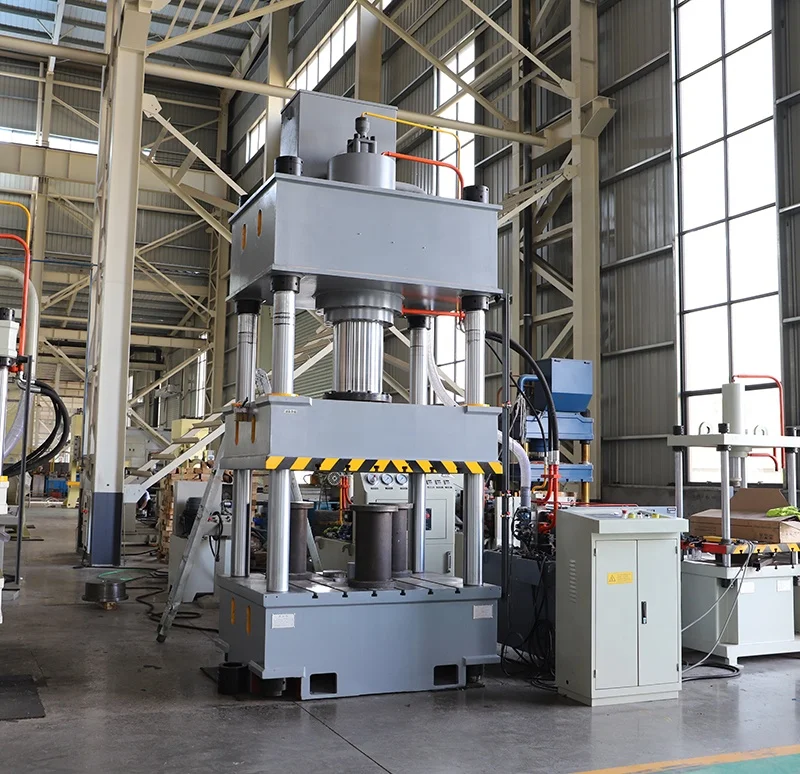

YQ32-300 ton Four column prensa hidraulica metal sheet forming hydraulic press machine
Resin manhole cover hydraulic machine belongs to a type of resin molding hydraulic machine, which is dedicated to the production of resin products.


Hydraulic system
The hydraulic pressing machine system device is arranged on the right side of the press, with cartridge integrated system,
flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor,
cartridge valves and other components.

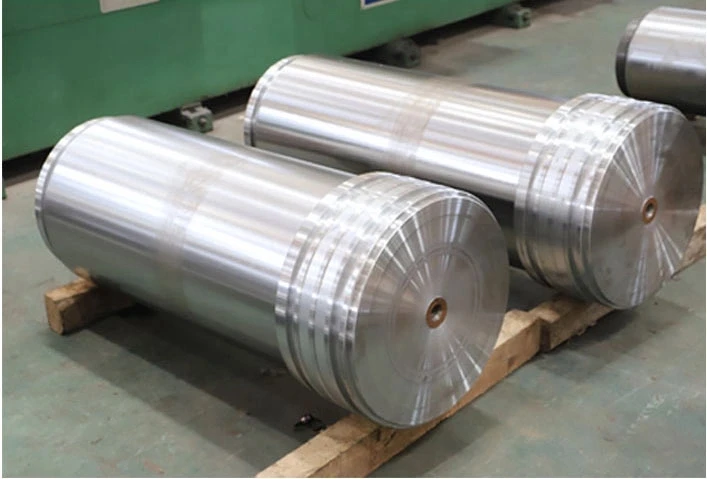

Piston Rod
Medium-frequency hardening of 45 steel, deepening the material 2-3 mm, making the surface hardness of the piston rod to 55
,effective solution to seal ring injury，not easy to scratch.

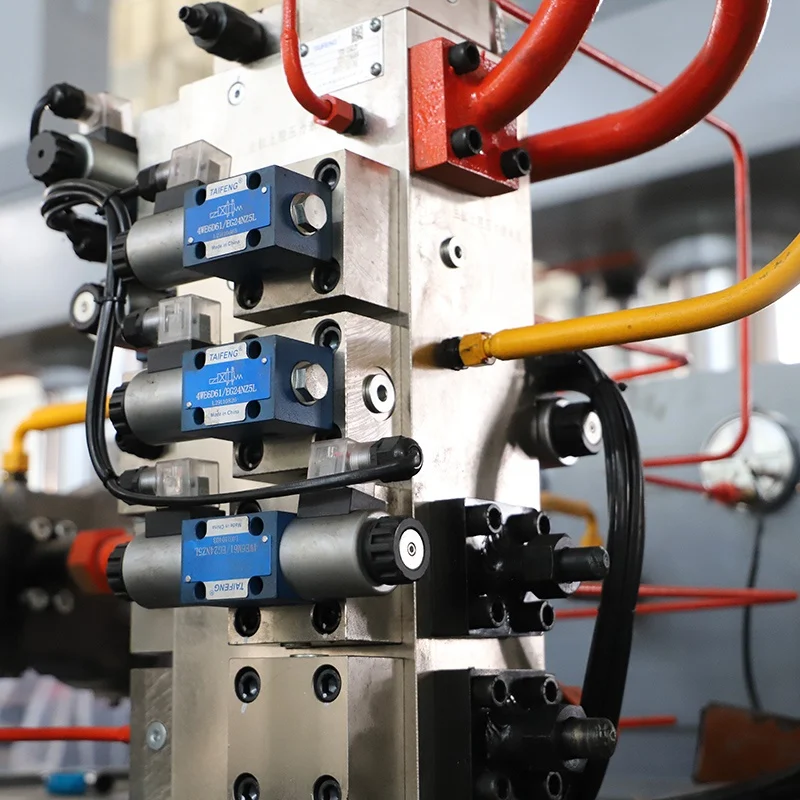

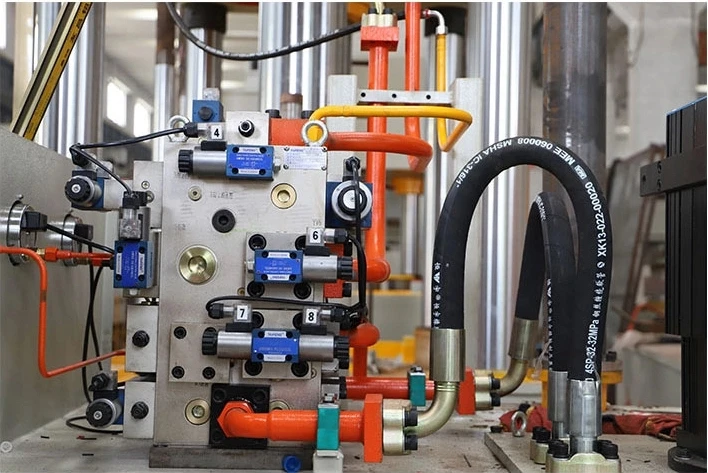

Cartridge Valve System
The cartridge valve is integrated into the system to reduce leakage points, reliable operation and long service life.


Combination gasket

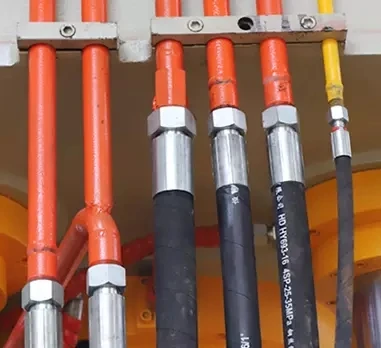

All oil joints are sealed with a combination of gaskets, internally with rubber, externally with red copper customized by the manufacturer. Compared with the iron used by other manufacturers, the advantages are: 1.The ductility of red copper is strong, making the bond tight;2.In the process of high-pressure washing, red copper can effectively protect the rubber skin from breakage.

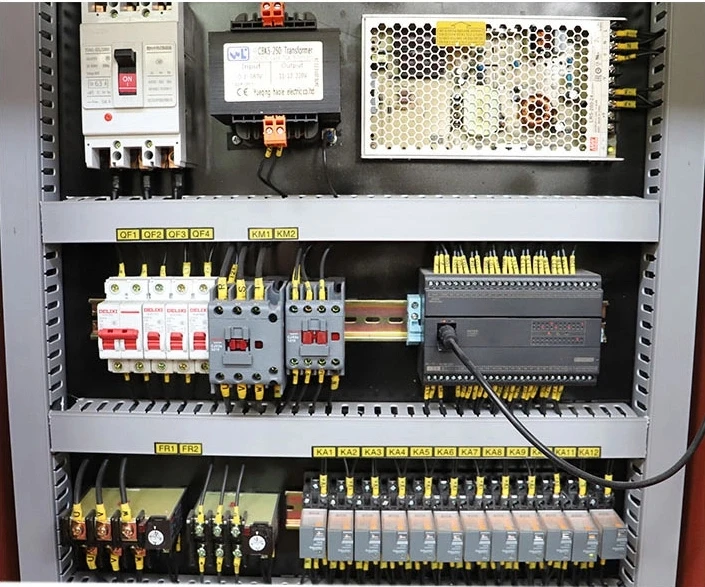

Core electrical appliance
It adopts relay control (PLC optional), and it realizes electro-hydraulic control, jog, manual and semi-automatic operation modes together with hydraulic valve.

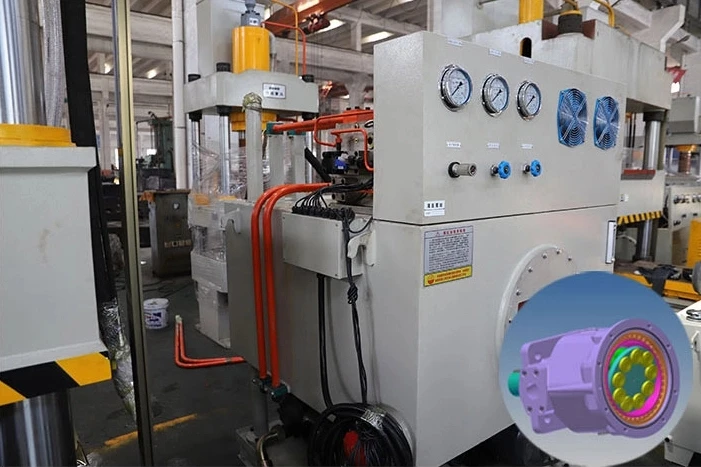

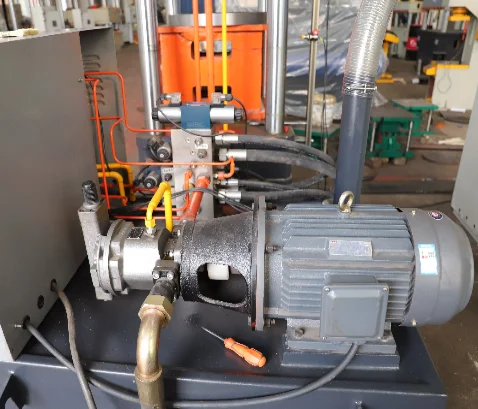

Hydraulic Station layout
Compared with the plug-in oil pump,We use the external and horizontal position of the oil pump to reduce the heat generated when the oil is pumped out. The oil rises slowly, and the oil temperature is always controlled within a controllable range of about 55 degrees Celsius, so that the hydraulic components can work at a tolerable temperature and prolong the service life of the machine.


Hydraulic Tank
Shot blasting combines three new processes of high-pressure vacuuming dough clearance.After the equipment is commissioned, the fuel tank is opened again, and the hydraulic oil flows into the main tank through the high pressure, and the components of each part are cleaned twice.


Finished Products


YQ32-300 ton Four column prensa hidraulica metal sheet forming hydraulic press machine
YQ32-300 ton Four Post Metal sheet stamping deep drawing 300 ton hydraulic press machine
Resin manhole cover hydraulic machine is suitable for the pressing process of plastic materials. Such as powder product molding, plastic product molding, cold (hot) extrusion metal molding, sheet stretching, and transverse pressure, bending pressure, turning, correction and other processes.

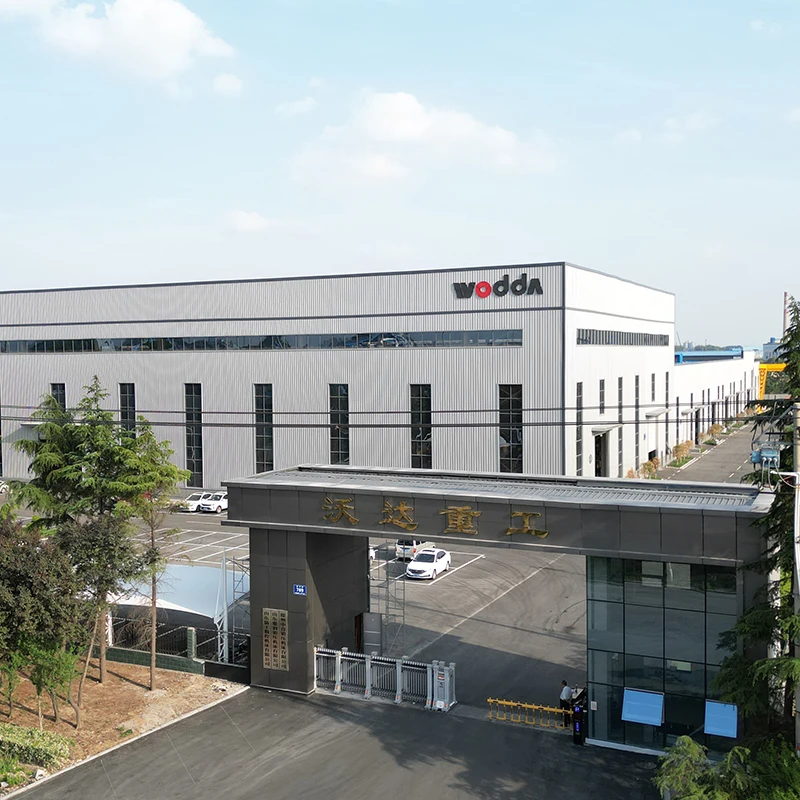

Company Profile


YQ32-300 ton Four column prensa hidraulica metal sheet forming hydraulic press machine
Shandong Woda Heavy Industry Machine Tool Co., Ltd. is a company focusing on r&d, design, production and after-sales service of large and medium-sized hydraulic machinery equipment, with an annual output value of 150 million yuan and a workshop of more than 20,000 square meters. Now it has more than 120 employees, including 5 engineers and 2 senior engineers. It has successfully applied for more than 10 national patents, and many papers have been included in EI database by American Engineering Information Company, the most famous information company in the field of engineering and applied science.


Exhibition


YQ32-300 ton Four column prensa hidraulica metal sheet forming hydraulic press machine
We go to all kinds of fairs, if you're interested.You can come to China to participate in the exhibition, we will meet here.


Packing & Shipping


YQ32-300 ton Four column prensa hidraulica metal sheet forming hydraulic press machine
Packaging Details:Plywood box for High quality 4 column vertical hydraulic press
machine Delivery Detail:
Shipped in 45 days after payment(Accoording to different types)


Certifications


YQ32-300 ton Four column prensa hidraulica metal sheet forming hydraulic press machine
Our hydraulic presses are all in accordance with export standards, and we have obtained relevant export certificates and CE certificates International CE certification, Alibaba / China manufacturing network SGS certification.
