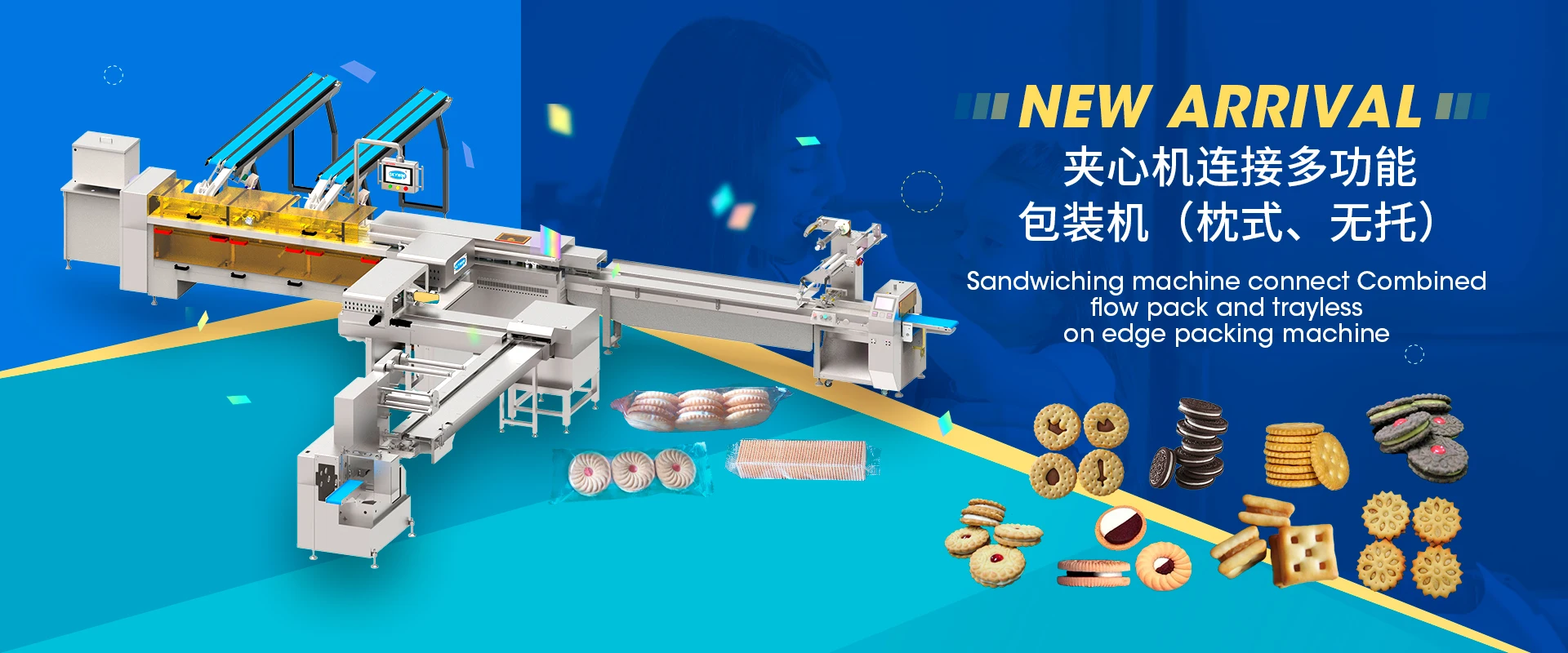

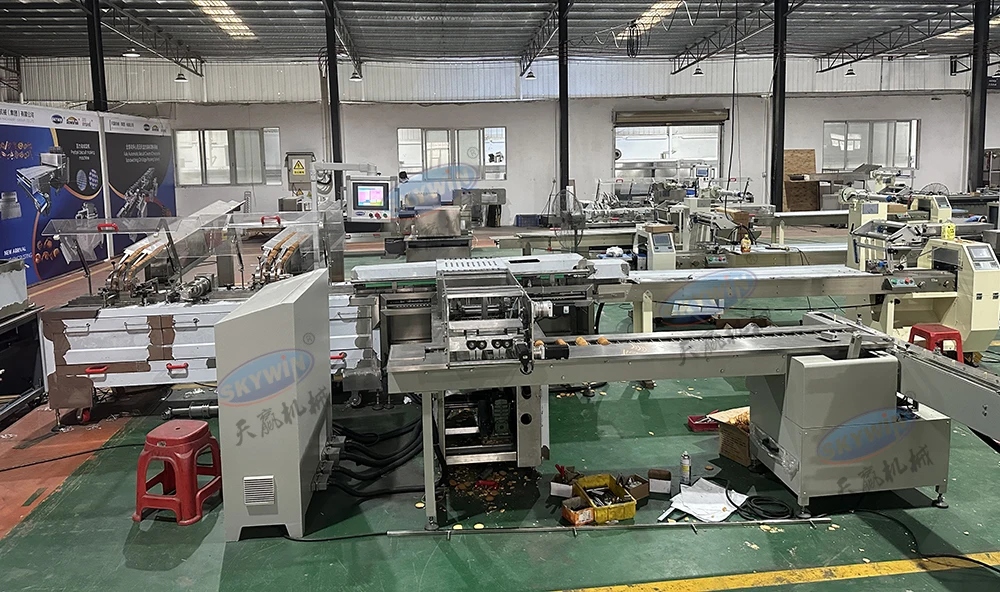

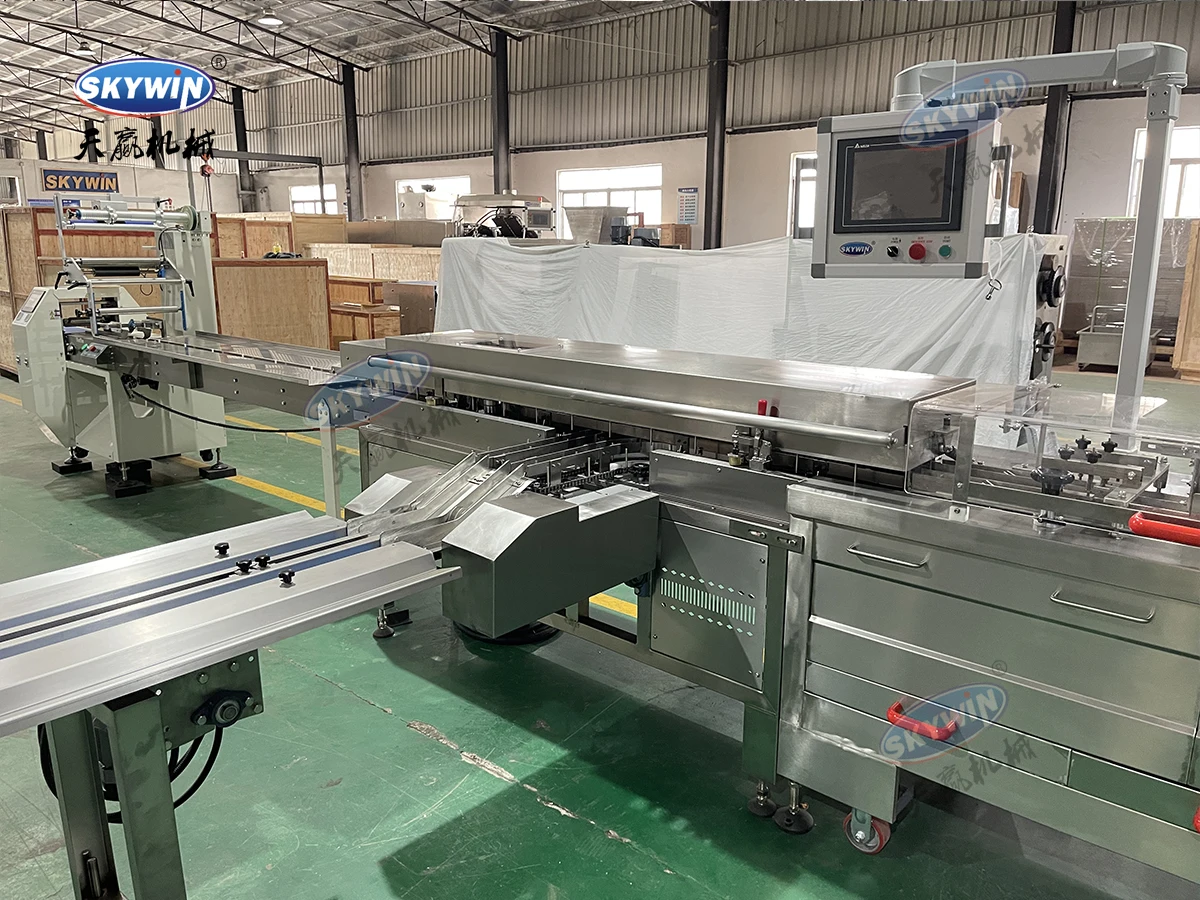

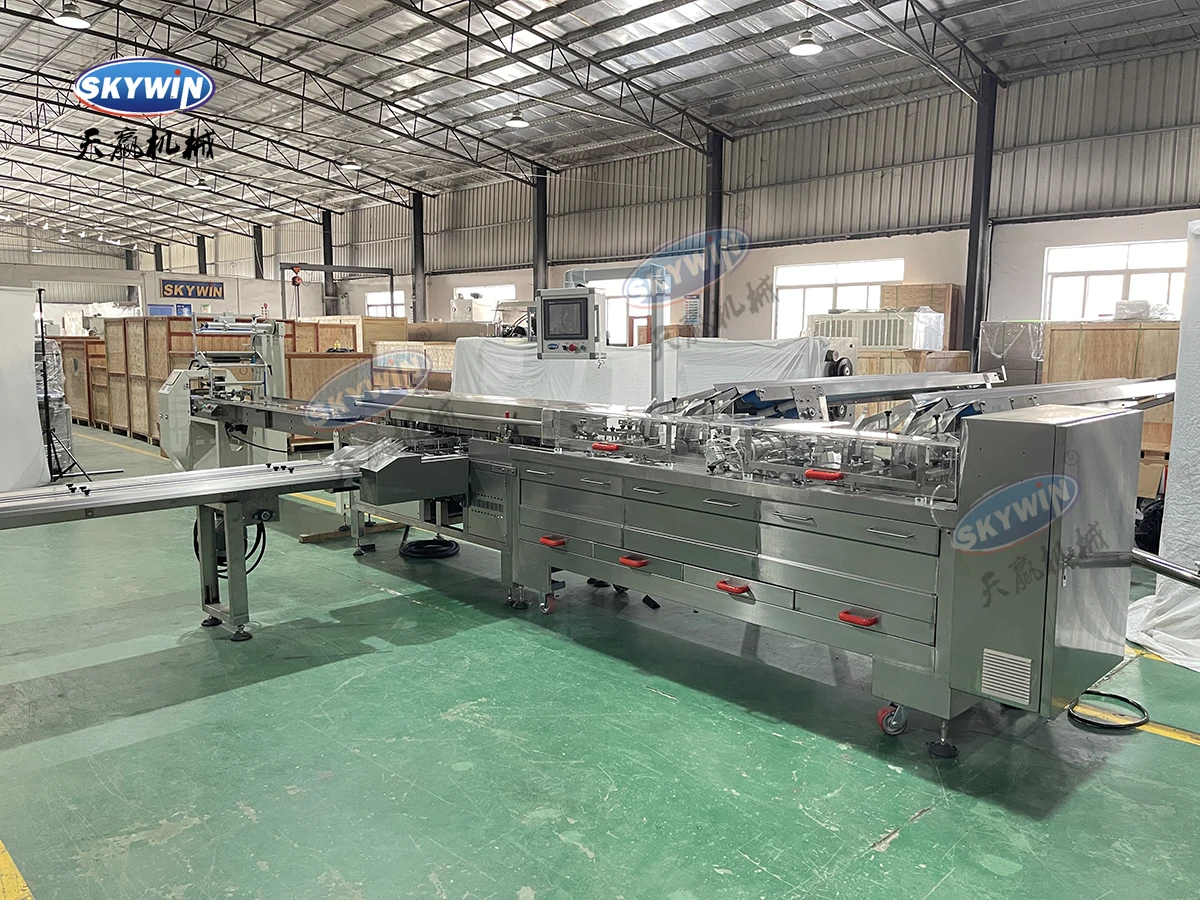

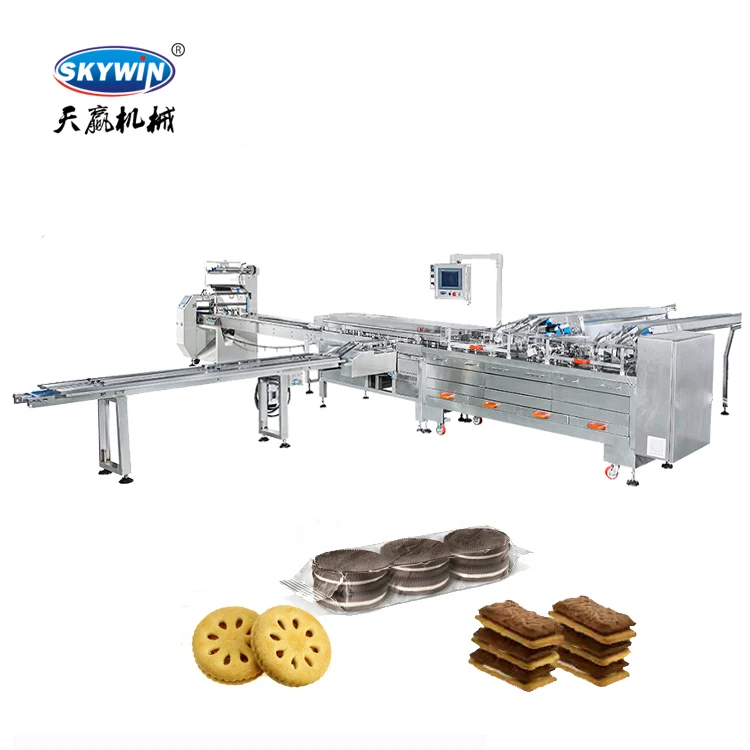

Two Lanes one colors Sandwich Biscuit Machine connect 380 Flow Packing Machine And Star Wheel Stacker Packing Table
- Category: >>>
- Supplier: Skywin Foodstuff Machinery Co. Ltd.
Share on (1601273801259):
Product Overview
Description
Product Description
Automatic 3+2 Two Lanes Cream Sandwiching Biscuit Machine
Connect 380S Flow packing machine
Skywin Provide different kind of biscuit sandwich machines.
The biscuit sandwich machine can be filling with chocolate, cream, jam or cheese.
It's used for sandwiching for different flavour then transfer to the packing machine automatically.
Energy saving and labor saving
Application
Feeding tracks: can make single row ,two rows ,four rows ,six rows
Cream Shapes: can handle a wide variety of shapes, including round, square, rectangle.
Sandwich colour: can make one color ,two color .
Sandwich fillings: cream , jam , chocolate and so on .
Packing machine type : trayless packing ,pillow packing ,depend on customer demand.

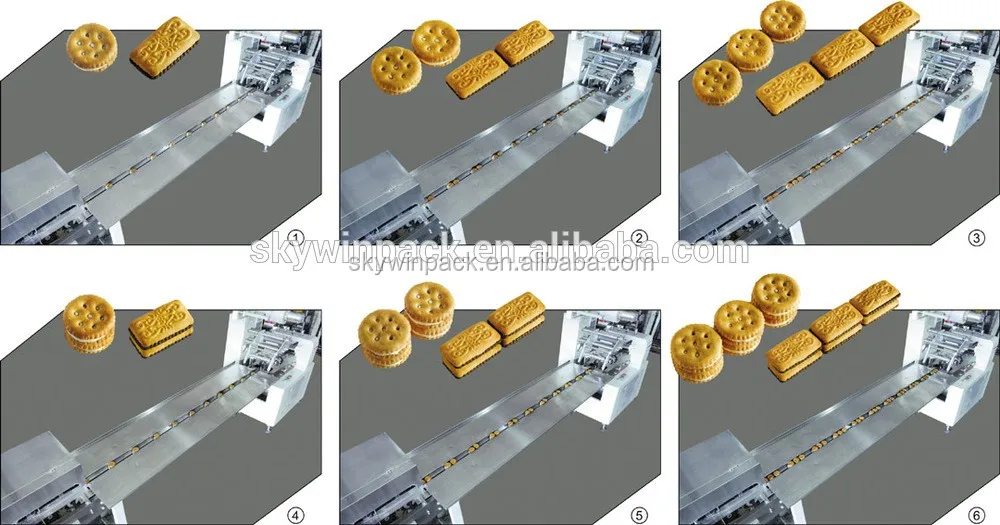

Packet biscuit types: 1x1, 1x2, 1x3, 2x1, 2x2, 2x3
Cream Shapes: can handle a wide variety of shapes, including round, square, rectangle.
Sandwich colour: can make one color ,two color .
Sandwich fillings: cream , jam , chocolate and so on .
Packing machine type : trayless packing ,pillow packing ,depend on customer demand.
Packet biscuit types: 1x1, 1x2, 1x3, 2x1, 2x2, 2x3

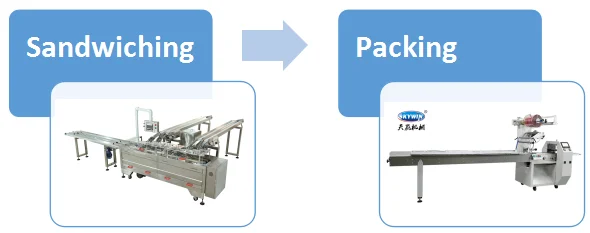

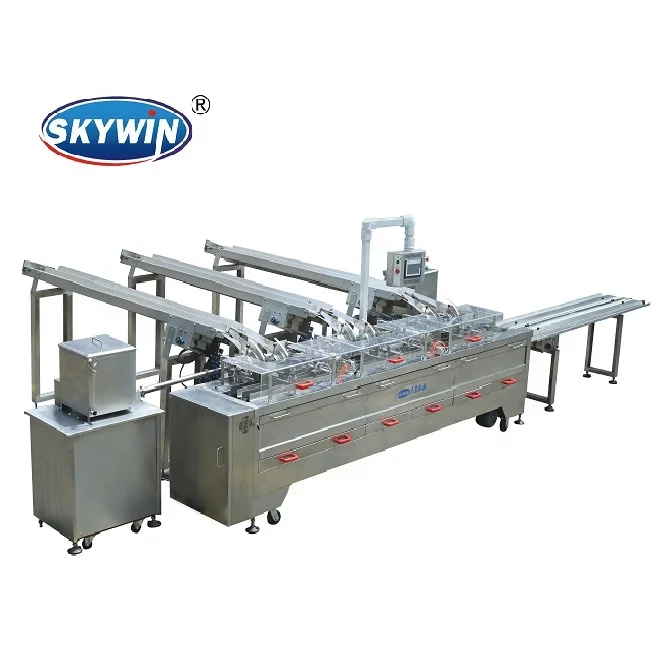

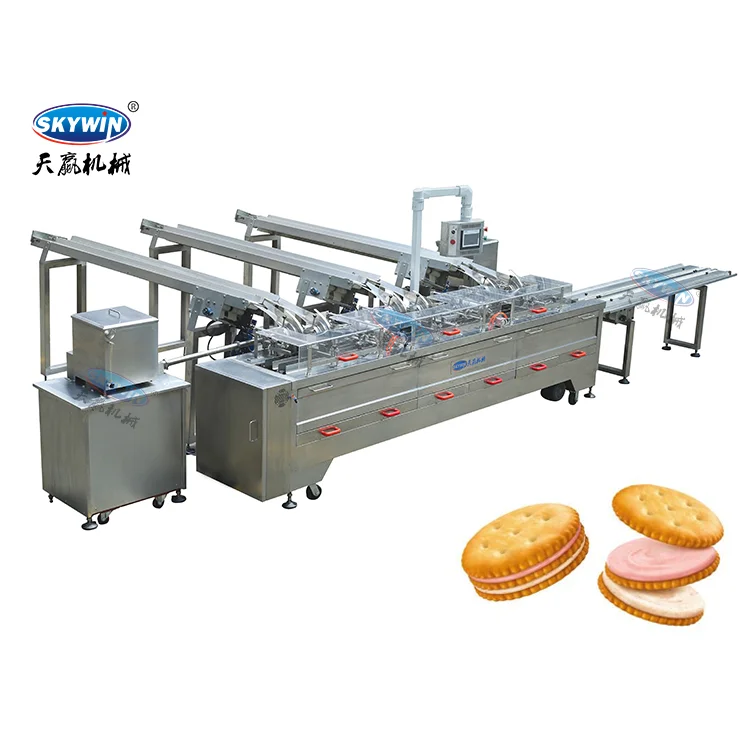

This item is a Two lanes 3+2 Sandwiching Biscuit machine
with Flow packing machine
● Biscuit feeding by 2.5m conveyor belt
● TAIDA servo motor, Siemens PLC touch screen control; SEW motor on sandwich machines
● Including biscuit collection pan.
● easy operation and cleaning
● Touch screen with memory system
● easy operation and cleaning
● Touch screen with memory system
● system connect with Flow (pillow) Packing Machine
Specification & Main Electric Component
Specification | ||
Sandwiching Biscuit Machine | ||
Capacity | 600-1200pcs/min | |
Biscuit size (Size can be customized) | Square: L 40-65mm, W35-80mm | |
Round: Φ35-Φ65mm, thickness: 4-8mm | ||
Output Biscuit | One color cream filling(2+1) | |
Products output direction | Left and Right option | |
Power | 4.5kw/ 220V/50Hz | |
Packing System | ||
Model | 380s Flow Packing Machine | |
Packing Speed | 50-300 packets/min | |
Packing Style | 1x1,1x2,1x3, to 2x1,2x2,2x3 | |
Packing Conveyor | Included 2.45m packing conveyor | |
Bag size | Length 80-300mm, Width 35-145mm, Height 5-55mm | |
Packing film thickness | 0.04-0.07mm | |
Power consumption | 3.6KW/Single phase: 220V/50Hz | |
Date Printer | Included Date printer | |
Parameter of Two Lanes Sandwiching Machine
1. Capacity：600-1200 sandwich biscuit per minute
2. Products output direction: Left and Right option;
3. Biscuit feeding by 2.5m conveyor belt(biscuit magazine or vibrator for option)
4. Power：220V/50HZ
5. Weight：1500kg
6. Power：5KW（not included packing machine）
2. Products output direction: Left and Right option;
3. Biscuit feeding by 2.5m conveyor belt(biscuit magazine or vibrator for option)
4. Power：220V/50HZ
5. Weight：1500kg
6. Power：5KW（not included packing machine）
Advantage of the 3+2 Sandwiching Biscuit Machine
Adjustable hand wheels for adjusting row size according biscuit size
Cream&Jam Two Color Cream Stencil
Visual acrylic protective cover
Feature of Flow (pillow) packing machinery
★ 3 Servo Motors
★ Included date printer
★ Speed: 50 to 300 packs/minute
★ Bag size: L (80-300) x W (35-145) x H(5-55）mm
★ Speed: 50 to 300 packs/minute
★ Bag size: L (80-300) x W (35-145) x H(5-55）mm
★ Max width of the packing film: 380mm
★ Packing film thickness: 0.04-0.07mm
★ Machine dimension: (L x W x H): 5200 x 950 x 1650mm
★ Power consumption: 3.6KW
★ Single phase: 220V/50Hz
★ Power consumption: 3.6KW
★ Single phase: 220V/50Hz
Biscuit Sample & Packing Style
Sandwiching Biscuit sample

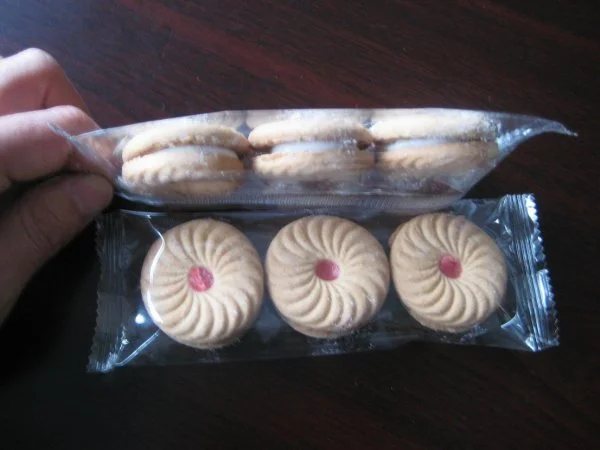

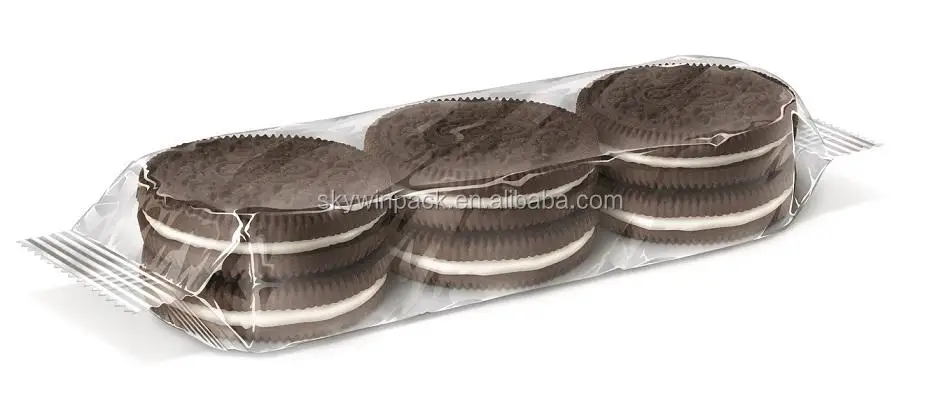

Flow Packing Sample

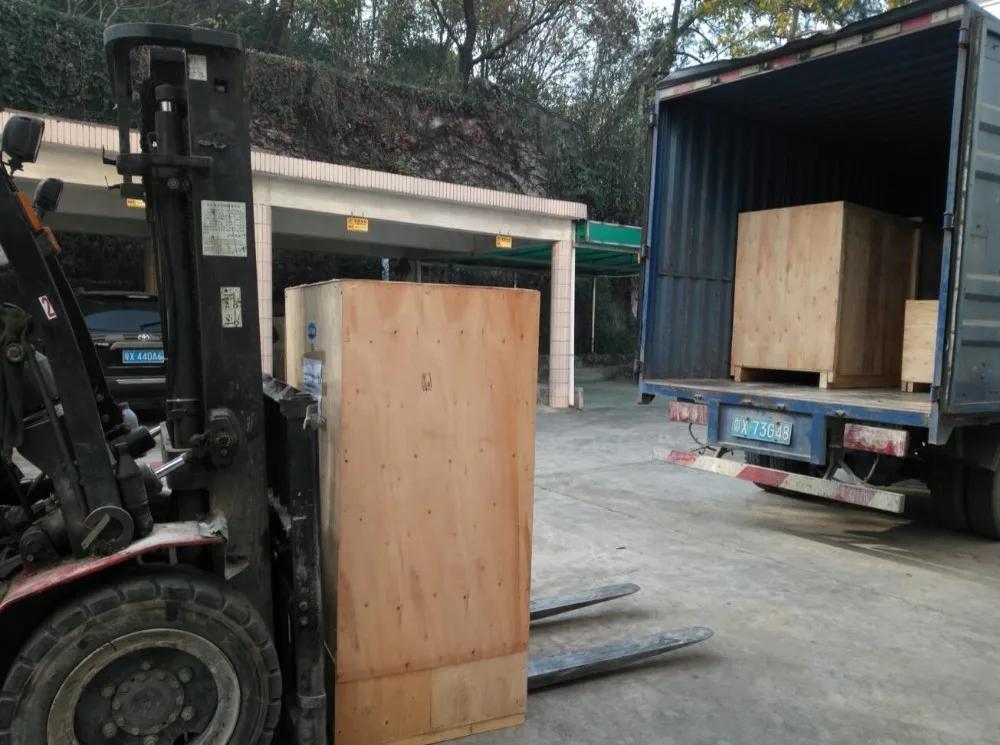

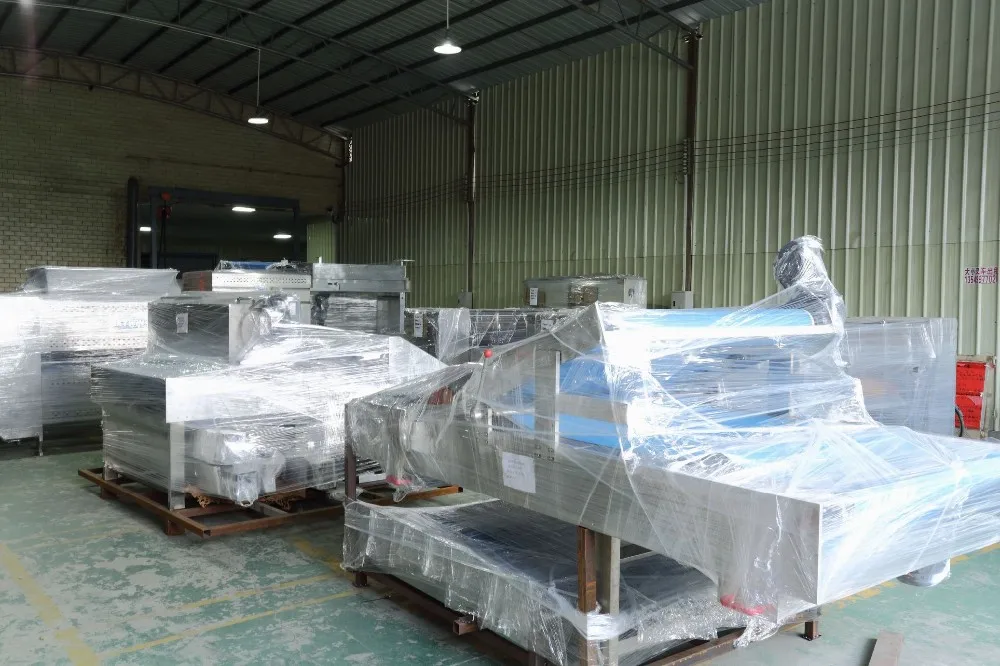

Pakcing & Delivery
Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
Company Profile
Skywin Foodstuff Machinery Co., Ltd. was established in 1983 and is a manufacturer specialized in the fully automatic high quality Biscuit Production Lines and Cookie Production Lines. We provide One-stop solution and service from biscuit production to biscuit sandwiching, biscuit chocolate enrobing and biscuit packing. All operation is fully automatic PLC controlled. We will supply professional consulting services for machines used in the industry of biscuit production, as well as the most suitable design proposals and quality machines.
Perfect Solution of Biscuit Production & One-stop Procurement Service:
Biscuit production lines;
Biscuit production lines;
Biscuit sandwiching and automatic connection packaging machines;
Biscuit coating chocolate machines;
Biscuit packing solutions;
Biscuit packing solutions;
Cookies production lines ;
Wafer biscuit production lines.
Proposal Design:
The most appropriate solution will be supplied based on plants' requirements, production capacity, automation and cost efficiency.
Technical Support:
Provide the technical support according to the customers' requirement.
Proposal Design:
The most appropriate solution will be supplied based on plants' requirements, production capacity, automation and cost efficiency.
Technical Support:
Provide the technical support according to the customers' requirement.
Erection & Commissioning:
Our processional technicians, quick responses and optimum service attitude can help finish the installation in a short time.
After-sales service:
Professional engineers provide the best service, Maintenance of the equipment and the production of biscuits.
Selecting & Purchasing:
According to the requirements for automation and quality, equipment of best performance (domestically) and the highest performance- price ratio will be supplied to customers.
After-sales service:
Professional engineers provide the best service, Maintenance of the equipment and the production of biscuits.
Selecting & Purchasing:
According to the requirements for automation and quality, equipment of best performance (domestically) and the highest performance- price ratio will be supplied to customers.
Service & Certification
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010, sell to South America(20.00%), Africa(19.00%), Mid East(15.00%), Southeast Asia(10.00%), North America(5.00%), Eastern Asia(5.00%), Western Europe(5.00%), Northern Europe(5.00%), South Asia(5.00%), Domestic Market(5.00%), Central America(4.00%), Southern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Biscuit Production Line, Cookies Production Line, Biscuit Sandwich Machine, Wafer Biscuit Production Line, Biscuit Packing Line.
4. which kind of biscuit you can produce for your biscuit line?
Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit and Chocolate filling biscuit, different shape biscuit just need to change the mould, we also can design mould for you as per your details.
5. why should you buy from us not from other suppliers?
Advanced Design since 1983 year; High Quality base on Customer requirement; One-stop service for Biscuit & Cookies & Wafer Production Industry; Full Auto Biscuit sandwiching and packing line; Competitive price; In time delivery and Installation service.
6. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW; Accepted Payment Currency: USD, EUR, CNY; Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash; Language Spoken:English,Chinese\\
Want to learn more details and see video? Please send inquiry directly!!!
Ms Flora Lai
Skywin Foodstuff Machinery Co., Ltd
China Biscuit & Cookies & Wafer Biscuit Production Line Manufacturer
Automatic Biscuit Sandwiching connect to Packaging Machines
ADD: No.13,Jiayi Road,Beijiao, Shunde, Foshan, Guangdong, CHINA
Tel: (0086)-757-22237578/77/79/18 Fax: 22237579
Whatsapp/Mobile/Wechat: (0086) 13724610303
Ms Flora Lai
Skywin Foodstuff Machinery Co., Ltd
China Biscuit & Cookies & Wafer Biscuit Production Line Manufacturer
Automatic Biscuit Sandwiching connect to Packaging Machines
ADD: No.13,Jiayi Road,Beijiao, Shunde, Foshan, Guangdong, CHINA
Tel: (0086)-757-22237578/77/79/18 Fax: 22237579
Whatsapp/Mobile/Wechat: (0086) 13724610303
