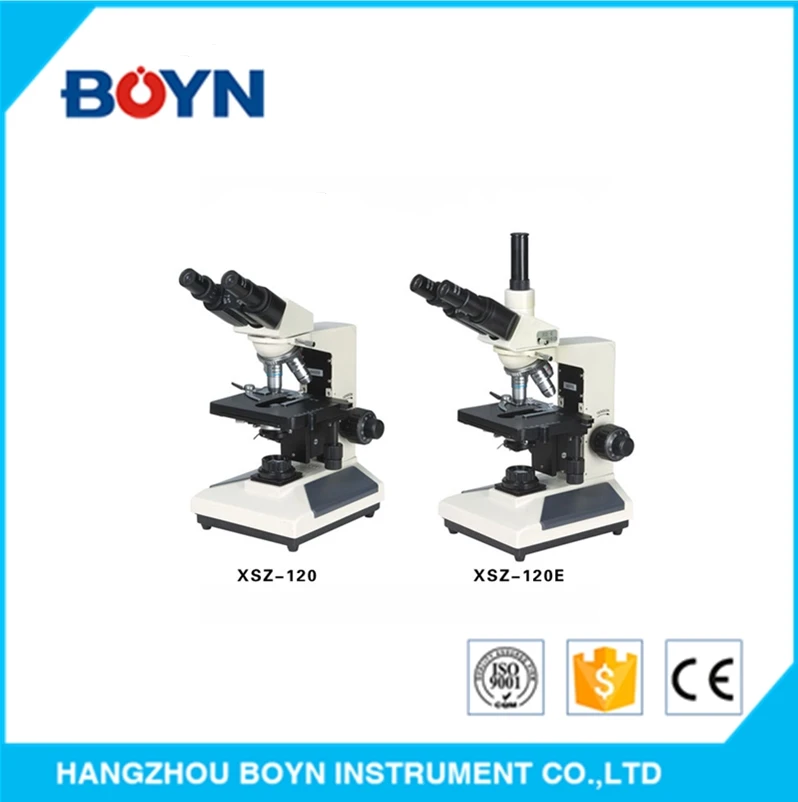

XSZ 120,120E Laboratory biological Binocular Trinocular microscope with Double layer mechanical stage and LED illumination
- Category: >>>
- Supplier: Hangzhou Boyn Instrument Co. Ltd.
Share on (1601273847249):
Product Overview
Description
lab biological microscope with best price and LED illumination
XSZ-120,120E
Technical data:
Specification | Modle | ||
XSZ-120 | XSZ-120E | ||

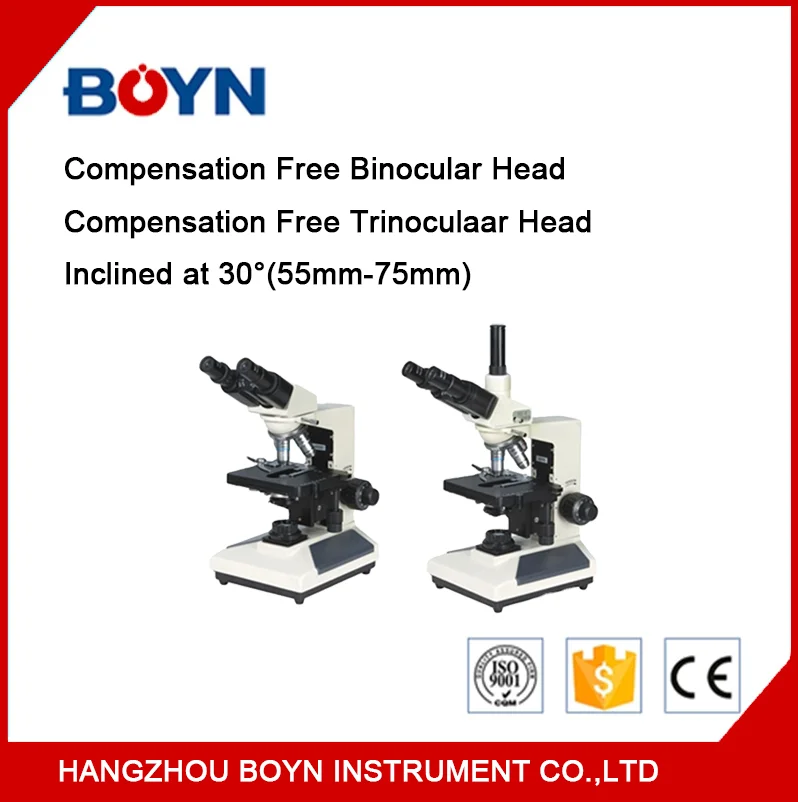

Viewing Head | Compensation Free Binocular Head, Inclined at 30°(55mm-75mm) | · | |
Compensation Free Trinoculaar Head, Inclined at 30°(55mm-75mm) | · | ||
Eyepiece | WF10×/18mm | · | · |
Objective | Achromatic 4×,10×,40×(s),100×(s)Oil | · | · |

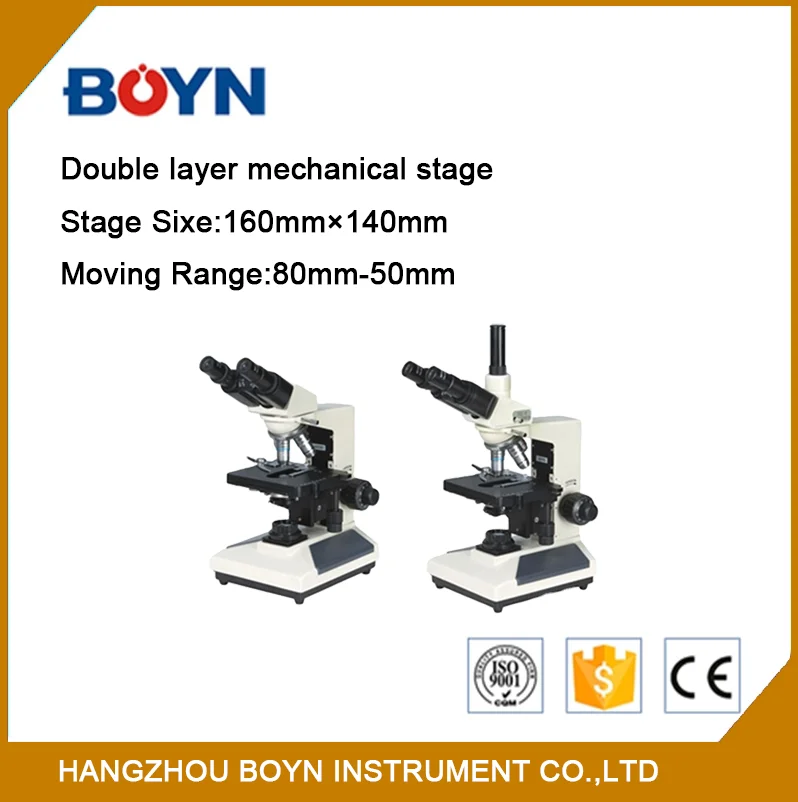

Stage | Double layer mechanical stage | · | · |
Stage Sixe:160mm×140mm | |||
Moving Range:80mm-50mm | |||

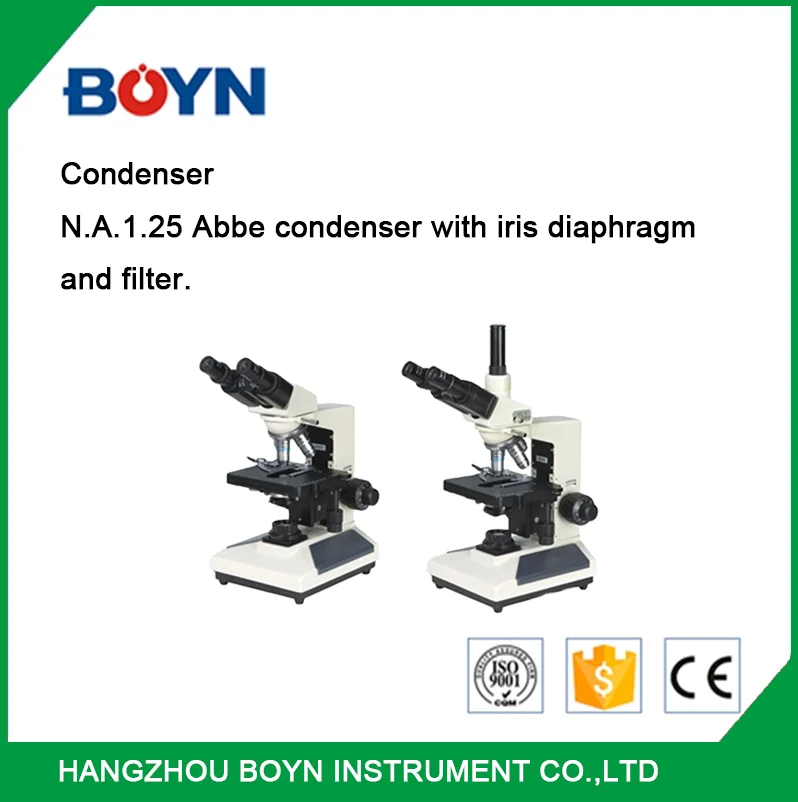

Condenser | N.A.1.25 Abbe condenser with iris diaphragm and filter | · | · |
Focusing | Coaxial coarse & fine focusing adjustment Fine focusing scale value 0.002mm | · | · |

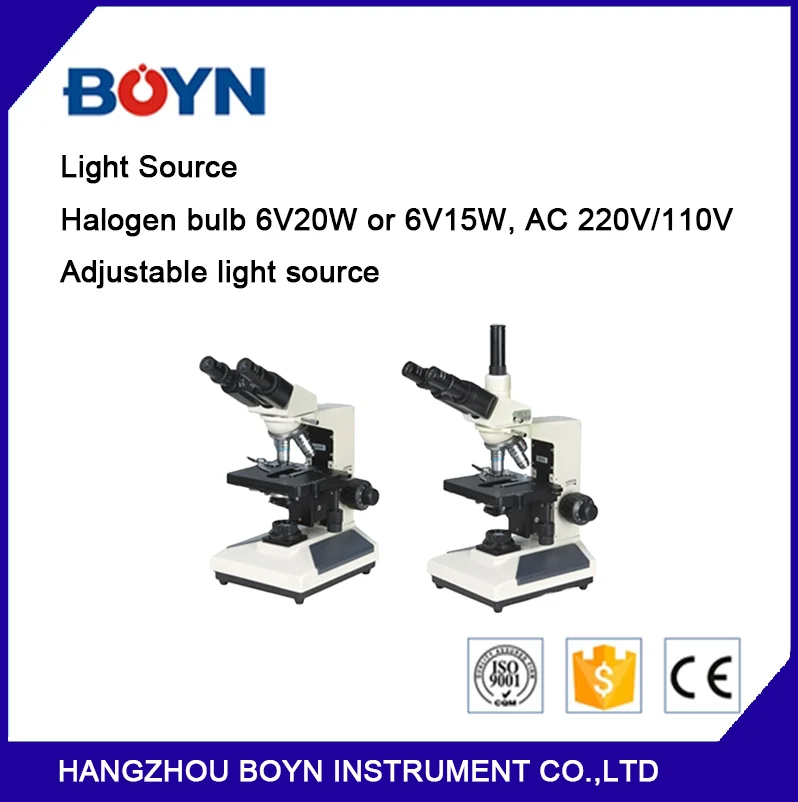

Light Source | Halogen bulb 6V20W or 6V15W, AC 220V/110V Adjustable light source | · | · |
Optional Accessory | Eyepiece:WF16×,WF20×,P16× Objective:20×,60(s) Semi-plan Objective:4×,10×,20×,40×(s),60×(s),100×(s)oil Plan Objective:4×,10×,20×,40×(s),60×(s),100×(s)oil Reflective Mirror, Demonstration(Teaching) Head Dark field and Phase contrast device 1.3Mega,2.0Mega,3.0Mega,5.0Mega pixels CMOS Digital camera eyepiece Photography attchment and CCD Adapter 0.5×,0.57×,0.75× Compensation Free Binocular & Trinocular Head (48mm-75mm) LED illumination | ||
