High Frequency Electrosurgical Generator Electrocautery Diathermy Machine Ligasure Vessel Sealing System
- Category: >>>
- Supplier: Suzhou Thriving Medical Equipment Corp.
Share on (1601273891902):
Product Overview
Description
Product Description
Technical Specification
Main Frequency: 512 KHz
Power Supply: 110V/60Hz；220V/50Hz
Low Frequency Leakage:
Normal Polarity, Intact Chassis Ground: <10μA
Main Frequency: 512 KHz
Power Supply: 110V/60Hz；220V/50Hz
Low Frequency Leakage:
Normal Polarity, Intact Chassis Ground: <10μA
Normal Polarity, Ground open< 50μA
Reverse Polarity, Ground Open< 50μA
Sink Current, 140V Applied, All inputs < 50μA
Weight and Dimension:
Weight: 8.00KG
Dimension: 34*16*47
High Frequency Leakage:
Monopolar: < 150mA;
Bipolar < 60mA
Technical Specification
Reverse Polarity, Ground Open< 50μA
Sink Current, 140V Applied, All inputs < 50μA
Weight and Dimension:
Weight: 8.00KG
Dimension: 34*16*47
High Frequency Leakage:
Monopolar: < 150mA;
Bipolar < 60mA
Technical Specification
Working Mode | Maximum P-P Voltage | Rated Load | Max. output power | Crest Factor (Typical) | ||
Monopolar Cut | Pure | 1900 | 500Ω | 400W | 1.6 | |
Blend | 2300 | 500Ω | 250W | 2.5 | ||
Monopolar Coag | Fulgurate | 2800 | 500Ω | 120W | 2.9 | |
Spray | 7000 | 500Ω | 100W | 6.2 | ||
Bipolar Coag | Standard | 550 | 100Ω | 70W | 1.6 | |

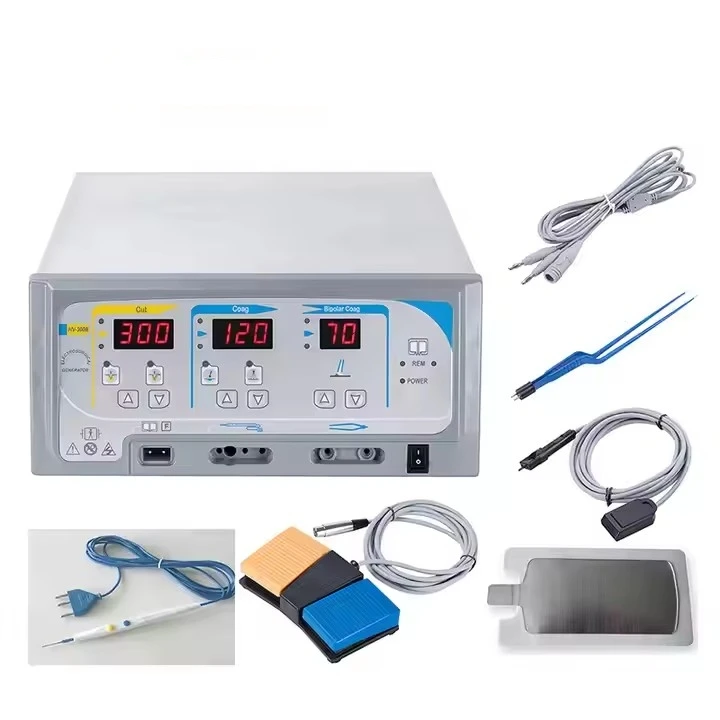

Accessories
The Accessory can be defined to suit the user’s needs and preferences. |
1 Power cable plug
2 Disposable ESU pencil
3 Disposable ESU plate
4 Reusable plate cable
5 Two Button Footswitch
6 Reusable Bipolar forceps
7 Reusable Bipolar cable
8 Laparoscopic Vessel Sealing instrument
9 Laparoscopic instrument cable
2 Disposable ESU pencil
3 Disposable ESU plate
4 Reusable plate cable
5 Two Button Footswitch
6 Reusable Bipolar forceps
7 Reusable Bipolar cable
8 Laparoscopic Vessel Sealing instrument
9 Laparoscopic instrument cable
