Industrial fall arrest equipment 15m 20m fall arrester
- Category: >>>
- Supplier: Beijing Tengli Hengxin Crane Machinery Co. Ltd.
Share on (1601273908683):
Product Overview
Description
Product Description
Application This Self Retracting fall arrester has high sensitivity, good reliability, simple
configuration and easy to test, which can availably avoid the failing accident of the cage and protect the life of ground
operators.This safety anti-falling device is widely used in electrical maintenance, work high above the ground, engineering
construction and transportation.

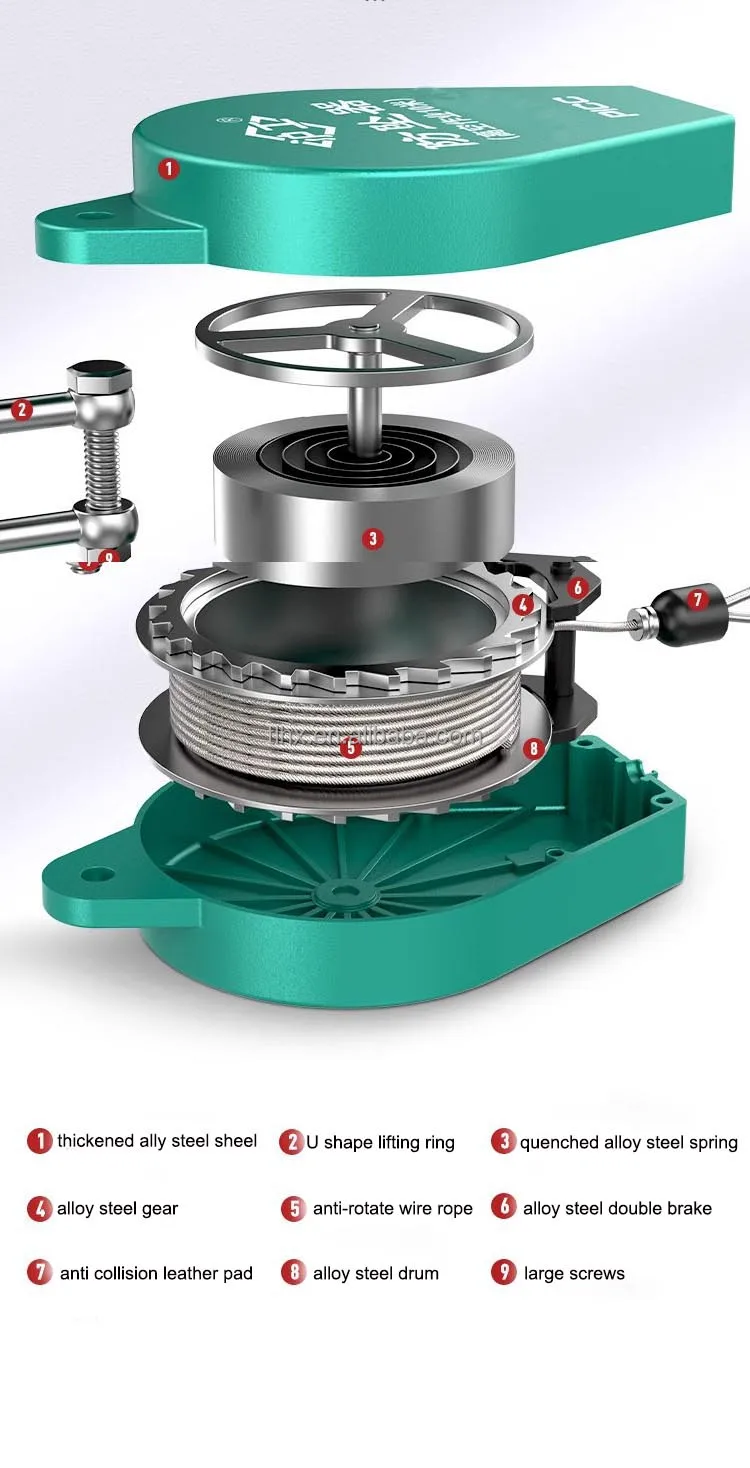

Double U disc brake system, Dual swivels included on all cable models to minimize lifeline from twisting during use. Stable
locking, more safe and reliable. Fall arrester can quickly brake and lock falling objects within a limited distance
New self-locking hook design ① Material: alloy steel ② High load capacity: 150kg
Aviation grade wire rope◄ Aviation grade steel wire rope is adopted, with multiple strands and stronger pulling force.
configuration and easy to test, which can availably avoid the failing accident of the cage and protect the life of ground
operators.This safety anti-falling device is widely used in electrical maintenance, work high above the ground, engineering
construction and transportation.
Double U disc brake system, Dual swivels included on all cable models to minimize lifeline from twisting during use. Stable
locking, more safe and reliable. Fall arrester can quickly brake and lock falling objects within a limited distance
New self-locking hook design ① Material: alloy steel ② High load capacity: 150kg
Aviation grade wire rope◄ Aviation grade steel wire rope is adopted, with multiple strands and stronger pulling force.
Specification
Model | TXS-3 | TXS-5 | TXS-7 | TXS-10 | TXS-15 | TXS-20 | TXS-30 | TXS-50 | TXS-60 | ||||||||
Length(Meter) | 3 | 5 | 7 | 10 | 15 | 20 | 30 | 50 | 60 | ||||||||
Lock crititcal speed | 1m/s | ||||||||||||||||
Max.work load | 150 kg | ||||||||||||||||
locking distance | ≤ 0.2 m | ||||||||||||||||
overall breaking force | ≥8900N | ||||||||||||||||
Weight（kg) | 2.1 | 2.34 | 3.3 | 3.54 | 4.77 | 6.54 | 10.95 | 19.23 | 21.7 | ||||||||

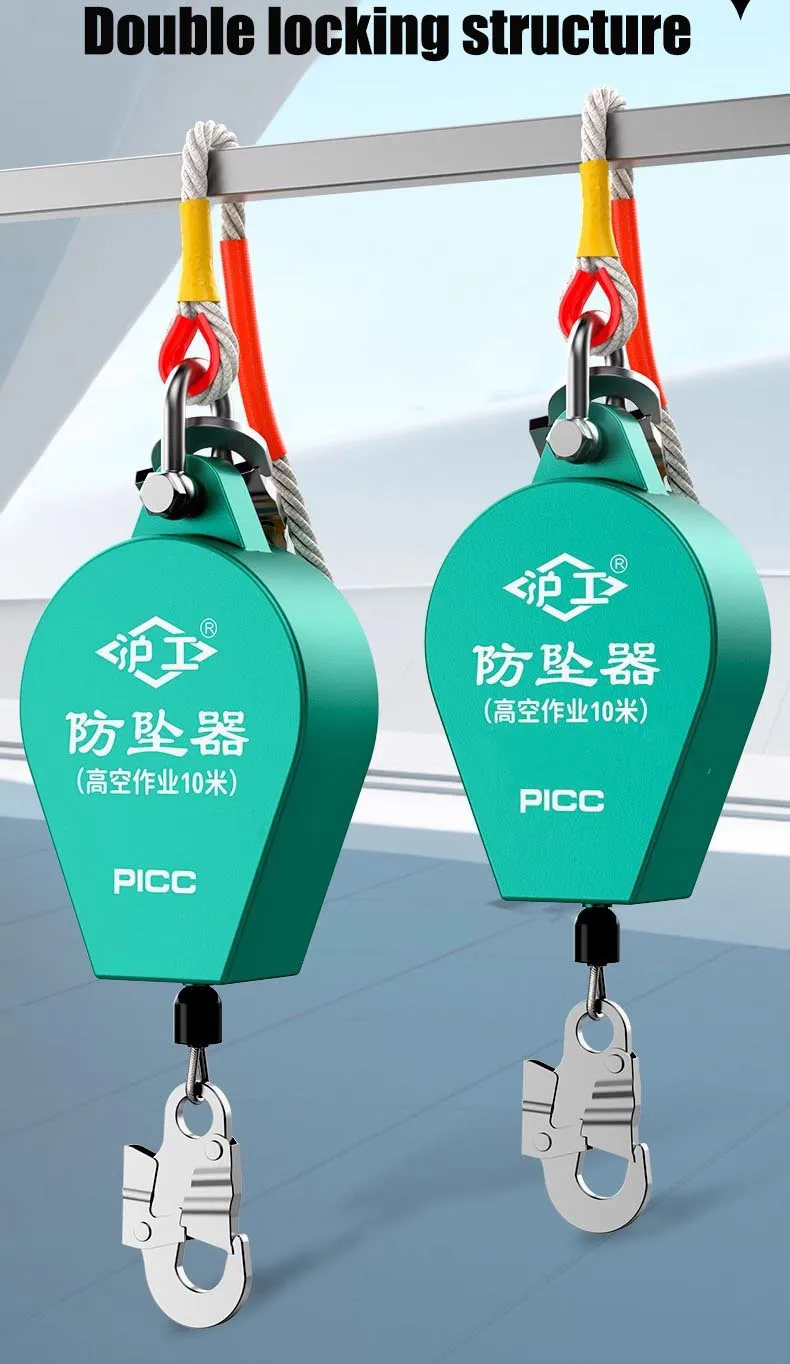

Locking structure | double locking structure | ||||||||||||||||
service life(times) | 2*100000 | ||||||||||||||||
