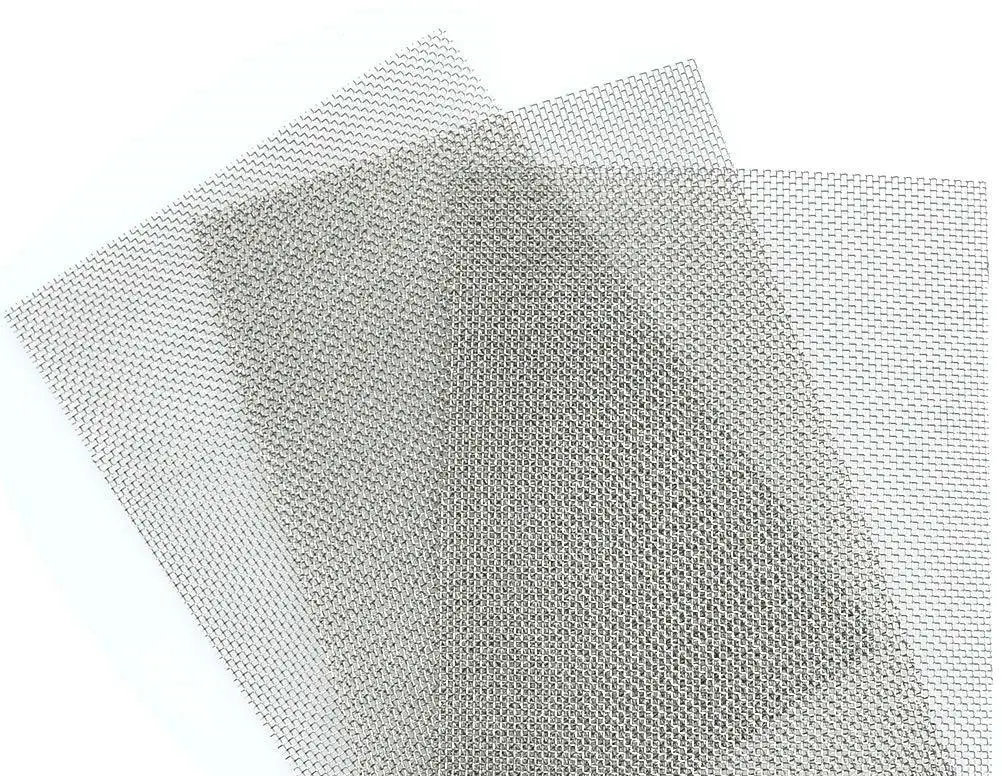

High Quality pure Titanium woven wire mesh/Titanium mesh screen/Titanium metal mesh net for filter
High-Quality pure Titanium woven wire mesh/Titanium mesh screen/Titanium metal mesh net for filter
High-Quality pure Titanium woven wire mesh/Titanium mesh screen/Titanium metal mesh net for filter
High-Quality pure Titanium woven wire mesh/Titanium mesh screen/Titanium metal mesh net for filter
High-Quality pure Titanium woven wire mesh/Titanium mesh screen/Titanium metal mesh net for filter
High-Quality pure Titanium woven wire mesh/Titanium mesh screen/Titanium metal mesh net for filter
High-Quality pure Titanium woven wire mesh/Titanium mesh screen/Titanium metal mesh net for filter

High Quality pure Titanium woven wire mesh/Titanium mesh screen/Titanium metal mesh net for filter

Share on (1601273996532):


Price:$4.00 - $6.50

Quantity:


Product Overview

Description

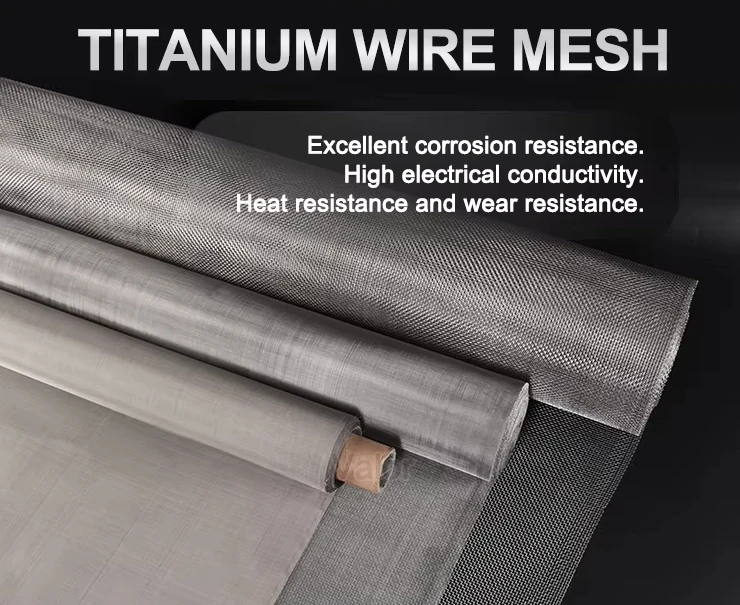

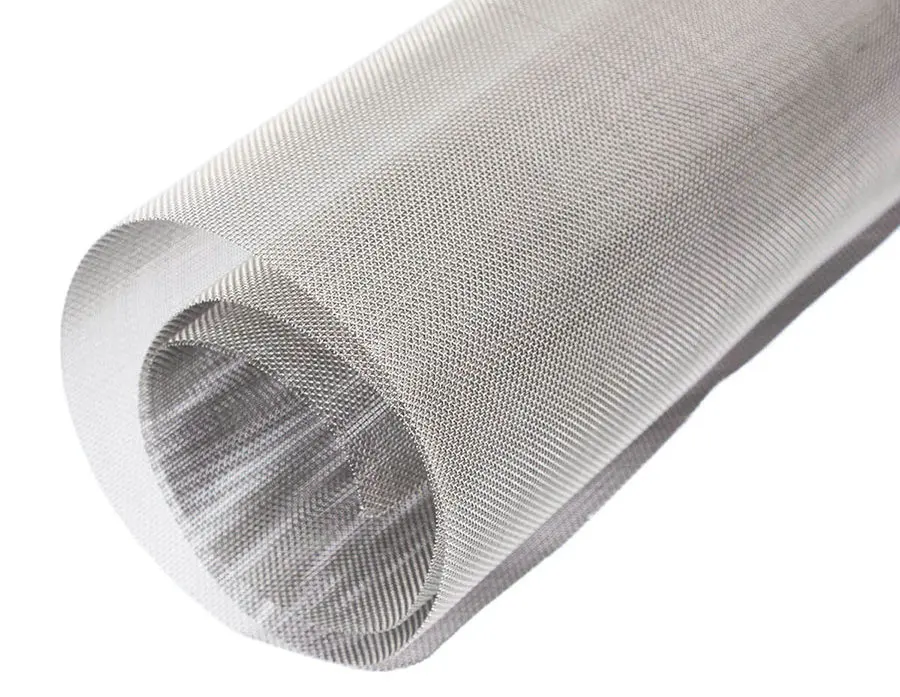

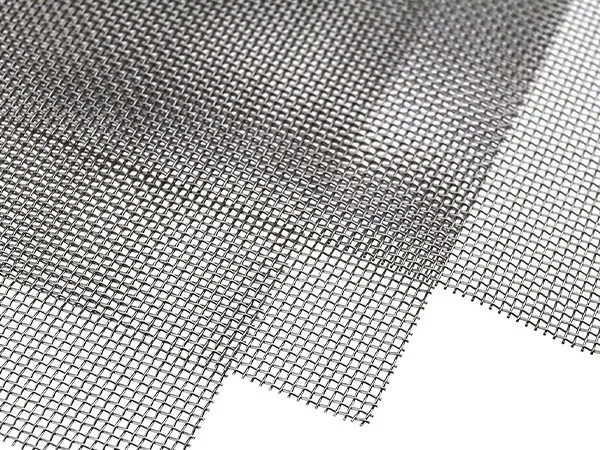

Titanium Woven Wire Mesh
Titanium mesh is a kind of non-ferrous metal mesh with special properties. It has low density, but highest strength than any other
metal mesh; And also high purity titanium mesh will generate an oxide film with dense adhesion and high inertia in the
corrosion-resistant media environment, especially in seawater, wet chlorine gas, chlorite, and hypochlorite solution, nitric acid,chromic acid metal chloride, and organic salt are not corroded. Besides these, titanium wire mesh is also featured with good temperature stability & conductivity, non-magnetic, non-toxic.




Titanium woven wire mesh is woven from pure titanium wire or titanium alloy. The titanium wire mesh is also called titanium mesh,titanium filter mesh, titanium electrode mesh and titanium current collecting mesh according to the application. Titanium mesh can be divided into black and bright according to the surface of the raw material.

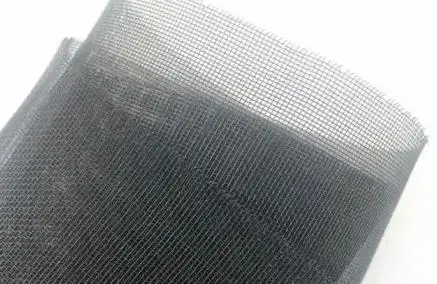

Black Titanium mesh is made of pure titanium wire with graphite coating on the surface. Moreover, it is suitable for ship
filtration and manufacturing of seawater filter titanium mesh.

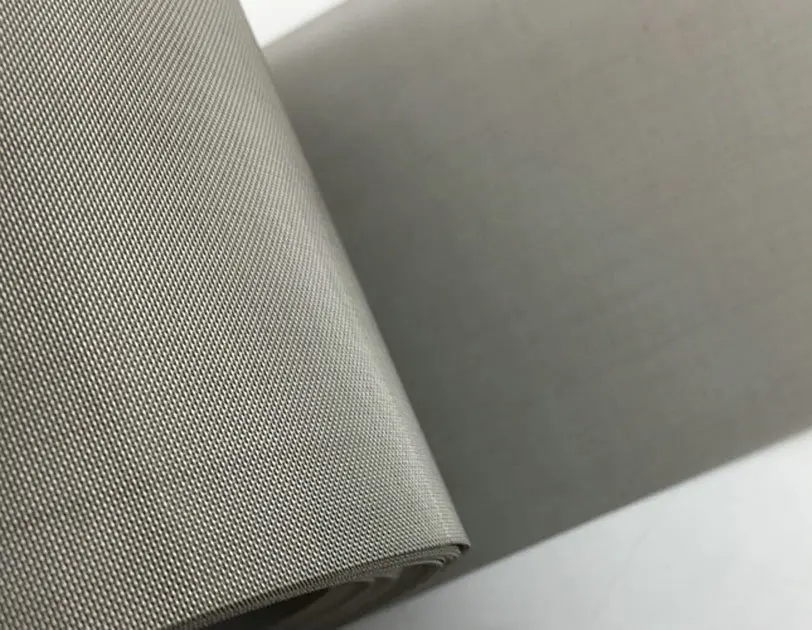

Bright Titanium woven mesh is produced by weaving pure graphite wire after removing the graphite emulsion coating. It is suitable for manufacturing an electrode mesh, a titanium battery collecting mesh, and a fine chemical liquid filtering titanium mesh.
The material of the titanium woven mesh can be mainly provided:
Pure titanium material: TA1, TA2. titanium alloy: TA5, TA7, TC1,TC2, TC3, TC4.
1. Pure titanium wire Ti≥99.6%, black surface, black titanium mesh is suitable for seawater filtration and other industries with low purity of solution.
2. High-purity titanium wire:
the surface is bright and has no oxide layer, and the bright titanium mesh is suitable for the manufacture of titanium electrode mesh and chemical titanium filter mesh.





Aperture: 0.02mm-23.7mm
Mesh: 0.3 mesh – 400 mesh
Width: 5mm-2000mm
Packing: waterproof bubble pad + waterproof paper + wooden bo


Item
titanium woven wire mesh
Material
TA1 TA2 pure titanium wire
Types
Black titanium wire mesh ; bright titanium wire mesh
Mesh count

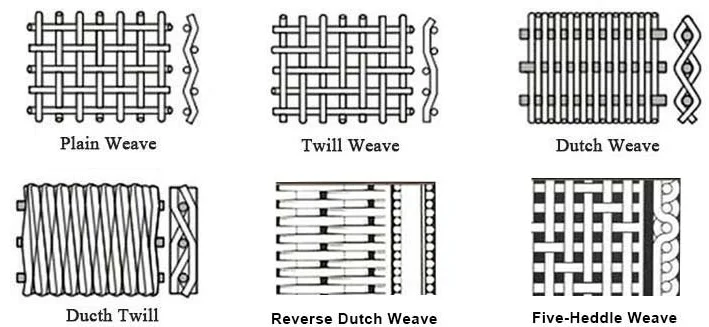

Plain weave up to 100 mesh
Dutch weave up to 70*400 mesh
Features
Low density and high specific strength;
Excellent corrosion resistance, in the corrosion environment, it will form an oxidation film layer to protect wire mesh from being corroded.
Applications
Shipbuilding , war industry manufacturing , chemical filter , mechanical filter , desalination filter , high temperature vacuum equipment , and medicine filtration industries ect.
Customized

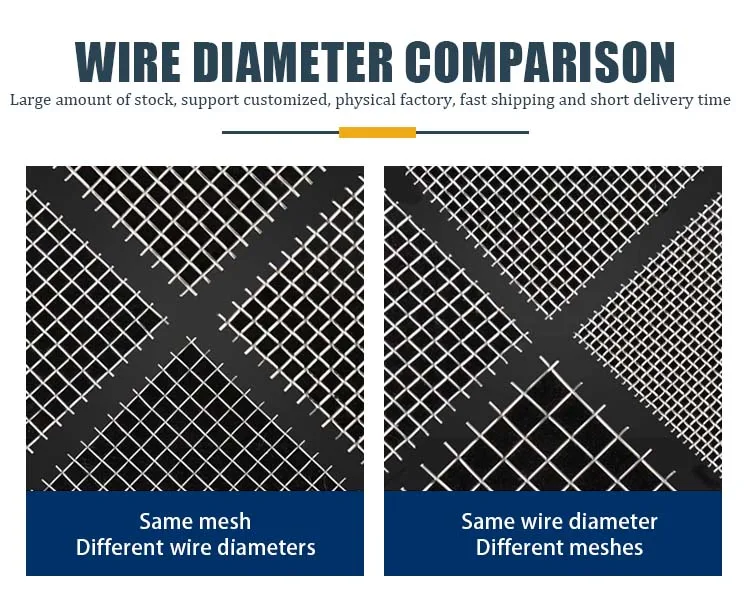

Mesh count , wire diameter, and mesh width ,length can be customized

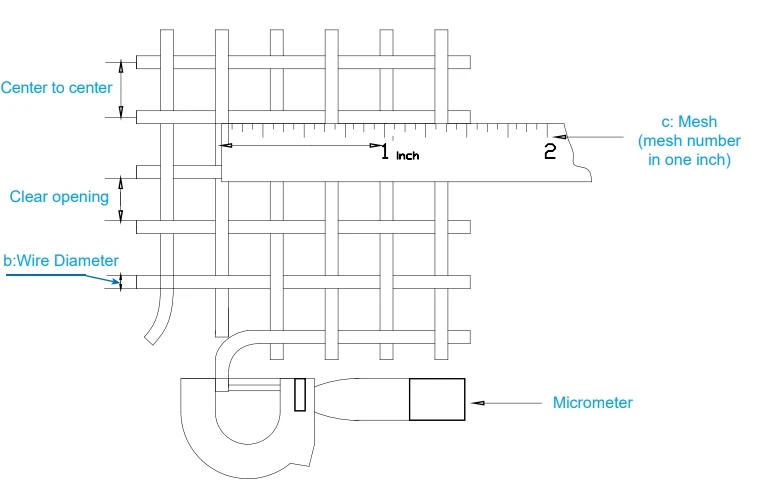

Item
Mesh (Wires/ in.）
Wire diameter (in.)
Width of opening (in.)
Open area (%)
RTI-01
4 × 4
0.0320
0.2180
76.00
RTI-02
4 × 4
0.0350
0.2150
74.00
RTI-03
6 × 6
0.0320
0.1350
65.60
RTI-04
7 × 7
0.0250
0.1180
68.20
RTI-05
8 × 8
0.0320
0.0930
55.40
RTI-06
9 × 9
0.0320
0.0790
50.60
RTI-07
10 × 10
0.0350
0.0650
42.30
RTI-08
10 × 10
0.0300
0.0700
49.00
RTI-09
10 × 10
0.0250
0.0750
56.30
RTI-10
12 × 12
0.0110
0.0723
75.30
RTI-11
14 × 14
0.0160
0.0550
60.20
RTI-12
16 × 16
0.0060
0.0565
81.70
RTI-13
18 × 18
0.0100
0.0460
67.40
RTI-14
18 × 18
0.0110
0.0445
64.40
RTI-15
18 × 18
0.0160
0.0400
50.8
RTI-16
20 × 20
0.0030
0.0470
88.40
RTI-17
20 × 20
0.0200
0.0300
36.00
RTI-18
20 × 20 TW
0.0160
0.0340
46.20
RTI-19
24 × 24
0.0100
0.0320
57.90
RTI-20
24 × 24
0.0118
0.0299
51.40
RTI-21
26 × 26
0.0100
0.0290
54.90
RTI-22
30 × 30
0.0100
0.0233
49.00
RTI-23
32 × 32
0.0100
0.0210
46.50
RTI-24
35 × 35
0.0080
0.0206
51.80
RTI-25
40 × 40
0.0050
0.0200
64.00
RTI-26
40 × 40
0.0100
0.0150
36.00
RTI-27
50 × 50
0.0090
0.0110
30.30
RTI-28
50 × 50 TW
0.0040
0.0160
64.00
RTI-29
60 × 60 TW
0.0090
0.0077
21.30
RTI-30
90 × 90
0.0040
0.0071
41.00
RTI-31
100 × 100
0.0020
0.0080
64.00
RTI-32
120 × 120 TW
0.0040
0.0043
27.00
RTI-33
150 × 150 TW
0.0027
0.0040
35.50


* Good ductility.
* High tensile strength.
* Oxidation resistance.
* Sulfur resistance.
* Permeability resistance.
* Superior elongation.
* Non-magnetic.










Titanium wire mesh used in skull repair and reconstruction.
Titanium wire mesh can be used as filter tube in petroleum and water treatment.




Titanium mesh is with low density and high specific strength.
Titanium mesh is with outstanding corrosion resistance.
In the corrosion environment, the surface of high purity titanium mesh will form an oxidation film layer to protect wire mesh from being corroded.

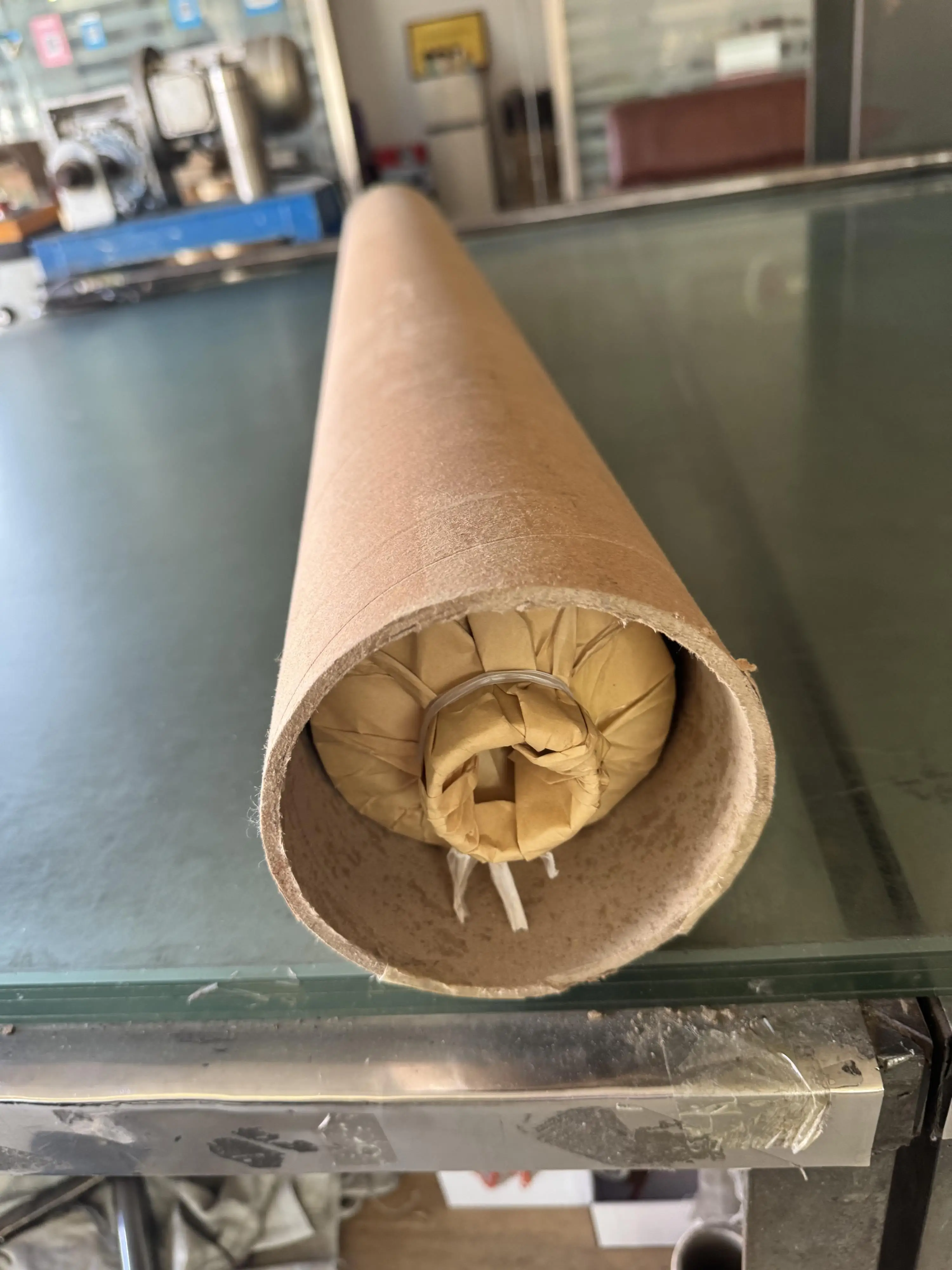

1. paper tube inside , then water-proof film and plastic film outside

2. special package on request.

3. wooden box or pallet final.

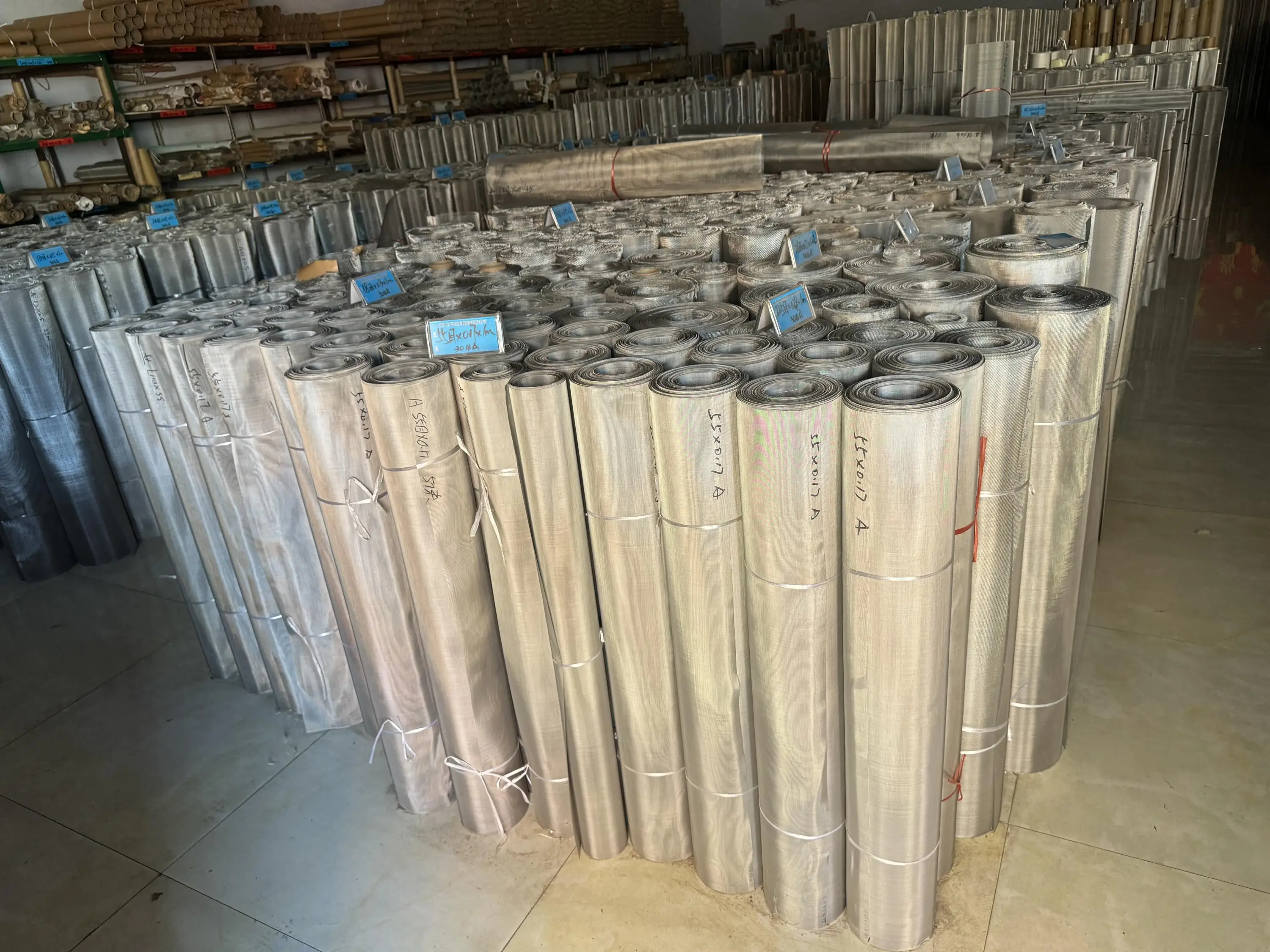

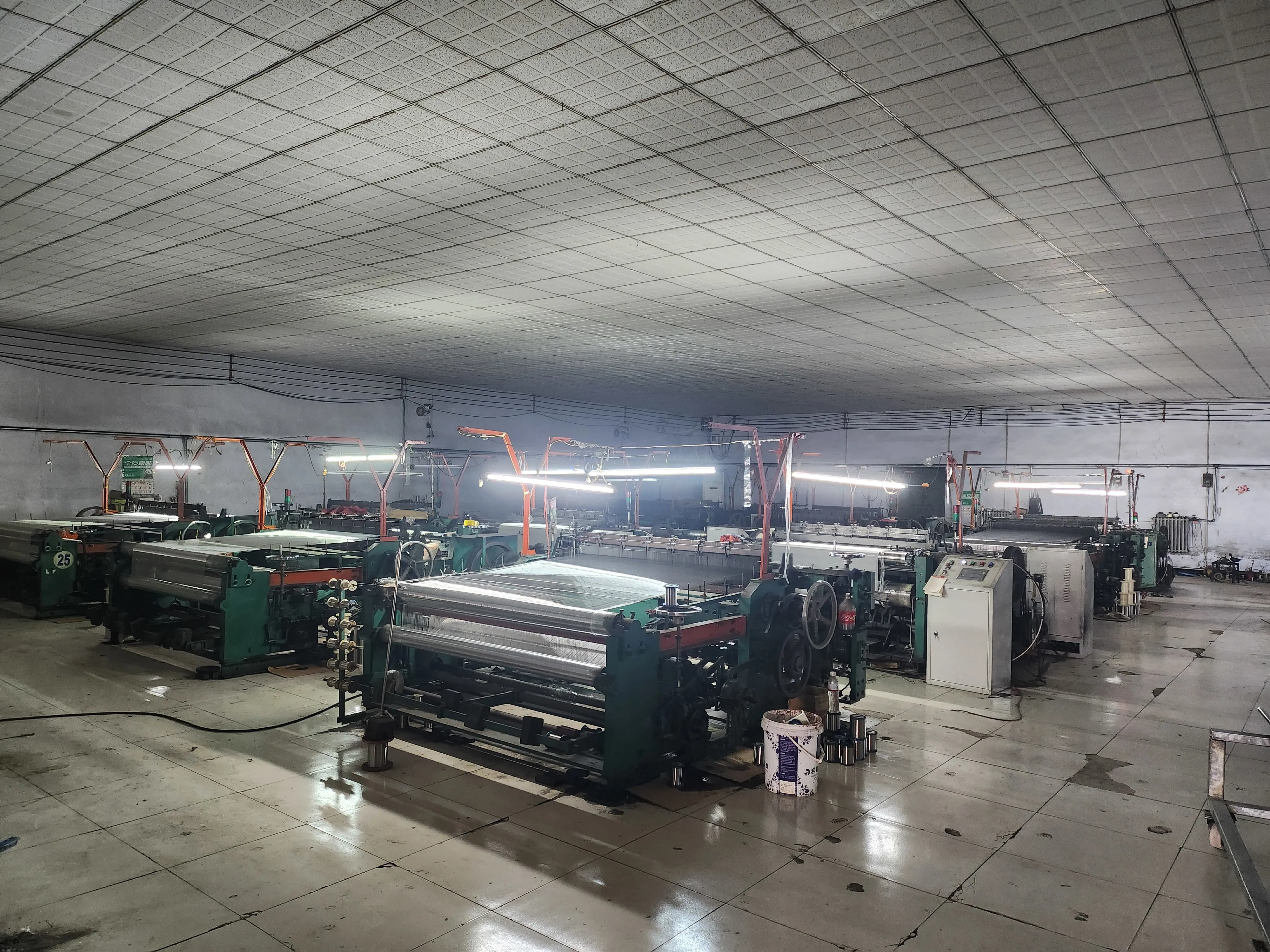

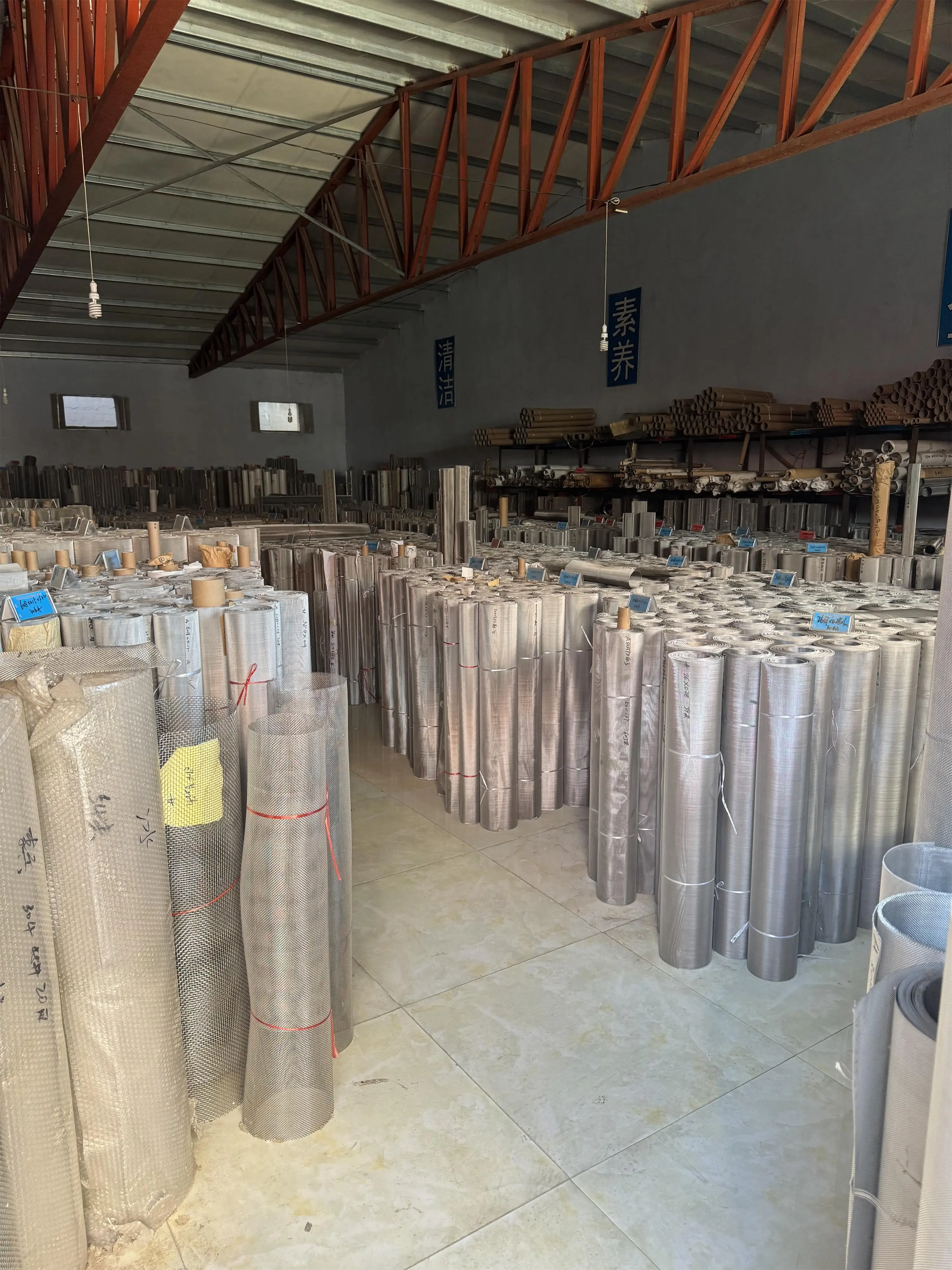

Welcome to our company, a leading manufacturer of stainless steel filter screens. Hebei Haozhou Silk Screen Products Co., Ltd. with a main factory area of over 7500 square meters, has 10 equipment, machinery, and a high-quality technical staff team.
With a decade of experience in production, we have established ourselves as a trusted name in the industry.Our stainless steel mesh not only provides raw products, but also offers value-added processing services to meet specific customer requirements.
We pride ourselves on providing superior quality products and exceptional customer service. Whether you need standard or customized solutions, our dedicated team is ready to assist you in finding the perfect stainless steel filter screen for your specific requirements.










1. who are we?
We are based in Hebei, China, start from 2016,sell to North America(10.00%),Central America(10.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),South Asia(10.00%),Oceania(10.00%),Southern Europe(10.00%),Eastern Asia(5.00%),Western Europe(5.00%),South America(5.00%),Northern Europe(5.00%),Mid East(5.00%),Domestic Market(3.00%),Africa(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Stainless Steel Mesh Screen,Filter Mesh,Reversed Plain Dutch Weave wire Mesh,Reverse Dutch twill weave mesh,weave woven wire mesh

4. why should you buy from us not from other suppliers?
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
