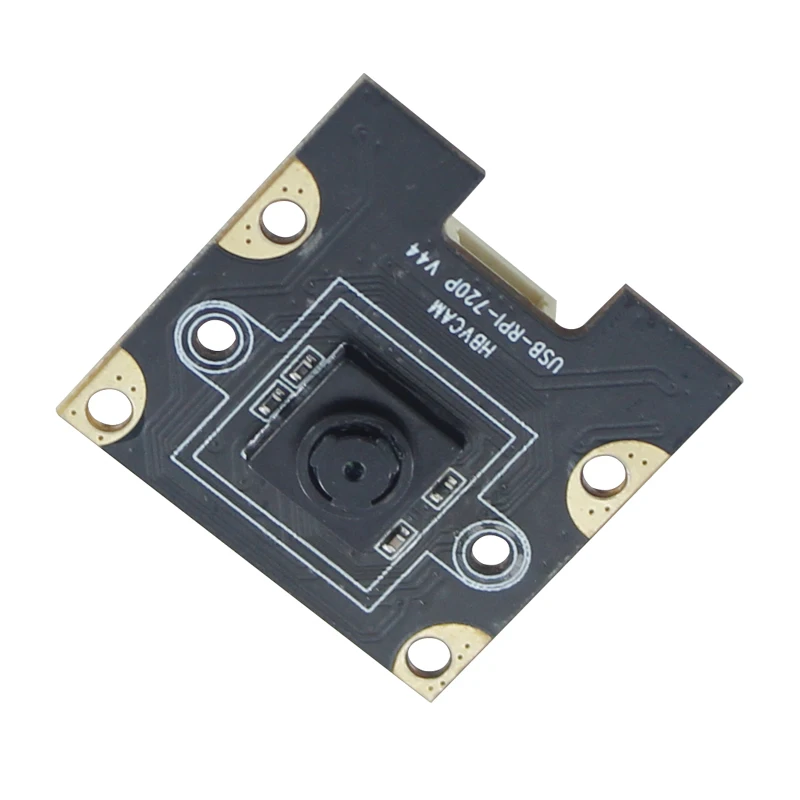

China supplier USB cmos Raspberry Pi camera module 66 degree distortion free lens
- Category: >>>
- Supplier: Shenzhen Huiber Vision Technology Co. Ltd.
Share on (1601274033835):
Product Overview
Description
Product Parameter
66 degree Color non-night Vision/black-and-white night vision
42 degree lens Color non-night Vision/black-and-white night vision
43 degree Color non-night Vision/black-and-white night vision
43 degree Color non-night Vision/black-and-white night vision +IR LED
Product Name | 1MP raspberry pi device camera module |
Module No | HBVCAM-USB-RPI-720P V55-66 |
Module Size | 25mm × 24mm × 4.0mm±0.2MM |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROHS) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 640 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | OV9726 (1/6.5” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1280*800 |
Sensitivity | 1300mV /（lux-sec） |
Pixel Size | 1.75µm x 1.75µm |
Maximum Image Transfer Rate | MJPEG 320x240 30FPS / YUY2 320x240 30FPS MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x720 30FPS / YUY2 960x720 15FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS |
S/N Ratio | 36 db |
Max Dynamic Range | 70 db |
Shutter type | Electronic rolling shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | NO |
Lens Construction | 3P |
F/No | 2.8 |
EFL | 2.8 mm |
FOV | 66° |
TV Distortion | <1.0% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROHS |
