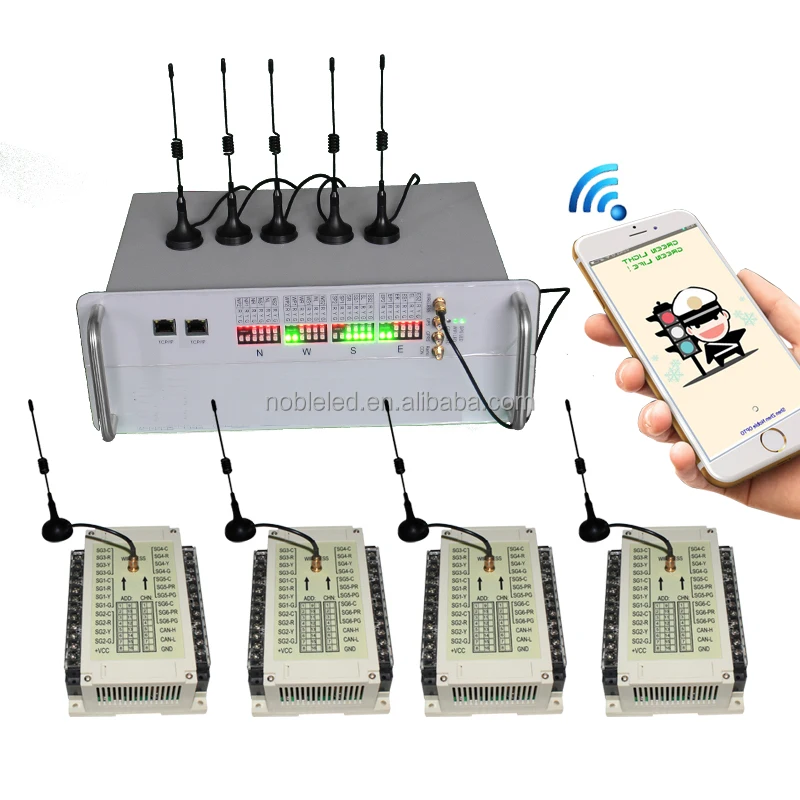

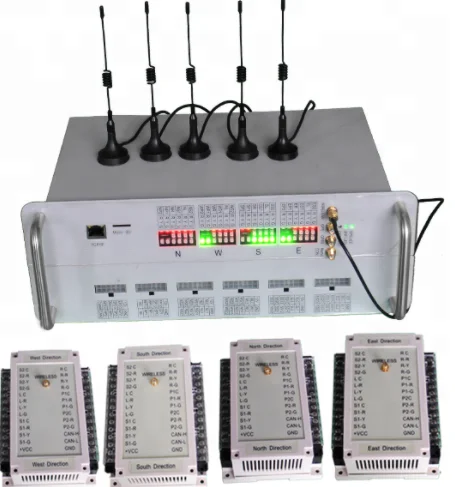

GPRS & GPS Wireless Traffic Controller System With Google Map For Location
- Category: >>>
- Supplier: Shenzhen Noble Opto Co. Ltd.
Share on (1601274035599):
Product Overview
Description
Hardware Feature:
1. CPU adopts the ARM7 architecture 32-bit processor.
2.64Mbit Flash memory. The industrial-grade memory chip solution can guarantee that the data inside will not be lost for 30 years.
3. Support GPS time calibration.
4. Support GPRS remote communication. Remote synchronization and control can be carried out when the remote server is activated.
5. Support LAN communication. It can carry out LAN or WAN communication and can carry out centralized control of urban intersections with the support of related servers.
6. Support WIFI communication. The parameters can be set by wireless communication with the mobile phone APP (Android system mobile phone) to facilitate user operations and optimize the user experience.
7. Support wireless module. It can communicate with the corresponding slave controller wireless so as to avoid the construction cost such as breaking the road. Reliable communication distance between the master controller and slave controller ≦ 200m
8. Support 887 clock chip module. The industrial-grade clock chip can guarantee that the clock data will not be lost for 30 years even in the case of a power failure and guarantee its clock accuracy.
9. The input board contains: Support up to 36 channel loop detection inputs (high voltage version supports up to 24 channel loop detector inputs), loop detection fault input (high voltage version)
10. Support 8-way pedestrian push-button detection input. Support wired or wireless detection (requires external receiving and transmitting module).
PC software features:
1. Friendly human-computer interaction interface, support real-time intersection data synchronization monitoring and remote
parameter configuration
2. Support multiple communication networking modes of Ethernet, optical fiber, GPRS
3. Support multiple international mainstream maps such as Bing Map, Open Street Map, Open Cycle Map, Google Map, Nokia Ovi Map,
etc., and support global map update
4. Support online and offline map data
5. Support two-way green wave belt centralized planning
6. Using Net multi-threaded programming technology, it can make full use of modern PC multi-core CPU hardware resources to build an efficient real-time centralized monitoring system for urban traffic and reduce system hardware
2.64Mbit Flash memory. The industrial-grade memory chip solution can guarantee that the data inside will not be lost for 30 years.
3. Support GPS time calibration.
4. Support GPRS remote communication. Remote synchronization and control can be carried out when the remote server is activated.
5. Support LAN communication. It can carry out LAN or WAN communication and can carry out centralized control of urban intersections with the support of related servers.
6. Support WIFI communication. The parameters can be set by wireless communication with the mobile phone APP (Android system mobile phone) to facilitate user operations and optimize the user experience.
7. Support wireless module. It can communicate with the corresponding slave controller wireless so as to avoid the construction cost such as breaking the road. Reliable communication distance between the master controller and slave controller ≦ 200m
8. Support 887 clock chip module. The industrial-grade clock chip can guarantee that the clock data will not be lost for 30 years even in the case of a power failure and guarantee its clock accuracy.
9. The input board contains: Support up to 36 channel loop detection inputs (high voltage version supports up to 24 channel loop detector inputs), loop detection fault input (high voltage version)
10. Support 8-way pedestrian push-button detection input. Support wired or wireless detection (requires external receiving and transmitting module).
PC software features:
1. Friendly human-computer interaction interface, support real-time intersection data synchronization monitoring and remote
parameter configuration
2. Support multiple communication networking modes of Ethernet, optical fiber, GPRS
3. Support multiple international mainstream maps such as Bing Map, Open Street Map, Open Cycle Map, Google Map, Nokia Ovi Map,
etc., and support global map update
4. Support online and offline map data
5. Support two-way green wave belt centralized planning
6. Using Net multi-threaded programming technology, it can make full use of modern PC multi-core CPU hardware resources to build an efficient real-time centralized monitoring system for urban traffic and reduce system hardware
investment.
7. Supporting LAN and WAN networks, system construction is freer, and monitoring tasks can be completed anywhere in the world where there is network access.
8. The software parameter settings all have a foolproof protection mechanism, and the program settings have a green wave zone conflict detection mechanism
9. Support real-time fault alarm, recording, analysis, convenient fault monitoring and analysis, and fault detection supports
custom detection settings
10. Support Windows X86 and Windows X64 system
11. One-click installation
7. Supporting LAN and WAN networks, system construction is freer, and monitoring tasks can be completed anywhere in the world where there is network access.
8. The software parameter settings all have a foolproof protection mechanism, and the program settings have a green wave zone conflict detection mechanism
9. Support real-time fault alarm, recording, analysis, convenient fault monitoring and analysis, and fault detection supports
custom detection settings
10. Support Windows X86 and Windows X64 system
11. One-click installation
Specification
Type: | NBTSC-100 |
Working voltage: | 12VDC |
Working current: | 200MA |
1 Master and 4pcs slave controller | yes |
Connect network: | 4G, WIFI, Ethernet or optical fiber |
Working power: | <3.5watt |
Communication protocol: | in line with TCP/IP standard |
Working frequency: | 433 MHZ |
Wireless communication distance: | <200 Meters |
Working temperature: | -40 degree to 70 degree |
Quality warranty: | 5 years |
Application: | Used for the intersection |
Product Description
Packing & Delivery
1 Carton/ 1 Set
Carton size: 44*37*32cm
G/W: 6.46KG
Shipping method
1. Shipping by DHL, UPS, Fedex, TNT and special line.
2. Shipping by Air. Please send your nearest
airport name to me.
3. Shipping by Sea. Please send your nearest seaport name to me.
4. If you have own forwarder. Please inform him or her to pick up goods from our factory,
Company Profile
Shenzhen Noble Opto Co., Ltd. is a high-tech private enterprise, professional in researching, developing, and manufacturing all kinds of LED illumination products. Since the establishment of our company, we have recognized the importance of providing good quality products and best pre-sales to after-sales service. We are always trying our best to improve our design and production capacity. Moreover, our LED traffic lights have attained CE certification for European market. Our products are exported to clients in overseas markets, such as Sweden, England, Italy, Poland, Romania, Serbia, Turkey, Israel, Spain, the USA, Russia, Singapore, and more.
We enjoy a highly trained management team and a professional LED product design and development team. Strict ISO9001:2015 quality control system, modern administration model, perfect marketing network, and pre-sales to after-sale service system are reliable assurance of good quality and fast enterprise development. We have several production lines to guarantee strong production capacity.
Our philosophy for management is to serve our clients with quality and honesty. We will continue manufacturing best quality LED Traffic Lights, Traffic Signal Lights, Soar Traffic Light, and other related products, making Noble Opto the first class manufacturer of LED traffic lights, traffic signal lights, and LED pedestrian lights around the world.
We enjoy a highly trained management team and a professional LED product design and development team. Strict ISO9001:2015 quality control system, modern administration model, perfect marketing network, and pre-sales to after-sale service system are reliable assurance of good quality and fast enterprise development. We have several production lines to guarantee strong production capacity.
Our philosophy for management is to serve our clients with quality and honesty. We will continue manufacturing best quality LED Traffic Lights, Traffic Signal Lights, Soar Traffic Light, and other related products, making Noble Opto the first class manufacturer of LED traffic lights, traffic signal lights, and LED pedestrian lights around the world.
FAQ
1. Where are there your company solar traffic light system projects?
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique etc..
2. Whole solar traffic light system include???
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problem on installation of traffic light, we will provide you video to show, or let you contact our
engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
A: South Africa, Nigeria, Congo, Libya, Philippines, Zimbabwe, Mozambique etc..
2. Whole solar traffic light system include???
A: Including traffic light, controller, battery, solar panel, solar charge, pole, controller box, cable.
3. Is it easy to install the solar traffic light system?
A: Yes, it is easy. If any problem on installation of traffic light, we will provide you video to show, or let you contact our
engineer to consult directly.
4. How long warranty is the solar traffic light system?
A: Traffic light and controller, our warranty is 2 years, Solar panel and battery, only 1 year warranty.
5. Why choose Noble?
A: Our company is professional on traffic light system.
Welcome to contact us for more details.
Traffic signal, solar traffic light, pedestrian light, countdown timer, controller system, loop detector, pedestrian
push button and blind clock push button.
Whatsapp: +86 18823421955
WeChat: GLP19941219
Email: sales15@nobleled.com
