commercial ip54 energy storage system high voltage 48v 24 v lithium server rack battery lifepo4
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. ltd.Guangzhou ltd.
Share on (1601274051677):
Product Overview
Description
Key Features:
★Capacity up to 600KW , supports both solar and grid power
★Capacity up to 600KW , supports both solar and grid power
★Series connecting battery modules
★Adopting high reliability and high efficiency converter
★Using square type lifepo4 lithium battery
★Long lifespan , 8 years warranty , and the service life over 10 years
★Adopting high reliability and high efficiency converter
★Using square type lifepo4 lithium battery
★Long lifespan , 8 years warranty , and the service life over 10 years
Specification
Model | AN-LPB-R-24200 | AN-LPB-R-48100 | AN-LPB-R-48200 | ||||
Battery Type | LiFePO4 | ||||||
Typical Capacity(AH) | 200AH | 100AH | 200AH | ||||
Typical Voltage(V) | 25.6V | 48V | 48V | ||||
Energy storage(Kwh) | 5.12Kwh | 4.8Kwh | 9.6Kwh | ||||
Voltage Working Range(V) | 22.4-29.2V | 42-54.8V | 42-54.8V | ||||
Working Temperature(°C) | Charge: 0-+55°C | ||||||
Discharge: -20-+60°C | |||||||
Storage Temperature(°C) | ‘-20-+40°C | ||||||
Standard Charge Current(A) | 0.5C | ||||||
Max. Charge Current(A) | 100A | 50A | 100A | ||||
Max. Discharge Current(A) | 200A | 100A | 200A | ||||
SOC Accuracy | <8% | ||||||
Dimension(mm) | 442*500*155 | 442*500*155 | 442*500*155 | ||||
Weight(kg) | 45kg | 42kg | 76kg | ||||
IP Grade | IP54 | ||||||
Cooling | Nature | ||||||
Certifications | CE, ROHS, UN38.3, MSDS | ||||||
Product Details
Application
Certification

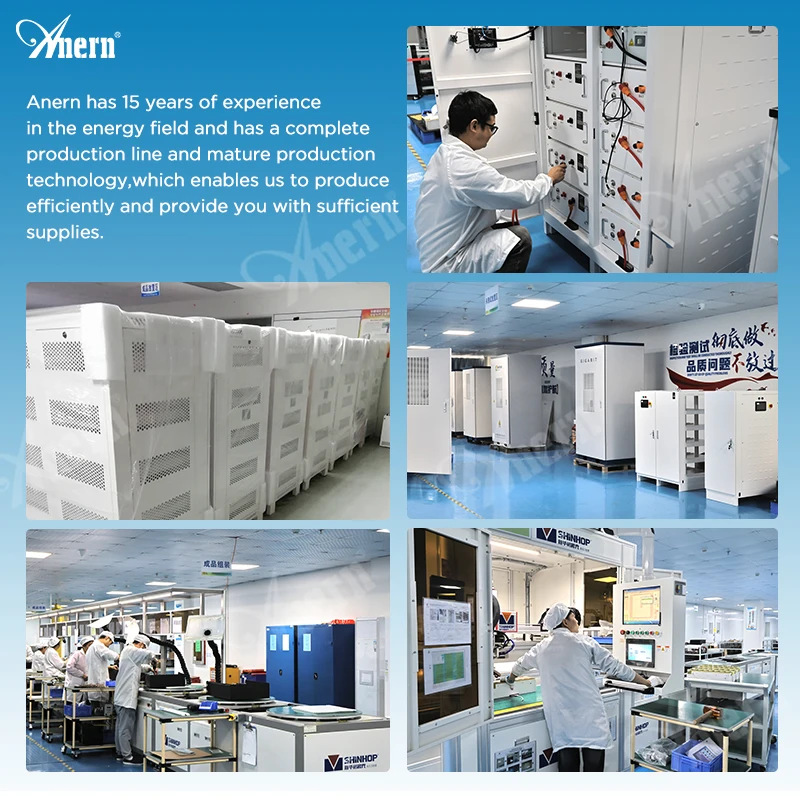

Anern Factory
Company Profile
