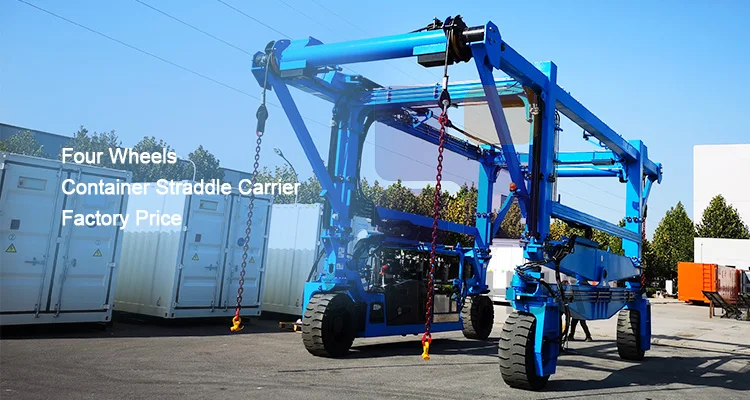

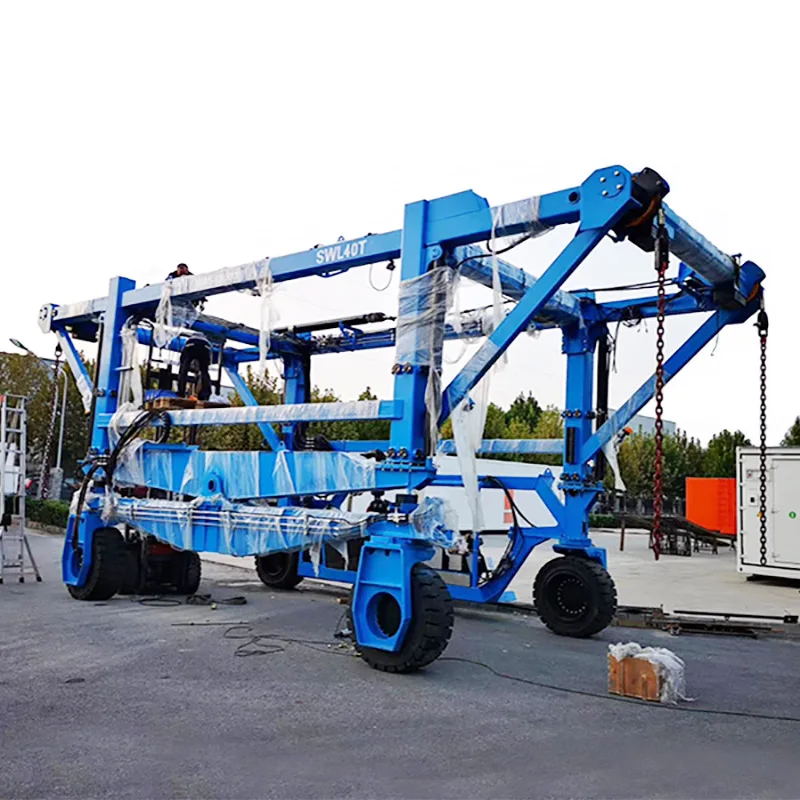

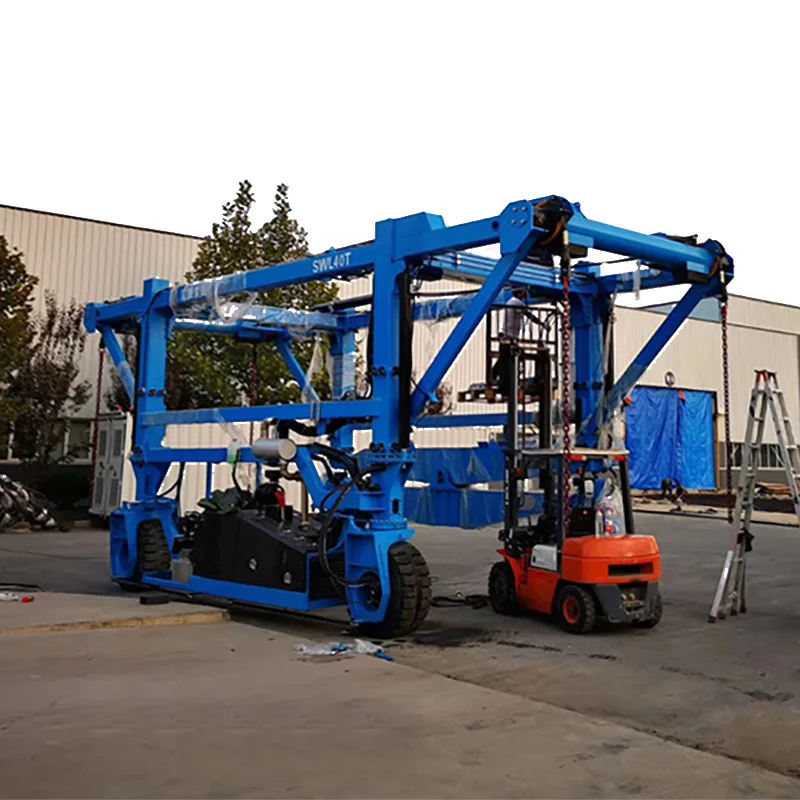

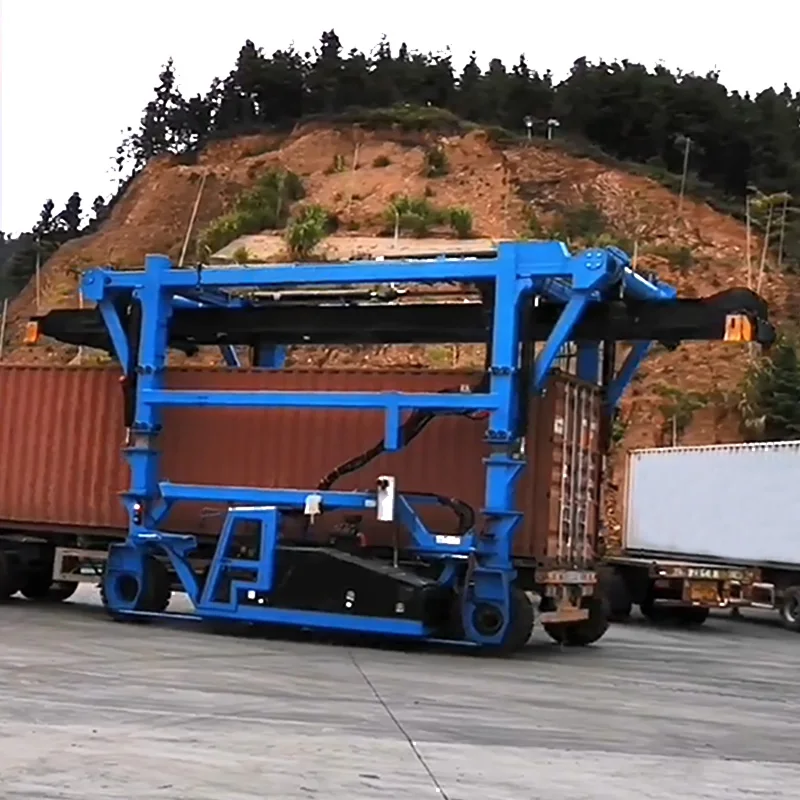

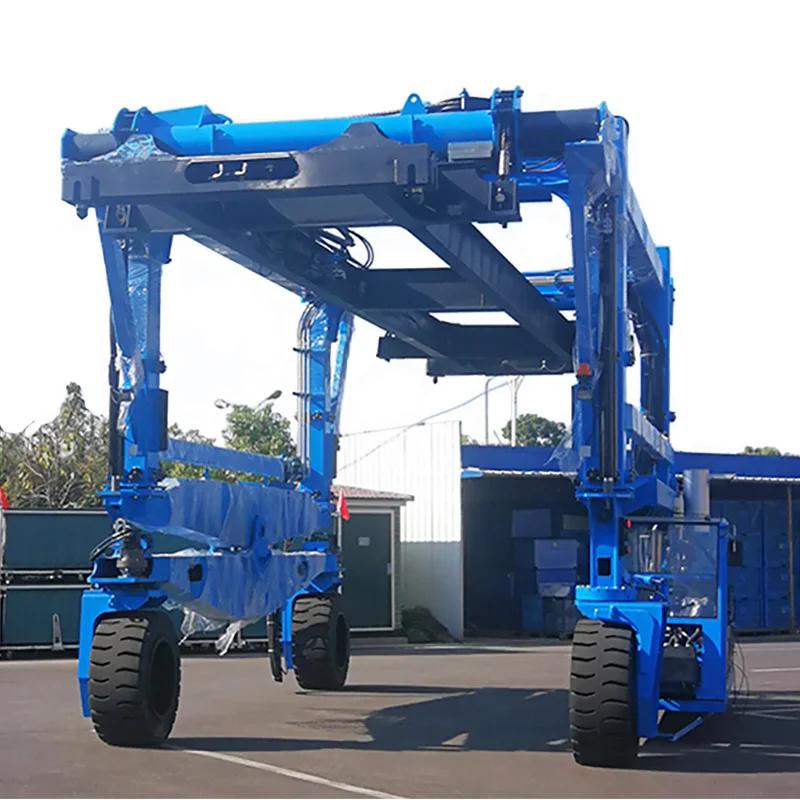

150 ton 4 wheel hook lift container straddle carrier for sale

Product Overview

Description

150 ton 4 wheel hook lift container straddle carrier for sale

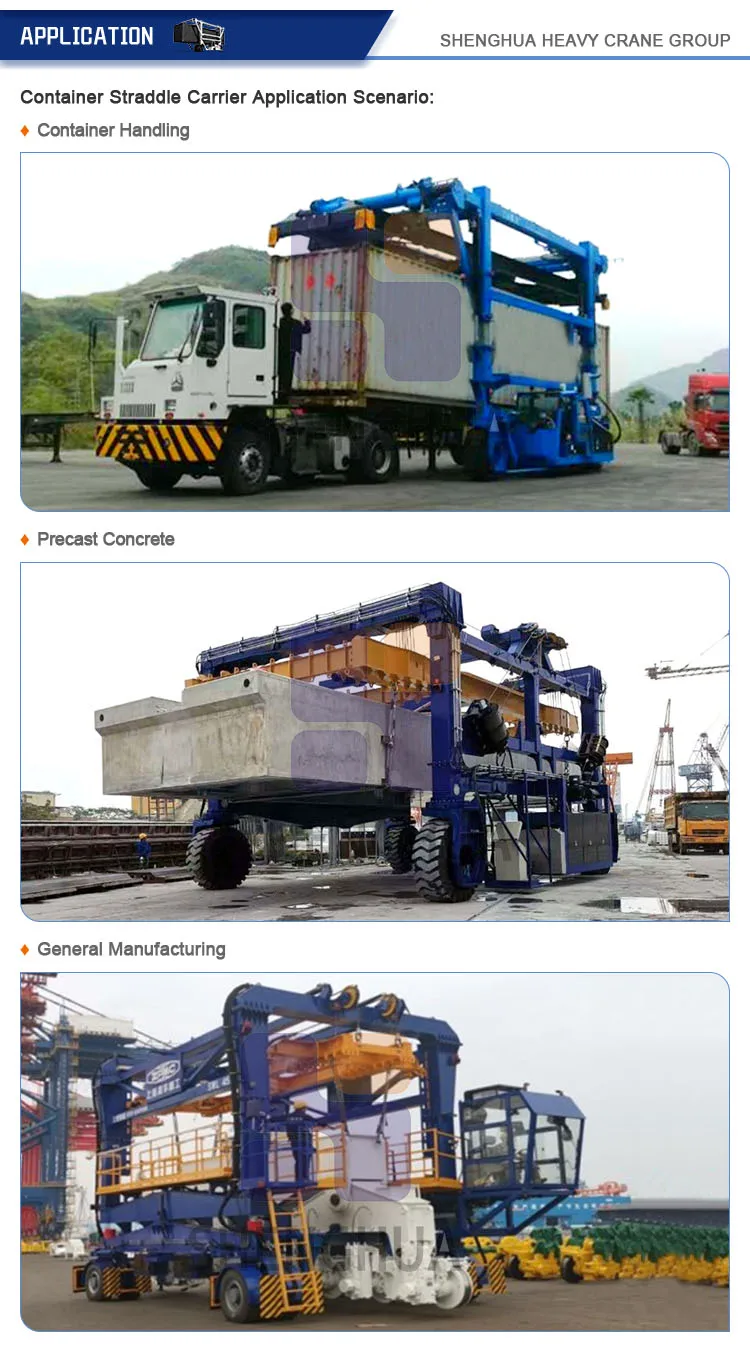

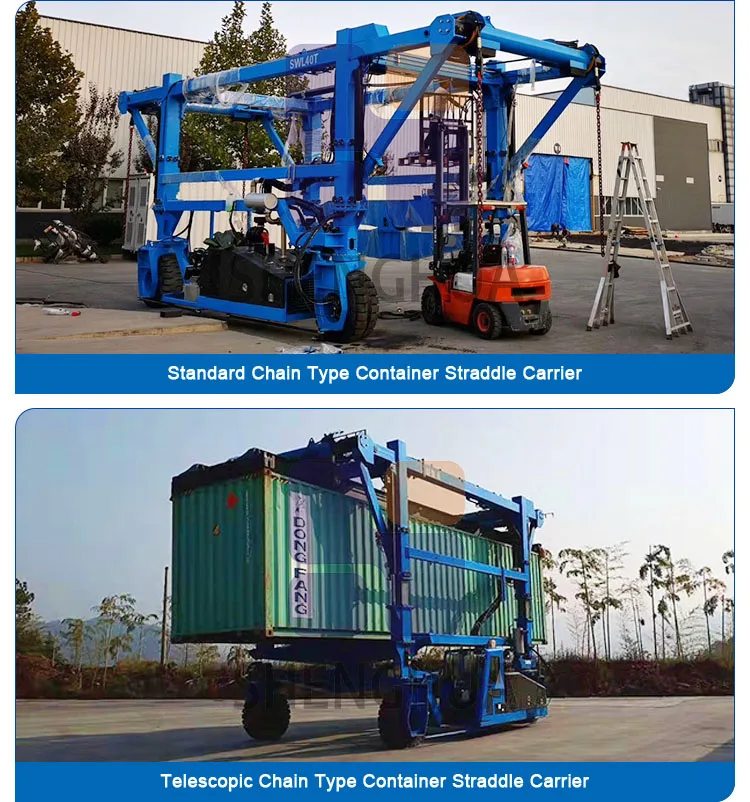

Container Straddle Carrier is a specialized vehicle used for the transportation and stacking of shipping containers at ports, terminals and logistics yards. The container straddle carrier is primarily designed to efficiently handle containers in a variety of environments, including seaports, rail yards and container depots.

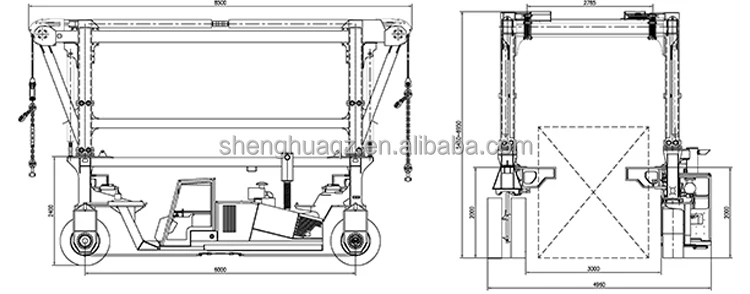

Container Straddle Carrier Drawing:





Container Straddle Carrier Tenical Parameters:



Basic Parameters	HKY3533-3-1	HKY3533-3-2
Capacity	35T	35T
Dimension(Length*Width*Height)	9300*5200*5300(mm)	9300*5200*4900(mm)
Inner Width	3200mm	3200mm
Wheel Base	6000mm	6000mm
Duplex Lifting Height	/	1850mm
Min. Ground Clearance	280mm	280mm
Deadweight	16T(not including spreader)	17T(not including spreader)
Engine	Cummins/Weichai	Cummins/Weichai
Travel Pump(Closed Travel)	Hytek/Linde/Danfoss	Hytek/Linde/Danfoss
Traveling Speed(Unladen)	8km/h	8km/h
Traveling Speed(Laden)	6km/h	6km/h
Turning Radius	8000mm	8000mm
Gradeability(Unladen/Laden)	15%, 6%	15%, 6%
Manipulation	steering wheel(can be remote control)	steering wheel(can be remote control)
Tires	1100(02PCs)+1300 Solid Tire(02PCs)	1100(02PCs)+1300 Solid Tire(02PCs)
Lifting Tools	Chain+Lock/Auto Spreader	Chain+Lock/Auto Spreader

Container Straddle Carrier Features:
1. Flexible steering, a variety of steering modes are available.
2. Provide diesel power, electric power and other power mode options.

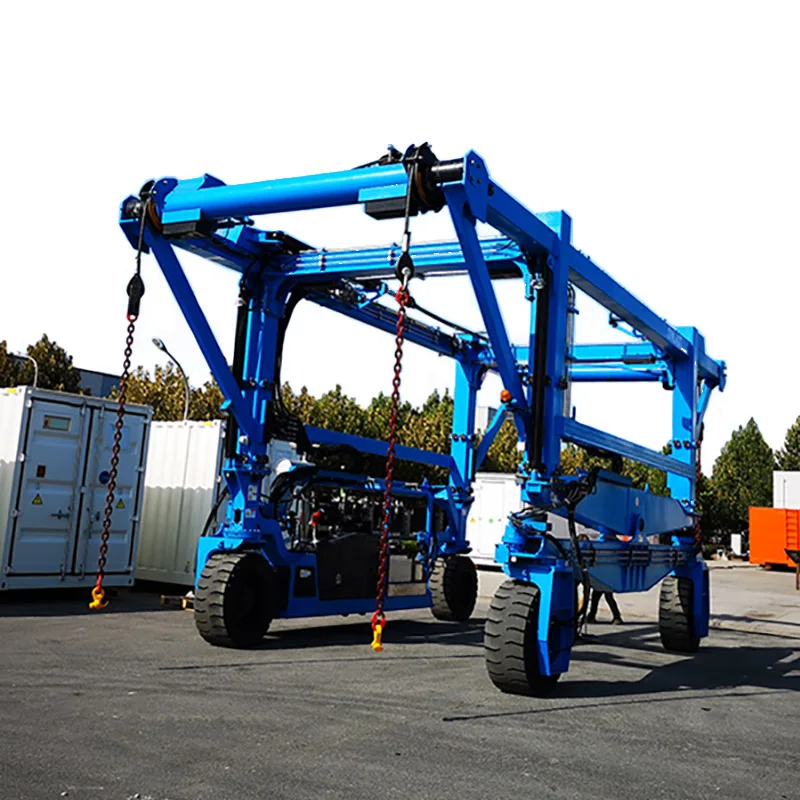

3. Provide telescopic container spreader, chain, hook and other lifting mechanism options.
4. Telescopic spreaders can accommodate 20ft, 40ft, 45ft ship containers.
5. Provide telescopic structure and non-telescopic structure to achieve the lifting of a layer of containers, and pile one over one.
6. Flexible ground beam structure is designed to adapt to the larger road slope and run smoothly.
7. Small steering radius, saving space.
8. Equip with lighting system, monitoring system, warning system to ensure safe operations.

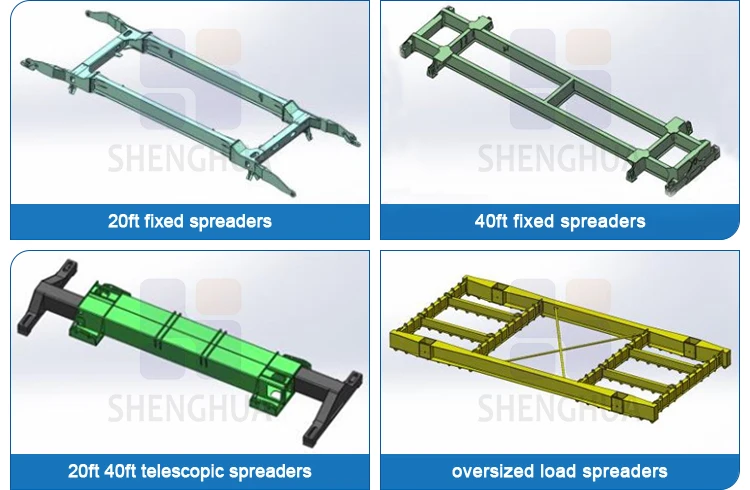

Customized Spreaders for Container Straddle Carrier:









Henan Shenghua Heavy Crane Group is a big enterprise specialized in researching, developing, producing and exporting, which has more than 600 staff, and covers 200,000 square meters. It mainly produces beam launcher, launching gantry crane, truss gantry crane, double girder gantry crane, single girder gantry crane, rail mounted gantry crane, container straddle carrier, rubber tyred gantry crane, straddle carrier, girder trailer, overhead crane, electric winch, electric hoist and all kinds ofaccessories, which widely cove machinery, metallurgy, elec tricpower, railway, water conservancy, ports, terminals and otherindustries.

1. Factory installation and commissioning before delivery.
2. User operation and mantainance manual with English version.
3. Site installation guidance at client's cost or free remote comissioning.
4. 12 months quality warranty for equipment except human damage.
5. Provide 12 months spare-parts to reduce the maintenance cost.
6. Prompt and quick technical advice for you.
