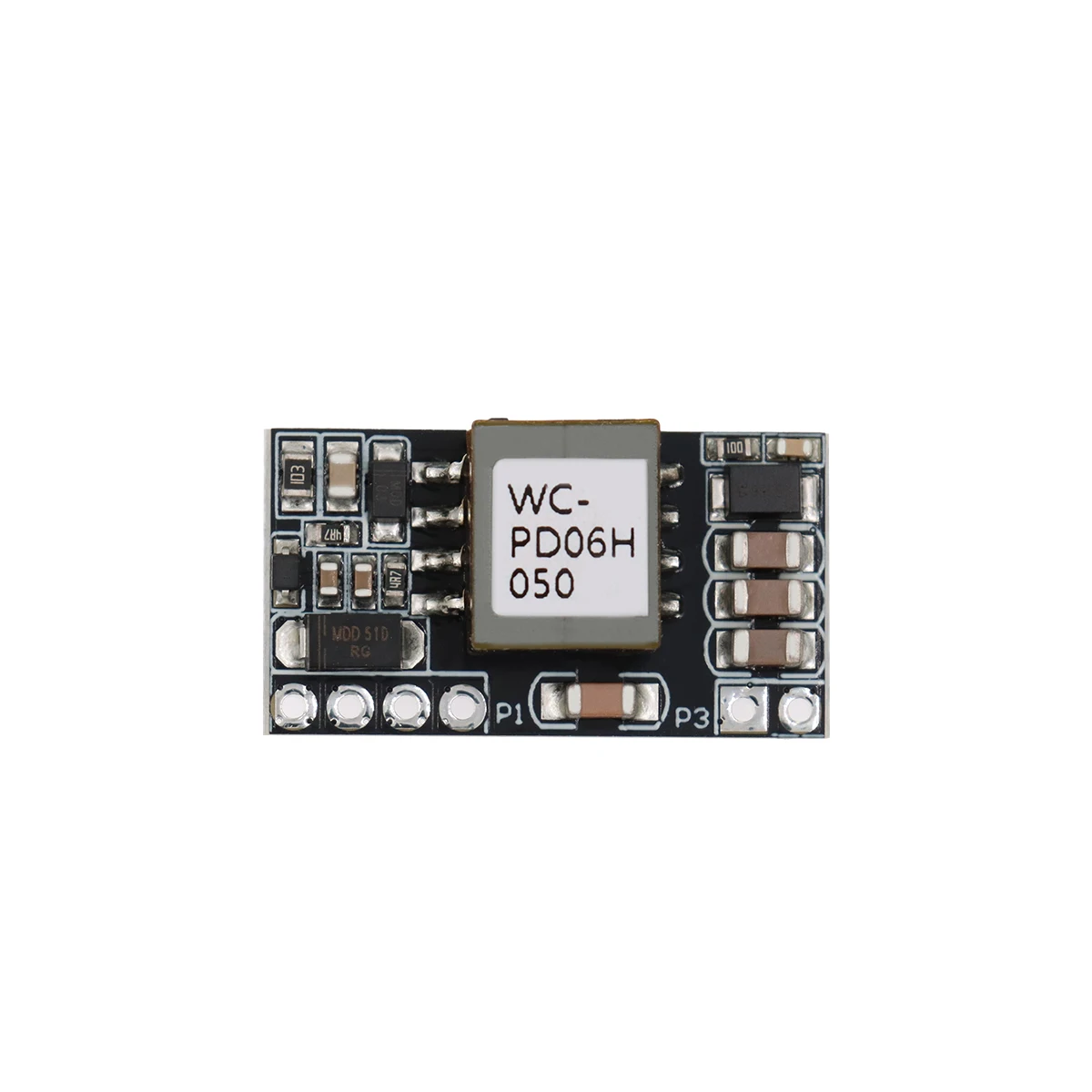

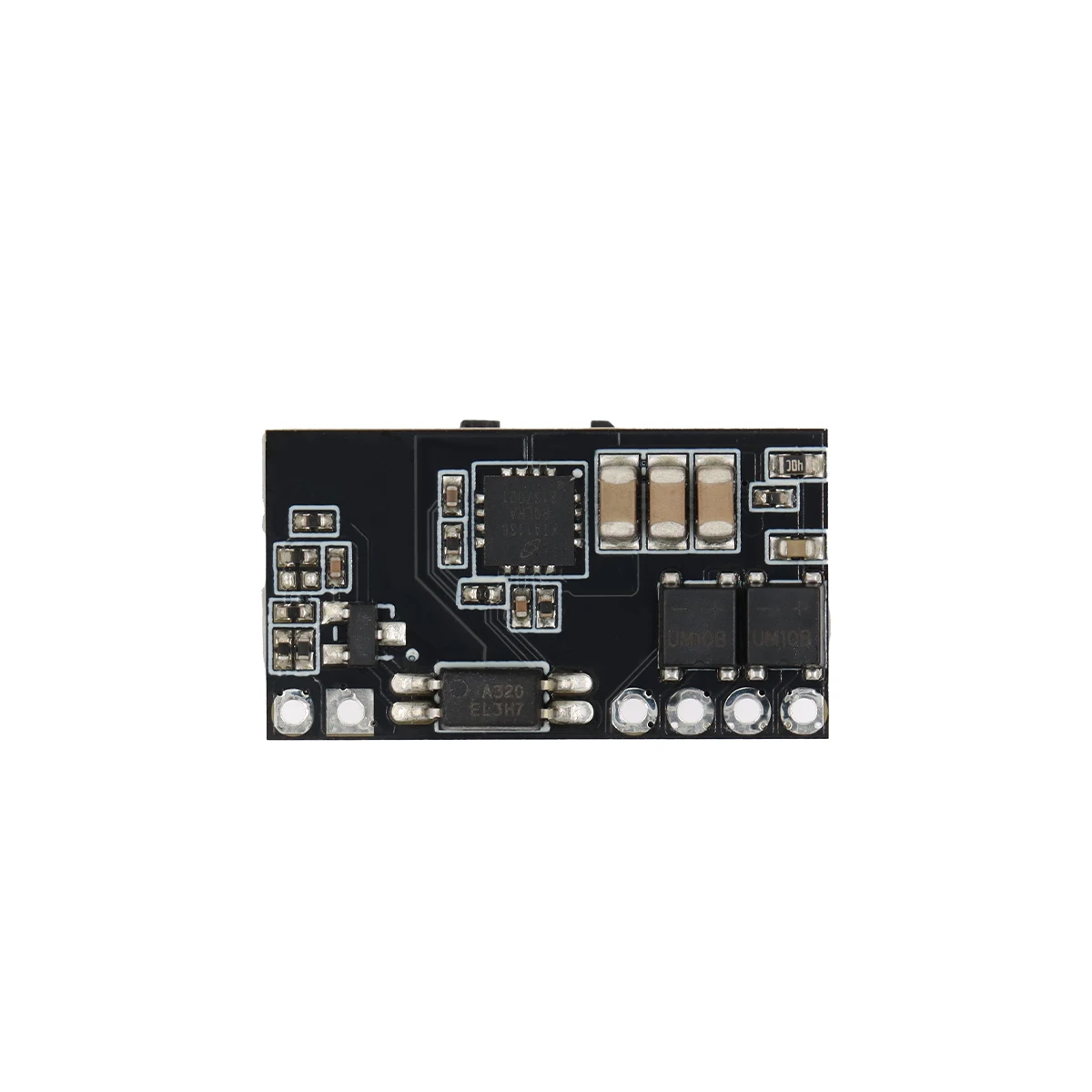

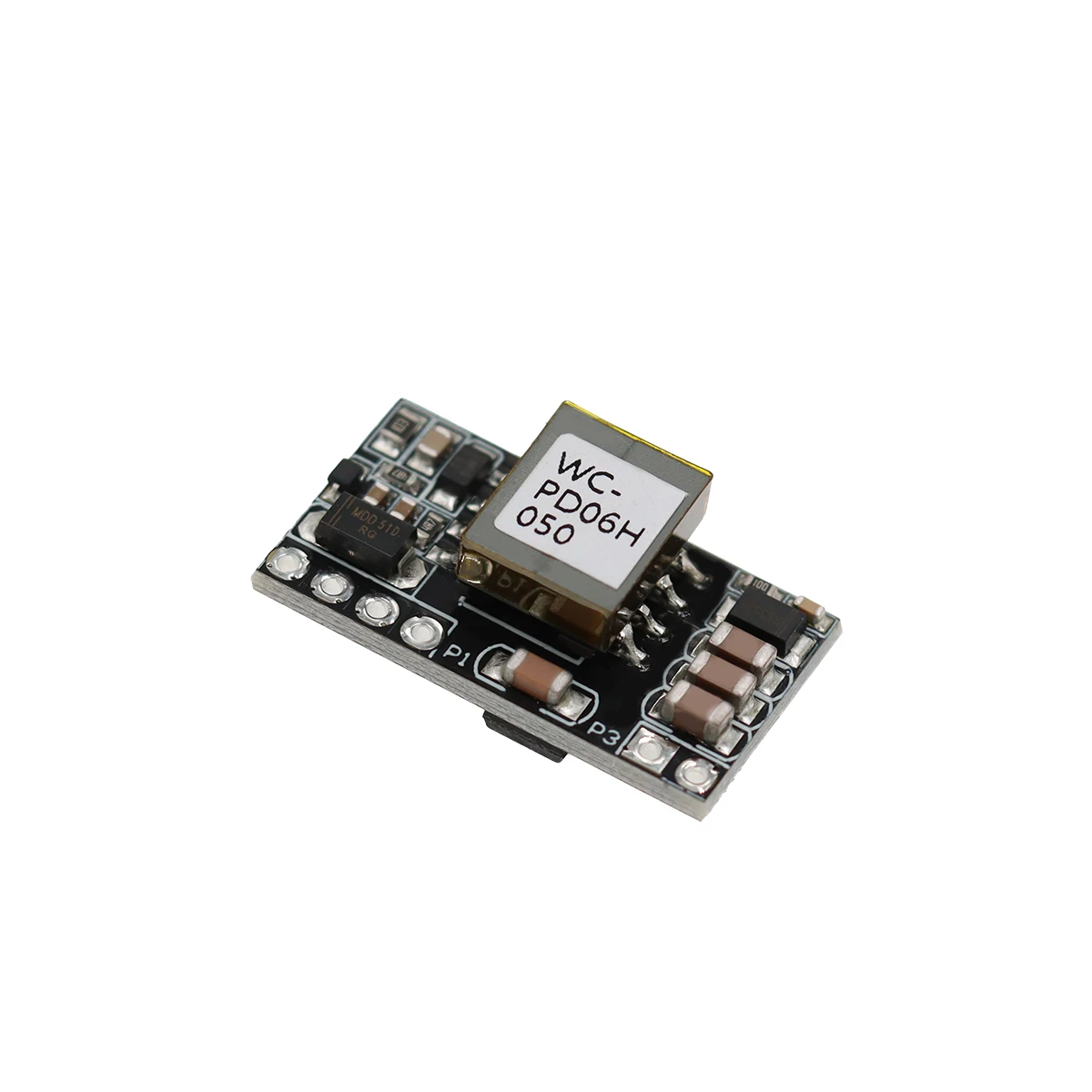

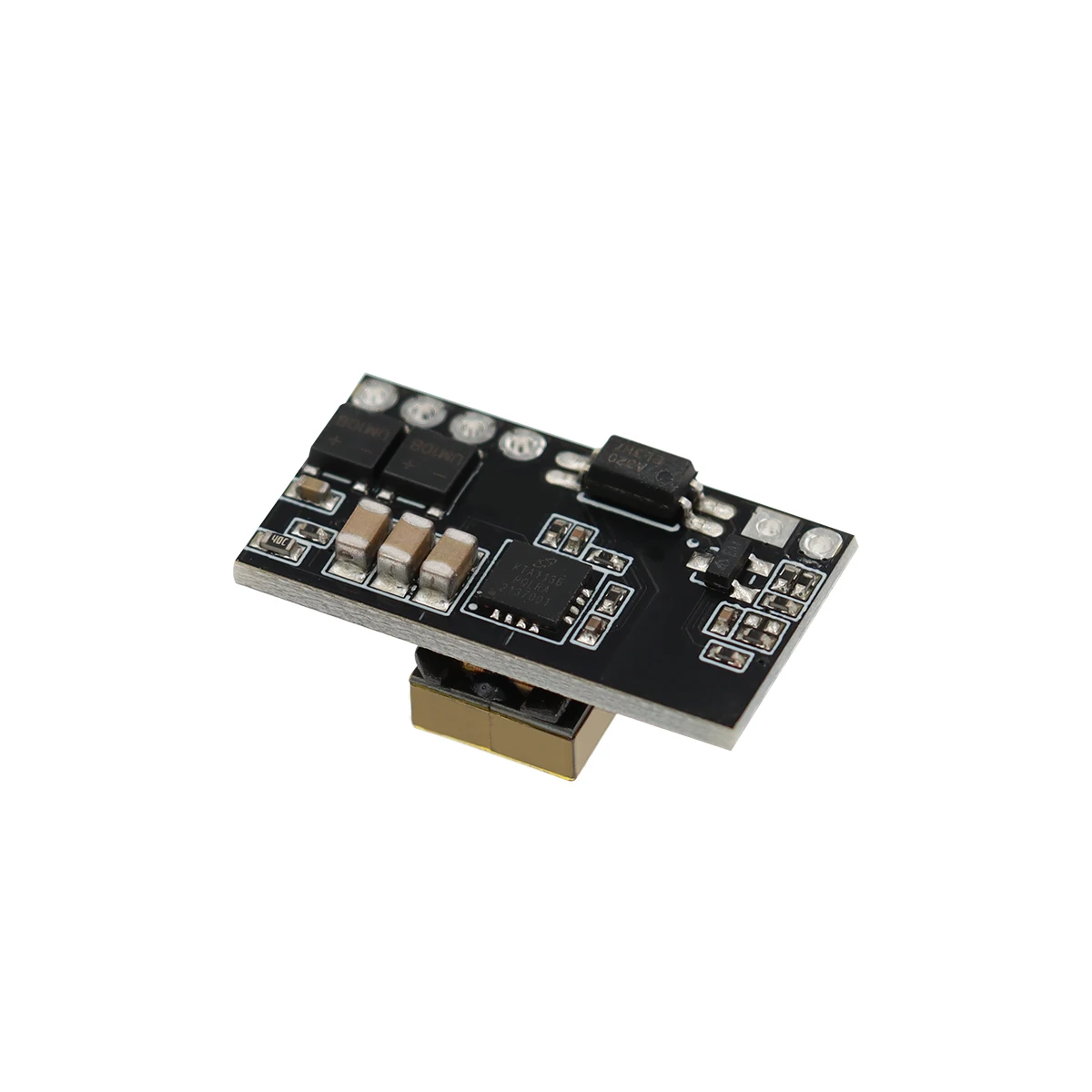

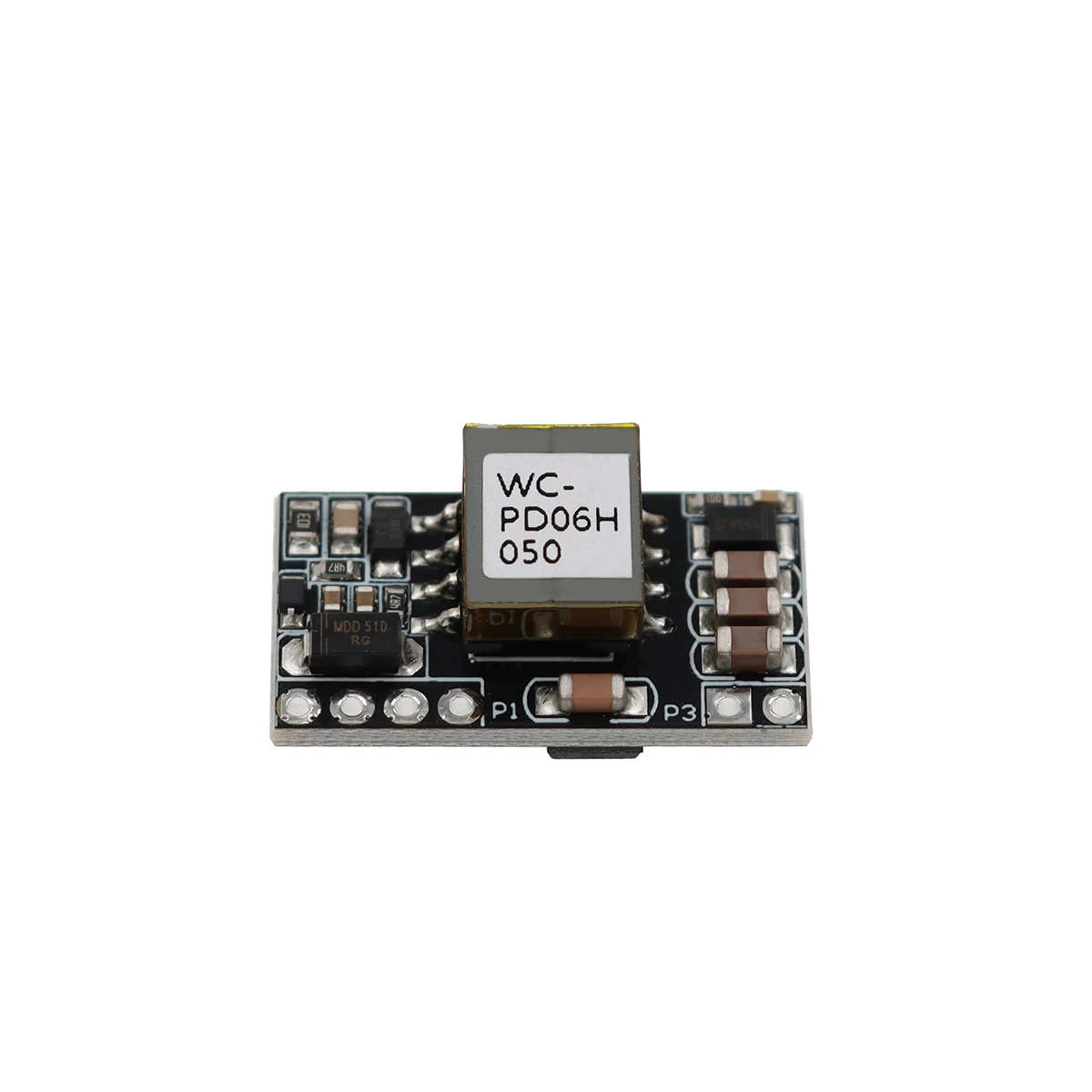

Winchen WC PD06H050 5V/1.2A Subminiature PoE Module 6W PoE Board for VoIP Phone AP RFID Surveillance camera
- Category: >>>
- Supplier: Shenzhen Winchen Power Technology Co. Ltd.
Share on (1601274065623):
Product Overview
Description
Products Description
● Product Features
* Compliance with IEEE802.3af standard.
* 39V~57V wide operating voltage range.
* Maximum output power up to 6W; Rated output: 5V/1.2A.
* The output ripple is less than 200 mV.
*Conversion efficiency can be as high as 82% (input: 48V output：5V@1.2A).
* It has excellent reliability and circuit protection such as over current, short circuit, under voltage and surge.
* PCBA standard size: 25.4*14*8.9mm.
* Input/Output: isolate 1500Vdc.
* Compliance with IEEE802.3af standard.
* 39V~57V wide operating voltage range.
* Maximum output power up to 6W; Rated output: 5V/1.2A.
* The output ripple is less than 200 mV.
*Conversion efficiency can be as high as 82% (input: 48V output：5V@1.2A).
* It has excellent reliability and circuit protection such as over current, short circuit, under voltage and surge.
* PCBA standard size: 25.4*14*8.9mm.
* Input/Output: isolate 1500Vdc.
* Class 3 IEEE802.3 PD.
* High reliability: The design meets the 5 million hour average failure interval.
* High reliability: The design meets the 5 million hour average failure interval.

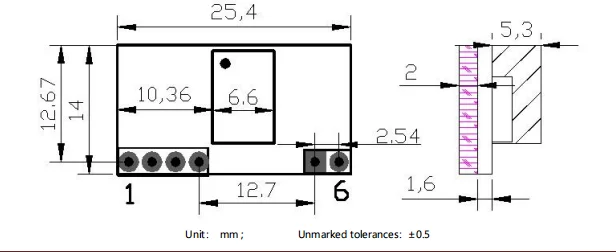

● Mechanical Dimensions
● Pin Definition
Pin | Name | Description |
1 | VA1 | Connect to RJ45 network port (TX) 1 and 2 pin network transformer central taps. (The module carries two sets of rectifier bridges to suit different PSE power supply directions) |
2 | VA2 | Connect to RJ45 network port (TX) 3 and 6 pin network transformer center taps. (The module carries two sets of rectifier bridges to suit different PSE power supply directions) |
3 | VB1 | Connect to RJ45 network port 4 and 5 pins (100Mbps), or connect to RJ45 network port (BI) 4 and 5 pins network transformer center tap（1000Mbps）(the module is equipped with two sets of rectifier bridges to adapt to different PSE power supply directions) |
4 | VB2 | Connect to RJ45 network port 7 and 8 pins (100Mbps), or connect to RJ45 network port (BI) 7 and 8 pins network transformer center tap（1000Mbps）(the module is equipped with two sets of rectifier bridges to adapt to different PSE power supply directions) |
5 | Vout- | This pin is the module output negative pole |
6 | Vout+ | This module outputs the power front end |
● Electrical characteristics
1. Absolute maximum rating parameter
1. Absolute maximum rating parameter
No | Parameter | Symbol | Min | Max | Unit | |||||
1 | Input DC voltage | VCC | 39 | 57 | V | |||||
2 | DC Voltage Surge 1ms | VSURGE | -0.6 | 80 | V | |||||
3 | Ambient temperature | TS | -40 | 80 | ℃ | |||||
* Exceeding the above rating may cause permanent damage to the product. Functional operations under these conditions are not recommended. ● Recommended working conditions | ||||||||||
No | Parameter | Symbol | Min | Typ | Max | Unit | ||||||
1 | Input DC voltage | VIN | 39 | 48 | 57 | V | ||||||
2 | Low pressure input threshold | VLOCK | 37 | - | - | V | ||||||
3 | Ambient Temperature | TOP | -40 | 25 | 80 | ℃ | ||||||
* Applicable only to WC-PD06H050 maximum operating temperature. ● DC Characteristic | ||||||||||||
No | Parameter | Symbol | Min | Typ | Max | Unit | Test conditions | |||||||
1 | Standard Output Voltage | VDC | 4.75 | 5 | 5.2 | V | VIN=48V | |||||||
2 | Output Current（VIN=48V） | PWR | - | - | 1.2 | A | Wide voltage input 39-57V | |||||||
3 | Power adjustment rate | VLINE | - | 0.1 | - | % | @50% Load | |||||||
4 | Load Adjustment Rate | VLOAD | - | 1 | - | % | @VIN=48V | |||||||
5 | Ripple Output Noise | VRN | - | 200 | 250 | mVp-p | @Maximum Load | |||||||
6 | Minimum Load | RLOAD | 10 | - | - | mA | ||||||||
7 | Short circuit duration | TSC | - | - | ∞ | sec | ||||||||
8 | Efficiency (load 80%) | EFF | 75 | 82 | - | % | ||||||||
9 | Isolation Voltage (I/O) | VISO | - | - | 1500 | VPK | ||||||||
10 | Temperature Coefficient | Tc | - | 0.02 | % | Per ℃ | ||||||||
11 | Transient Rresponse | Ts | - | 200 | 250 | ms | VIN=48V VOUT=max | |||||||
* Typical number is 25℃, nominal voltage is 48V, for auxiliary design only; * Output ripple and noise can be reduced by an external filter, see the application instructions; * If operated under the specified minimum load, the module will emit sound noise, which may cause repeated hiccups in the PSE. | ||||||||||||||
● Functional Description
1. Input：

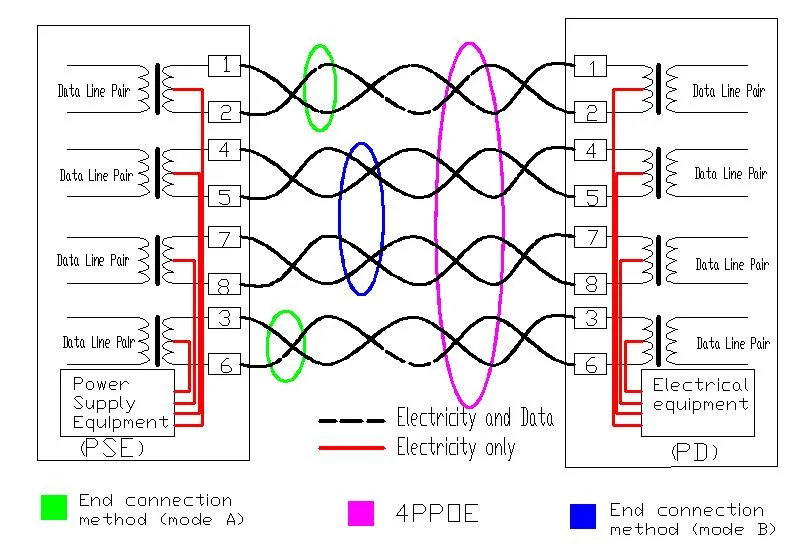

* WC-PD06H050 input end with bridge stack ensures input polarity protection, user can choose the connection mode as needed.
1. Input：
* WC-PD06H050 input end with bridge stack ensures input polarity protection, user can choose the connection mode as needed.

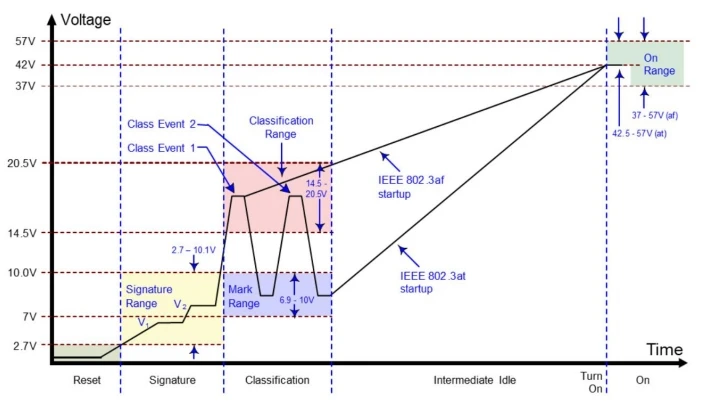

2. PD Power Supply Agreement
* When the module is connected to the cable, it will automatically provide the Power Device (PD) signature to the PSE when needed. The PSE recognizes that the PD is connected to that line and provides power.
* When the module is connected to the cable, it will automatically provide the Power Device (PD) signature to the PSE when needed. The PSE recognizes that the PD is connected to that line and provides power.
3. Power Classification：
* WC-PD06H050 uses IEEE802.3af standard and runs with Class 3 (6W) power rating by default.
Define criteria | Cable requirements | Grading parameters | Power Supply Characteristics |
IEEE802.3at (PoE Plus) | CAT5 cable or CAT6 cable | Maximum power required for Class4 devices is 13W~25.5W | 1. The DC voltage ranges from 42 to 57V, with a typical value of 48V. 2. Typical operating current is 10~600mA; typical output power: 25.5W. 3. Class4 rating supported by electrical equipment. |
IEEE802.3af （PoE） | CAT5 cable | Maximum power required for Class0 devices is 0~12.95W | 1. The DC voltage ranges from 38 to 57V, with a typical value of 48V. 2. Typical operating current is 10~350mA; typical output power: 15.4W; 3. The overload detection current is 350~500mA. 4. Provide 4 Class Power Requests for PD Devices ranging from 3.84 to 12.95W |
The maximum power required for Class1 devices is 0~3.84W | |||
The maximum power required for Class2 devices is 3.85W~6.49W | |||
The maximum power required for Class3 devices is 6.5W~12.95W |

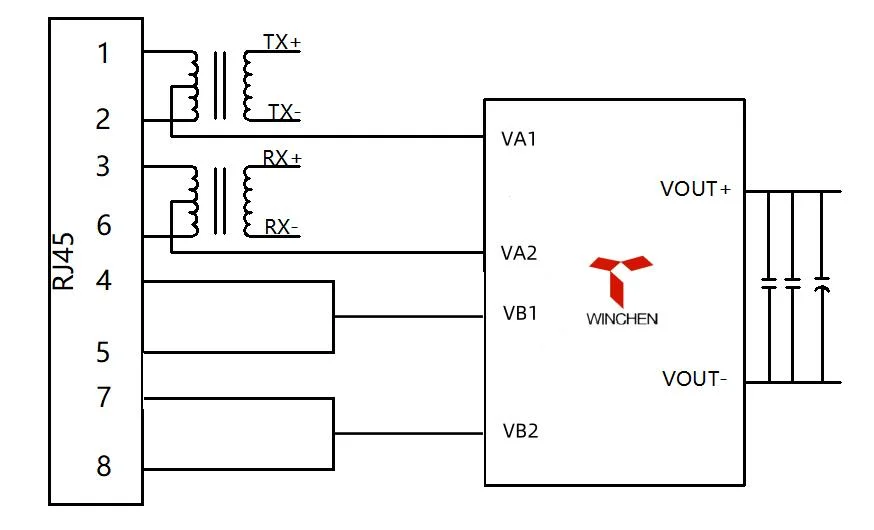

● Typical Connection Diagram
Welcome to customize POE modules with various sizes and appearance functions.
According to the requirements of the drawing board, research and development fees will be charged in the early stage. After ordering a certain number of modules (usually 1000 pieces), the research and development fees can be deducted from the payment. Wait until the samples are qualified before mass production.
According to the requirements of the drawing board, research and development fees will be charged in the early stage. After ordering a certain number of modules (usually 1000 pieces), the research and development fees can be deducted from the payment. Wait until the samples are qualified before mass production.
