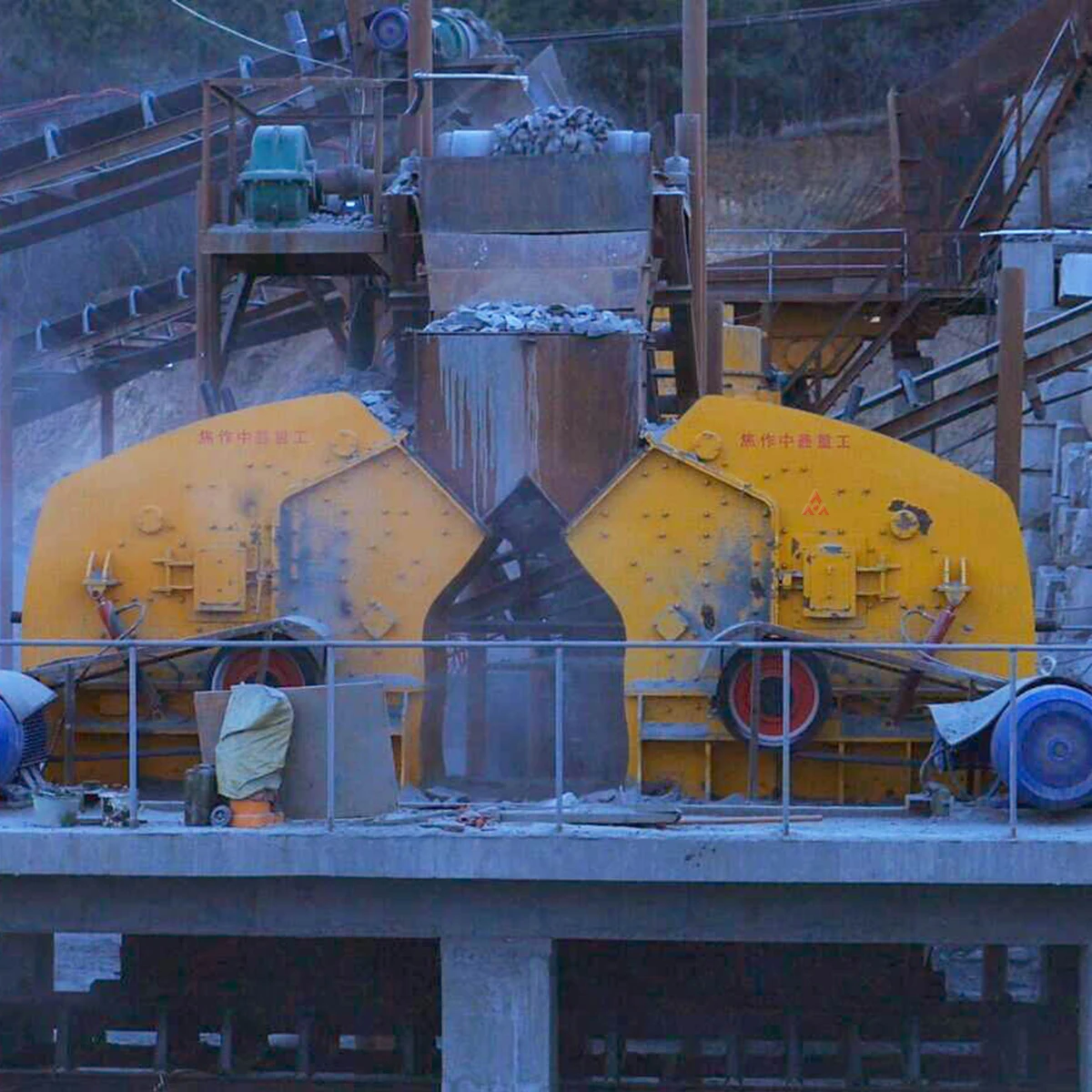

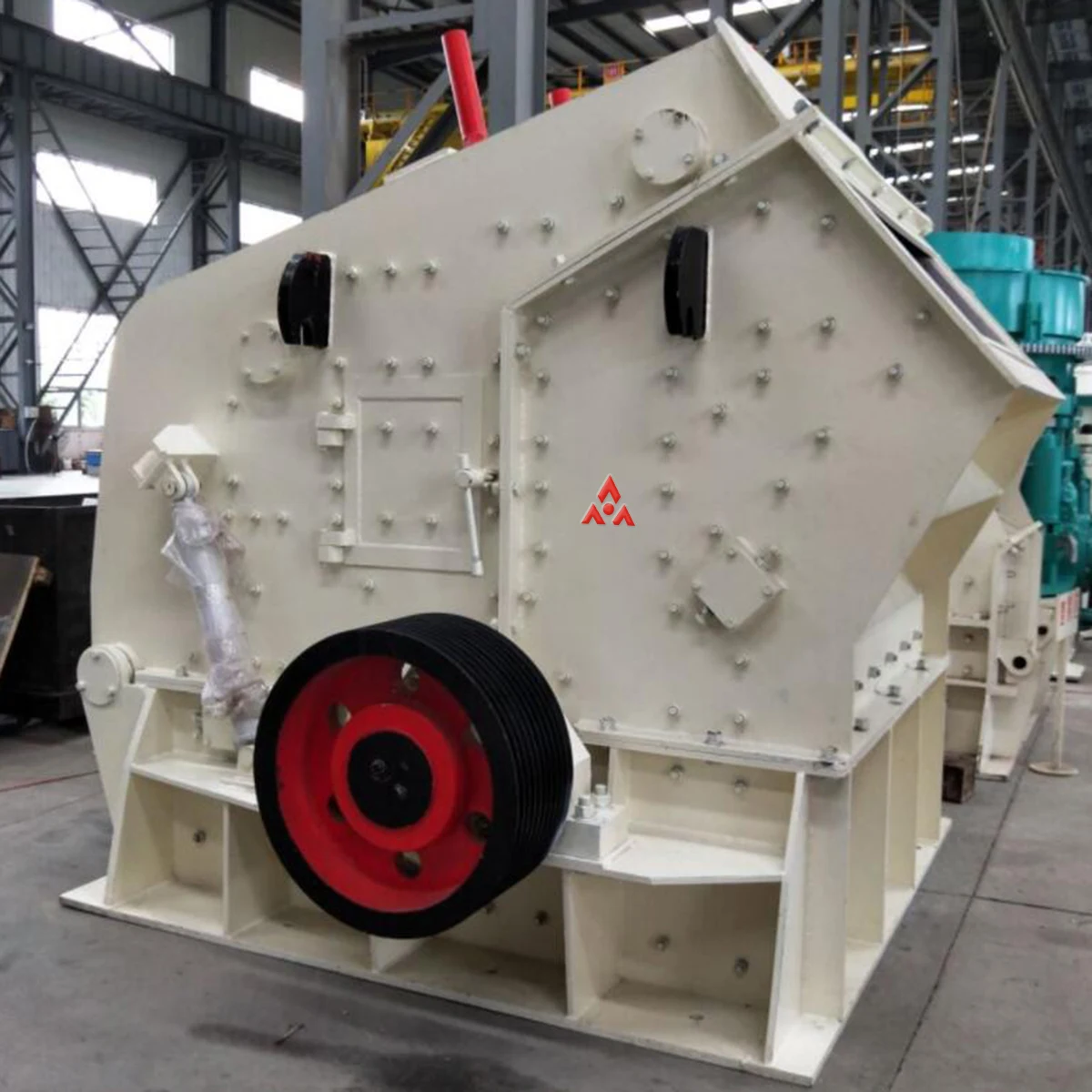

Maximize productivity with our impact crusher engineered for effective and durable material processing
- Category: >>>
- Supplier: Jiaozuo City Xinhai Mine Machinery Equipment Plant(General Partnership)
Share on (1601274101062):
Product Overview
Description
Detailed Images

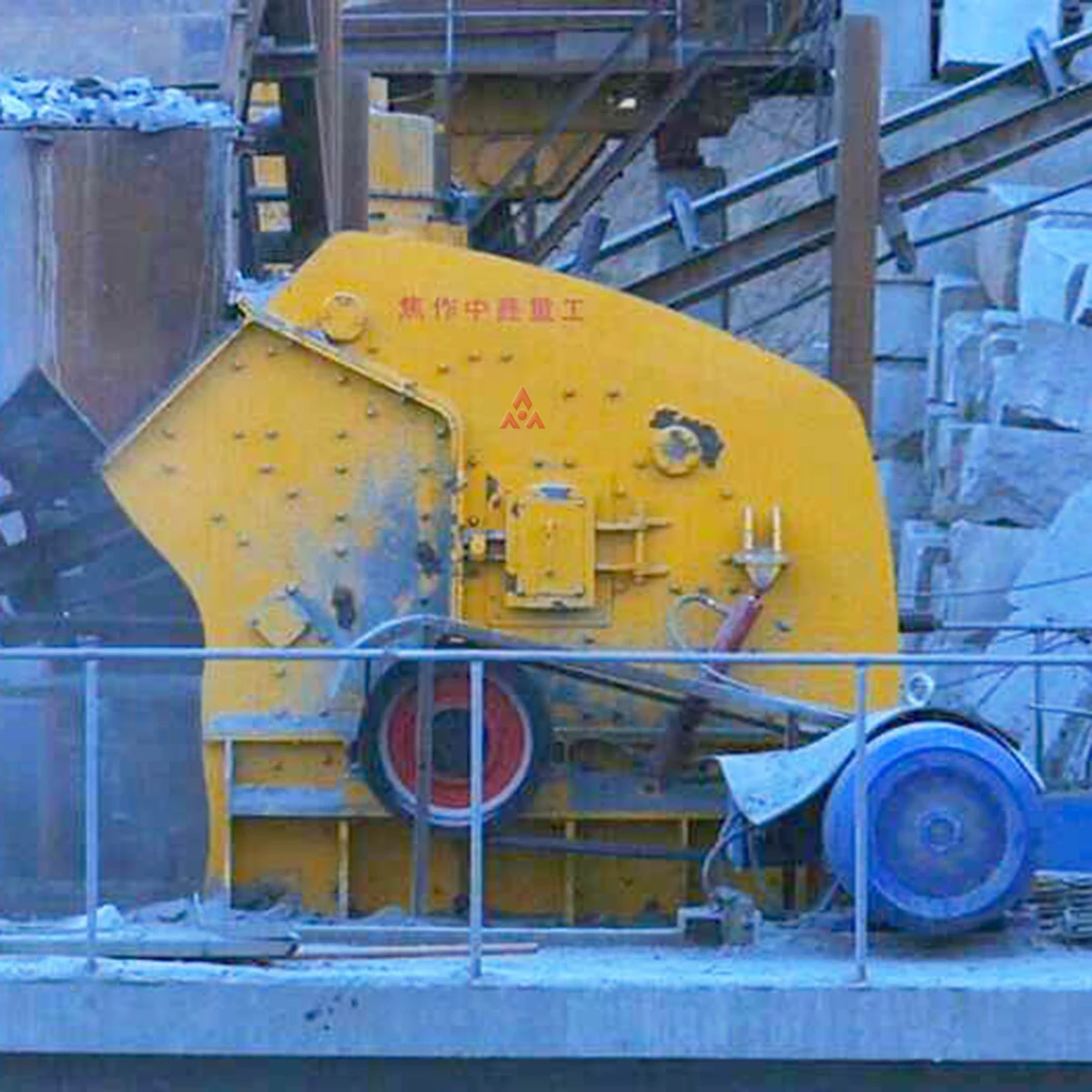

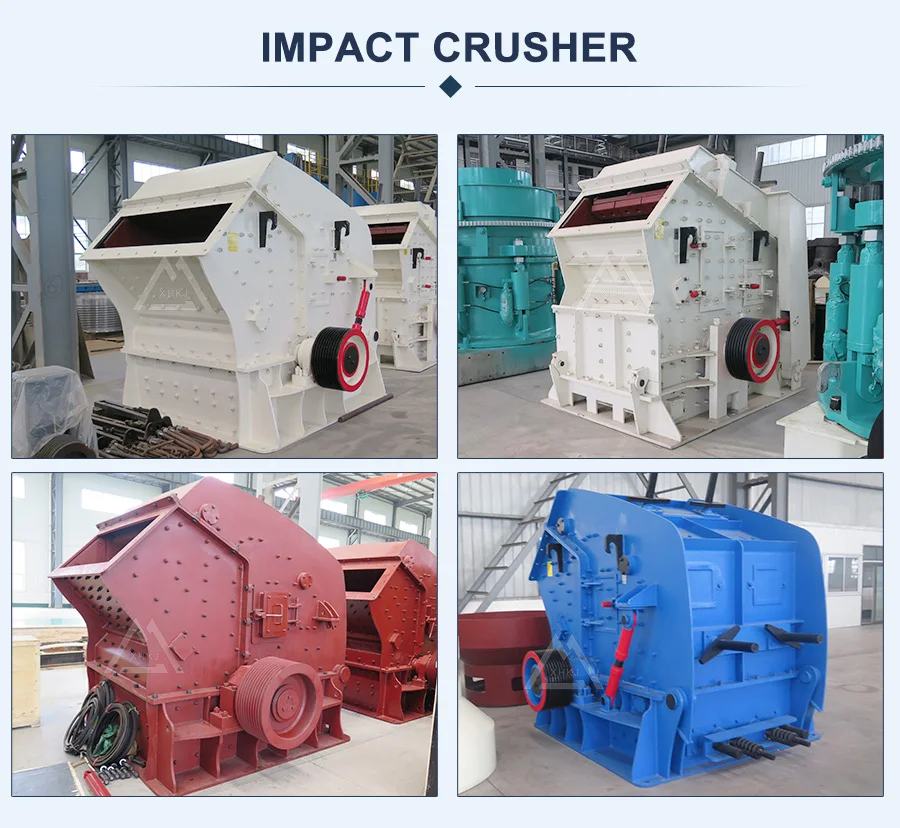

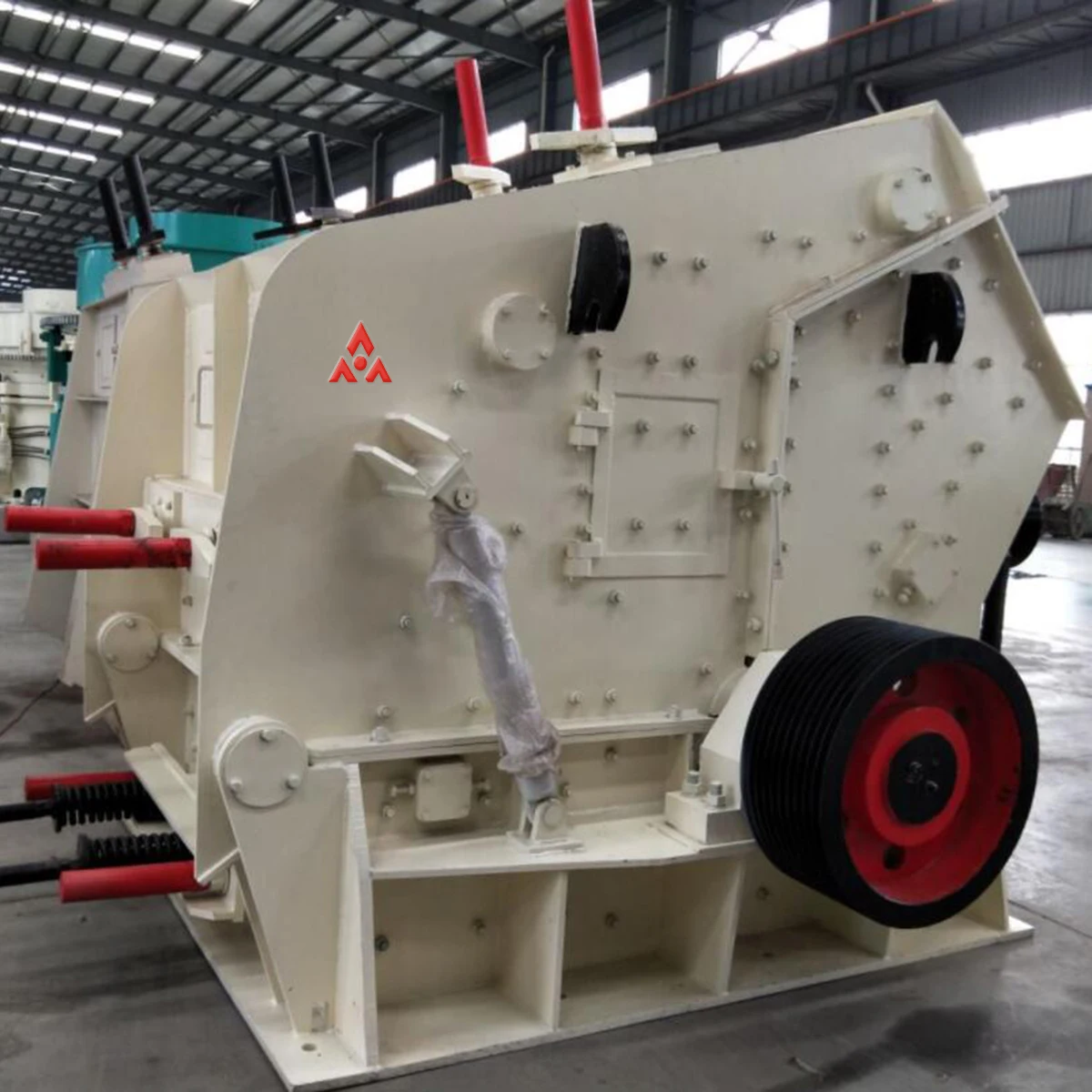

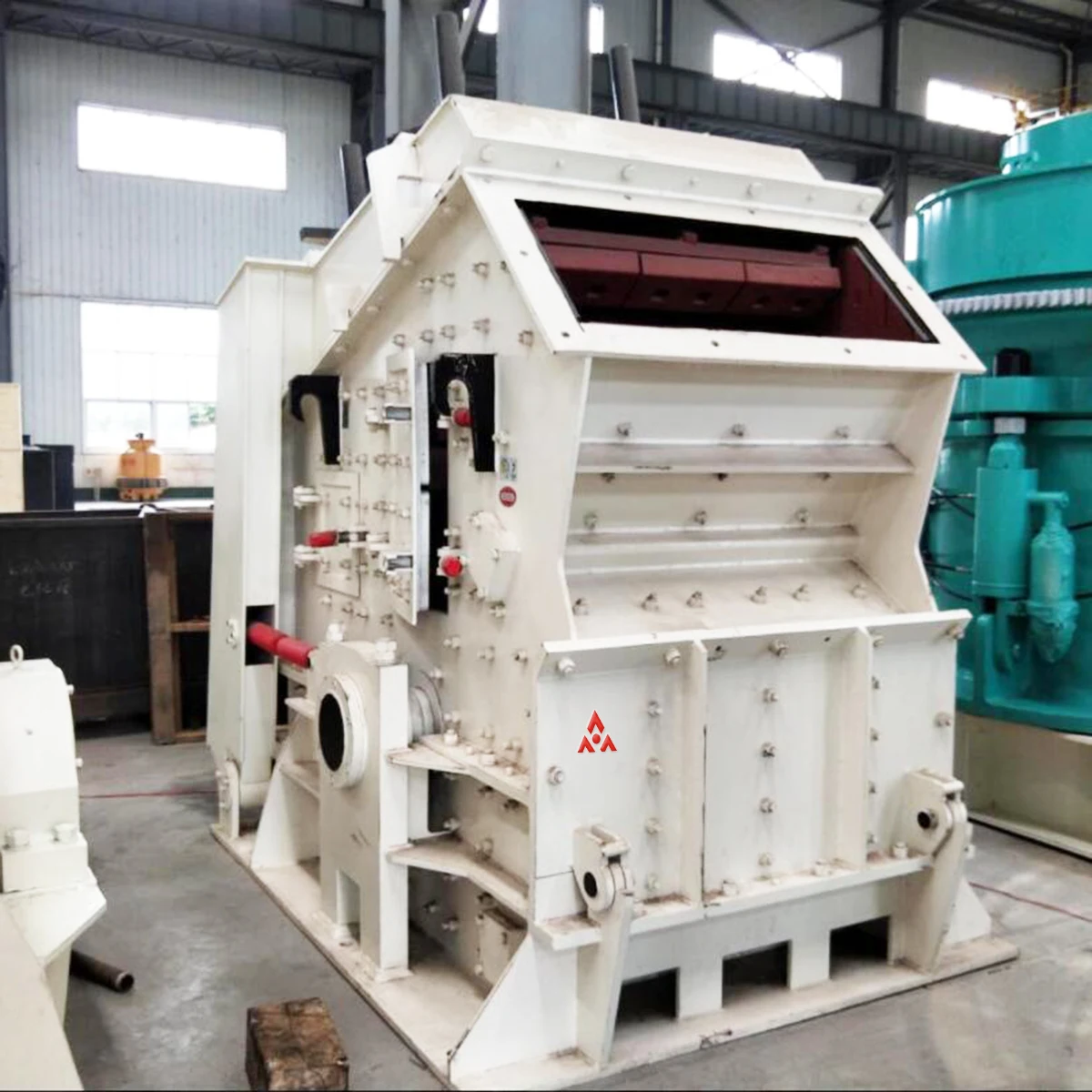

Impact Crusher Details
Impact Crusher Type:Secondary Crushing
Impact Crusher Capacity:30-250TPH

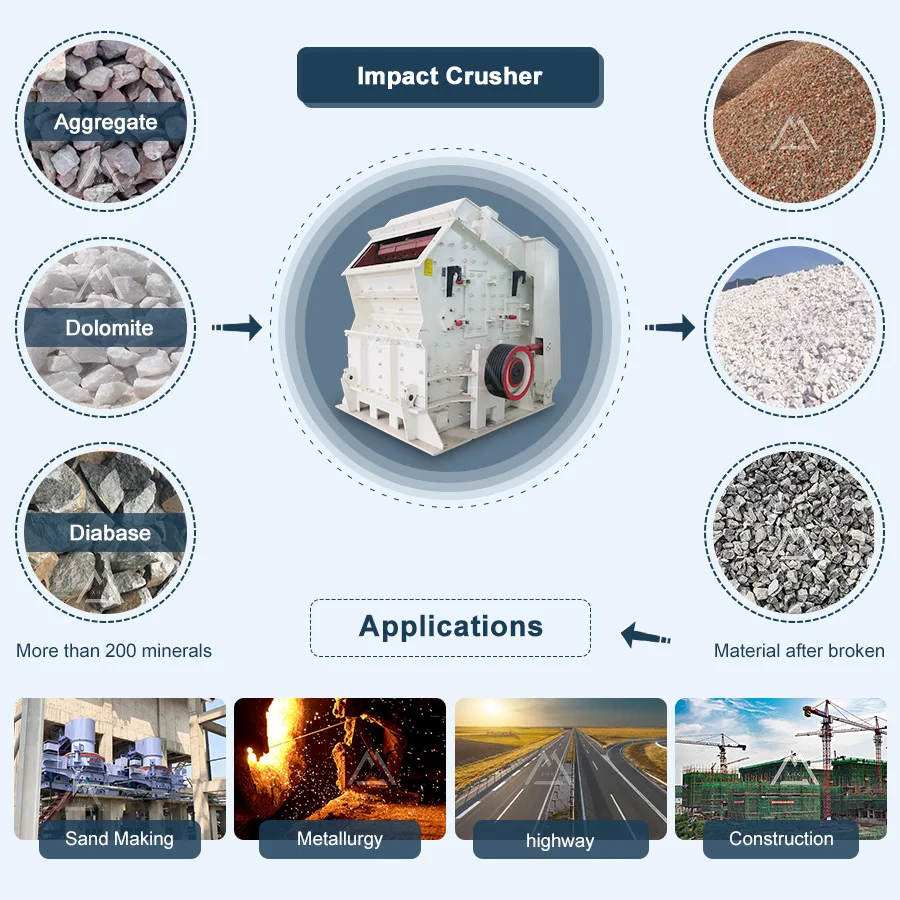

Impact Crusher Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway
Impact Crusher Input Size:400mm--1520mm
Impact Crusher Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Impact Crusher, can crush stone smaller than 500mm with compression strength lower than 350MPA, such as granite, limestone, concrete, etc.
Impact crusher is widely used in all kinds of ore crushing, railway, highway, energy, cement, chemical industry, construction, etc. The output size can be adjusted.
Impact Crusher Features![]()
1,Impact crusher,Many cavities to crush, suitable for crushing hard rock
2,Reasonable design of leveling plate making charge finer and cubic without interior cracks
3,Low and big feed opening makes the production line easy to arrange and increase the size of feeding material
4,Impact crusher,Use the hydraulic to open, easy to maintain and change wear-parts.
Impact Crusher Specification
| Model | Rotor Spec (mm) | Feed opening size (mm) | Max Feed edge(mm) | Capacity (t/h) | Motor Power(kw) | Weight(t) | Overall Dimension(L*W*H)mm |
| PF-1007 | 1000*700 | 400*730 | 300 | 30-50 | 37-55 | 9.5 | 2400×1558×2660 |
| PF-1010 | 1000*1050 | 400*1080 | 350 | 50-80 | 55-75 | 12.2 | 2400×2250×2620 |
| PF-1210 | 1250*1050 | 400*1080 | 350 | 70-120 | 110-132 | 14.9 | 2690×2338×2890 |
| PF-1214 | 1250*1400 | 400*1430 | 350 | 110-180 | 132-160 | 18.6 | 2690×2688×2890 |
| PF-1310 | 1300*1050 | 490*1170 | 400 | 80-140 | 110-160 | 16.2 | 2780×2478×2855 |
| PF-1315 | 1320*1500 | 860*1520 | 500 | 160-250 | 180-250 | 19.3 | 3096×3273×2667 |
| PF-1320 | 1320*2000 | 860*2030 | 500 | 160-350 | 300-375 | 28 | 3096×3560×3185 |
| PF-1520 | 1500*2000 | 1315*2040 | 700 | 300-500 | 400-450 | 42.8 | 3890×3560×3220 |
Production capacity
Company Information
Jiaozuo Xinhai Heavy Industrial Machinery Co.,Ltd is a crushing and screening equipment manufacturer in China.We produce full range of cone crusher,jaw crusher,impact crusher,vertical shaft impact crusher,vibrating screen ,vibrating feeder,sand washing machine,etc.
Twenty years of manufacturing expencice enable our products already have been extensively used in metallurgy,beneficiation,city constrction,road constrction,also refractory materral industry.Besides expansion on domestic market,our products have also been exported to Canda,Russia,India,Mongolia,South Afica,Central Asia,Weaten Asia and other cnuntries and regions.
Contact us
Your email address and telephone will not be shared or published!
Please fill in your need products and your message and do not forget mail and/or phone if you like to be contacted.
we are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,
1.what is the raw material do you want to process?
2.what is the capacity per hour do you need?
3.what is the raw material input size?
4.what is the output size of your product?
Of course, free live-chat is available and you can get help immediately.Or you can send me email .
You can get the price list and a Xinhai representative will contact you within one business day.
I hope you can tell me these details,i will give you well quotation ASAP ,thanks. Your satisfaction is our great pursuit, we would like to sincerely for your service! We look forward to your inquiry!
