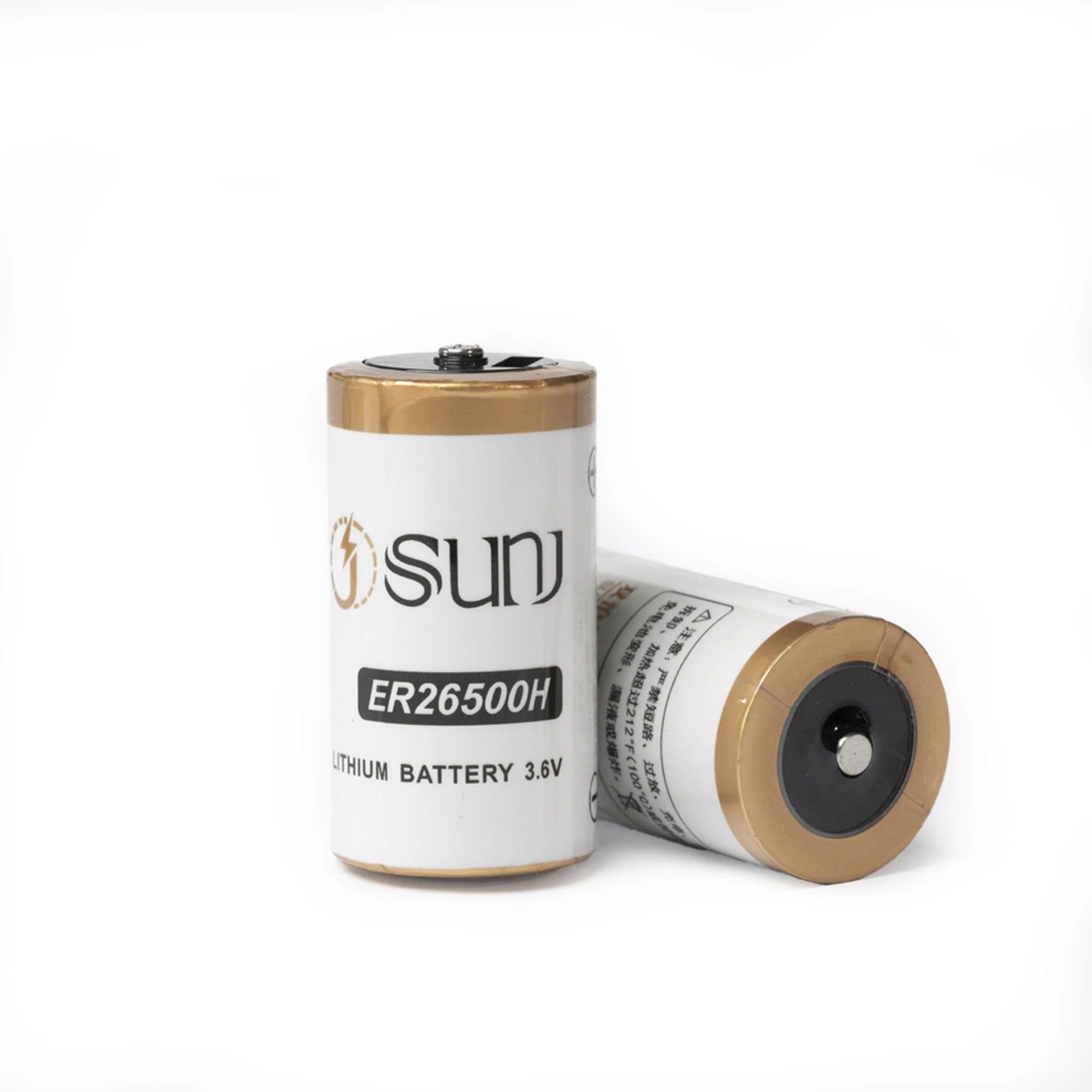

er26500 3.6V 8500mAh C Size Primary Lithium Battery Cell
- Category: >>>
- Supplier: Sunj Energy (Luoyang) Co. Ltd.
Share on (1601274117434):
Product Overview
Description
Model: ER26500H
Subject | Features | Remark | |
Specification | ER26500H | Carbon - clad, stainless steel shell, fully sealed structure | |
Norminal voltage | 3.6V | ||
Norminal capacity | 8500 mAh | 2mA, 25±3℃，cut-off at 2.0V | |
Max. continuous discharge current | 100 mA | To get 50% of the nominal capacity at 25℃, 2.0V cut-off.higher currents possible, consult SUNJ . | |
Max. available pulse current | 200 mA | 200mA/0.1s pulse,drained every 120s at 25℃ from undischarged cell with 20uA base current,yield voltage readings above 2.7V.Fitting the cell with lithiun-ion battery capacitor will get higher pulse,consult SUNJ . | |
Operating temperature | -55℃~+85℃ | ||
Dimension | φ26.2x50 MM | C | |
Standard weight | About 53 g | ||
Annual self-discharge rate | ≤1% | 25±3℃，RH 65±10% | |
Storage | recommended temperature ≤30℃ and the relative humidity ≤60% | ||
When the operating temperature is higher than normal temperature, it may result in a decrease in the
capacity at the beginning of the pulse and a low voltage reading. If the continuous temperature is higher than +40℃or lower than -20℃, please consult SUNJ.
Warning :
Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 100℃,
incinerate, or expose contents to water . Do not solder directly to the cell, use tabbed cell instead.
capacity at the beginning of the pulse and a low voltage reading. If the continuous temperature is higher than +40℃or lower than -20℃, please consult SUNJ.
Warning :
Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 100℃,
incinerate, or expose contents to water . Do not solder directly to the cell, use tabbed cell instead.
