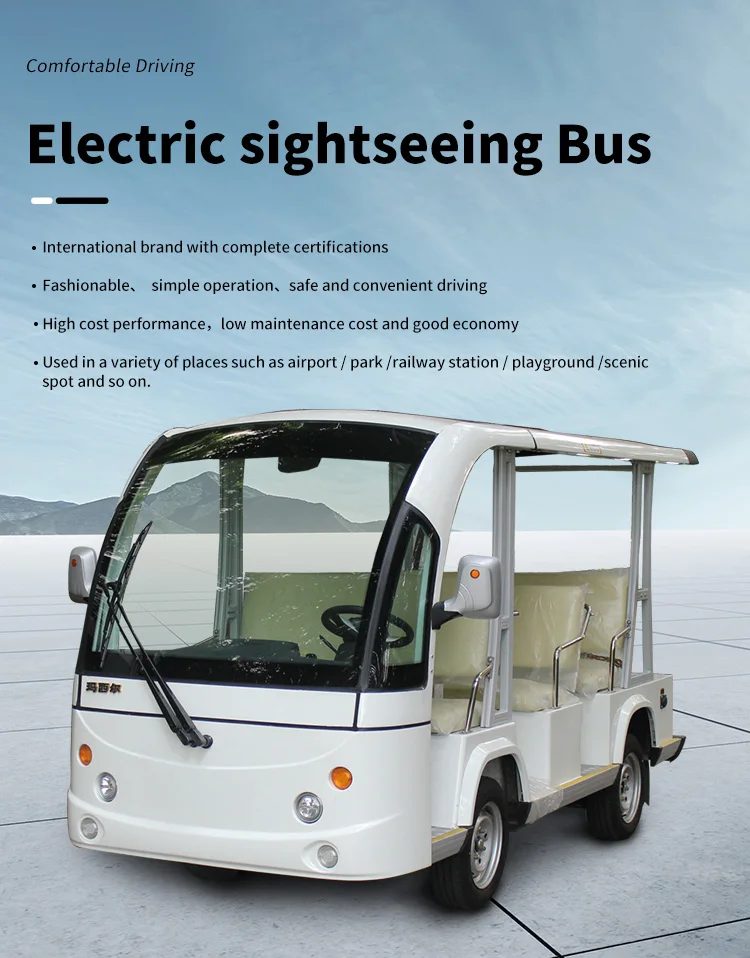

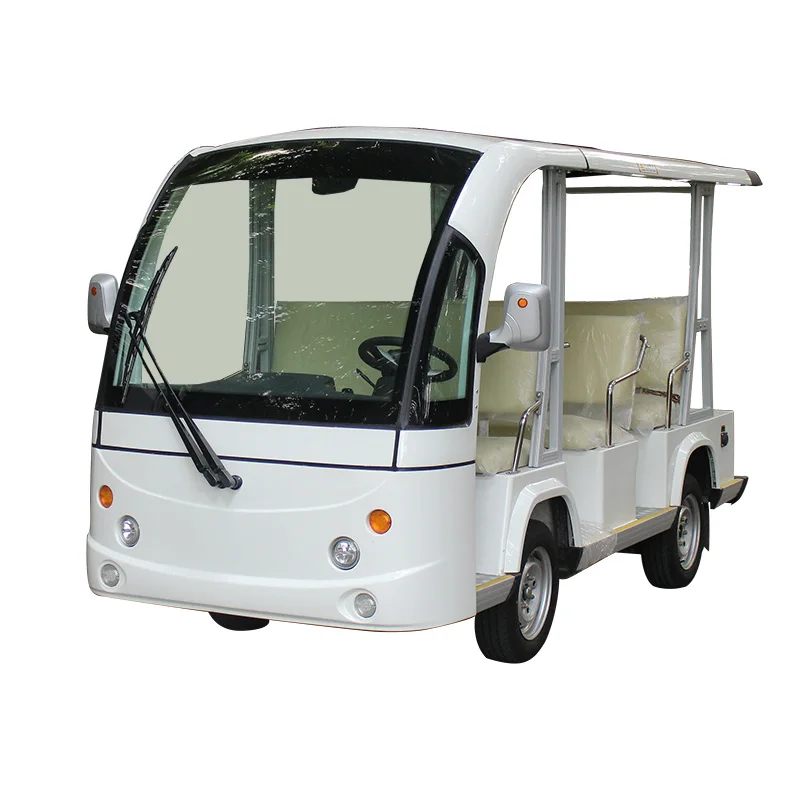

Scenic and safe with competitive price 8 passengers sightseeing vehicle electric sightseeing vehicle sightseeing bus
- Category: >>>
- Supplier: Anhui Yoto Electric Technology Co. Ltd.
Share on (1601274179189):
Product Overview
Description
Products Description
Product advantages:
1、International brand with complete certifications, exported to all developed countries, and with vehicle VIN code.
2、Adopting ergonomic design, fashionable and novel appearance, diverse styles, simple operation, safe and convenient driving.
3、The vehicle production process is at the vehicle specification level. The materials used are strong and durable. The cathodic
electrophoresis anti-corrosion technology ensures a long life cycle of the vehicle and low use cost.
4、The battery, motor and electric control components have advanced technology, high degree of intelligence, and reliable quality.
5、Sound service system, timely and effective response to global service demands.
6、The product has high cost performance, low investment in the whole life cycle, low maintenance cost and good economy.
7、Strong technical team, capable of accepting vehicle customization services and OEM/ODM cooperation in various countries and
cultural circles.
2、Adopting ergonomic design, fashionable and novel appearance, diverse styles, simple operation, safe and convenient driving.
3、The vehicle production process is at the vehicle specification level. The materials used are strong and durable. The cathodic
electrophoresis anti-corrosion technology ensures a long life cycle of the vehicle and low use cost.
4、The battery, motor and electric control components have advanced technology, high degree of intelligence, and reliable quality.
5、Sound service system, timely and effective response to global service demands.
6、The product has high cost performance, low investment in the whole life cycle, low maintenance cost and good economy.
7、Strong technical team, capable of accepting vehicle customization services and OEM/ODM cooperation in various countries and
cultural circles.
Product Paramenters
Project | Data | |||||
Maximum number of passengers | 8 passengers | |||||
Dimensions (L*W*H) | 4224*1520*2060MM | |||||
Wheelbase | 1910MM | |||||
Wheel base (front/rear) | 1215/1230MM | |||||
Ground clearance | 145MM | |||||
Load | 680KG | |||||
Maximum gradeability | 20 degrees | |||||
Parking capability | 20 degrees | |||||
Minimum turning radius | 5.6M | |||||
Motor power rating | 5KW/72V | |||||
Top speed | 28KM | |||||
Battery | 6V*225AH *8 | |||||
Time for a single charge | 8-10H | |||||
Renewal mileage | 80-100 KM | |||||
Tire specifications | 165/70R13 | |||||
1.1 Body: Strengthen the chassis of the mini car, optimize the anti-rust paint treatment, and cover the body with steel skeleton and high-strength fiberglass. | ||||||
1.2 Front windshield: special tempered glass for automobiles with wipers. | ||||||
1.3 Ceiling: made of fiberglass. | ||||||
1.4 Seats: Soft leather seats. | ||||||
1.5 Flooring: non-slip leather panels. | ||||||

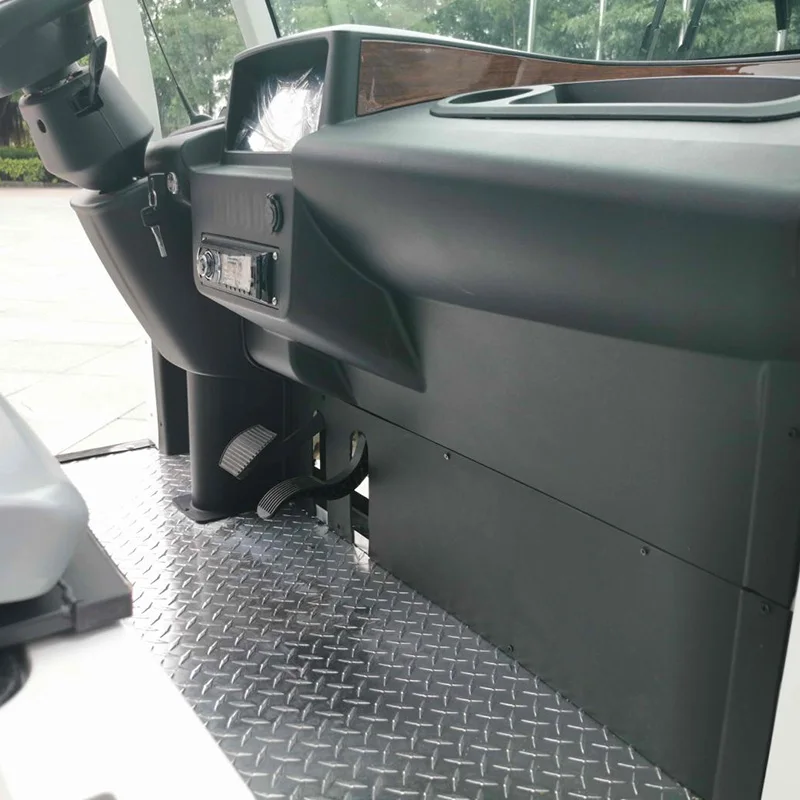

1.6 Instrument panel: FRP molded digital instrument panel, combination switch, power indicator, steering indicator, steering buzzer. | ||||||
1.7 Lights: 10 headlights, headlights, turn signals and brake lights; 12V electric horn. | ||||||
1.8 Motor system: DC motor 72V5KW. | ||||||
1.9 Battery: LEOCH high capacity deep cycle lead-acid battery, 6V12pcs. | ||||||
1.10 Electronic control: high-quality electronic control of international famous brands. | ||||||
1.11 Charger: High-frequency pulse computer-controlled intelligent charger. | ||||||
1.12 Suspension: MacPherson independent suspension system. | ||||||
1.13 Braking system: hydraulic braking system in the form of a four-wheeled car and independent parking brake | ||||||

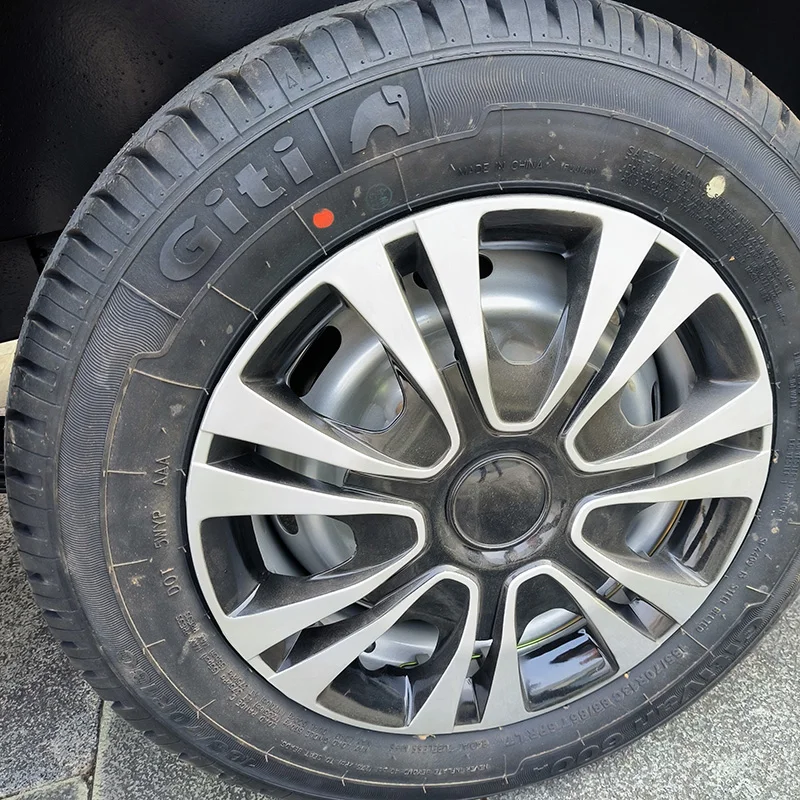

1.14 Tires: Vacuum radial tires. | ||||||
1.15 LED lights are installed on the top canopy, front face, wheel arches and rear tail edge | ||||||

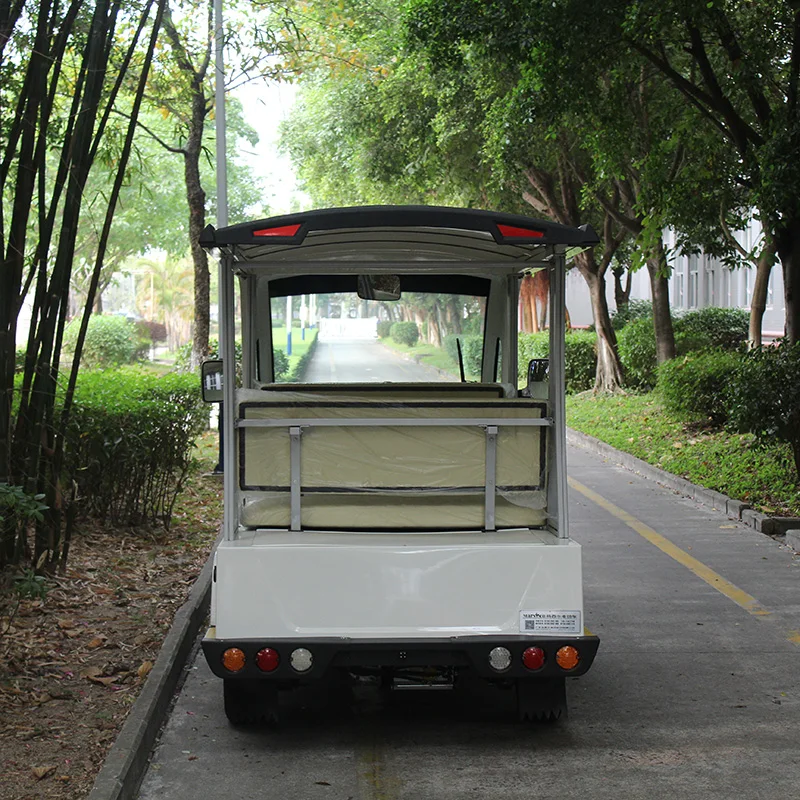

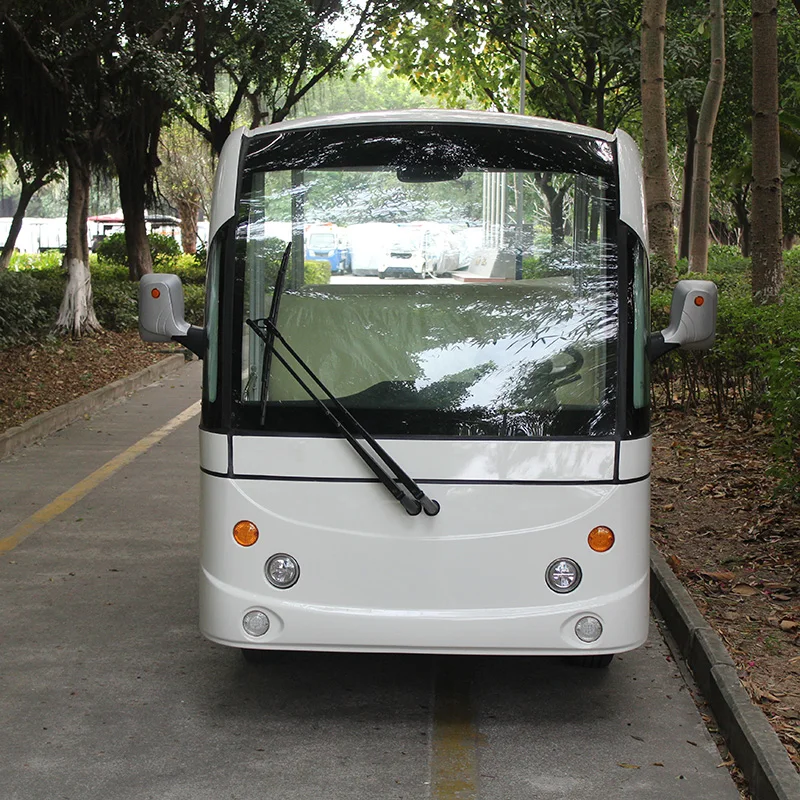

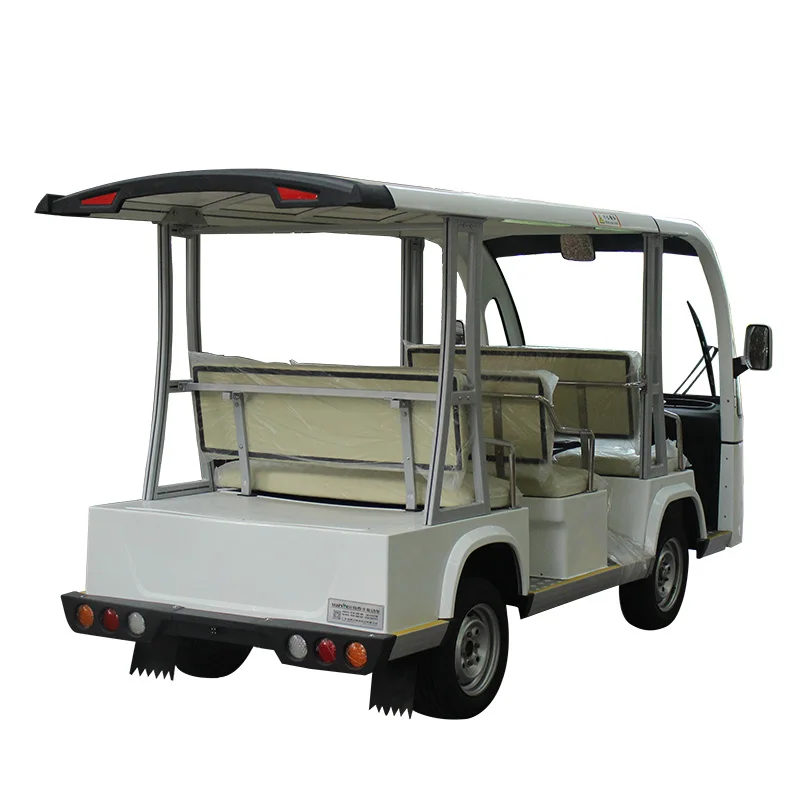

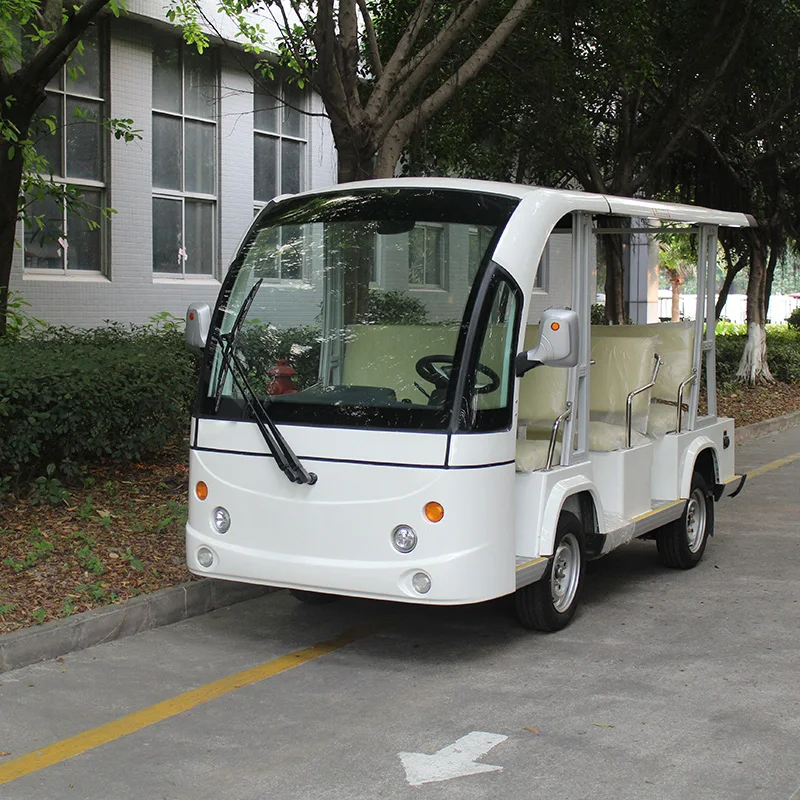

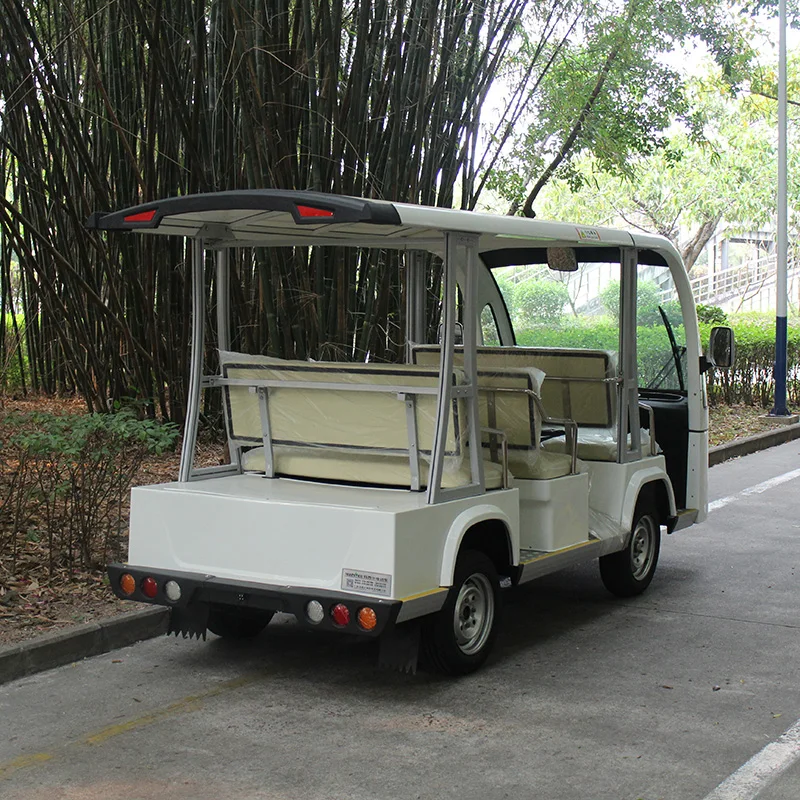

Details Images
Our Company
About us
Anhui Yoto Electric Technology Company was established in 2007. It is a new energy electric vehicle and environmental sanitation machinery enterprise integrating R & D, design, production, sales and service.
Main products: new energy road sweeping, cleaning vehicles and equipment, multi-functional new energy special three-wheeled and four-wheeled vehicle equipment.
Widely used in: urban roads, streets and alleys, parks, scenic spots, factories, schools, etc.
The products have been exported to 89 countries and regions around the world, such as Europe, North America, South America, Australia, Africa, Southeast Asia and the Middle East.
Product advantages: advanced technology, fashionable appearance, many categories, reliable quality and favorable price.
Value-added services: Professional customized services and various personalized services such as ODM/OEM/CMT are provided according to the usage scenarios provided by users.
After-sales service: A global 12-hour after-sales service response mechanism can be provided.
Factory
Exhibition
Certifications
Packing & Delivery
FAQ
A: Sure, we accept it, OEM and ODM supported. , as long as the customization is not related to the chassis modification.
Q2:Which kinds of batteries can we choose?
A:Our standard configuration is Lead-acid battery, it also can use lithium battery according to customer's request.
Q3:What are your terms of packing?
A: Generally, we pack out goods in containers with iron frames. If you have specialrequirements we can follow them.
Q4: What are the terms of payment?
A: T/T or L/C terms. We'll show you the photos of the products and packages before you pay the balance.
Q5:How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6:What is your sample policy?
A: Since this is a high value product, we can accept samples at a discounted price. If the demand is high at a later stage, we can refund your sample order.
