CE Certified 10000Mbps 10G 90W High Power POE Injector Stackable Switch with SNMP & QoS 48V DC Output in Stock
- Category: >>>
- Supplier: Shenzhen Sunsoont Technology Co. Ltd.
Share on (1601274191667):
Product Overview
Description
Product Description
Sunsoont OEM high power 10G IEEE802.3bt 48V 60W 90W gigabit POE++ POE+++ injector
SunSoont 90W 10G Ethernet POE power supply, the maximum output power of the POE port is 90W, the data access port supports 10/100/1000/10000Mbps adaptive, AC 110-264 V voltage input, and the operating temperature range is -20 ℃ ~ + 50 ℃, using industrial-grade chip enhanced design, port with lightning protection and static protection, and in compliance with FCC, CE, CCC, RoHS standards, reliable hardware design can ensure your automation system runs uninterrupted and stable, PTZ high-speed ball products , Compact computer, all-in-one, digital signage display system, etc.
Feature
1.Support 10 Gigabit POE power supply port + 10 Gigabit network port;
2. Compatible with IEEE802.3af (15.4W), IEEE802.3at (30w) and IEEE802.3bt (90w);
3. Support power usage monitoring, 30%, 60%, 90% three states;
4.Support AC 110-264 V power supply;
5. Metal case, IP20 protection grade, -20 to 50 ° C working temperature;
6. Support port surge: differential mode 2KV, common mode 6KV; electrostatic ESD: contact discharge 6KV, air discharge 8KV.
2. Compatible with IEEE802.3af (15.4W), IEEE802.3at (30w) and IEEE802.3bt (90w);
3. Support power usage monitoring, 30%, 60%, 90% three states;
4.Support AC 110-264 V power supply;
5. Metal case, IP20 protection grade, -20 to 50 ° C working temperature;
6. Support port surge: differential mode 2KV, common mode 6KV; electrostatic ESD: contact discharge 6KV, air discharge 8KV.
Specification
Product Name | 90W 10G POE injector | ||
Model Number | SST-BTTG-90W | ||
Port | 1* support POE function+1* 10G RJ45 port | ||
POE specification | PoE Standard：compatible with IEEE802.3af /IEEE802.3at/IEEE802.3bt | ||
Max：15.4 W (IEEE 802.3af) Max：30 W (IEEE 802.3at) Max：90 W (IEEE 802.3bt) | |||
POE output: DC 52V | |||
POE pin :1/2-；3/6+ or 4/5+；7/8- | |||
Network interface | 10BASE-T: Cat5UTP(≤250m) 100BASE-TX: Cat5 and above UTP(≤100m) 1000BASE-TX: Cat5 and above UTP(≤100m) | ||
LED Indicators | PWR | On：working Off：no power | |

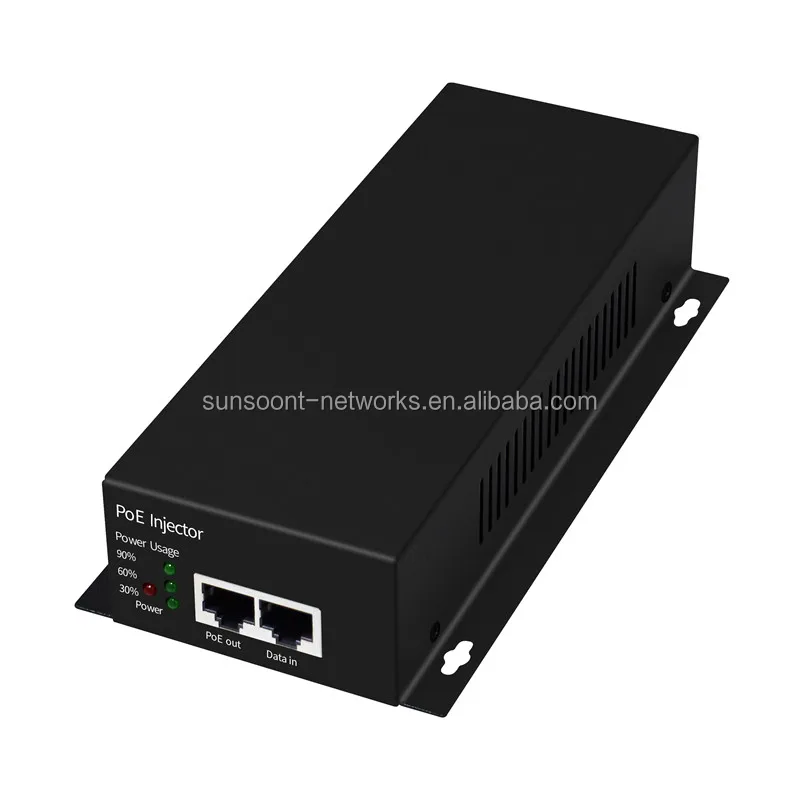

POE Power 30%/60%90% | On：power status Off：Power usage is below proportional value | ||
Power | Input: AC 110-264 V Frequancy： 50/60 Hz Output：52V/1.85A | ||
Working Environment | Working temperature: -20～50℃ Storing temperature: -40～85℃ Humidity: 5%~95 % | ||
Standard test | EN61000-4-2 （ESD）Contact8KV，Air 15KV IEN61000-4-5 （Surge）Common mode 6KV, differential mode 1KV EN61000-4-3 （RS） EN61000-4-6 （CS） EN61000-4-4 （EFT） FCC Part 15/ CISPR32 /EN55032： CLASS A IEC 60068-2-27 Impact test IEC 60068-2-32 Free fall test IEC 60068-2-6 Vibration test | ||
Physical structure | Shell protection level: IP20 Installation: wall mount Product Size (L×W×H)：187 mm× 95mm×40 mm Package Size (L×W×H)：254 mm× 190mm× 60mm | ||

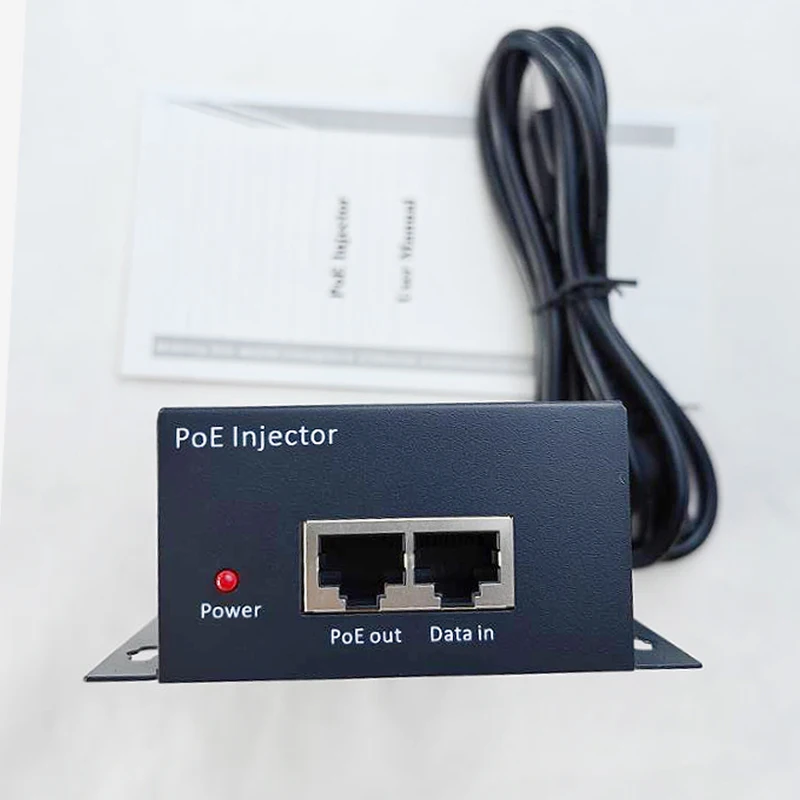

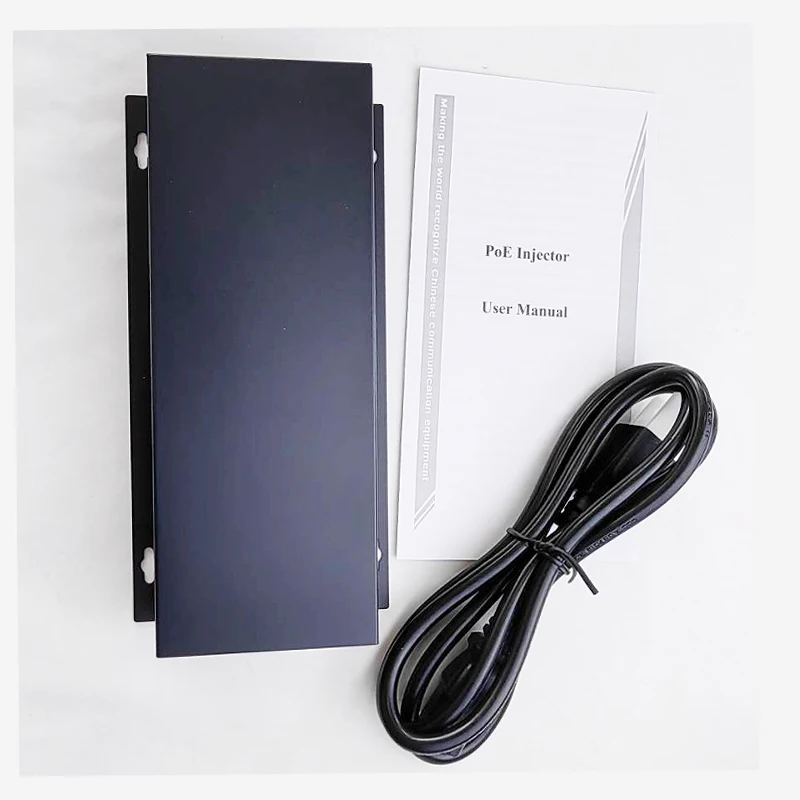

Packing list | 1. 90W Gigabit POE injector：1set 2. Manual：1PCS 3. Certificate of conformity, warranty card：1PCS | ||
Certificate | CE、FCC、CCC、RoHS | ||
Service life | 100,000 hours | ||
Warranty | 3 years | ||
Details Images
Packing & Delivery
Company Profile
Shenzhen Sunsoont Technology Co, . Ltd. was established in Shenzhen, China, is a professional optical fiber network communications equipment production, R&D and sales in one of the manufacturers, our main products include POE switches, industrial Ethernet switches, fiber switches, fiber media converter, wireless network devices and other communication products.
As a national high-tech enterprise, we have a number of scientific research patents, and strictly abide by ISO9001 and CE, ROHS
international standards in the production process. The company has 4, 000 square meters of industrial plant and nearly technical
team, 4 production lines, a complete set of testing aging equipment, perfect production process and strict inspection process, and
a sufficient inventory, to ensure the product reliability and rapid market response.
The company not only owns its own brand "SUNSOONT", but also a large number of professional OEM/ODM production bases in the industry, providing all-round design and manufacturing solutions for customers at different levels of domestic and international
demand, and providing cost-effective products and services!
As a national high-tech enterprise, we have a number of scientific research patents, and strictly abide by ISO9001 and CE, ROHS
international standards in the production process. The company has 4, 000 square meters of industrial plant and nearly technical
team, 4 production lines, a complete set of testing aging equipment, perfect production process and strict inspection process, and
a sufficient inventory, to ensure the product reliability and rapid market response.
The company not only owns its own brand "SUNSOONT", but also a large number of professional OEM/ODM production bases in the industry, providing all-round design and manufacturing solutions for customers at different levels of domestic and international
demand, and providing cost-effective products and services!
