Price:$9,980.00 - $19,000.00

Quantity:


Product Overview

Description










Products Description

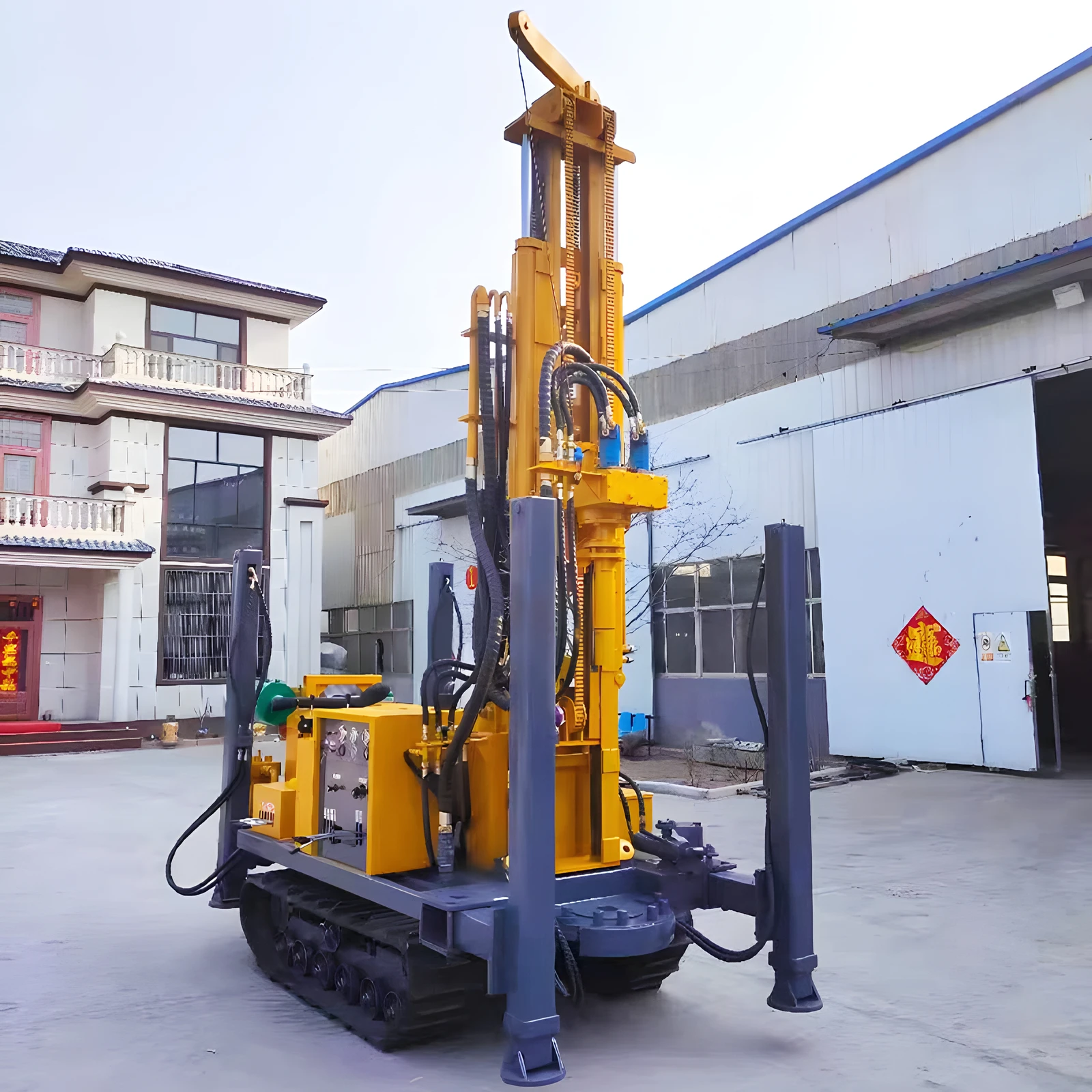

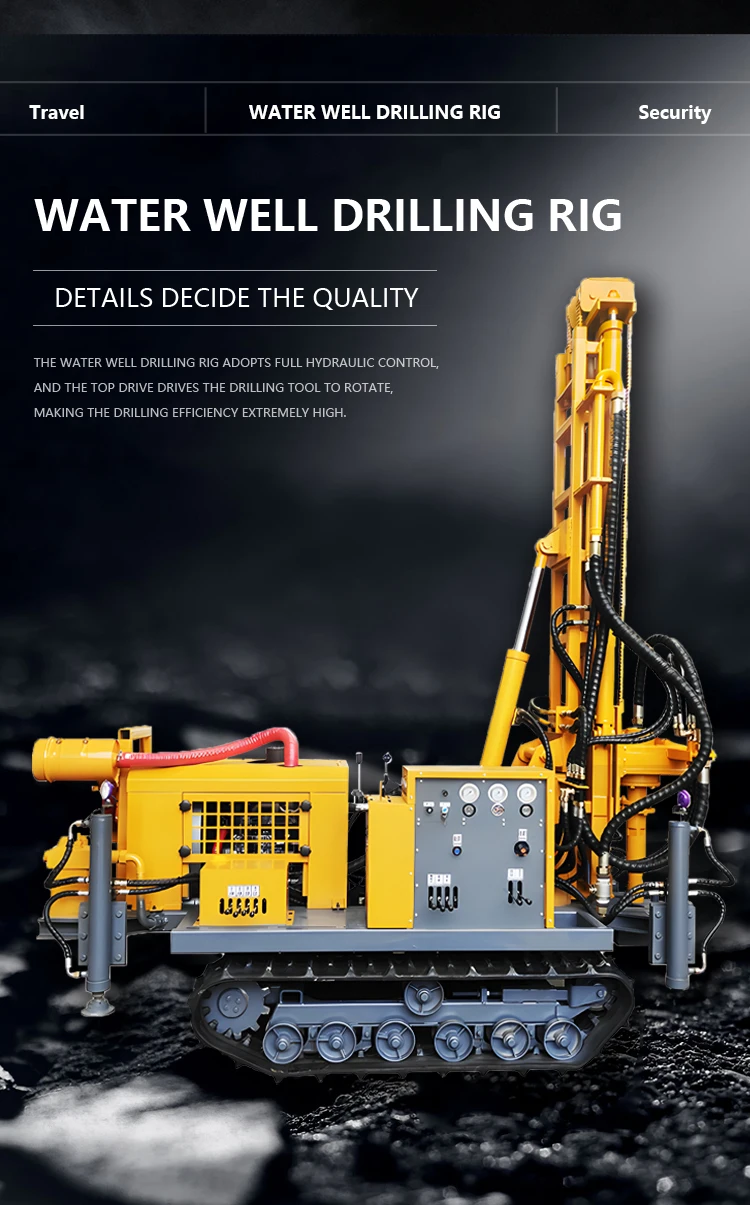

water well drill rig




1. The drilling rig can work in harsh environments such as mud, mortar and liquid. In order to ensure reliable sealing performance, a mechanical seal is specially treated to block the leakage of gear oil and prevent mud and sand from entering the body. 2. The drill pipe is threaded connection, using seamless steel pipe, threaded joints are made of 45 steel, forging and quenching treatment, strong torsion resistance, and grease lubrication. Through the forward and reverse rotation of the gearbox, the installation and disassembly of the drill rod are realized.

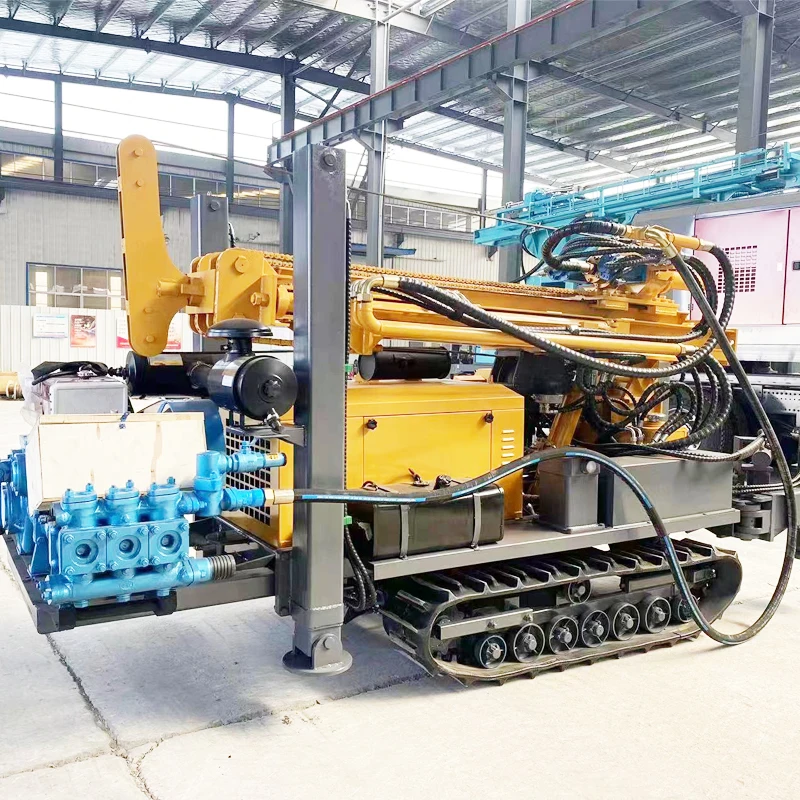

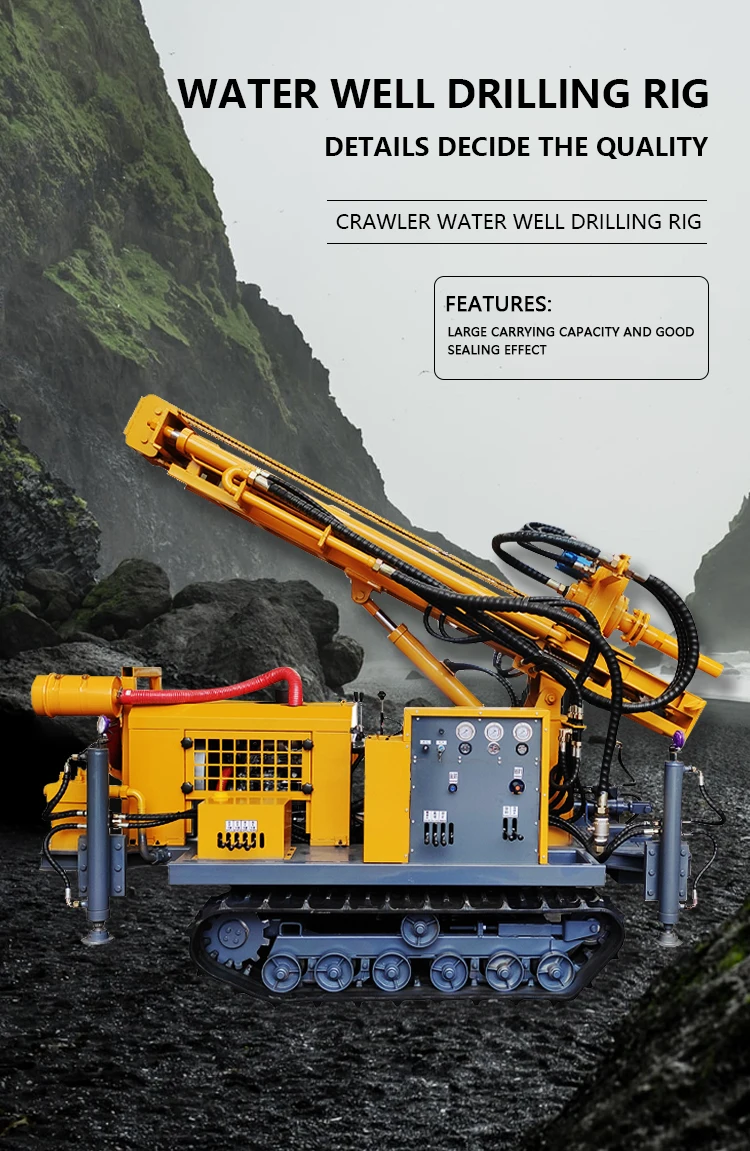

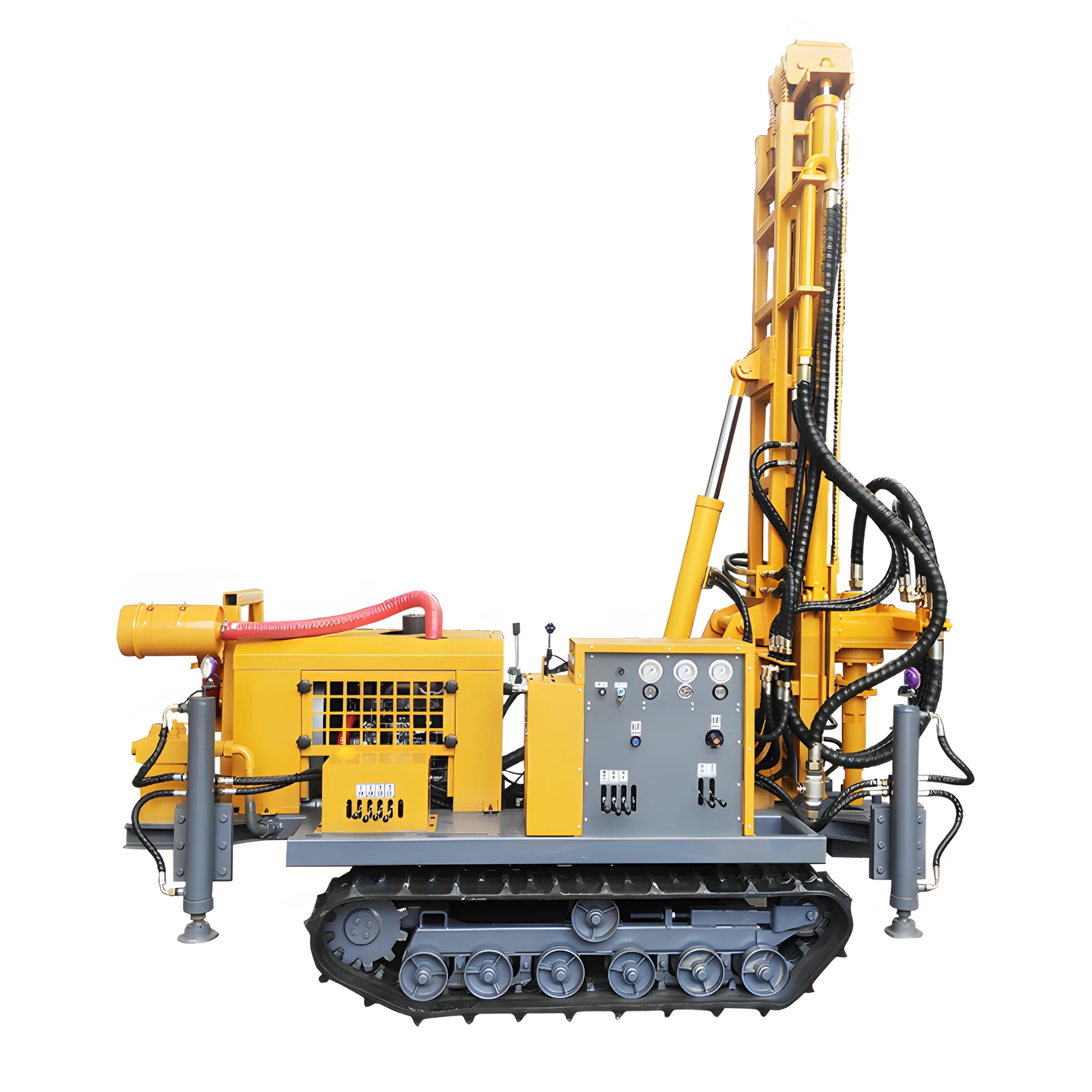

Crawler-mounted water well drilling rigs




3. The drilling rig uses the hydraulic oil reversing valve to operate the lifting, lowering and extension of the drilling rig's hydraulic outriggers, which can be fully separated from the truck chassis during work, and the hydraulic outriggers can enhance the balance and stability of the drilling rig. 4. The drilling rig adopts high-pressure and large-capacity Chigo air compressor, which increases the drilling speed by 1.5 times. With an alloy steel impactor, it can drill in a variety of formations such as clay, sand and bedrock.

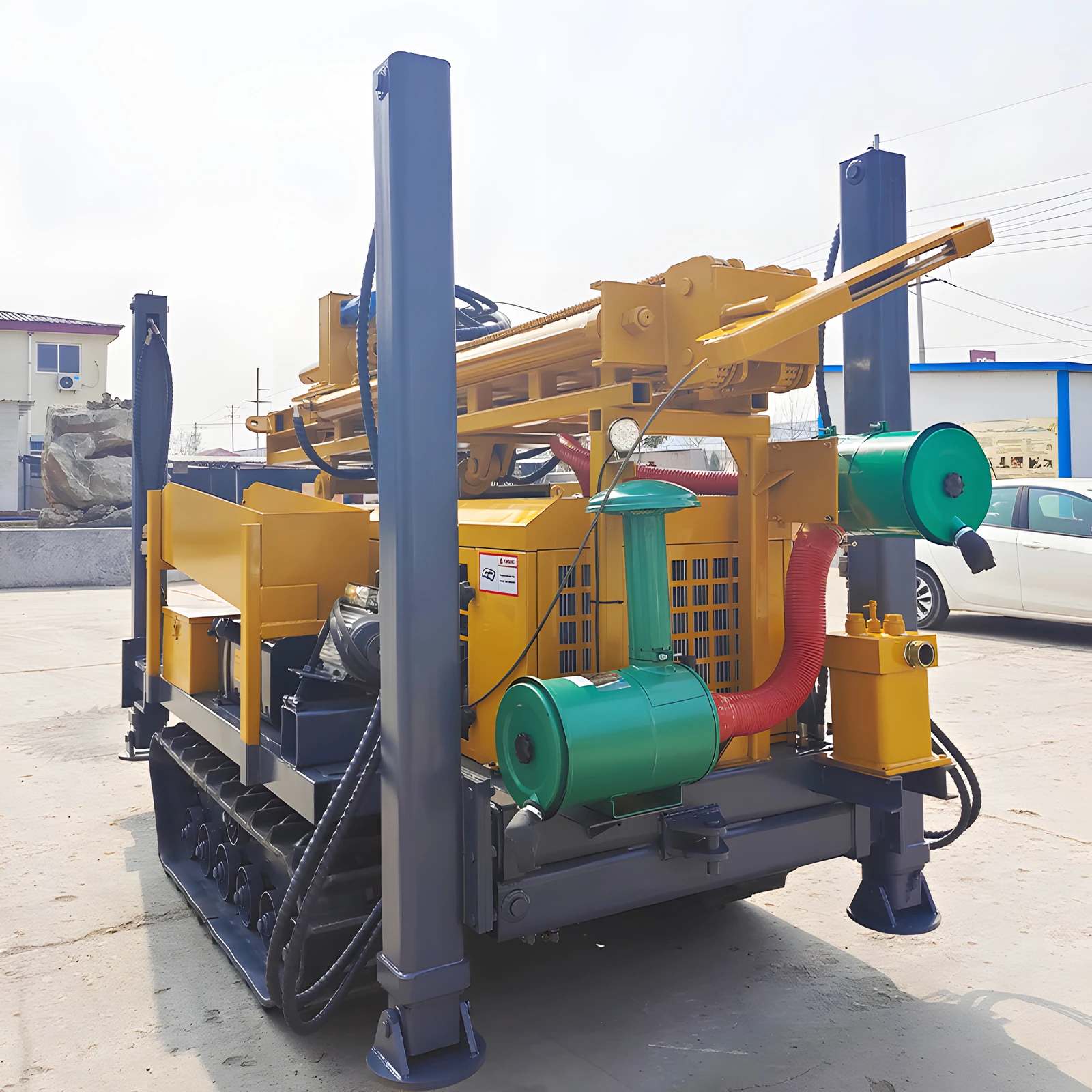

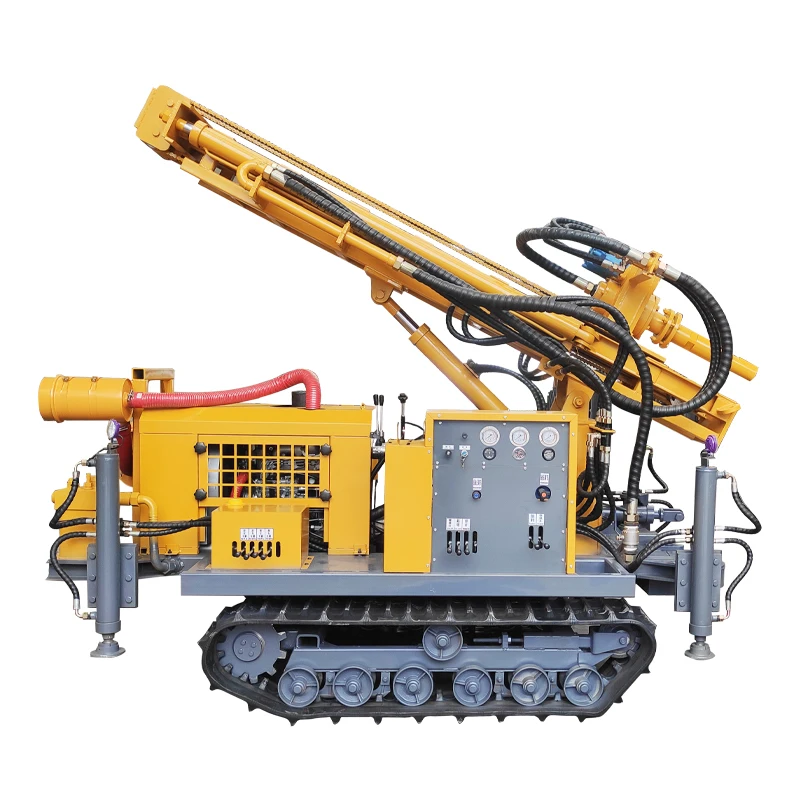

Pneumatic Water well Drill Rig




5. The drilling rig has beautiful appearance, large torque of the turntable, and fast footage. It is suitable for farmland water conservancy projects, industrial deepwater wells, national defense construction, hydrological exploration, geothermal mine and water well drilling, and can also be used for foundation hole construction of other projects. It is well received by customers at home and abroad. Welcome.

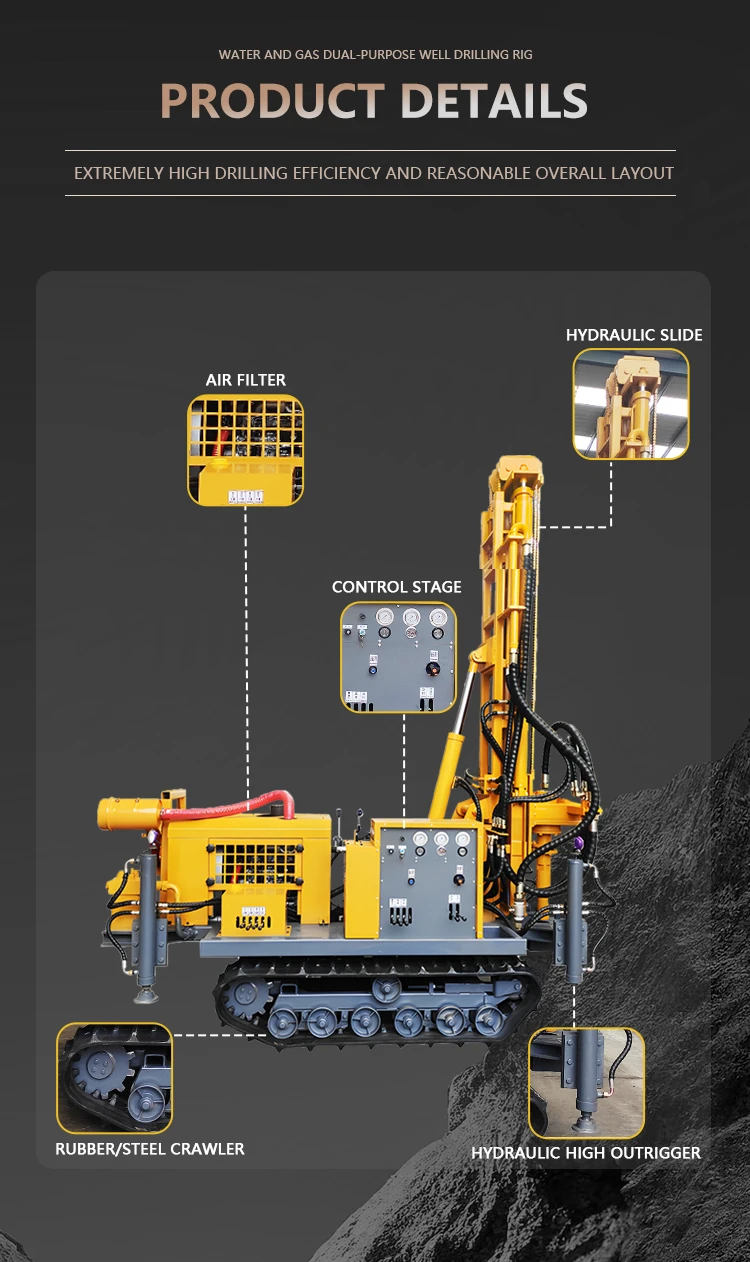

Details Images














Product Paramenters




























































































Model


YG-130


YG-200


YG-300


YG-400


Weight (Ton)


3


5.5


9


10


Drilling Diameter (mm)


100-219


140-305


140-325


140-350


Drilling Depth (m)


130


200


300


400


Walking Speed (Km/h)


0.8


2.5


2.5


2.5


Climbing Angles (°)


30


30


30


30


Equipped capacitor (Kw)


32


65


84


95


Using Air Pressure (Mpa)


1.45~2.5


1.7~3.0


1.7~3.3


1.7~3.5


Air Consumption (m³/Min)


17-29


17-30


17-35


17-35


Drilling Pipe Length (M)


1/1.5


1.5/2/3


1.5/2/3


1.5/2/3


Rig Lifting Force (T)


5


18


28


24


Dimension (mm)


4000#1450#2050


3900*1700
*2350


5500*1950
*2780


5200*2000
*2780
