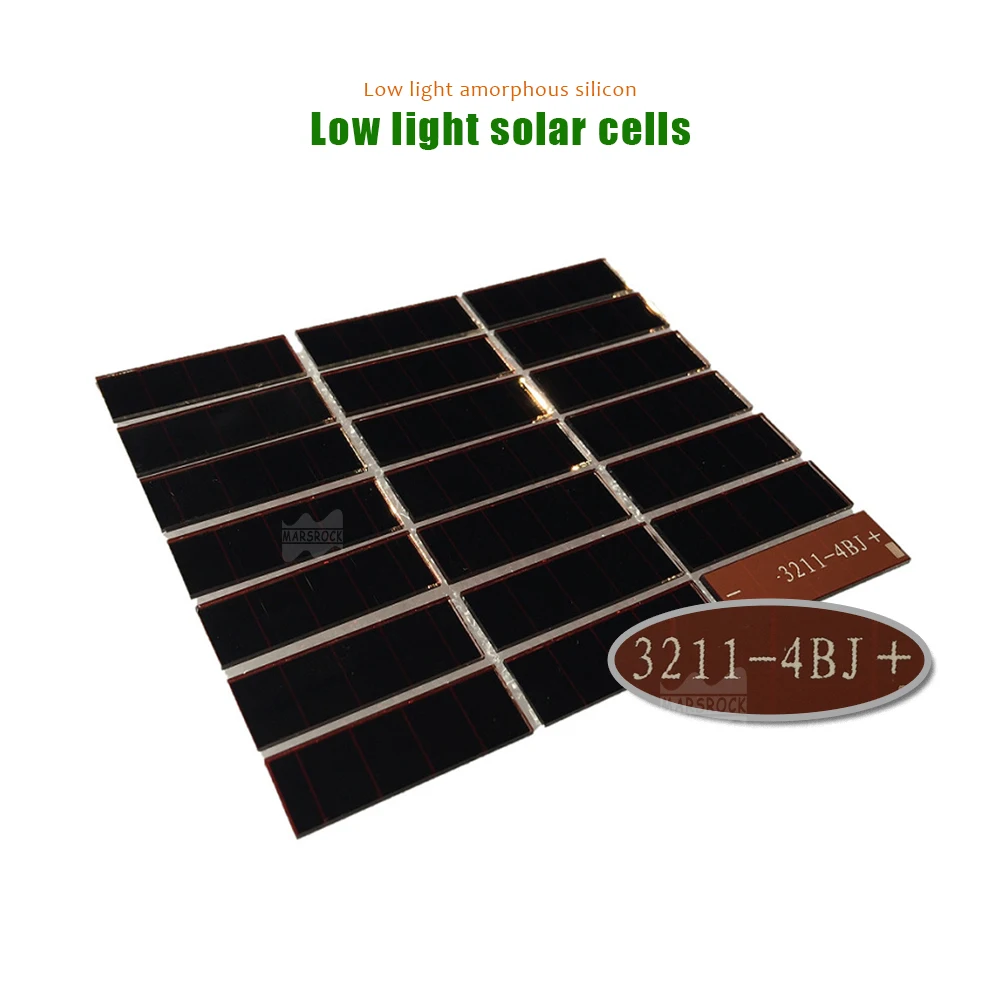

  • MarsRock 2V 7.9uA 32*11mm Dim Lux Amorphous Silicon Solar Cell Thin Mini Small Solar Panel Light indoor for Indoor Any Dim Light
MarsRock 2V 7.9uA 32*11mm Dim Lux Amorphous Silicon Solar Cell Thin Mini Small Solar Panel Light indoor for Indoor Any Dim Light
MarsRock 2V 7.9uA 32*11mm Dim Lux Amorphous Silicon Solar Cell Thin Mini Small Solar Panel Light indoor for Indoor Any Dim Light
MarsRock 2V 7.9uA 32*11mm Dim Lux Amorphous Silicon Solar Cell Thin Mini Small Solar Panel Light indoor for Indoor Any Dim Light
MarsRock 2V 7.9uA 32*11mm Dim Lux Amorphous Silicon Solar Cell Thin Mini Small Solar Panel Light indoor for Indoor Any Dim Light
MarsRock 2V 7.9uA 32*11mm Dim Lux Amorphous Silicon Solar Cell Thin Mini Small Solar Panel Light indoor for Indoor Any Dim Light
MarsRock 2V 7.9uA 32*11mm Dim Lux Amorphous Silicon Solar Cell Thin Mini Small Solar Panel Light indoor for Indoor Any Dim Light
MarsRock 2V 7.9uA 32*11mm Dim Lux Amorphous Silicon Solar Cell Thin Mini Small Solar Panel Light indoor for Indoor Any Dim Light

MarsRock 2V 7.9uA 32*11mm Dim Lux Amorphous Silicon Solar Cell Thin Mini Small Solar Panel Light indoor for Indoor Any Dim Light

Share on (1601274316144):


Price:$0.90 - $1.19

Quantity:


Product Overview

Description



Product Description




Product Parameters


Model
Size（mm±0.5）
Cell No.
Voc
Isc
Vmp
Imp
Length
Width
Thickness
(V)
(mA)
(V)
(mA)
SC1006-4
10
6
3.2
4
2
1.35
1.5
0.98
SC1107-4
11
7
3.2
4
2
1.73
1.5
1.25
SC1107-6
11
7
3.2
6
3
1.16
2.25
0.83
SC2427-10
23.5
26.5
3.2
10
5
5.60
3.75
4.05
2509-4
24.7
8.5
3.2
4
2
4.72
1.5
3.41
HP-2510DS-1
24.8
8.8
3.2
4
2
4.91
1.5
3.55
SC-SCEN2510
24.8
8.8
3.2
4
2
4.91
1.5
3.55
Hengyang-2510-4
24.8
9.8
3.2
4
2
5.47
1.5
3.95
SC-3004-8
30
4
3.2
8
4
1.35
3
0.98
JSSOLAR-3012DS
30
12
3.2
4
2
8.10
1.5
5.85
SCNE3012-1
29.5
11.6
3.2
4
2
7.70
1.5
5.56
JSSOLAR3012-1
29.5
11.6
3.2
4
2
7.70
1.5
5.56
FLD3012-10
29.5
11.6
3.2
10
5
3.08
3.75
2.22
SC3012-10
29.5
11.6
3.2
10
5
3.08
3.75
2.22

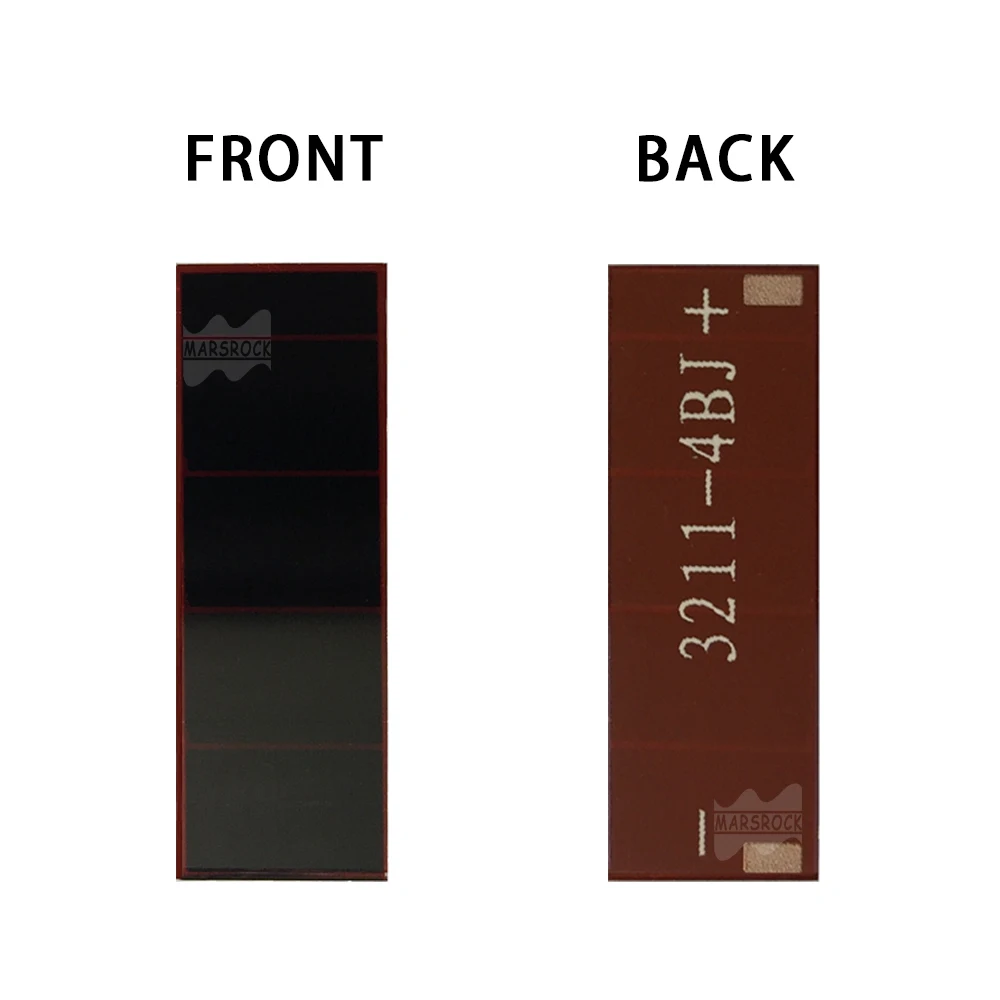

SC-3211-4
32
11
3.2
4
2
7.92
1.5
5.72
SC3514-2
35
13.5
3.2
2
1
21.26
0.75
15.36
JS-3514-5
35
14
3.2
5
2.5
8.82
1.88
6.37
JS-3514-4A
35
14
3.2
4
2
11.03
1.5
7.96
JS-3516-4
34.8
15.6
3.2
4
2
12.21
1.5
8.82
FLD-3812-8
38
12
3.2
8
4
5.13
3
3.71
SC-3813-4
38
13
3.2
4
2
11.12
1.50
8.03
3722-9L
37
22
3.2
9
4.5
8.14
3.38
5.88
3928-10L
39
28
3.2
10
5
9.83
3.75
7.10
VIMUN SC4027-3
40
27
3.2
3
1.5
32.40
1.13
23.40
SC4108-4
41
8
3.2
4
2
7.38
1.5
5.33
sc-4508-5
45
8
3.2
5
2.5
6.48
1.88
4.68
SC-4508-5
45
8
3.2
5
2.5
6.48
1.88
4.68
SC-4508-5
45
8
3.2
5
2.5
6.48
1.88
4.68
SC-4508-5
45
8
3.2
5
2.5
6.48
1.88
4.68
JS4114-4
41
14
3.2
4
2
12.92
1.5
9.33
SC4114-4
41
14
3.2
4
2
12.92
1.5
9.33
\\4126-5
41
26
3.2
5
2.5
19.19
1.88
13.86
SC-5649-9
56
49
3.2
9
4.5
27.44
3.38
19.82
SC-5649-9
56
49
3.2
9
4.5
27.44
3.38
19.82
HY-5520-7
55
20
3.2
7
3.5
14.14
2.63
10.21
HY-5520-7
55
20
3.2
7
3.5
14.14
2.63
10.21
JSSOLAR5514-4
55
14
3.2
4
2
17.33
1.5
12.51
QF-5514-8
55
14
3.2
8
4
8.66
3
6.26
SC-5514-8B
55
14
3.2
8
4
8.66
3
6.26
SC-5514-8B
55
14
3.2
8
4
8.66
3
6.26
SC-5514-8B
55
14
3.2
8
4
8.66
3
6.26
SC5520-8A
55
20
3.2
8
4
12.38
3
9.63
SC-5520-13A
55
20
3.2
13
6.5
7.62
4.88
5.50
JS-5520-8
55
20
3.2
8
4
12.38
3
8.94
SC5530-13L
55
30
3.2
13
6.5
11.42
4.88
8.25
FLD5430-12L
54
30
3.2
12
6
12.15
4.5
9.45
HP-5816-3
58
16
3.2
3
1.5
27.84
1.13
20.11
JS-5816-4
58
16
3.2
4
2
20.88
1.5
15.08
SC-60.5*17.5-4L
60.5
17.5
3.2
4
2
23.82
1.5
17.20
SC-60.5*17.5-8L
60.5
17.5
3.2
8
4
11.91
3
8.60
SC-6637-8L
66
37
3.2
8
4
27.47
3
19.84
SC-6710-9
67
10
3.2
9
4.5
6.70
3.38
4.84
SC-6733-9
67
33
3.2
9
4.5
22.11
3.38
15.97
FLD-6747-9
67
47
3.2
9
4.5
31.49
3.38
22.74
SC-6916-12
69
16
3.2
12
6
8.28
4.5
5.98
SC-70.5*14-8
70.5
14
3.2
8
4
11.10
3
8.02
SC-71*14-8L
70.5
14
3.2
8
4
11.10
3
8.02
FLD7042-12
70
42
3.2
12
6
22.05
4.5
17.15
SC-9319-6
93
19
3.2
6
3
26.51
2.25
19.14
SC-10530-11
105
30
3.2
11
5.5
25.77
4.13
18.61
SC-125*50-12
125
50
3.2
12
6
46.88
4.5
33.85
SC-13007-7
130
7
3.2
7
3.5
11.70
2.63
8.45


Product Video




Amorphous Silicon Solar Cells


Solar cells are classified by their material: crystal silicon, amorphous silicon, or compound semiconductor solar cells. Amorphous refers to objects without a definite shape and is defined as a non-crystal material. Unlike crystal silicon in which atomic arrangements are regular, amorphous silicon features irregular atomic arrangements .

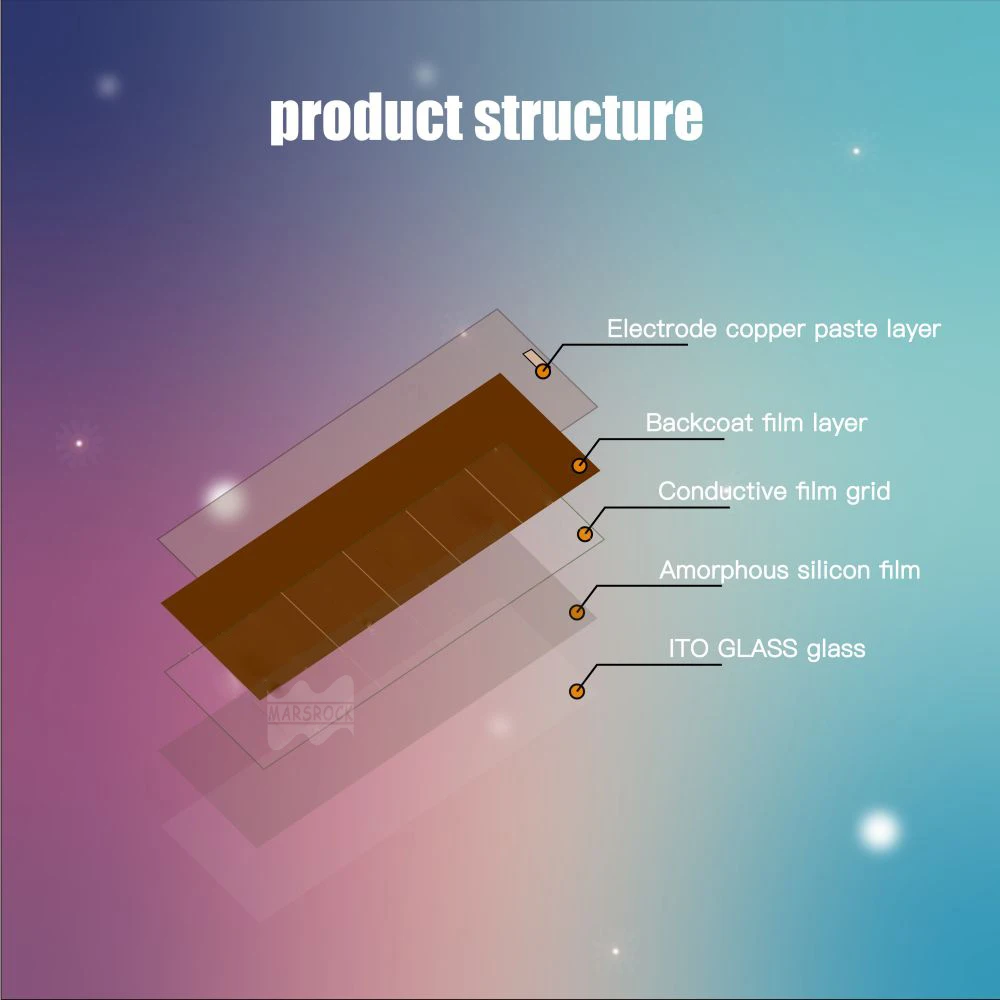

As a result, the reciprocal action between photons and silicon atoms occurs more frequently in amorphous silicon than in crystal silicon, allowing more light to be absorbed. Thus, an ultrathin amorphous silicon film less than 1 μm (1/1000 of 1 mm) can be produced and used for power generation.Using decomposed material gases to form a film on top of a series of substrates. For example, during the manufacturing process that utilizes glass as a substrate, once the transparent electrode is formed, a film of amorphous silicon is layered onto it. The metal film electrode is then formed and finally the solar cell is covered with a protective film. Since our patterning technology allows for multiple solar cells connected in series to be created on a single substrate, solar cells of any chosen voltage can be designed to suit any application.

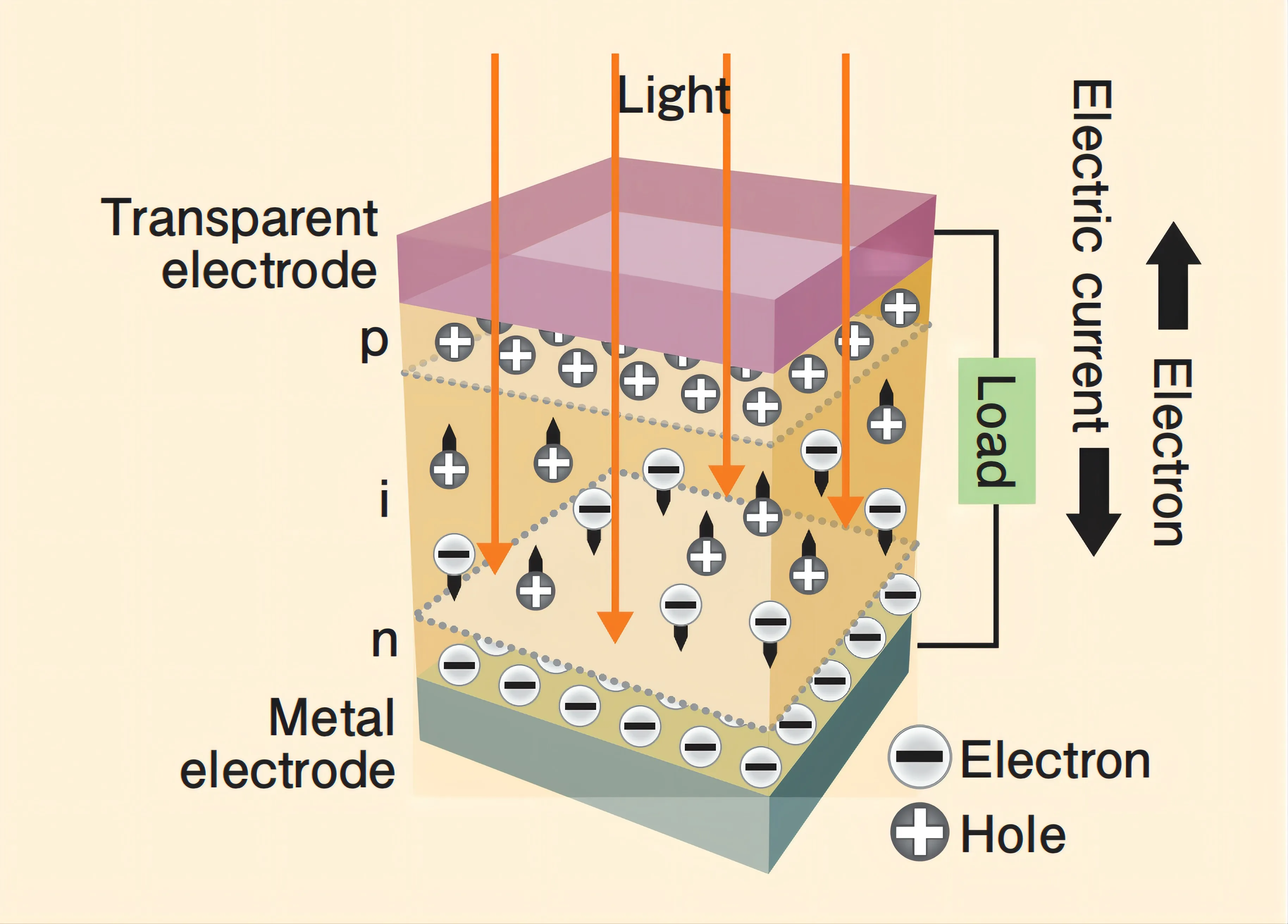

Principles of Power Generation




Power is generated in solar cells due to the photovoltaic effect of semiconductors.
* When a semiconductor is exposed to a light source of suitable intensity, a large number of electrons (－) and holes (＋) are generated and form electricity.
* At a p/n junction between two different semiconductor materials, the electrons are collected in the n-type material and the holes are collected in the p-type material by internal electric field.
* When an external load is connected, electricity flows through the load. Then generated electricity can be used.


Features
Copes easily with device’s required drive voltage

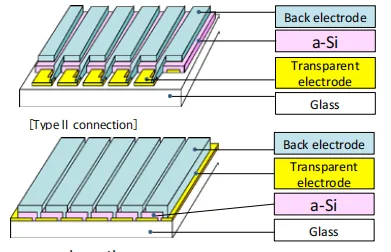

Since multiple cells can be simultaneously connected in a series when the solar cells are formed, unlike the fabrication technique used with crystalline silicon solar cells in which multiple solar cells are severed and connected, it is easy to create cells with a variety of voltages.


Variety of shapes and forms
The methods used in amorphous silicon films have special features that allow other substrates, such as stainless steel or plastic films, to be used instead of customary glass substrates. This means that previously unknown solar cells can also be created, including solar cells that are round, square, or any other complex shape or solar cells that can even be bent. It is also possible to create areas in these solar cells that just consist of transparent glass by etching.
High sensitivity within visible light spectrum
The human eye is sensitive to light from a range of about 400 to 700 mm wavelengths. Since amorphous silicon solar cells are sensitive to light with essentially the same wavelengths, they can also be used as visible light sensors.




Amorphous cell applications : examples of use
●Wristwatches / Clocks / Wall clocks ●Calculators
●Energy-harvesting equipment
●Wireless sensor networks / RFID tags / RF remote controls for digital home appliances, etc.
●Power sources for multiple cards attached to displays
●Power sources of wearable terminals ●Toys ●e-books
●Garden lights, sensor lights, LED blinkers (curbstone markers, etc.)
●Car accessories and battery chargers
●Security devices ●Power sources for other electric equipment and digital displays
●Reduction of battery replacements and extension of battery life for appliances using dry cells and coin batteries ●loT
●The power supply for human body sensors, the power supply for temperature & humidity sensors

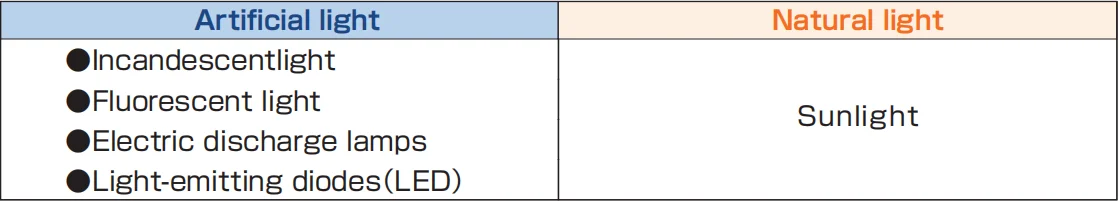

Amorphous cell Categories of Light Sourcestion

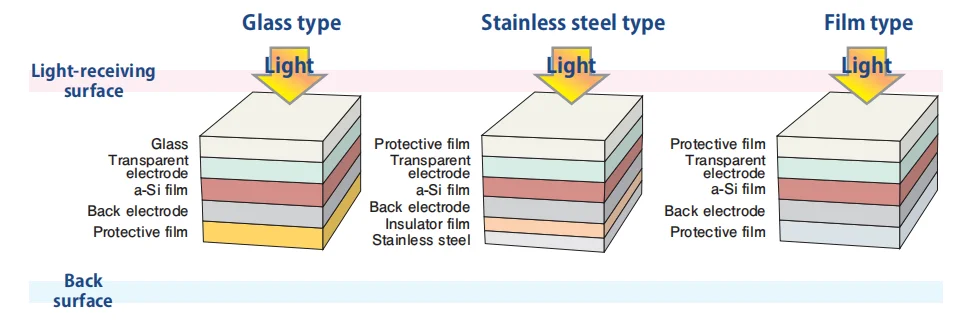

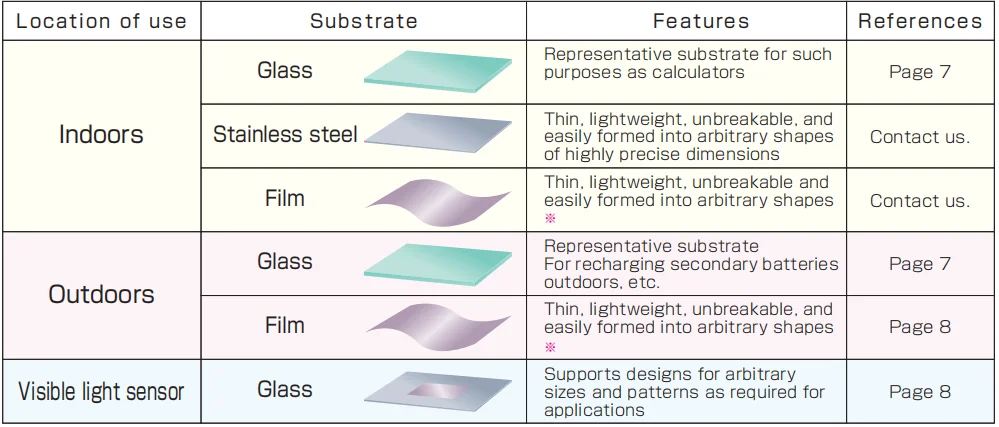

Amorphous cell Configuration




Packing & Delivery




Packaging Details:Strong cardboard boxes with enough foam
