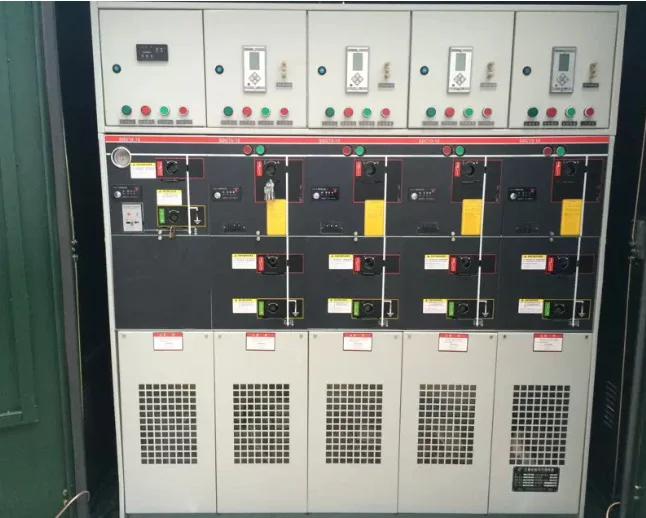

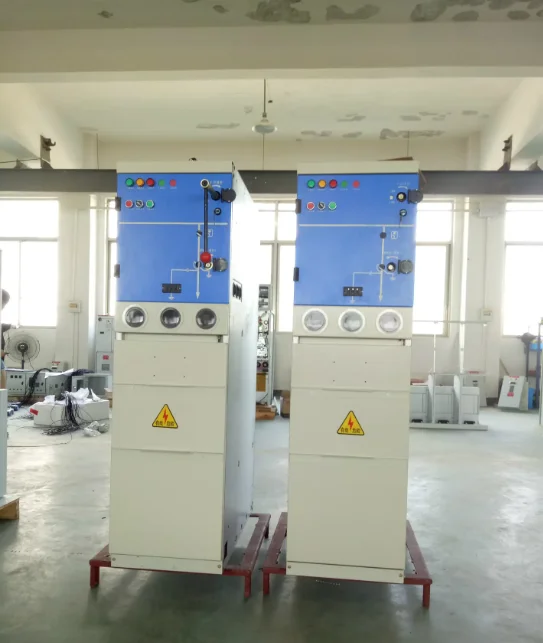

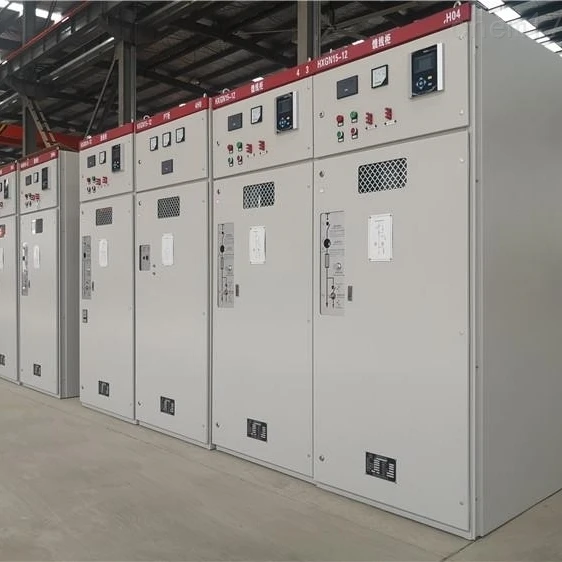

10KV HXGN15 12 type complete set of boxes to change the opening and closing of the inflatable cabinet ring network box
- Category: >>>
- Supplier: Shanghai Infraswin Energy Co. Ltd.
Share on (1601274408683):
Product Overview
Description
Product Description
Specification
item | value |
Size | 325*795*1400 |
Voltage | 12v/24v |
Current | 630A1250A |
Rated Voltage | 12kV, 24kV |
Place of Origin | China |
Shanghai | |
Brand Name | Infraswin |
Model Number | SF6 |
Material | Steel/Metal |
sealing property | yearly gas leakage rate≤0.01% |
level of protection | IP67 |
rated pressure | 0.04Mpa |
nominal voltage | 12kV/24kV |
rated frequency | 50/60 Hz Switchgear |
main bus-bar rated current | 630A 1250A |
drop-out power | E3 E2 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Technical characteristics of the product
5.1 Fully sealed structure, super environmental adaptability
- The secondary live part is completely sealed in the SF6 air box filled with 0.04Mpa, and the current inlet and outlet parts are
all connected by touchable cable connectors. All live parts are fully sealed and fully insulated. Therefore, the product operates
safely in the plateau area, strong wind and sand, high salt spray, serious pollution and severe humidity and other harsh
environmental conditions.
5.2 Small size and flexible expansion
Modular design scheme, the combination of each unit box is flexible, the gas box can be arbitrarily extended, and can be separate
Disassembly to maximize the complexity and diversity of distribution design solutions in various regions.
5.3 Advanced design means are adopted to ensure product performance parameters by computer 3D simulation technology, electric
field simulation analysis, magnetic field simulation analysis and mechanism motion simulation analysis. Ensure the accuracy of
technical parameters.
5.4 Advanced welding and sealing technology
The stainless steel plate of the air box is cut by laser and welded by ABB welding robot to fully ensure the dimensional accuracy
and welding quality of the plate. Constant pressure vacuum and helium leak detection technology are used to ensure the tightness,
and the measured annual leakage rate of SF6 gas reaches 0.01%.
5.5 Advanced clean technology
The gas box adopts ultrasonic cleaning technology, and the product is assembled in a clean room to ensure that the moisture
content in SF6 gas reaches below 150ppc, which is higher than the requirements of national standards.
5.6 Intelligent online monitoring and protection means can be realized
The switchgear can be connected through the communication network and the automation system to achieve the remote control,
telemetry, and remote communication "function. It can also realize the functions of distribution network fault isolation, recovery
and network reconstruction.
5.7 Friendly user interface, perfect "five defense" design switchgear can achieve manual and electric operation, simple and
reliable operation process. The overall structure has a perfect "five prevention" interlock design.
5.8 Dedicated cable branch box application solution
As the application of distributed loop switch station is more and more extensive, ZG6 series switchgear is specially designed to
realize the busbar can be left and right through the bushing, which is suitable for the cable branch box with one or more load
switches, to provide users with flexible and economical power distribution scheme.
- The secondary live part is completely sealed in the SF6 air box filled with 0.04Mpa, and the current inlet and outlet parts are
all connected by touchable cable connectors. All live parts are fully sealed and fully insulated. Therefore, the product operates
safely in the plateau area, strong wind and sand, high salt spray, serious pollution and severe humidity and other harsh
environmental conditions.
5.2 Small size and flexible expansion
Modular design scheme, the combination of each unit box is flexible, the gas box can be arbitrarily extended, and can be separate
Disassembly to maximize the complexity and diversity of distribution design solutions in various regions.
5.3 Advanced design means are adopted to ensure product performance parameters by computer 3D simulation technology, electric
field simulation analysis, magnetic field simulation analysis and mechanism motion simulation analysis. Ensure the accuracy of
technical parameters.
5.4 Advanced welding and sealing technology
The stainless steel plate of the air box is cut by laser and welded by ABB welding robot to fully ensure the dimensional accuracy
and welding quality of the plate. Constant pressure vacuum and helium leak detection technology are used to ensure the tightness,
and the measured annual leakage rate of SF6 gas reaches 0.01%.
5.5 Advanced clean technology
The gas box adopts ultrasonic cleaning technology, and the product is assembled in a clean room to ensure that the moisture
content in SF6 gas reaches below 150ppc, which is higher than the requirements of national standards.
5.6 Intelligent online monitoring and protection means can be realized
The switchgear can be connected through the communication network and the automation system to achieve the remote control,
telemetry, and remote communication "function. It can also realize the functions of distribution network fault isolation, recovery
and network reconstruction.
5.7 Friendly user interface, perfect "five defense" design switchgear can achieve manual and electric operation, simple and
reliable operation process. The overall structure has a perfect "five prevention" interlock design.
5.8 Dedicated cable branch box application solution
As the application of distributed loop switch station is more and more extensive, ZG6 series switchgear is specially designed to
realize the busbar can be left and right through the bushing, which is suitable for the cable branch box with one or more load
switches, to provide users with flexible and economical power distribution scheme.
Shanghai Infraswin Energy Co., Ltd. was established in 2009 and successfully listed on the New Third Board in 2017, stock abbreviation: Infraswin Energy, stock code: 871504. It is a high-tech enterprise in Shanghai, a small and medium-sized science and technology enterprise in Shanghai, and a "specialized, specialized and new" enterprise in Shanghai. The company has 37 patent authorizations, and is a small giant enterprise of science and technology in Fengxian District, an enterprise with intellectual property advantages, a Shanghai expert workstation and a member of the Shanghai Green Building Committee.
The company is located at No. 720, Yuandong Road, Fengxian District, Shanghai, China, integrating design, manufacturing and sales, producing power distribution equipment with voltage levels of 12kV and below, with CE certification and UL certification, in line with GB/IEC standards.
ODM partner of Ri4power series products in Germany; Project partners of Rockwell in the United States, Siemens in Germany, ABB in Switzerland, Panasonic Panasonic in Japan and GEA in China.
The company is located at No. 720, Yuandong Road, Fengxian District, Shanghai, China, integrating design, manufacturing and sales, producing power distribution equipment with voltage levels of 12kV and below, with CE certification and UL certification, in line with GB/IEC standards.
ODM partner of Ri4power series products in Germany; Project partners of Rockwell in the United States, Siemens in Germany, ABB in Switzerland, Panasonic Panasonic in Japan and GEA in China.
