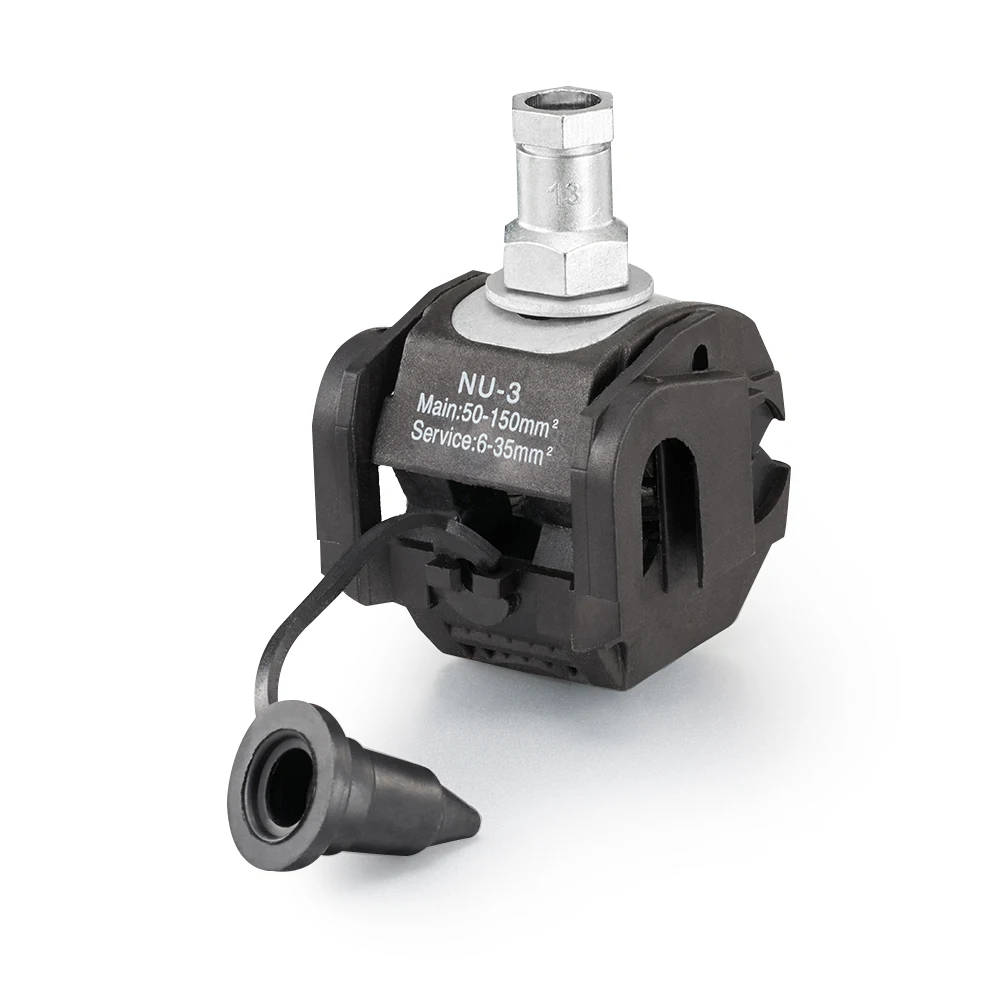

Wholesale IPC Connectors Waterproof IPC Connectors 15nm Best Nsi ipcs7501 Insulation Piercing Connector 750 10 Aw Factory NU 3

Instructions:

Purpose of Insulation piercing connectors (NU) is to connect main and one, two tap conductor s ' of section, how is written on NU body. Type without letter B serves to connect isolated conductors, with letter B bare conductors.NU for one tap conductor is equipped with cable termination cap PCEC16/120, for two output wires-no cap.

1).Adjust the connector nut to suitable location.

2).Put the branch wire into the cap sheath fully.

3).Insert the main wire, if there are two lays of insulated lay in the main cable, should strip a certain length of the first insulated lay from inserted end.

4).Turn the nut by hand, and fix the connector in suitable location.

5).Screw the nut with the sleeve spanner.

6).Screw the nut continually until the top part is cracked and dropped down.

Shipping:

Port of Departure: Ningbo or Shanghai

Delivery Time: 15 days after receiving the payment
