Full automatic customizable waste tire shredding recycling machine / tyre shredder
Full automatic customizable waste tire shredding recycling machine / tyre shredder
Full automatic customizable waste tire shredding recycling machine / tyre shredder
Full automatic customizable waste tire shredding recycling machine / tyre shredder
Full automatic customizable waste tire shredding recycling machine / tyre shredder
Full automatic customizable waste tire shredding recycling machine / tyre shredder
Full automatic customizable waste tire shredding recycling machine / tyre shredder

Full automatic customizable waste tire shredding recycling machine / tyre shredder

Share on (1601274465522):


Price:$12,500.00

Quantity:


Product Overview

Description

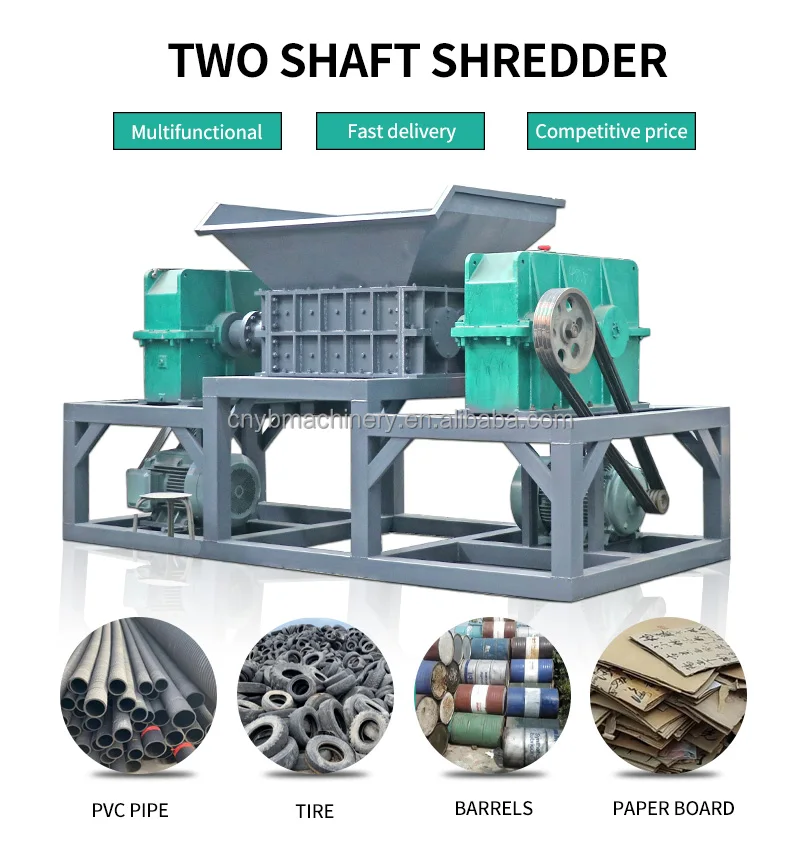

Double shaft shredder is a kind of machine used for material coarse crushing, generaly used in the crushing or recycing and reuseindustry for processing unprocessed raw materials or waste materlals shredder through the power system to drive the spindle todrive the blades rotor rotation, through the blades and bades to cut each other, Can shrd scran metal, plastic, tires, furnitre.


Model
YB600
YB800
YB1000
YB1200
YB1400
YB1600
Customized

Power
KW
22*2
30*2
37*2
45*2
55*2
75*2













Customizable models according to customer needs
HP
30*2
40*2
50*2
60*2
75*2
100*2
Speed of revolution
8-20rpm
8-20rpm
8-15rpm
8-12rpm
8-12rpm
8-12rpm


  Reducer
zq500
zq650
zq750
zq750
zq850
zsy400
Different types of reducers can be selected based on the customer's feeding situation (three shaft reducers, four shaftreducers,hard tooth reducers, planetary reducers, etc.) ,which affectsproduct prices
Blades quantity
20mm-30
40mm-20
50mm-20
60mm-20
70mm-20
80mm-20
The thickness and quantity of blades can be customized based on the shredding material and shredding effect

Bladesdiameter
220mm
300mm
400mm
450mm
500mm
600mm
he blades diameter, blade tooth shape and number of teeth of the blade can be customized based on the shredding material and
shredding effect ,which affects product prices.
Bladesmaterial
The material of the blades can be customized according to the customer's shredding materials (55sicr、5crsi、9crsi、skd11、m6v、h13)
and actual usage, which affects the product price
Discharge size
20-80mm
30-150mm
50-200mm
50-200mm
80-300mm
80-300mm
    Feeding
 hopper size
1x0.8m
1.2x1m
1.5x1m
1.8x1.2m
2x1.2m
2.5x1.5m
The size and appearance of the feeding hopper can be customized according to the customer's feeding situation
Weight(t)
2.5
4.5
6.5
8
10
13
Capacity(t/h)
0.5-0.8
0.6-1
1-3
1-3
2-5
2-5
Overall dimensions
2.8*1.6*1.8m
3.5*1.5*2.1m
4*1.7*2.4m
4.2*1.8*2.4m
4.5*2.2*2.4m
5.2*2.2*2.8m




Motor
Using Beide brand motor(siemens standard motors ltd in china)
Bearing
Using Japan famous brand- NSKoriginal import from Japan factory
We also supply SKF bearing for customer


Rotary shaft
The rotary shaft made by high quality carbon steel,anti-worn
Blade Spacer
Use High quality carbon steel making


Rotary Blade
Using D-2 materail,USA Standard,HRC 58-59 more better than SKD-II,We also can use DC-53 material
Shredding chamber
Using high quality carbon steel making ,running no shake


Contactor
Use Schneider brand in us control system
PLC
Use Siemens PLC for shredder machineAutomatic control rotor shaft postive , negative rotary


Rorging material, spline link, adapt to large torque, long service life.
Connecting shaft system adopts direct connection mode to protect the main shaft and reducer, effectively reduce
resistance,vibration and friction.
PLC power control system is adopted to detect the running data and automatically control the positive and reverse functions
of the machine to keep the machine running more smooth.




The blade is made of alloy material (such as 55SiCr,HD13,SKD-11), which is more wear-resistant, long service life and low
maintenance cost The diameter, width and number of teeth of the blade can be customized according to the material.


High-quality reducer, large torque, strong power.
The motor adopts all-copper core motor, which reduces energy consumption and has a long service life.
















FAQ


Q1.What is the voltage?

A:Normally is 380V,50hz,3 phase,but we can change it according to customer's requirement, like 220V,415V,440V,600V and so on. shredder machine metal shredding machine scrap metal shredder wanrooe medical waste shredder with sterilizer

Q2.Do you inspect the finished products?

A:Yes, each step of production and finished products will be came out inspection by QC department before shipping.
shredder machine metal shredding machine scrap metal shredder wanrooe medical waste shredder with sterilizer

Q3.When is this machine can be deliveried?
shredder machine metal shredding machine scrap metal shredder wanrooe medical waste shredder with sterilizer

A:Normally 15 -20 working days

Q4.We want to visiting your factory first before order,if it is avaliable?

A:Yes,welcome to visit our factory,if our factory have ready machines in stock,we can help test it for you,you can see real
machine by your eyes and it will be the best for you to know our machine more
