Solderless Connector ac220v 120v High Power Chip on Board LED 20W 30W 50W Full Spectrum Grow Light COB Chip for Garden Plant
- Category: >>>
- Supplier: Shenzhen IHY Lighting Co. Ltd.
Share on (1601274476979):
Product Overview
Description
Specification
Our Superiority
We are direct manufacturer with more than 10 years experience.
High quality, prompt delivery and competitive price.
Customers first!
We possess the profesional R&D department.
Your customized design is always available.
Product Name | 220v cob led | ||||||
Model name | 7540 -COB LED 50W | ||||||
Input Voltage | AC110V /AC220V | ||||||
Power | 20W 30W 50W | 1-500W | 0.5-300W | 0.5-10W | |||
Color Temperature | 2700K-7500K, red, green, blue, ice blue, orange, yellow-green, cyan, infrared | ||||||
Luminous Efficiency | 100-170lm/w | ||||||
CRI | RA80 RA90 RA95 RA98 | ||||||
LED Chip | Sanan/Epistar chip/Bridgelux/CREE/Seoul/Samsung | ||||||
PCB Size | Customized | ||||||
Emitting surface size | |||||||
Substrate | 1. Aluminum base, FR4, FPC, glass/ceramic /sapphire /copper substrate etc. | ||||||
Warranty | 5 years | ||||||
Application | Auto lights, bicycle tail lights, medical lights, phototherapy lights, germicidal lights, plant lights, aquarium lights, photography lights, projection lights, work inspection lights, flashlights, downlight ,floodlight , led stage light. led grow light auxiliary lighting for equipment and instruments and other industries. | ||||||
Product Description
What is COB LED ?
COB, (Chips on Board) , multi LED chips are packaged together as one lighting module.
Cob LED Light Source is a High efficiency, integrated, surface light source technology that mount the led chip on the high reflective metal substrate.
This technology without the conception of holder, no plating, no Reflow soldering, no patch process, reduce the 30% process, so it also cuts down about 30% cost.
Driverless 50w led chip feature
A1:MOV for surge protection>4000V passed
A2:1000V Bridge rectifier
A3:Constant current and constant power control
A4:NTC sensor for pcb overheat protection
A5:Voltage-regulator for ic vdd protectio
A6:Driver IC, over voltage and over current control
A7:It can use led dimmer or SCR dimmer to dimming it
Advantage of led chip board
1. LED chip is fixed on the aluminium layer of PCB, the heat can be spread out through aluminium layer rapidly.
2. Low light decay: decay rate is less than 2% after 10000 hours and less than 30% after 35000 hours.
3. Equable and soft irradiancy, no glaring and eye protection.
4. Good reliable, no dead bulb, no dark space, uniform spherical scattering.
5. COB LED encapsulation lighting can be multi-functionally used in variety lighting products.
6. Highly color-rendering index and lighting effect, no ultraviolet and infrared rays, no attraction to mosquitoes.
7. Low voltage work to ensure the products safety used.
8. No contain mercury, lead and other heavy metals, environment friendly.
different models different size.or as our customer's required
Custom Range
Applications

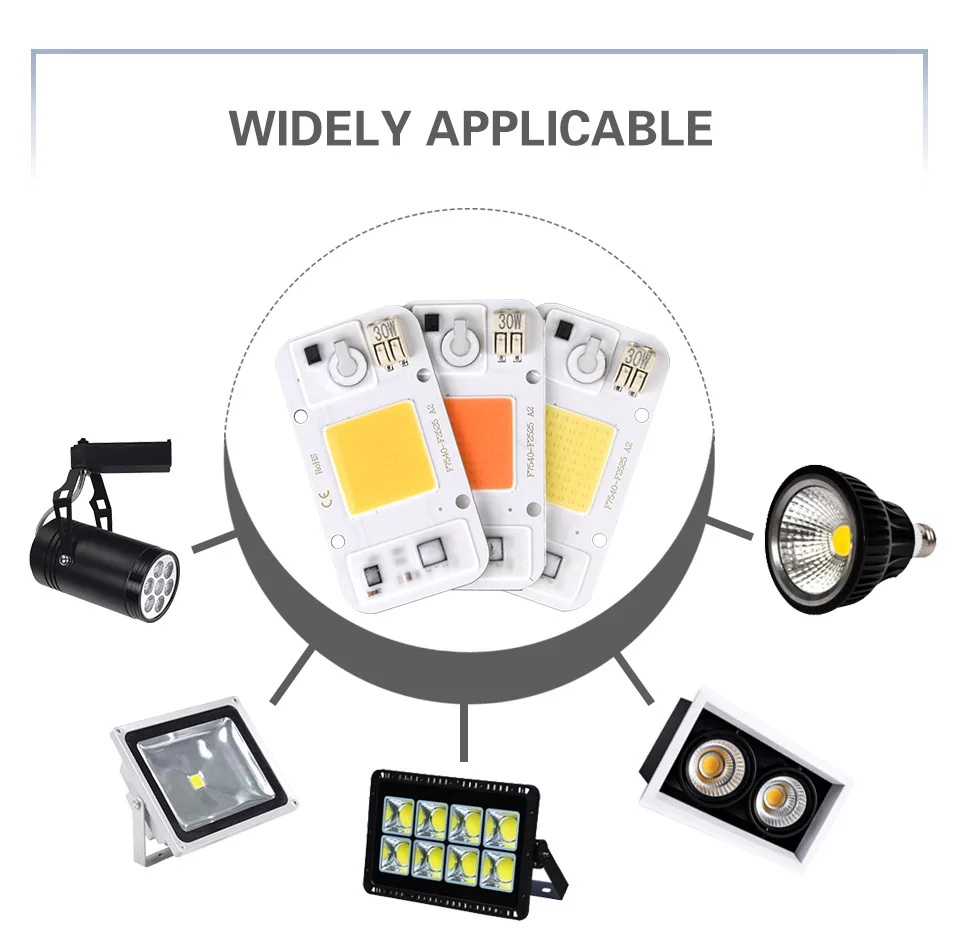

COB LEDs are widely used in car lights, bicycle tail lights, medical lights, phototherapy lights, germicidal lights, plant lights, aquarium lights, photography lights, projection lights, work inspection lights, flashlights, auxiliary lighting for equipment and instruments an other industries.
Customization Process
Quality control
Company Information
FAQ
Q1. Can I have a sample order for led chip board ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led chip board order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for cob chip led?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led chip board product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
If you need further information about our products, please do not hesitate to contact with us!
