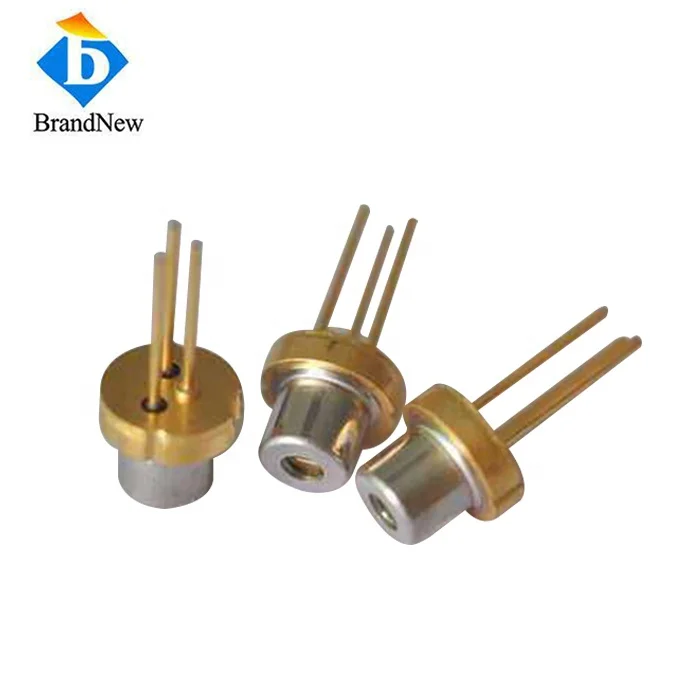

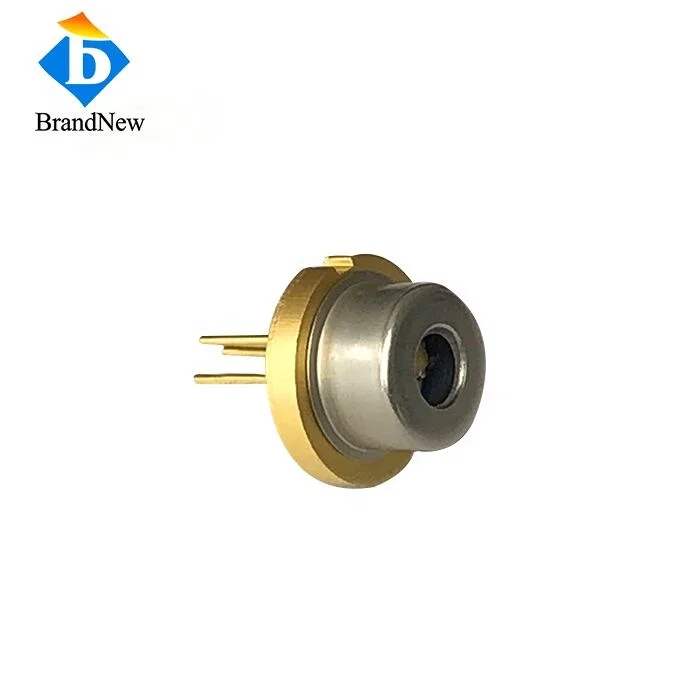

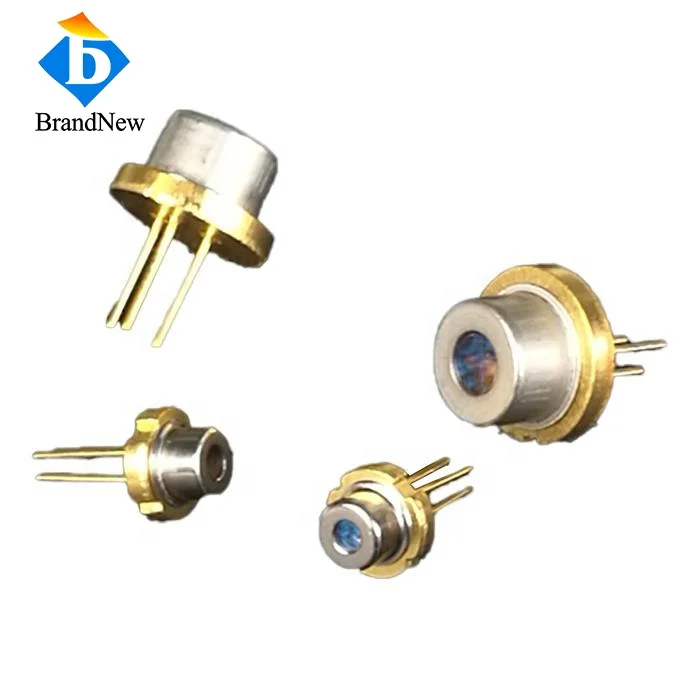

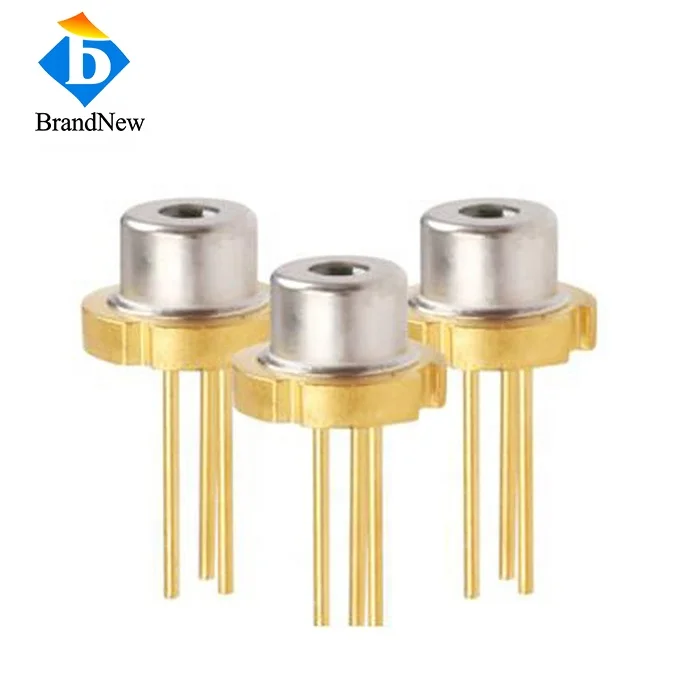

1W 1064nm TO Laser Diode with TO Mount Package
- Category: >>>
- Supplier: Hangzhou Brandnew Technology Co. Ltd.
Share on (1601274479743):
Product Overview
Description
Product Description
1W 1064nm TO 9mm Laser Diode with TO-Mount Package
Features:
• Multi-epitaxial luminous layer stack structure.
• Large optical cavity LOC high power material structure.
• Narrow beam divergence.
• High laser power density.
• Low cost plastic encapsulation.
• Multi-epitaxial luminous layer stack structure.
• Large optical cavity LOC high power material structure.
• Narrow beam divergence.
• High laser power density.
• Low cost plastic encapsulation.
application
• Laser rangefinder.
• traffic surveillance and vigilance.
• infrared illumination.
• Laser radar.
Item | Parameter | Unit | Min. | Typical | Max. | ||
Optical Parameter | Output power | W | 1 | - | |||
Lasing Wavelength | nm | 1060 | 1064 | 1069 | |||
Spectral Width | nm | - | 1.0 | 1.2 | |||
Emitting Area width | µm | - | 50 | - | |||
Temperature Coefficient | nm/℃ | - | 0.30 | - | |||
Fast Axis Divergence | deg | 34 | 38 | ||||
Slow Axis Divergence | deg | - | 7 | 10 | |||
Electrical Parameter | Slope Efficiency | W/A | 1.00 | - | - | ||
Threshold Current | A | - | 0.10 | 0.15 | |||
Operating Current | A | - | 0.50 | 0.56 | |||
Operating Voltage | V | - | 1.75 | 2.00 | |||
Others | Operating Temperature | ℃ | 10 ~ 50 | ||||
Storage Temperature | ℃ | -10 ~ 60 | |||||

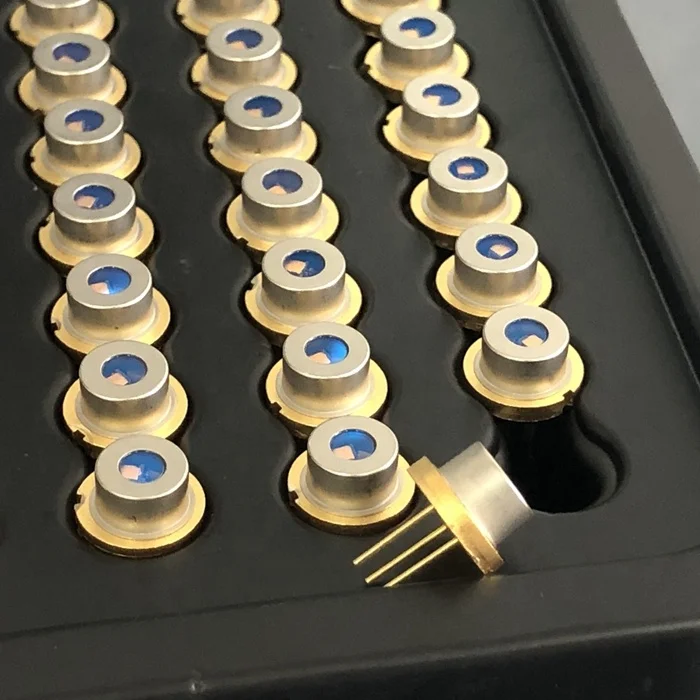

Packing & Delivery
Packing
One set in a case(According to your request)
Delivery
Normally 1-2 Weeks
FedEx,DHL Express,UPS,TNT
Payment Term
T/T and Western Union, For your Choice
Return Policy
Buyer Pay the Shipping Cost.
About us
Hangzhou Brandnew Technology Co., Ltd.
Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60 technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNew's strengths are in talent employees, quality engineering,Process control, product development and volume manufacturing.
Core Competency
◆ Diode Packaging ◆ Beam Shaping
◆ Reliability Testing ◆ Efficient Cooling
