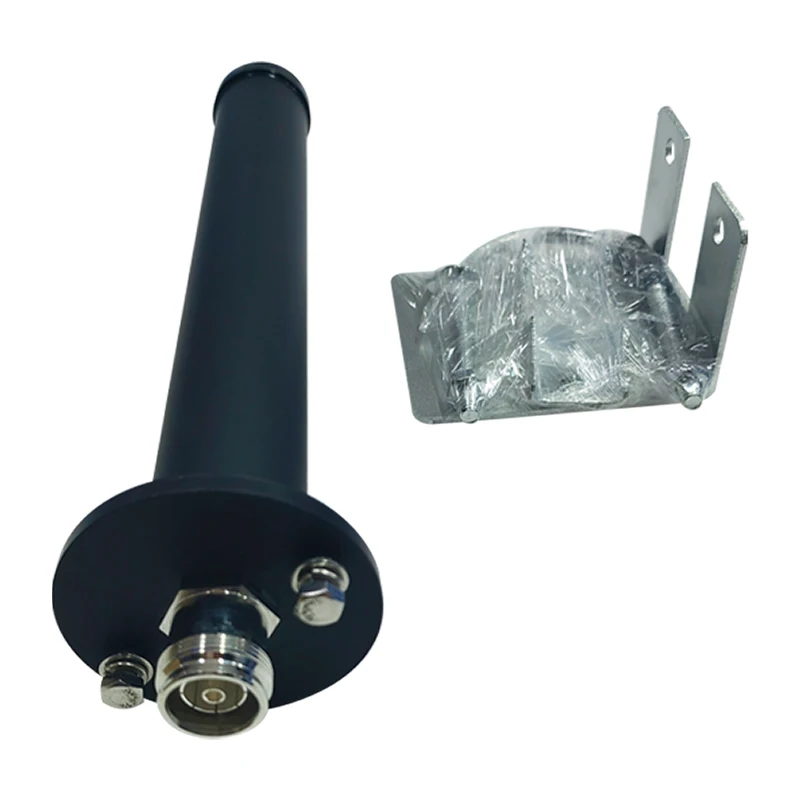

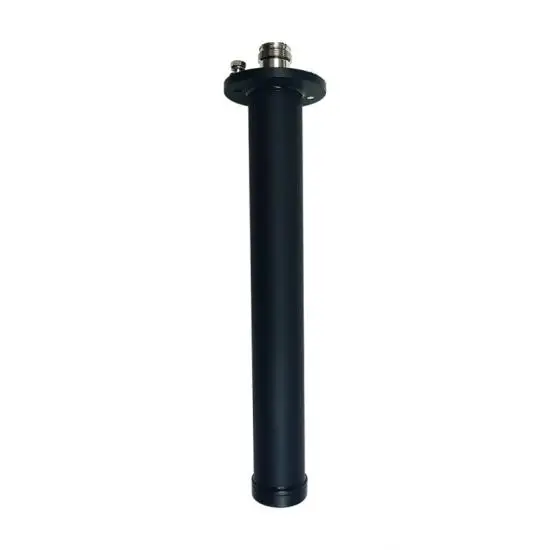

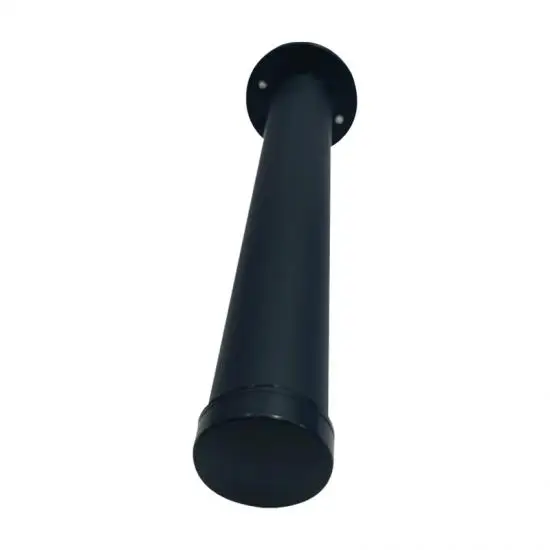

Maniron 698 3800MHz 3.5dBi Omni Directional Fibreglass Antenna With 4.3 10 Female Connector Factory Supply Base station
- Category: >>>
- Supplier: Hefei Setsail Telecom Co. Ltd.
Share on (1601274497498):
Product Overview
Description
Products Description
Electrical Performance | ||
Freguency range (MHz) | 698-960/1710-3800 | |
Polarisation | V | |
Gain(dBi) | 2.5-3.5 | |
Beam width(°) | Hor:360 Ver:55 | |
Impedance(Ω) | 50 | |
VSWR | ≤2.5 | |
Power(W) | 50 | |
Mechanical performance | ||
Connector | 4.3-10 Female | |
Dimensions, HxWxD(mm) | Φ60×250 | |
Weight(kg) | 0.35 | |
Effective wind area(㎡) | ≤0.2 | |
Maximum wind strength(m/s) | 36.9 | |
Radioactive material | Copper | |
Radome Material | Fibreglass | |
Color | Black | |
Operating temperature(℃) | -40～55 | |
Omni-directional fibreglass antenna(698-3800MHz),which can be customized according to customers' requirements.
◆Compact, Low Weight
◆Contain Wide Band 698-3800MHz,with 4.3-10F connector
◆High Reliability
◆Long Warranty Time
◆Simple Installation
◆Contain Wide Band 698-3800MHz,with 4.3-10F connector
◆High Reliability
◆Long Warranty Time
◆Simple Installation

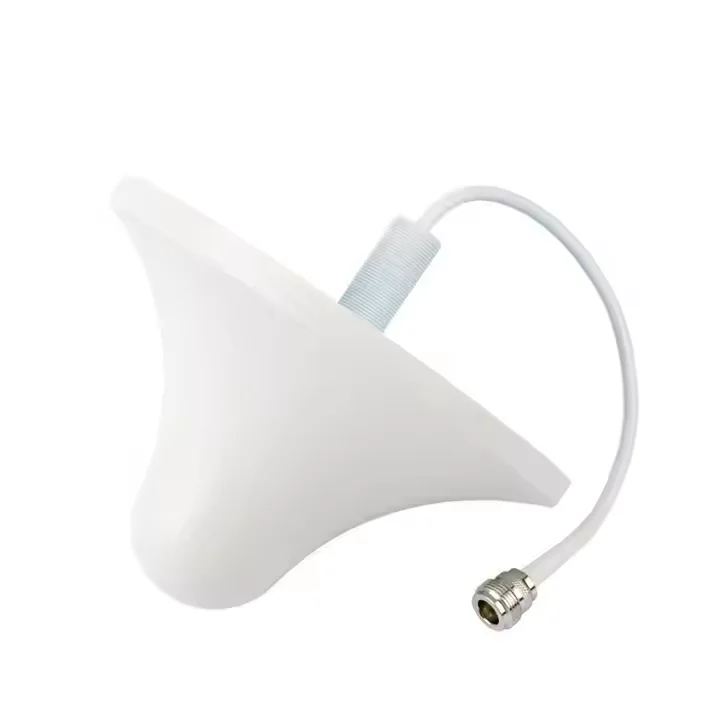

Related Products
Applications
Company Profile
Hefei Maniron Electronic And Technology Co LTD., Esatablished in 2002, is a leading manufacturer of RF components, We offer OEM services.
Headquarters of Maniron Electronic is located at hi-tech developing district in Hefei Anhui, China. Includes two factories. At the
same time, Maniron’s market network has been all over the world.
The Maniron Electronic has a huge fellowship that is composed of many high-level technologists.And also has established a research institution which cooperating with some famous universities.
Headquarters of Maniron Electronic is located at hi-tech developing district in Hefei Anhui, China. Includes two factories. At the
same time, Maniron’s market network has been all over the world.
The Maniron Electronic has a huge fellowship that is composed of many high-level technologists.And also has established a research institution which cooperating with some famous universities.
