4 Post Two Layer Car Parking Lift System Mechanical Vehicle Garage Hydraulic 4 pole Parking Lift Equipment For House & Commerce

Product Overview

Description

I am responsible for the safety of every car!!!

Operating Principle

The transmission mode of the equipment is hydraulic, which hydraulic pump outputs high pressure oil to push hydraulic cylinder, and drive carrying board up or down for parking and retrieving. When carrying board rises to designated position, the car can drive in and drive out.

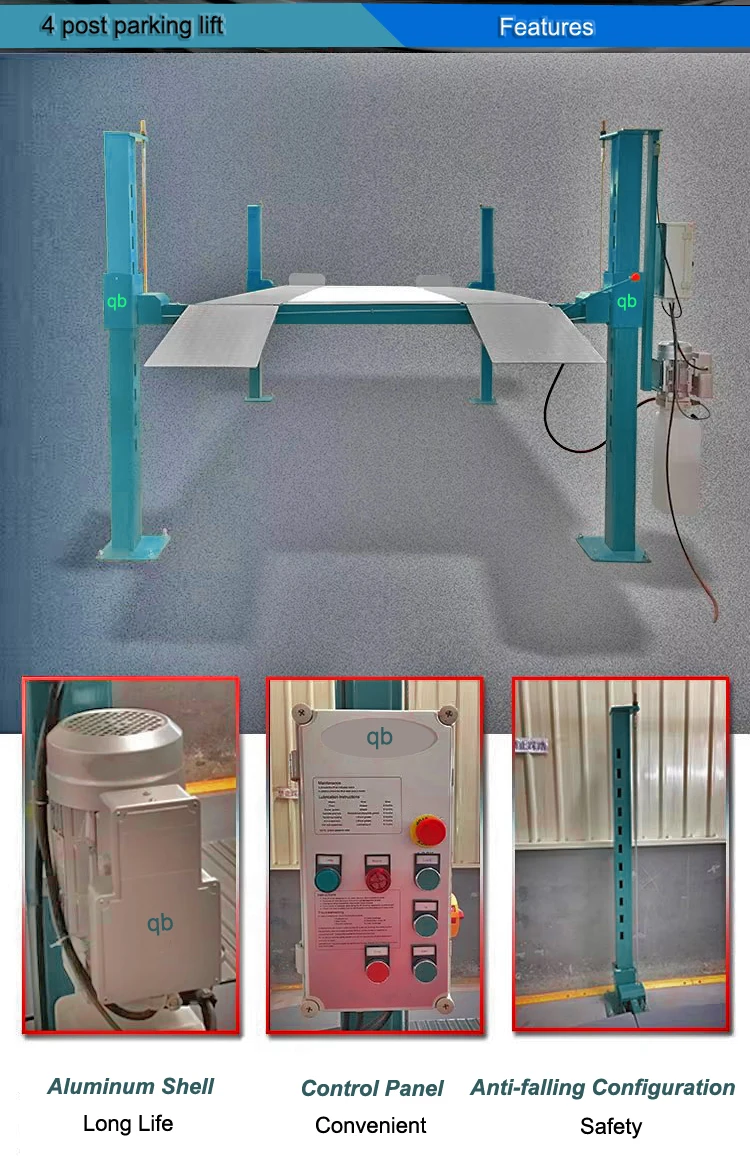

Features

1.Single hydraulic pump drives to rise up wirerope.

2.The system is locked and unlocked automatically.

3.There are anti-dropping metal blocks in columns for safety.

4.Collecting oil structure can prevent oil to drip under car.

5.The self-lubricated bearings are used to ensure safety at any height.

6.Anti-skid design and traction plate are friendly for driving cars.

Parameter

Model No.	FPP707	FPP708
Lifting Capacity	7000lbs/3200kgs	8000lbs/3800kgs
Lifting Height	1800mm	1900mm
Overall Height	2086mm	2138mm
Width Between Posts	2353mm	2353mm
Width Between Boards	949.5mm	949.5mm
Rated Oil Pressure	18Mpa
Rise/Drop Time	60s/50s
Voltage/Power	220v,380v/2.2kw
Operation Mode	Manual
