LaserMen CO2 Laser Engraving Cutting Machine 1390 for Non metal Materials Engraving Cutting
- Category: >>>
- Supplier: Jinan Lasermen CNC Equipment Co. Ltd.
Share on (1601274564562):
Product Overview
Description

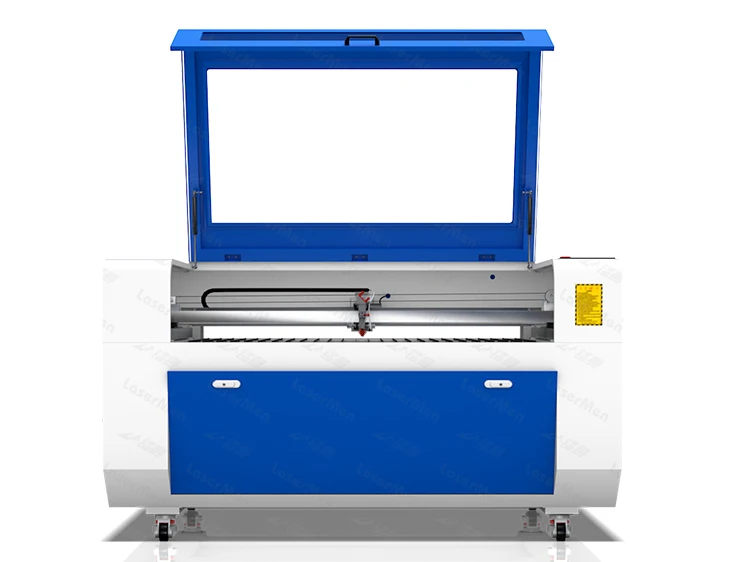

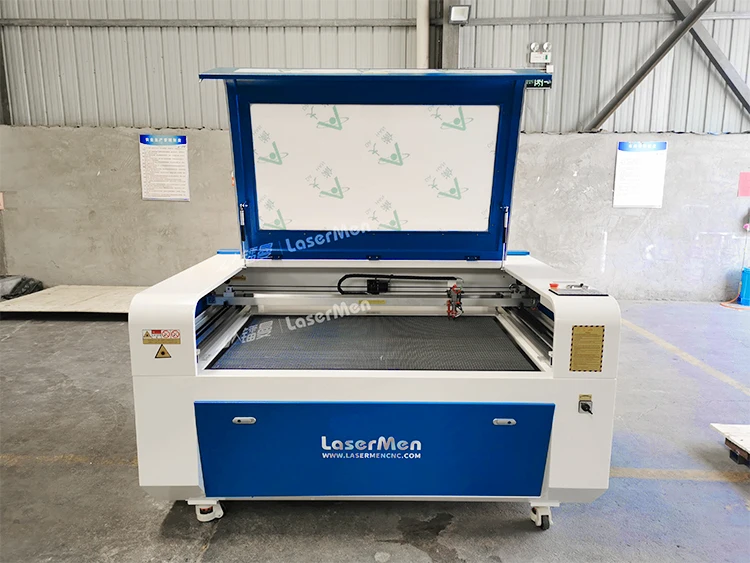

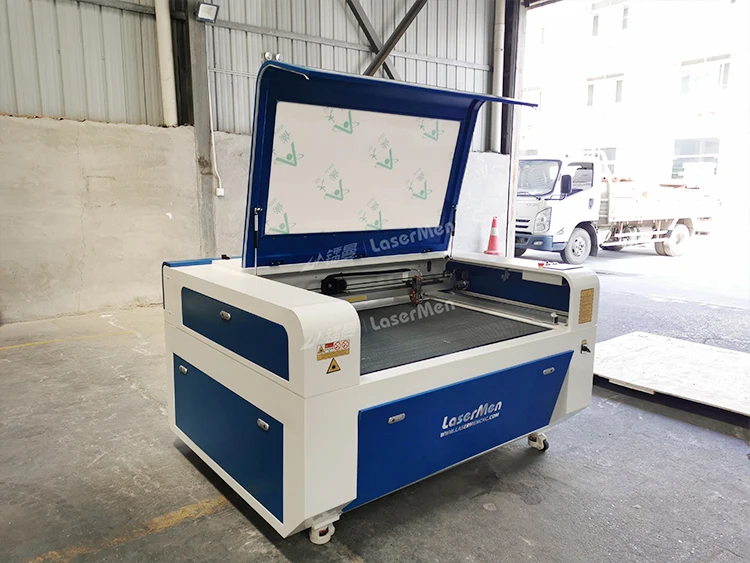

LaserMen CO2 Laser Engraving Cutting Machine 1390 for Non-metal Materials
Machine Parameters
Product name | LM-1390-2 Co2 laser engraving cutting machine |
Cooling system | Water cooling, water pump / S&A industrial water chiller |
Working voltage | Single phase 220V±10% 50Hz (Optional: 220V±10% 60Hz, 110V±10% 60Hz) |
Transmission system | Linear guide rail and belt transmission |
Driving system | Stepper motors and drivers |
Processing materials | acrylic wood mdf plywood glass leather fabric stone plastic rubber PVC etc. |
Machine table | Blade table (alternative: honeycomb table) |
Control system | RuiDa controller RDC6445G |
Air assist | Air compressor |
Exhaust system | Exhaust fan |
Machine color | Blue and white, Accept customization |
Optional function | Wifi, Rotaty, Red dot, auto-focus, motorized up-down table, safety interlock |
Software | RDworks laser sofware |
Laser power | 80w/100w/130w/150w/180w |
Working area | 1300mm*900mm |
Product Description :
1). LaserMen Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is our basic type CO2 laser engraving cutting machine. It is the most cost-effective and multifunctional machine. There are 5 sizes for your choice: 60x40cm, 90x60cm, 130x90cm, 140*90cm, 160x100cm.2). CO2 laser tube power from 80W to 300W optional. Applicable for engraving and cutting various nonmetallic materials, like acrylic, plexiglass, wood, MDF, rubber, PVC, leather, paper, stone, glass, etc. 80-100W can do both engraving and cutting. Higher laser power like 130W and above mainly do cutting work.

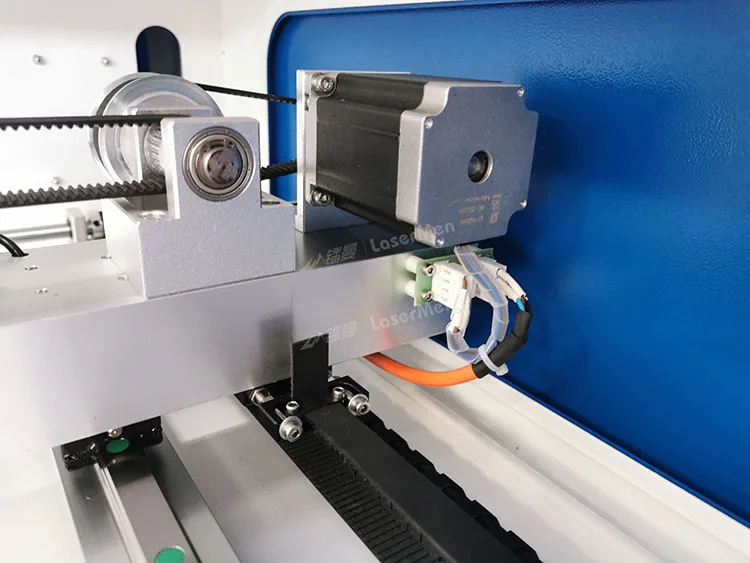

3). Machine driving system is stepper motors. Fast engraving speed is up to 1200mm/sec.
4). LaserMen Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is a whole set machine including laser tube, water cooling system, air blowing pump, exhaust fan, etc. to ensure machine running.
5). Some optional functions like red dot pointer, motorized up-down table, rotary, auto focus, WIFI provide more convenience and applicable range.
6). This machine with reduction wheel, improve cutting accuracy.
7). Material can be passed from front to back, solve the problem that the material size is too long.
Product Details
Famous brand co2 glass laser tube with Yongli or Reci brand with high quality,long life length and precision cutting and engraving effect.
Special liner guide rail good stability and long service life, low noise and high precision.

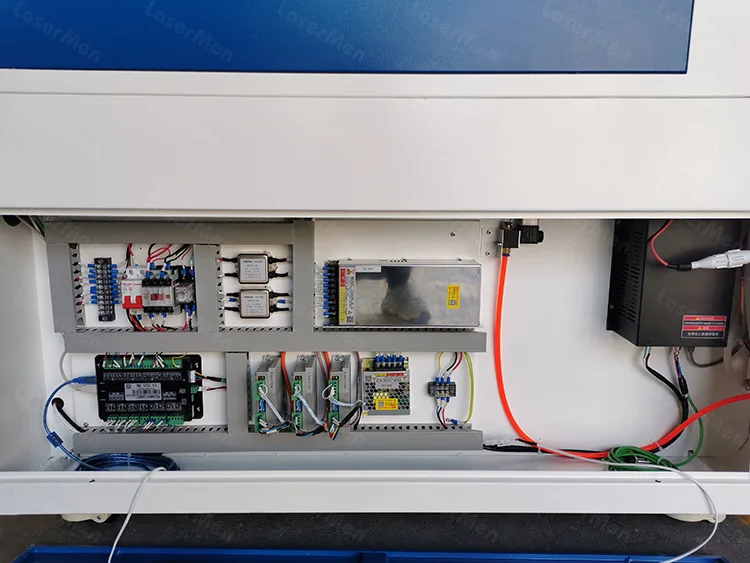

Strong power, reliable performance, safe and fast, ensure the normal operation of the machine.

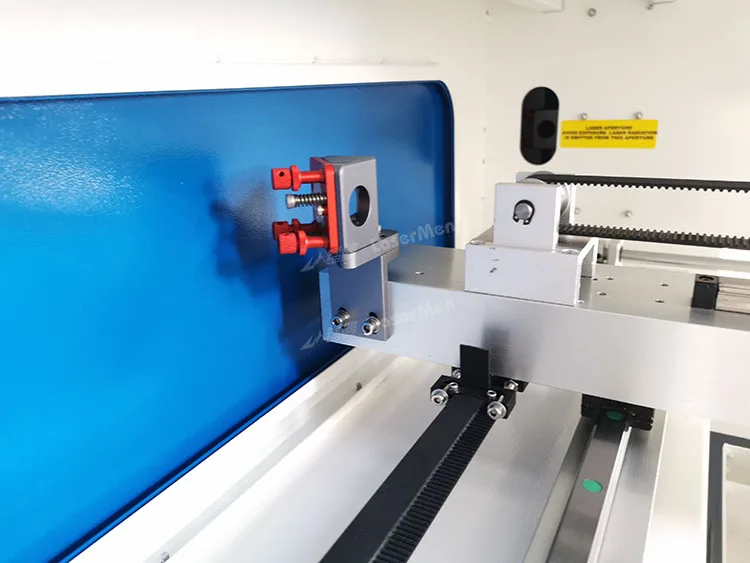

45° mirror adjustment set. Three-point dimming blot for easier dimming .

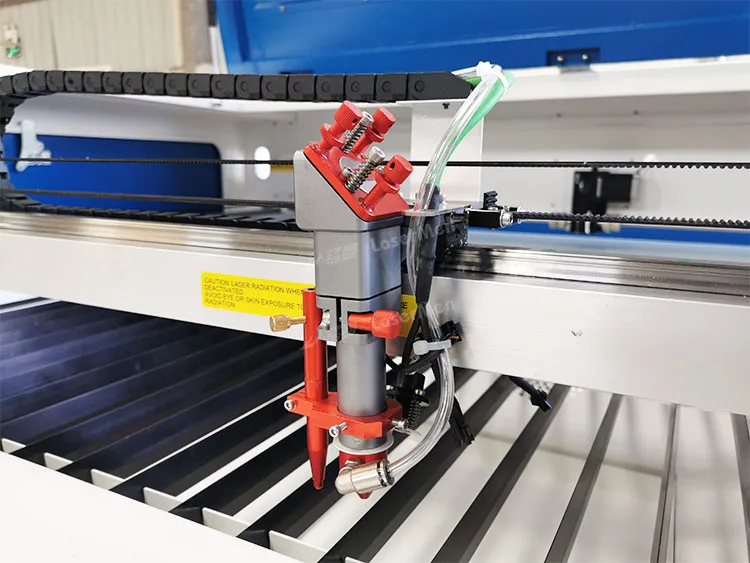

5. Laser Head
The high-precision laser head has a long service life, can be equipped with red light.

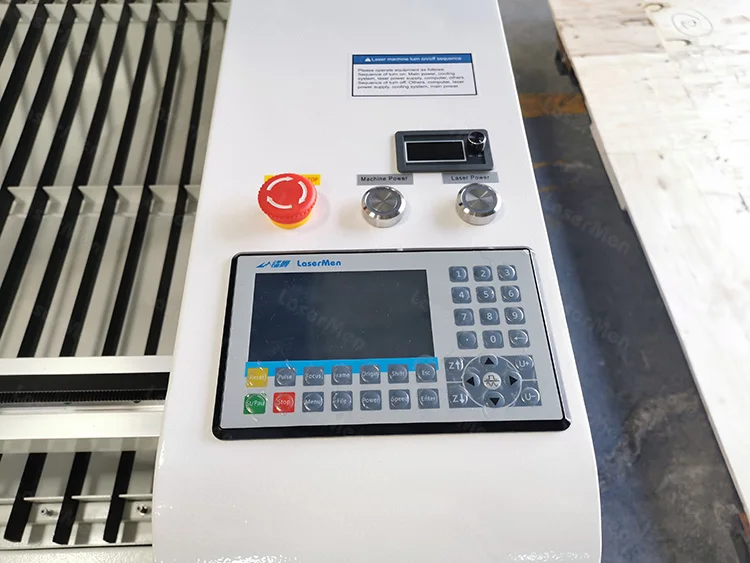

RDC 6445G control system, parameters can be stored, 13 languages can be selected. Easy to operate.

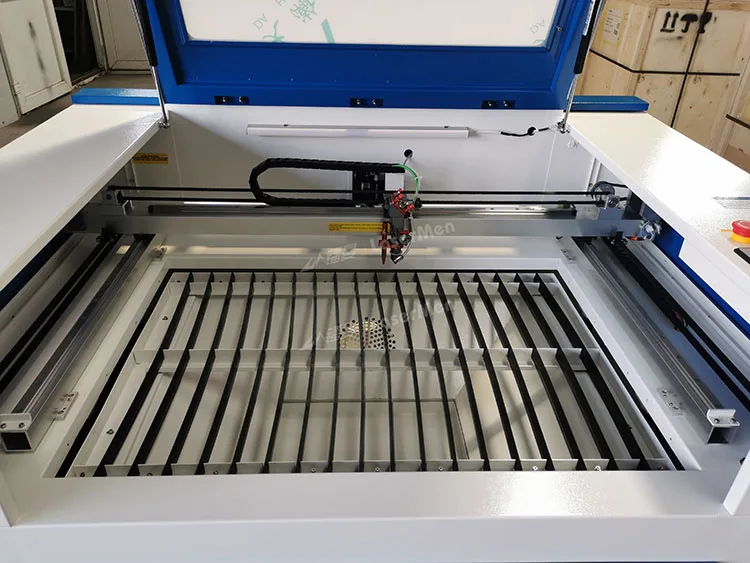

Blade working table for hard material, such as wood, acrylic, mdf, plywood, stone, etc.
Honeycomb working table for soft materials, such as lather, fabric, paper, cloth, etc.
Honeycomb working table for soft materials, such as lather, fabric, paper, cloth, etc.
Take every details seriously to endure that the machine is stable working during service to every customer.

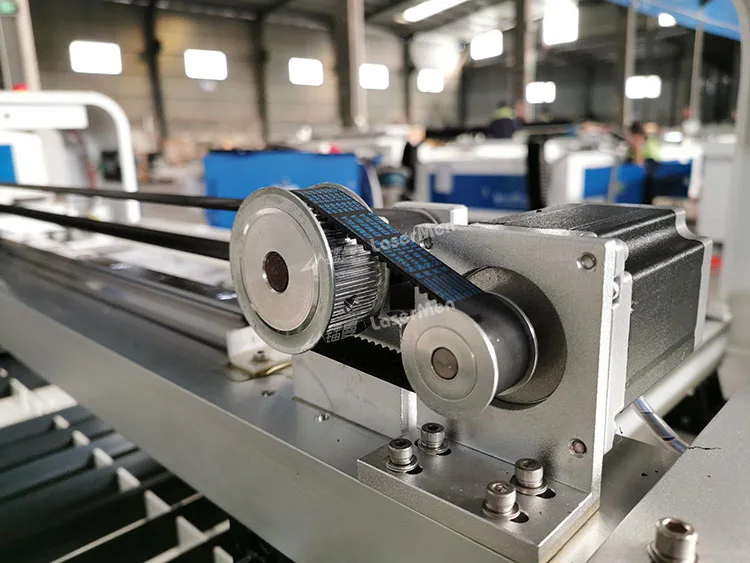

9. Reduction wheel
The reduction wheel has a buffer effect to improve cutting accuracy.

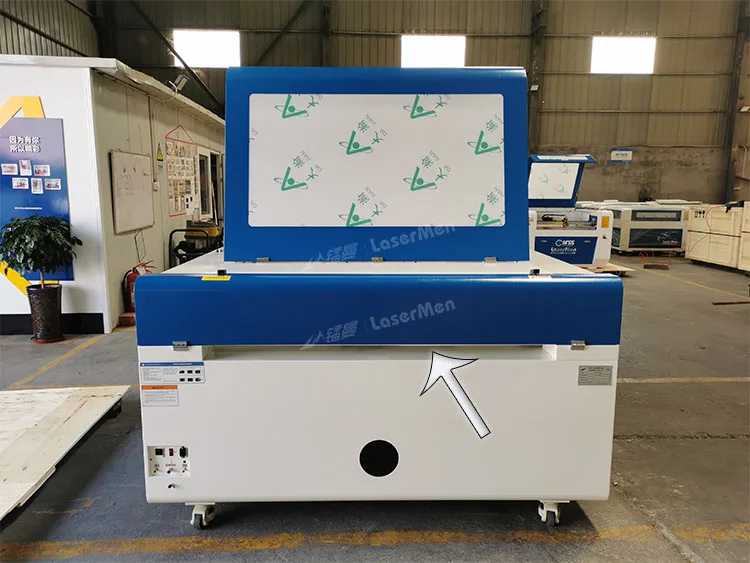

10. Material can be passed from front to back
If the size of the material you are processing is too long, this machine is very suitable for you, it can realize the material from the front to the back, which is convenient.
Optional Functions
Product Application
Applicable Industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertisement, decoration, arts and crafts, electronic and electric appliances, garment industry fabric leather cut, etc.
Working materials:
Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood), bamboo ware, double-color sheets, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lampshade, etc.
Model industry (construction models, aviation and navigation models and wooden toys), advertisement, decoration, arts and crafts, electronic and electric appliances, garment industry fabric leather cut, etc.
Working materials:
Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood), bamboo ware, double-color sheets, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lampshade, etc.
Related Products
Customers are satisfied with the use of our co2 laser engraving machine and highly praised it. The engraving speed is fast and exquisite, and the application range is wide. Click to watch the video.
Company Profile
Jinan Lasermen CNC Equipment Co., Ltd. is a modern laser equipment production enterprise integrating R&D, design, production, sales and service. The company was established in 2012 and offificially registered in 2014. After years of development and innovation, it has taken a place in the laser industry and has become a high-tech enterprise that provides laser processing solutions for global users.
LaserMen has been guided by the principle of customer-oriented, making sure our laser cutting equipment excellent in quality, high performance in price and function, and most wide range in use within the industry. In various industries like metal cutting, advertising, craft, printing, packaging, electronics, textiles, clothing,etc., our company has enjoyed consensus and high praise of customers at home and abroad. We are mainly specialized in all kinds of laser equipment, such as: CO2 laser engraving cutting machine, fiber laser cutting machine, hybrid laser cutting machine, laser welding machine, laser cleaning machine, laser marking machine, etc. Our products have been spread all over the world including more than 150 countries and regions, like Russia, United States, Mexico, Germany, Canada, Italy, Spain, Brazil, Australia, Singapore, Malaysia, India, South Africa, Syria, Japan, Chile,etc.
LaserMen has been guided by the principle of customer-oriented, making sure our laser cutting equipment excellent in quality, high performance in price and function, and most wide range in use within the industry. In various industries like metal cutting, advertising, craft, printing, packaging, electronics, textiles, clothing,etc., our company has enjoyed consensus and high praise of customers at home and abroad. We are mainly specialized in all kinds of laser equipment, such as: CO2 laser engraving cutting machine, fiber laser cutting machine, hybrid laser cutting machine, laser welding machine, laser cleaning machine, laser marking machine, etc. Our products have been spread all over the world including more than 150 countries and regions, like Russia, United States, Mexico, Germany, Canada, Italy, Spain, Brazil, Australia, Singapore, Malaysia, India, South Africa, Syria, Japan, Chile,etc.

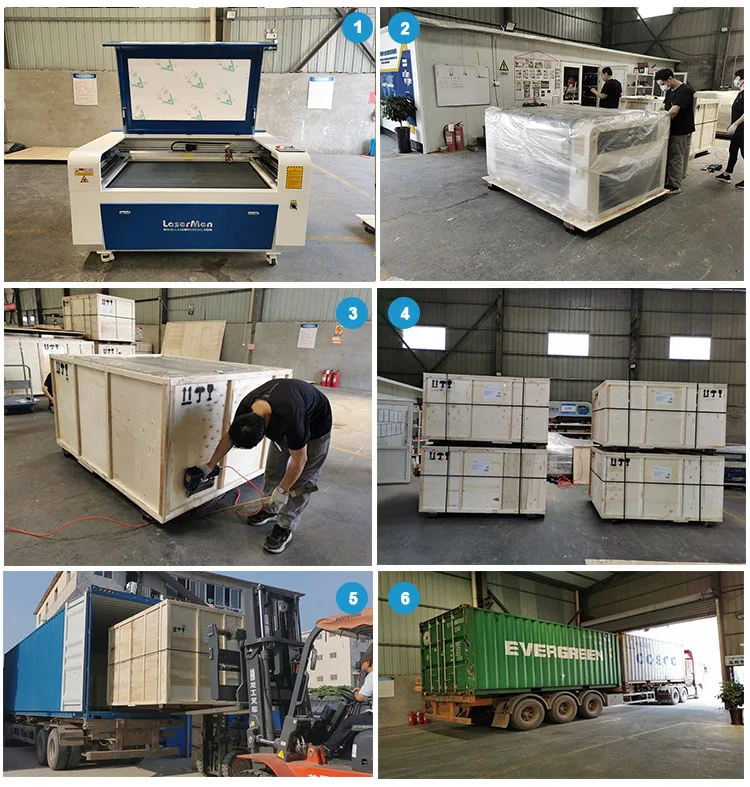

Packing & Shipping
A: If you choose us, you will get best quality, best service, best price and best warranty.
2.Q: I'm not familiar with the machine?
A:You just need to tell us materials, working size and thickness, I'll recommend you the right machine.
3.Q:How to operate the machine?
A:We will deliver English manual and video with the machine to you, If you still need our help, please contact us.
4.Q:How can get the sample to check your quality?
A:If you want to marking sample to check the quality, we can help you do this.First you need to provide the logo or design to us, free mark samples can be provided.
5.Q:Do the machine can be customized according my requirements ?
A:Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW etc.
