2024 New Technology Professional Manufacturing Metal CNC roll bending machine sheet metal
- Category: >>>
- Supplier: Jinan Dezhong Machinery Co. Ltd.Jinan Ltd.
Share on (1601274585185):
Product Overview
Description

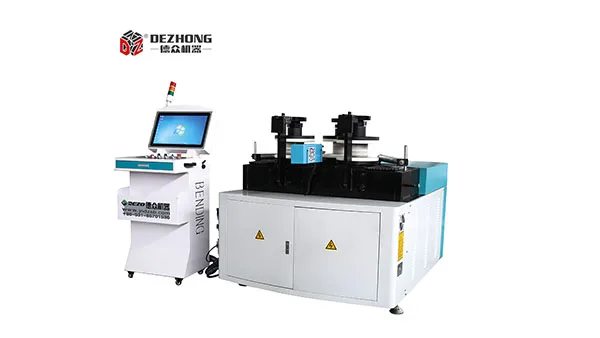

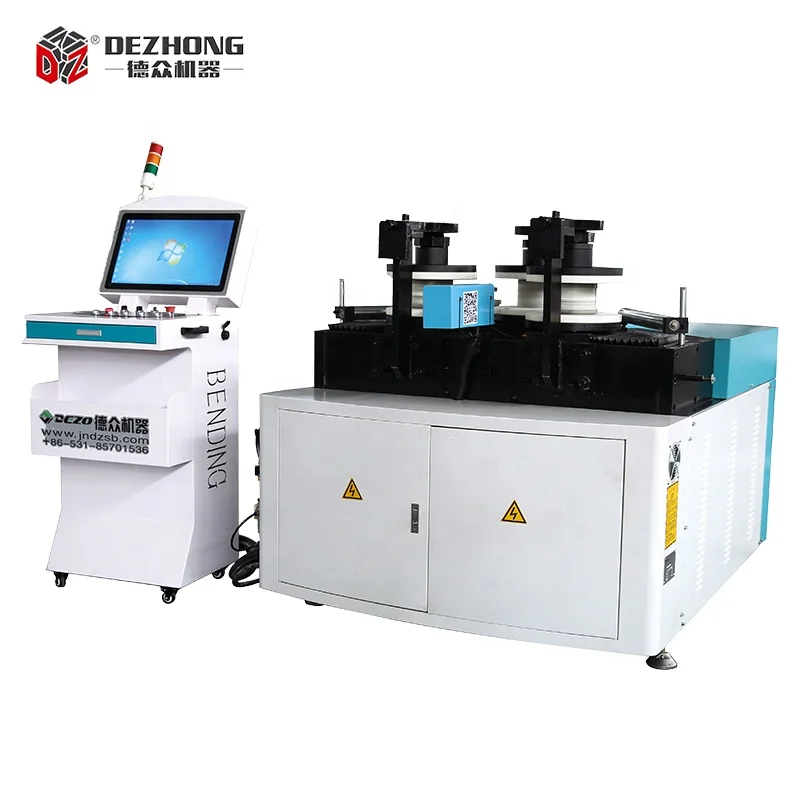

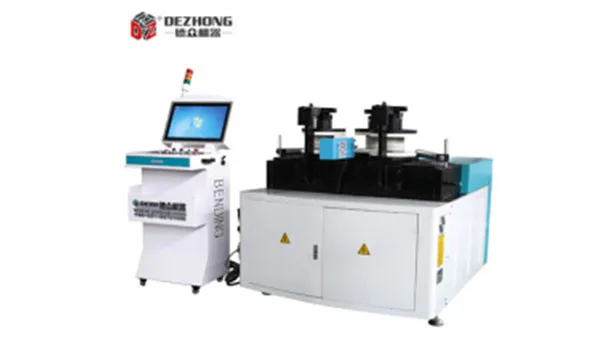

Aluminum profile bending machine
1.The operation screen adopts a 21 inch display screen (suitable and convenient)
2.Adopting German Rexroth hydraulic system, the oil cylinder sealing ring is an imported sealing element (with a long service life)
3.The trajectory of the top axis movement is a straight "I-shaped" structure (moving smoothly)
3.The trajectory of the top axis movement is a straight "I-shaped" structure (moving smoothly)
Bending machine:
Bending machine Can bend U-shaped, C-shaped, S-shaped, circular, elliptical, multi radius forming, etc
Bending machine suitable for bending aluminum profiles, PVC, UPVC, and stainless steel profiles
Power supply | 600/450/380V/220/50HZ/60HZ |
Input power | 11.6KW（energy efficiency） |
Working pressure | 0.2Mpa |
Min. diameter of bending | 100mm |
Max. width of profile | H300×W200 |
Max. diameter of rolls | 300mm |
Lower shaft center-diamensions | 550mm-850mm |
Hydraulic cylinder pressure | 40T |
Roller-holding shaft diameter | 82mm（40 chromium） |
Rotation speed of shaft | 1-15r/min |
Y-roller cylinder positioning accuracy | ±0.02mm |
Max. Y-roller travel | 0-220mm |
Torque | 9900N |
Size of machine | 1900*1500*1700mm |
Weight of machine | 2500kg |
First-class service
Smooth communication, excellent service and an experienced team can support your special customization throughout the order process.
Meet customer requirements
In the whole order process, fully cooperate withtherequiremenls of customers.We can support yourspecial requirements, such
aspacking, loading.coating,free samples and so on.
aspacking, loading.coating,free samples and so on.
RFQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.
