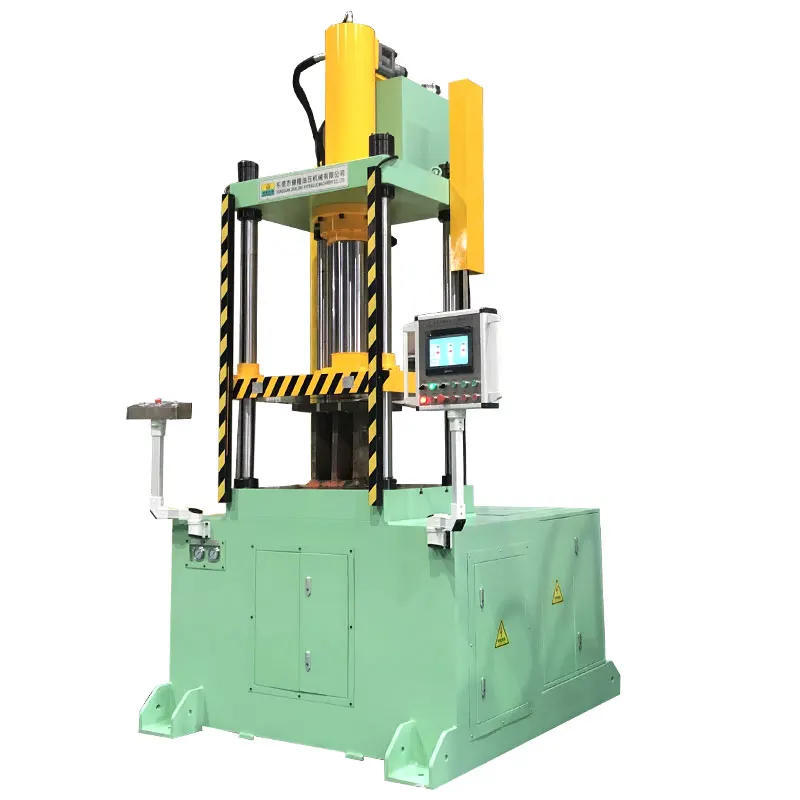

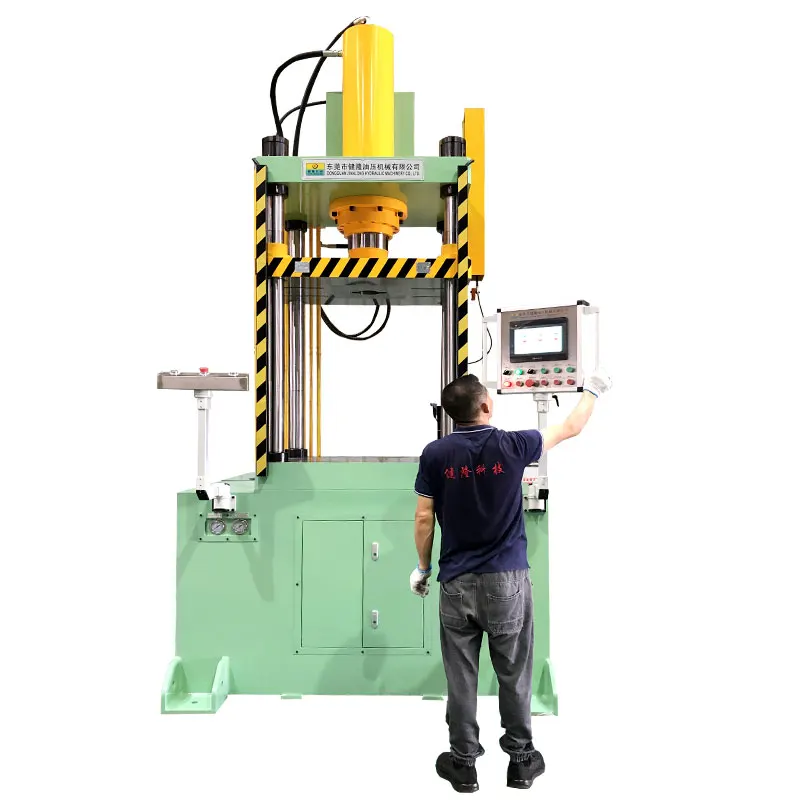

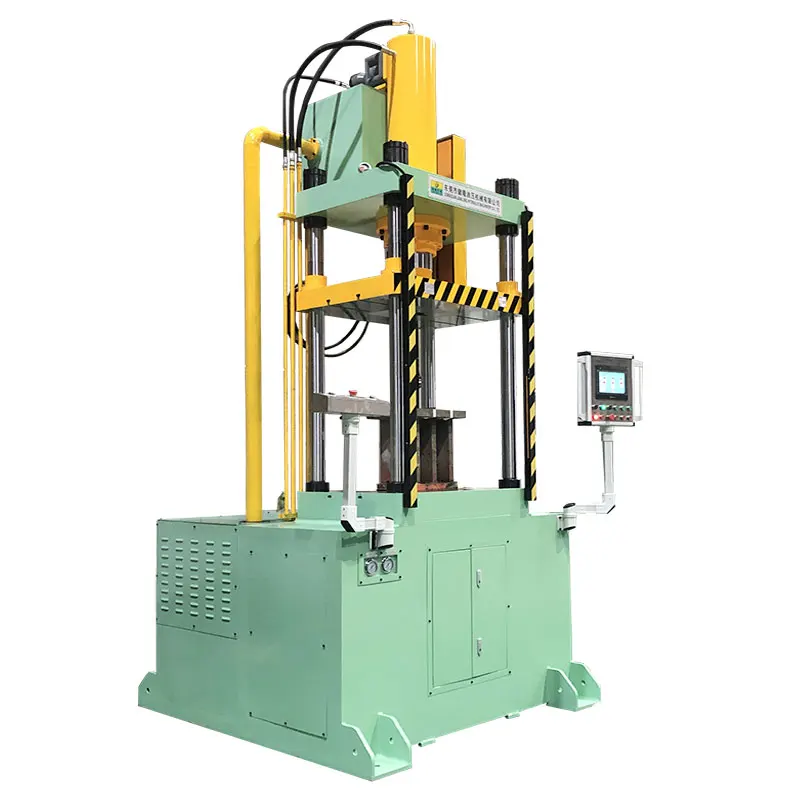

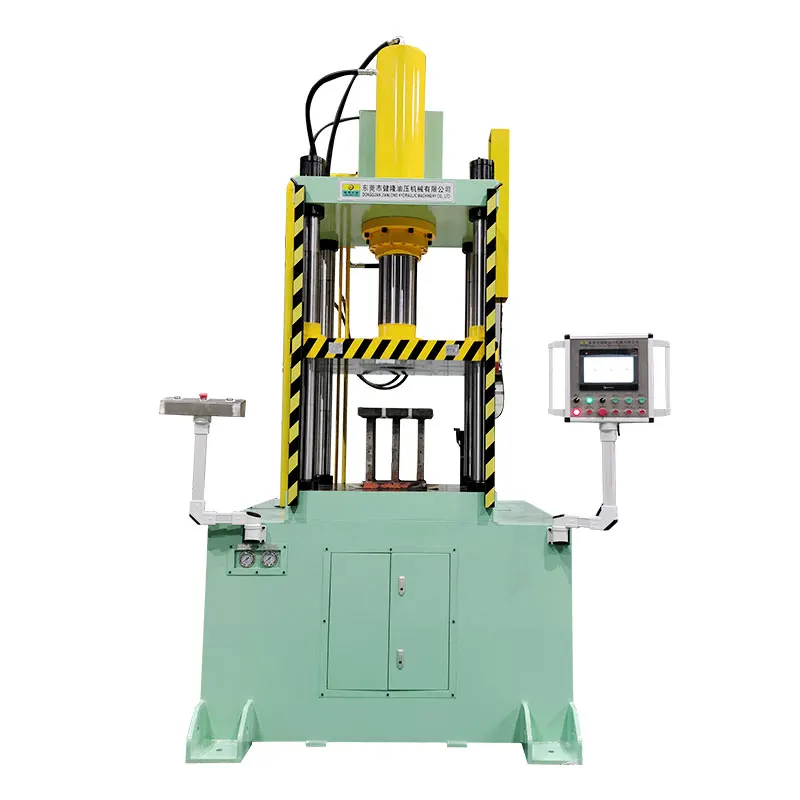

Chinese manufacturer servo system filter shell stretch forming oil press 100T200T
- Category: >>>
- Supplier: Dongguan Jianlong Hydraulic Machinery Co. Ltd.
Share on (1601274593045):
Product Overview
Description
Product introduction
Hydraulic press parameter table
The parameter list is for customers' reference, we can also customize the machine size according to your requirements.
Model | Unit | Product specifications | ||||||||||||||||
JLH1-50TS | JLH1-75TS | JLH1-100TS | JLH1-120TS | JLH1-150TS | JLH1-175TS | JLSH1-200TS | ||||||||||||
Master cylinder | Nominal pressure | ton | 35 | 50 | 60 | 85 | 100 | 125 | 150 | |||||||||
journey | mm | 350 | 450 | 450 | 450 | 500 | 500 | 560 | ||||||||||
Down speed | mm/s | 400 | 380 | 370 | 370 | 360 | 360 | 350 | ||||||||||
Pressing speed | mm/s | 60 | 50 | 50 | 45 | 45 | 45 | 45 | ||||||||||
Return speed | mm/s | 350 | 340 | 340 | 340 | 330 | 330 | 320 | ||||||||||
system pressure | bar | 220 | 220 | 220 | 220 | 240 | 240 | 240 | ||||||||||
Side Press cylinder | Capacity | ton | 25 | 40 | 35 | 50 | 50 | 50 | 60 | |||||||||
journey | mm | 175 | 200 | 200 | 200 | 220 | 220 | 260 | ||||||||||
Unload cylinder | Capacity | ton | 2 | 3 | 5 | 5 | 5 | 5 | 5 | |||||||||
journey | mm | 150 | 180 | 180 | 180 | 200 | 200 | 200 | ||||||||||
Opening height | mm | 600 | 630 | 650 | 650 | 700 | 800 | 900 | ||||||||||
Working table size | Left and right | mm | 500 | 500 | 550 | 600 | 600 | 650 | 700 | |||||||||
Before and after | mm | 550 | 600 | 600 | 600 | 700 | 750 | 850 | ||||||||||
Workbench to ground height | mm | 850 | 950 | 980 | 1000 | 1000 | 1050 | 1080 | ||||||||||
Motor power | KW | 8.6 | 8.6 | 11 | 16 | 24 | 28 | 35 | ||||||||||
Machine size | Before and after | mm | 1350 | 1400 | 1420 | 1480 | 1560 | 1660 | 1750 | |||||||||
Before and after | mm | 1530 | 1580 | 1680 | 1710 | 1880 | 1920 | 2200 | ||||||||||
highly | mm | 2680 | 3080 | 3100 | 3190 | 3250 | 3300 | 3805 | ||||||||||
This parameter table is for reference only, Jianlong hydraulic press factory can be customized according to demand | ||||||||||||||||||
Technical characteristics
Four column hydraulic tension machine series features:
1, the use of advanced two-way cartridge valve oil circuit, oil pressure system less fault, high reliability and small reversing impact;

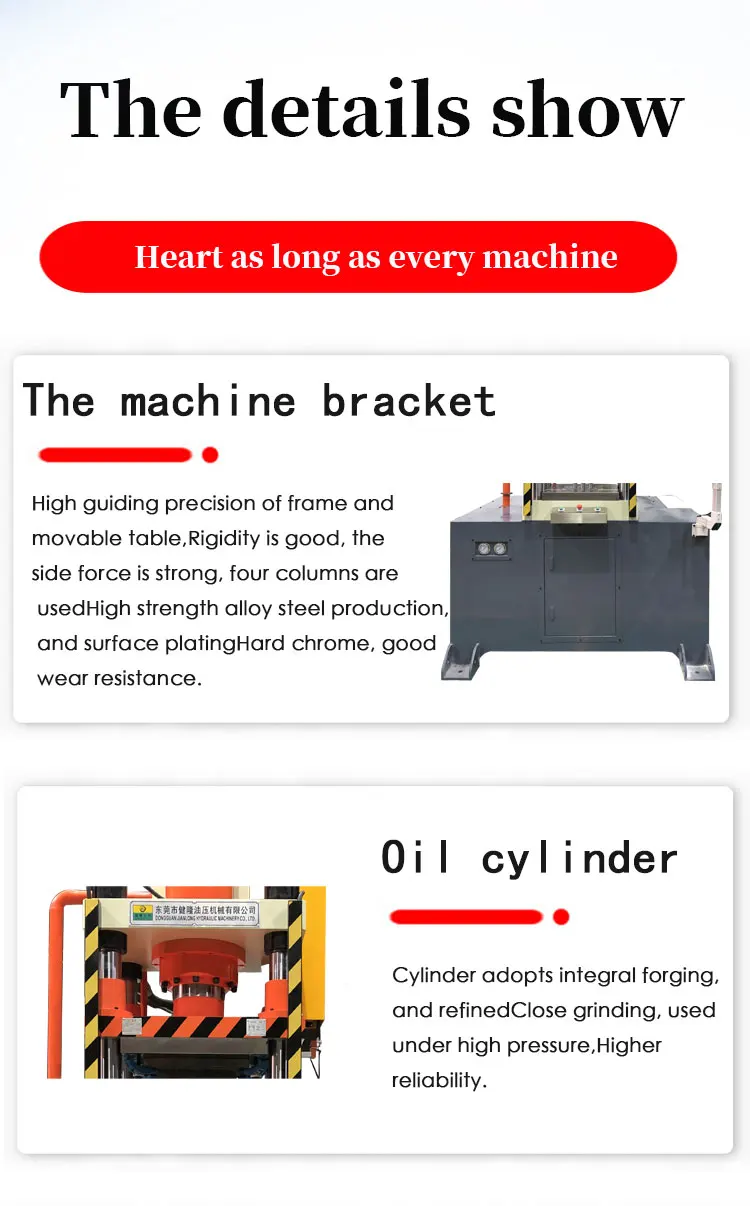

2, the main cylinder adopts integral forging and precision grinding, high reliability under high pressure;
3. The four columns are made of high-strength alloy steel with hard chromium plated surface and good wear resistance;

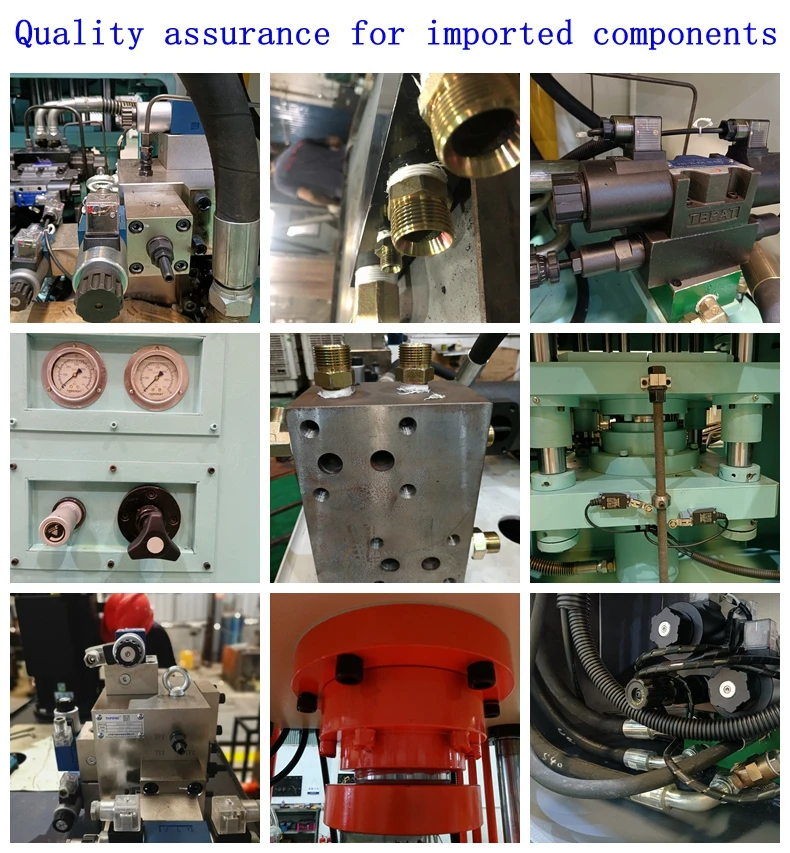

4, the key hydraulic electrical parts of Germany, the United States and Japan famous brand products, high reliability;
5, movable table empty stroke speed, high production efficiency;
6. The movable table is equipped with oil pressure stripping cylinder for upper die stripping.
1, the use of advanced two-way cartridge valve oil circuit, oil pressure system less fault, high reliability and small reversing impact;
2, the main cylinder adopts integral forging and precision grinding, high reliability under high pressure;
3. The four columns are made of high-strength alloy steel with hard chromium plated surface and good wear resistance;
4, the key hydraulic electrical parts of Germany, the United States and Japan famous brand products, high reliability;
5, movable table empty stroke speed, high production efficiency;
6. The movable table is equipped with oil pressure stripping cylinder for upper die stripping.
Scope of application
1, tableware, kitchenware, electric motor metal shell, cover bottom plate and lighting parts and other products stretching
forming; 2, metal or non-metal parts of shaping, stamping, stretching and trimming, etc.
forming; 2, metal or non-metal parts of shaping, stamping, stretching and trimming, etc.
Business recommend
Company profile
Dongguan Jianlong Hydraulic Machinery Co., Ltd. is located in the manufacturing city; Dongguan. The company is headquartered in Liaobu Town, Dongguan City, the company has established an international Business Division,
Offices in Guangxi, Shanghai and Hubei.
Offices in Guangxi, Shanghai and Hubei.
About us
Jianlong Hydraulic Machinery Co., Ltd. has more than 10 years of experience in hydraulic press research and development, design and manufacturing, always adhering to the "customer first forge ahead" service concept,
To provide our customers with fast and professional service! The company is proficient in all kinds of hydraulic machinery design, manufacturing, sales and other services, the main production products:

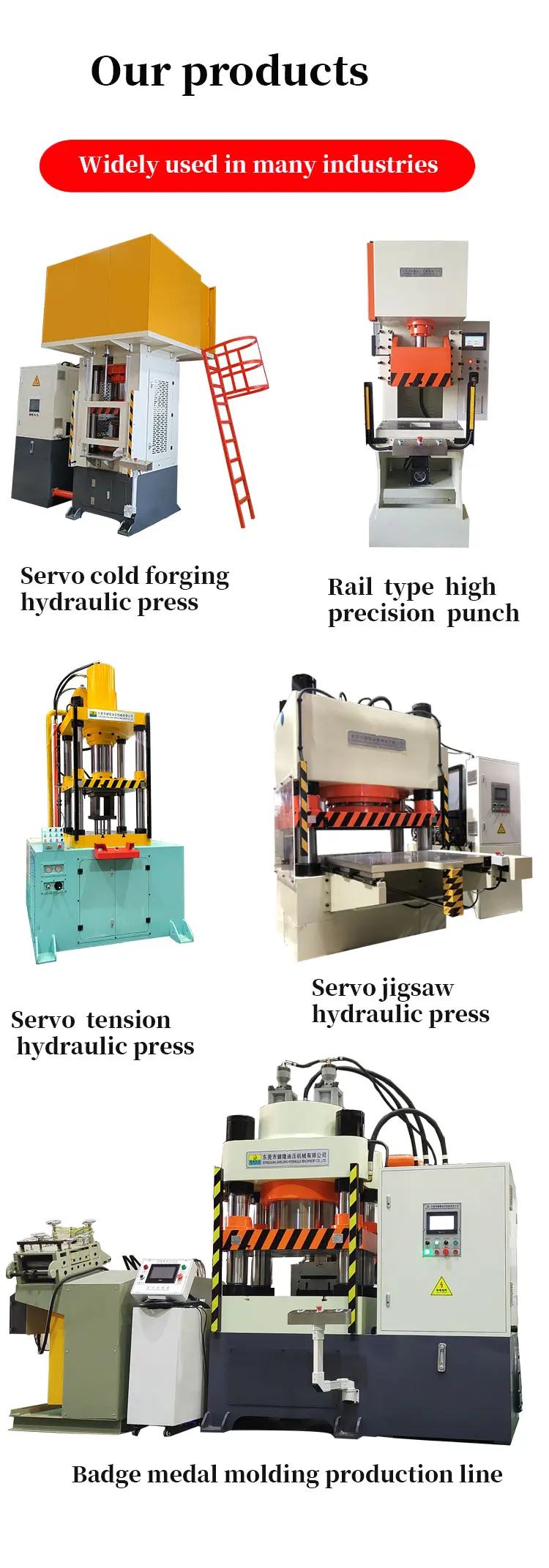

Servo multi-directional (3D) forging press, servo four-column double action stretching hydraulic press, servo jigsaw hydraulic press, servo four-column hydraulic press, servo cold forging machine, servo hot press, servo die-casting trimming machine,
Servo frame hydraulic press, servo sheet metal shaping hydraulic press, servo bow (C) shaped machine, hydraulic punch and other hydraulic equipment.
To provide our customers with fast and professional service! The company is proficient in all kinds of hydraulic machinery design, manufacturing, sales and other services, the main production products:
Servo multi-directional (3D) forging press, servo four-column double action stretching hydraulic press, servo jigsaw hydraulic press, servo four-column hydraulic press, servo cold forging machine, servo hot press, servo die-casting trimming machine,
Servo frame hydraulic press, servo sheet metal shaping hydraulic press, servo bow (C) shaped machine, hydraulic punch and other hydraulic equipment.
Our strength.
The company has passed iso9001:2015 international quality, integrity management, after-sales service, CE and other system
certification, the machines are exported to Mexico, Japan, South Korea, Vietnam, Australia, Malaysia, Pakistan and other countries
certification, the machines are exported to Mexico, Japan, South Korea, Vietnam, Australia, Malaysia, Pakistan and other countries
Part of the cooperation with customers display

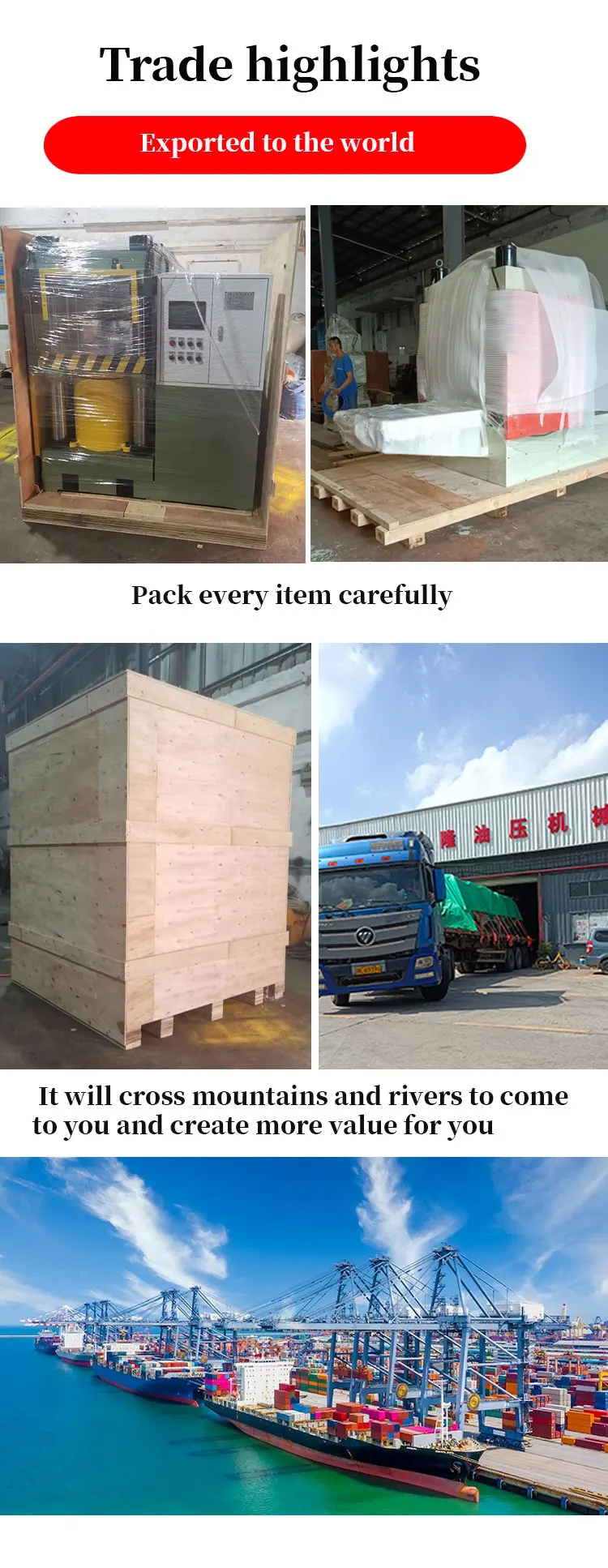

Machine packing method
Normal packing is wooden case (size: L*W*H). Some national wooden cases will be fumigated. To ensure machine safety, jianlong all
machines are packed and fixed with PE film, and then shipped in wooden cases. (Warm tips: the packaging process can accept
customer video guidance, Jianlong mechanical packaging team will carry out personalized packaging according to customer needs)
machines are packed and fixed with PE film, and then shipped in wooden cases. (Warm tips: the packaging process can accept
customer video guidance, Jianlong mechanical packaging team will carry out personalized packaging according to customer needs)
FAQ
1. How much pressure can you provide for hydraulic machines?
We can supply machines of different tonnage from 5-5000 tons.
2.Our machine requirements are different from yours. Can we adjust the specifications?
Yes, all the specifications of our hydraulic presses can be customized according to customer's requirements.
3. What can your hydraulic machine do?
We have many different machines to handle different forging (cold and warm forging), deep drawing, stamping, molding, etc.
4. Can your hydraulic press be connected to robots or other automatic lines?
Yes, our machine can connect robot and automatic line, if you have this requirement, please inform us in advance to reserve the port.
5. if we have some special requirements, such as machine sliding table, machine heating, long time to maintain pressure, multi-layer, etc., is it ok?
Yes, all these requirements can be provided, if you have other requirements, please also contact us. Custom made machines are welcome.
6. What type of hydraulic press can you provide?
Four column/frame guide rail /C frame/horizontal structure/servo system/multi direction forging, we can provide these machines.
2.Our machine requirements are different from yours. Can we adjust the specifications?
Yes, all the specifications of our hydraulic presses can be customized according to customer's requirements.
3. What can your hydraulic machine do?
We have many different machines to handle different forging (cold and warm forging), deep drawing, stamping, molding, etc.
4. Can your hydraulic press be connected to robots or other automatic lines?
Yes, our machine can connect robot and automatic line, if you have this requirement, please inform us in advance to reserve the port.
5. if we have some special requirements, such as machine sliding table, machine heating, long time to maintain pressure, multi-layer, etc., is it ok?
Yes, all these requirements can be provided, if you have other requirements, please also contact us. Custom made machines are welcome.
6. What type of hydraulic press can you provide?
Four column/frame guide rail /C frame/horizontal structure/servo system/multi direction forging, we can provide these machines.
