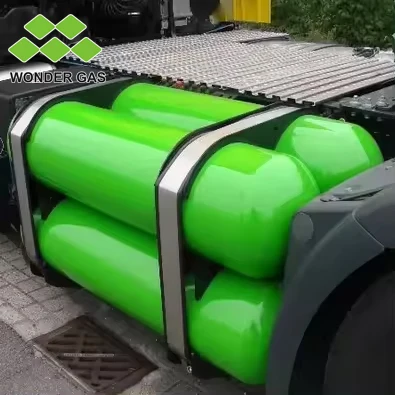

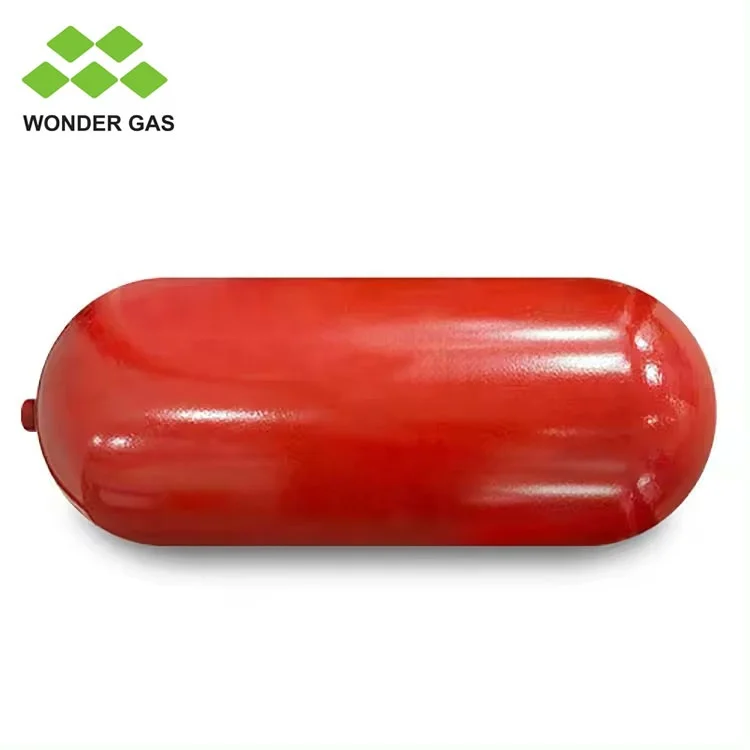

Diameter 356mm Volume 75L CNG Type 1 Storage Tank Seamless Steel Cylinder CNG Cylinder For CNG Conversion/Tricycle/Vehicle
- Category: >>>
- Supplier: Shanghai Wonder Gas Co. Ltd.
Share on (1601274593681):
Product Overview
Description
Product Description
Wonder Gas is a professional manufacturer specialized in the production of Compressed Natural Gas Cylinders(CNG), gas cylinders and gas equipment with latest technology and superior quality. We also have more than 30 years experience and have reputation in this field.
We adopt advanced production technology and equipment, and have strict production and inspection systems to control each production process, so as to provide customers with high-quality cylinders.The CNG Cylinders we mainly supply include CNG-1, CNG-2, CNG-3 and CNG-4, and we focus on exporting CNG-1 and CNG-2 Cylinders.
 | Cylinder model | CNG1(75L) | |
The water volume | 75L | ||
The cylinder weight | 76kg | ||
Outside Diameter | 356mm | ||
Working pressure | 200Bar | ||
Length | 985mm | ||
Material | 34CrMo4 | ||
Filling medium | CNG Gas | ||
Manufacturing standard | ISO11439:2013/15years-The service life(Filling the number less than 1000 times a year) | ||
More CNG Cylinder | https://wondergas.en.alibaba.com/ | ||

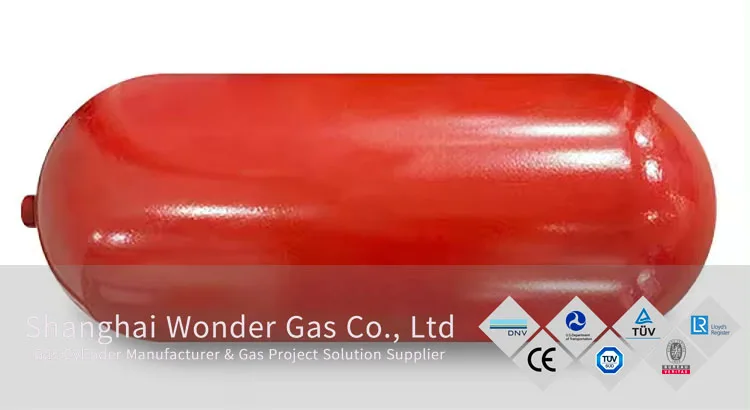

CNG1-356-75-200 CNG Cylinder
The CNG Cylinders we mainly supply include CNG-1,CNG-2 and CNG-4

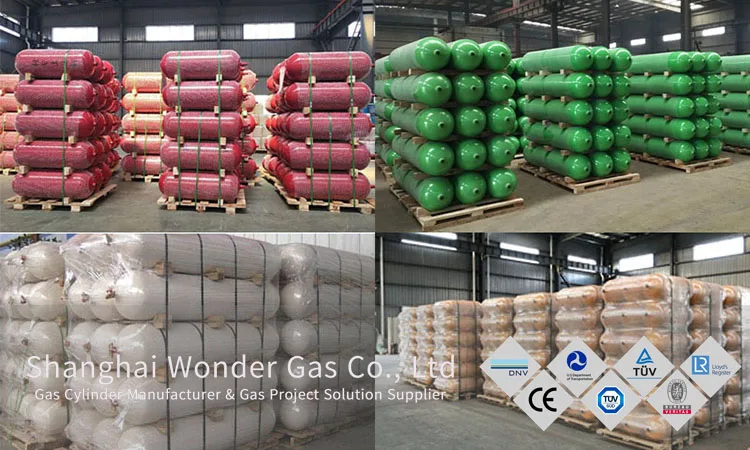

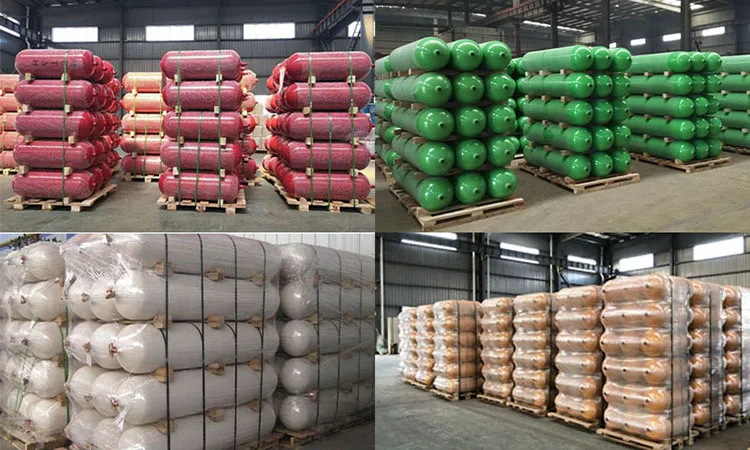

CNG Gas Cylinder Details Showcase

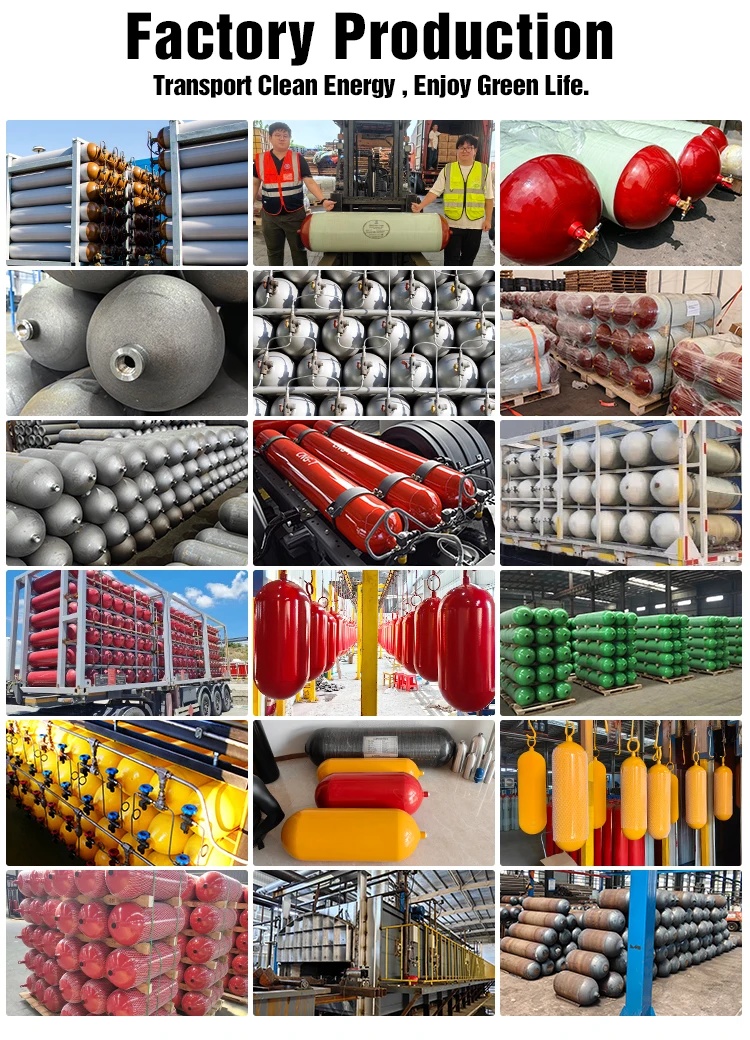

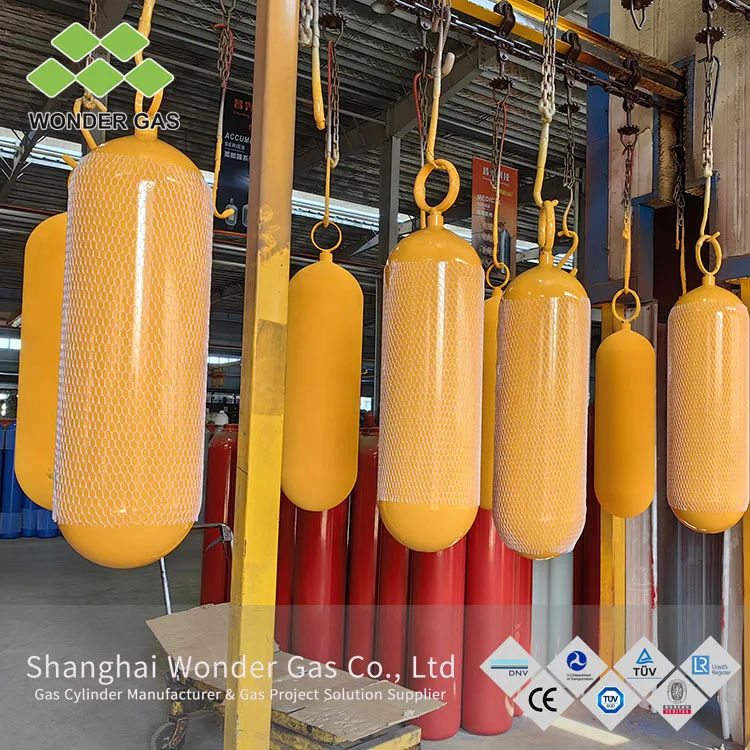

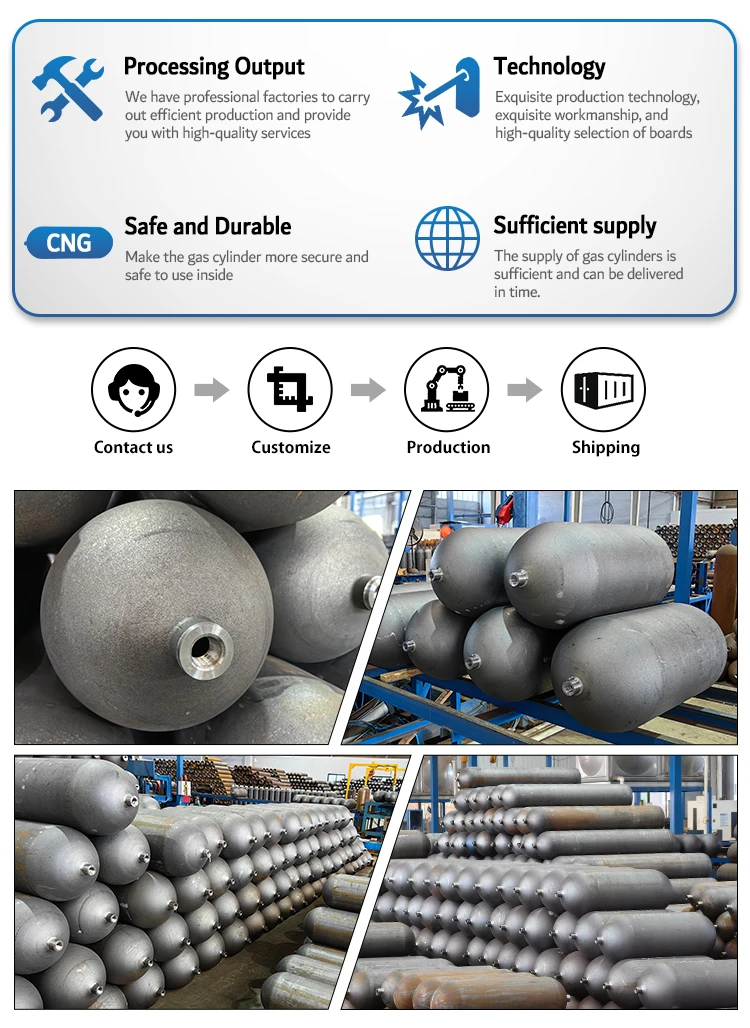

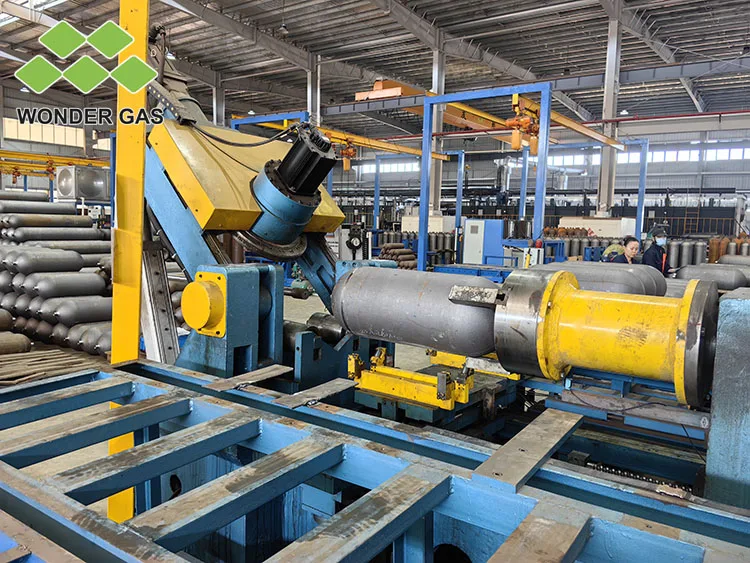

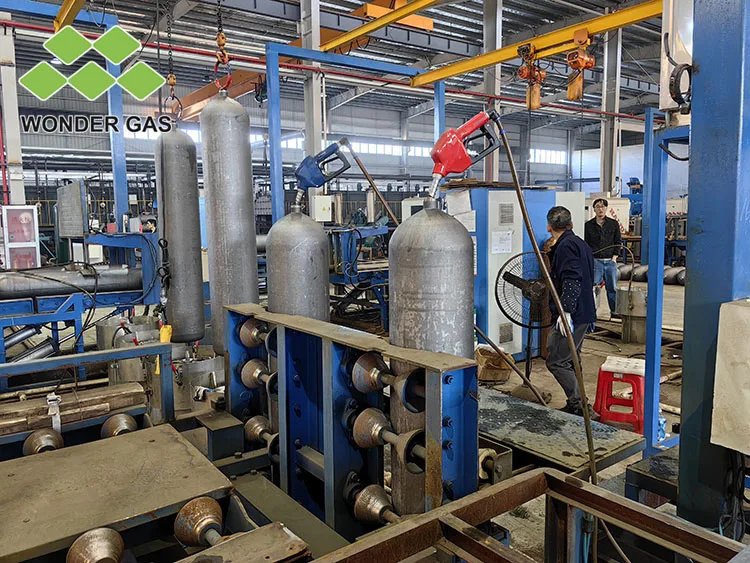

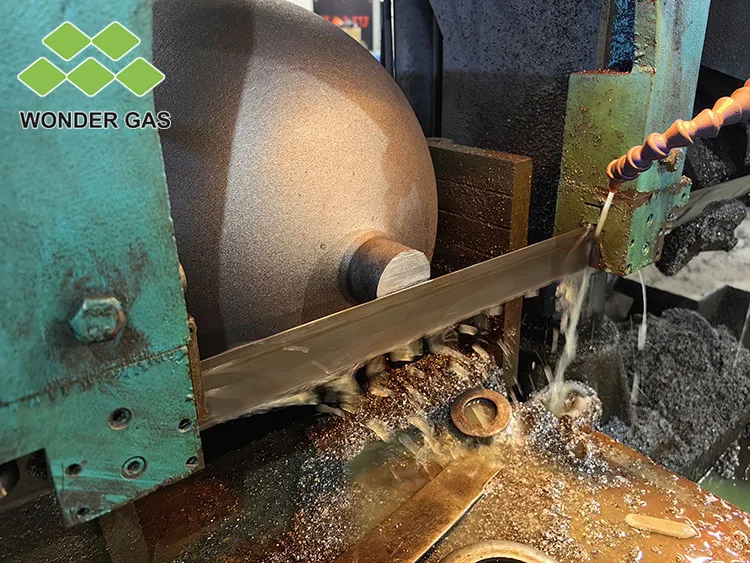

CNG Gas Cylinder production details

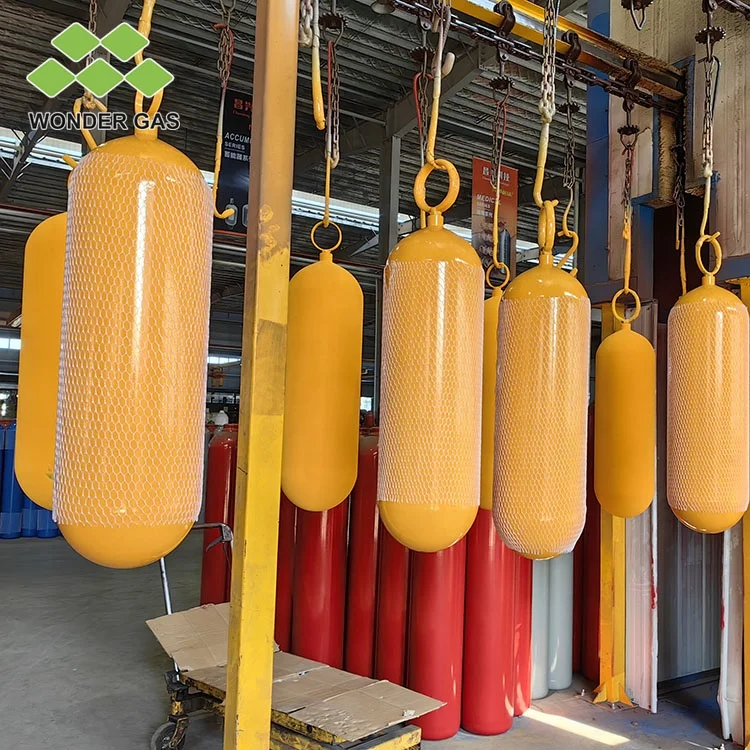

CNG Gas Cylinder polishing details
CNG Gas Cylinder stamping process
CNG1 Natural Gas Composite Cylinder: ISO 11439, ECE R110:
| Type | Outside diameter (mm) | Volume (L) | Length (without valve) (mm) | Weight (kg) | Service pressure (MPa) | Design wall Thickness (mm) | Material |
| CNG1-356-50-20 | 356 | 50 | 710 | 56 | 20 | 7.5 | 34CrMo4 |
| CNG1-356-55-20 | 55 | 765 | 60 | ||||
| CNG1-356-60-20 | 60 | 820 | 64 | ||||
| CNG1-356-65-20 | 65 | 875 | 68 | ||||
| CNG1-356-70-20 | 70 | 930 | 72 | ||||
| CNG1-356-75-20 | 75 | 985 | 76 | ||||
| CNG1-356-80-20 | 80 | 1040 | 80 | ||||
| CNG1-356-85-20 | 85 | 1095 | 84 | ||||
| CNG1-356-90-20 | 90 | 1150 | 88 | ||||
| CNG1-356-100-20 | 100 | 1205 | 92 | ||||
| CNG1-356-110-20 | 110 | 1370 | 104 | ||||
| CNG1-356-120-20 | 120 | 1480 | 112 | ||||
| CNG1-356-130-20 | 130 | 1590 | 120 | ||||
| CNG1-356-140-20 | 140 | 1700 | 128 | ||||
| CNG1-356-150-20 | 150 | 1810 | 136 | ||||
| CNG1-356-160-20 | 160 | 1920 | 144 | ||||
| CNG1-356-180-20 | 180 | 2140 | 160 |
Company Information
Located in Shanghai,Wonder Gas is a professional manufacturer of gas cylinder and gas equipment. We have more than 30-year experience in gas industry and have reputation in this field.
Our main products : Steel gas cylinders , such as
oxygen cylinder,nitrogen cylinder,argon cylinder,co2 cylinder,acetylene cylinder,helium cylinder etc.There are also valves, regulator and related Accessories.
We also deal with cryogenic tanks, tank container, cryogenic semi-trailer, LNG tank container, Dewar tank, Microbulk TANK, LNG station skid, gas cylinder rack, PSA, etc.
oxygen cylinder,nitrogen cylinder,argon cylinder,co2 cylinder,acetylene cylinder,helium cylinder etc.There are also valves, regulator and related Accessories.
We also deal with cryogenic tanks, tank container, cryogenic semi-trailer, LNG tank container, Dewar tank, Microbulk TANK, LNG station skid, gas cylinder rack, PSA, etc.
WonderGas have get Certifications of ISO by International Standardization Organization, DOT of America, TC of Canada, TUV of Germany, KGS of Korea and some other Certifications. With Safe and Dependable Products and Quality service, With High-Quality Products, Competitive Prices, Fast Delivery and Superior Service, WonderGas had won the Customer's Trust and Praise.
Since 2010 Years, WonderGas has established trade relations with more than Thirty Thousand Customers in more than 50 countries and regions. Many of our VIP clients have visited WonderGas Personaly , repeatedly and discussed the regional agency service with us.Cooperation with SEFIC-WonderGas.
Packaging & Shipping
FAQ
What Capacity? | Q:What is the capacity of the CNG cylinder you can provide? |
Delivery Time? | Q: What is the delivery time of the CNG cylinders in Wonder Gas? |
Certification? | Q:What certificates do you provide for CNG cylinders? |
Any Protection? | Q:Do you have any protection for the head of the cylinder? |
