3inch round lcd display 480*480 touch screen round lcd display
- Category: >>>
- Supplier: Shanghai Top Display Optoelectronics Co. Ltd.
Share on (1601274649040):
Product Overview
Description
Product Description
round lcd display 3 inch round lcd display 480*480 touch screen round lcd display
| Specification | |||
| No | Item | 2.8 inch (Diagonal) | |
| 2 | Driver Element | a-Si TFT active matrix | |
| 3 | Resolution | 480 (RGB)*480 | |
| 4 | Display Mode | Normally Black, Transmissive | |
| 5 | Pixel Pitch | 0.0487 (H)*0.1461 (M) | |
| 6 | Display Colors | 262K | |
| 7 | Surface Treatment | ||
| 8 | Color Arrangement | RGB-Stripe | |
| 9 | Interface | 3SPI+RGB18bit | |
| 10 | Viewing Direction | AIl | |
| 11 | Gray Scale Inversion Direction | / | Note 1 |
| 12 | Outine Dimension (mm) | 73.03(W)* 76.48(H)*2.34(T) | |
| 13 | Active Area (mm) | 70.13(W)*70.13(H) | |
| Touch Screen | Without CTP | ||
| Display Driver IC | ST7701 | ||
| Touch DriverIC | / |
| |

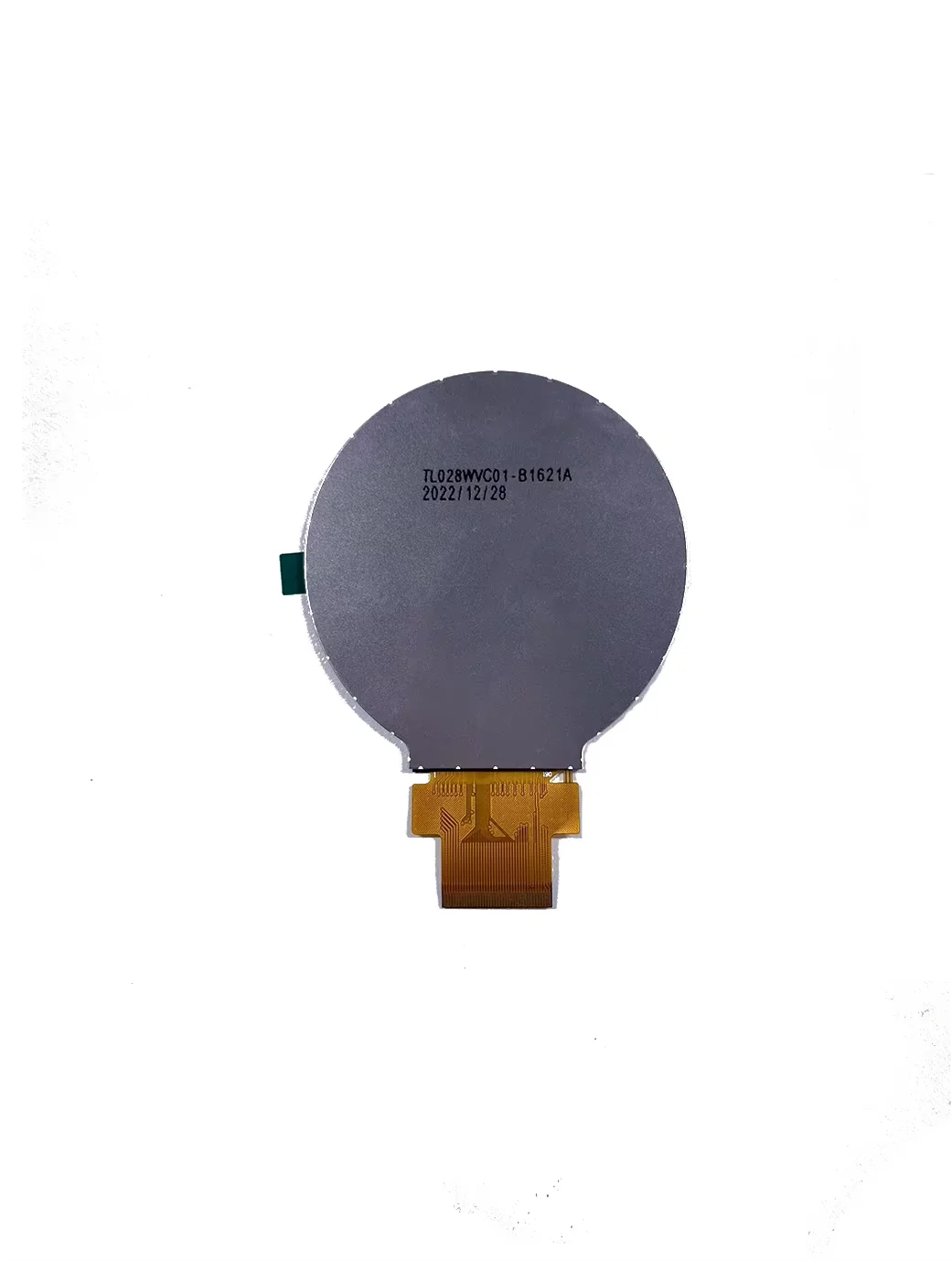

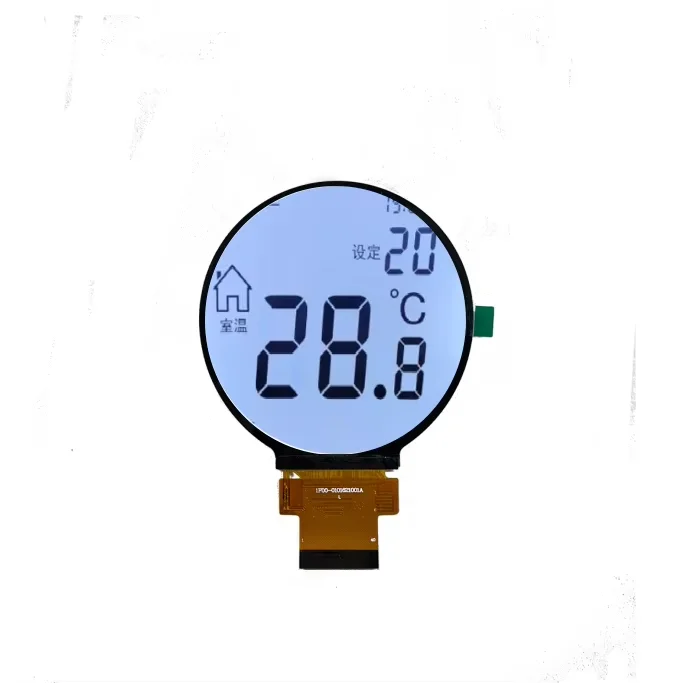

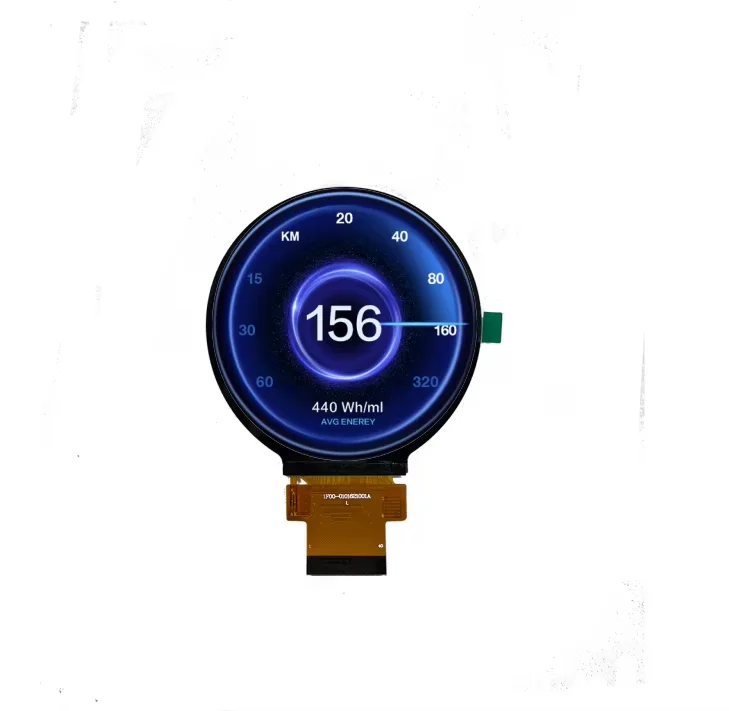

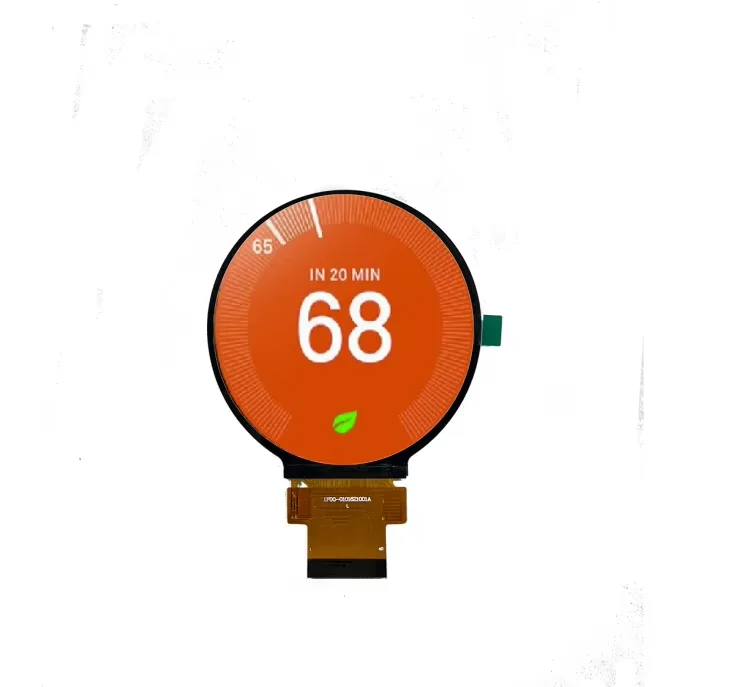

Product picture
\\
Related TFT display
Special TFT lcd display
Bar type TFT-LCD Display Module list
For more detail, pls contact us:+8613751704468 (skype/whatsapp/wechat)
Round TFT-LCD Display Module list
For more detail, pls contact us:+8613751704468 (skype/whatsapp/wechat)
Square TFT-LCD Display Module list
For more detail, pls contact us:+8613751704468 (skype/whatsapp/wechat)
Sunligh readable lcd display list
For more detail, pls contact us:+8613751704468 (skype/whatsapp/wechat)
Good feedback
Hot sale
Hot sale---AMoled display
5.44" oled work with HDMI 1.39"454*454oled(on cell TP) 1.78"oled work with HDMI
For more detail, pls contact us:+8613751704468 (skype/whatsapp/wechat)
Hot sale---TFT display
IPS3.5”320*240 TFT touch lcd IPS 4.3"480*272 TFT touch lcd IPS 6.86"480*1280 work with HDMI
IPS 2.1"480*480 TFT touch panel IPS 4"720*720 TFT touch display IPS round4"720*720 TFT touch LCD
For more detail, pls contact us:+8613751704468 (skype/whatsapp/wechat)
Relate product-Oled
Amoled lcd display list
Company Information

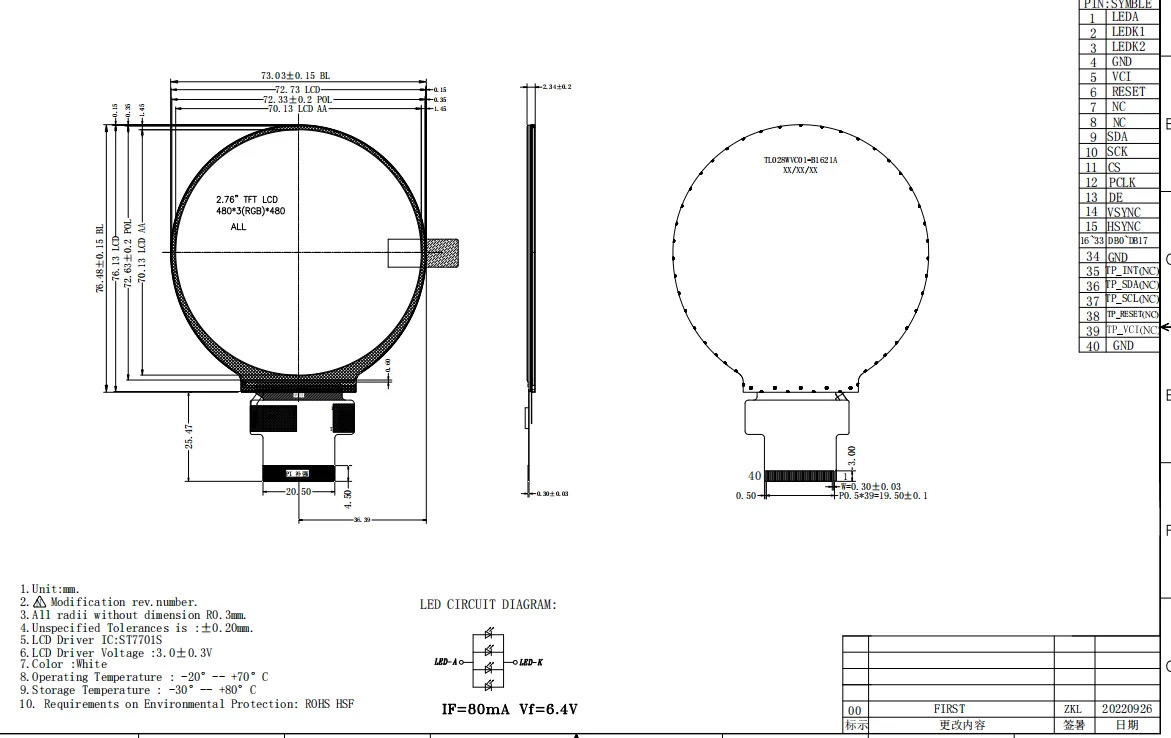

Structure diagram
