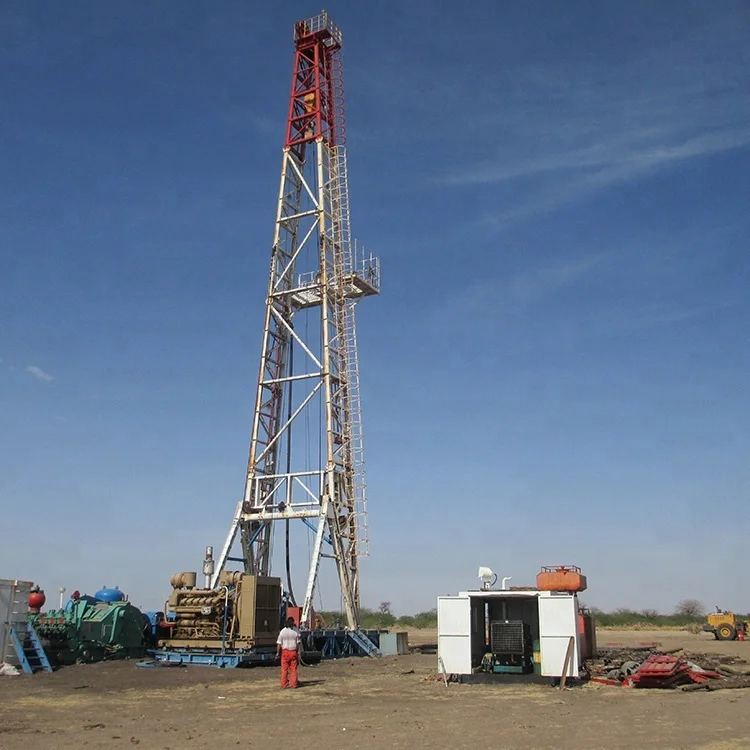

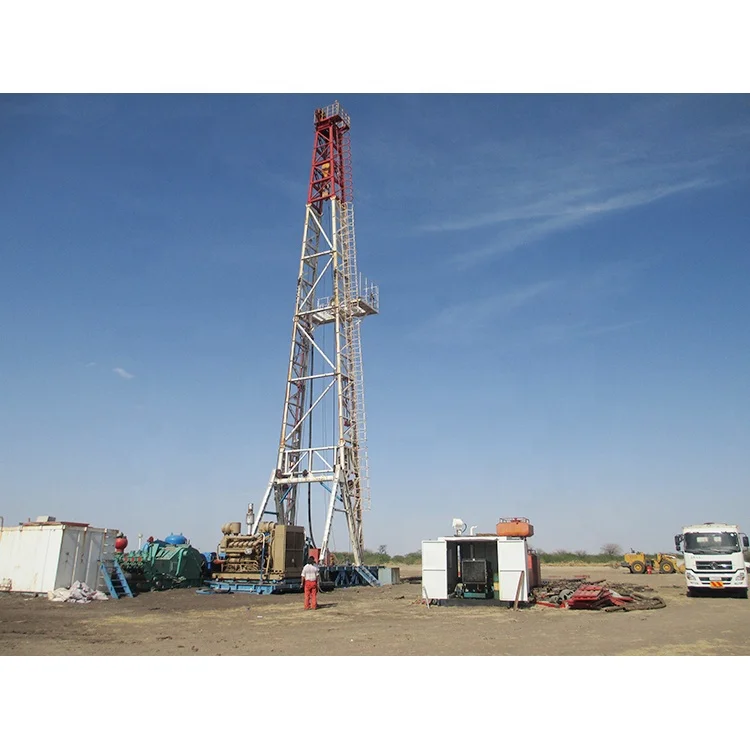

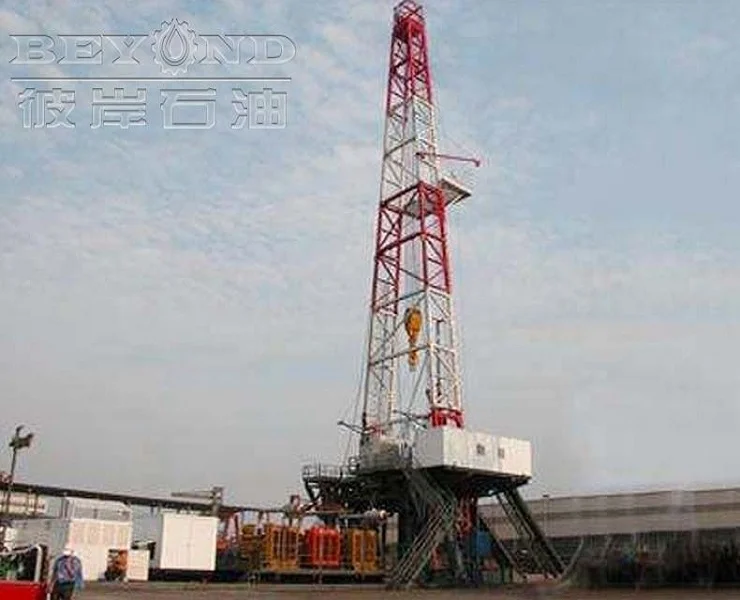

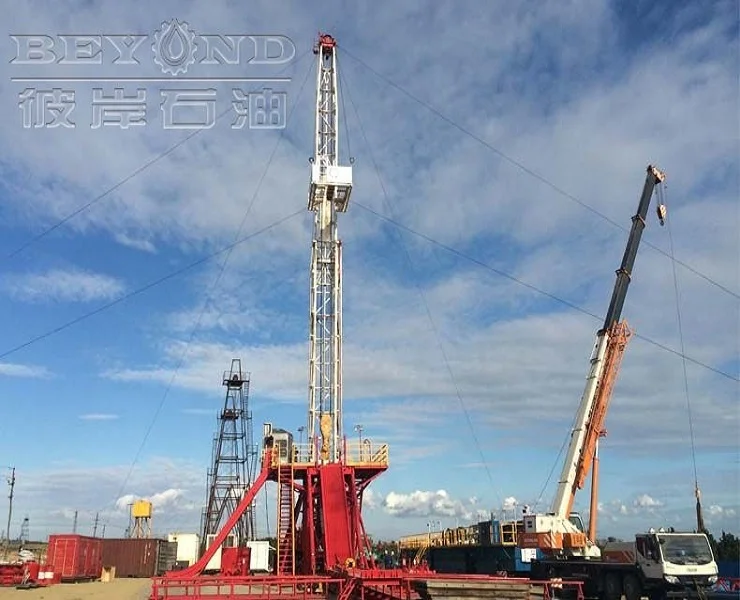

BEYOND oil drilling rigs 1000HP 1500HP 2000HP for sale
- Category: >>>
- Supplier: Shandong Beyond Petroleum Equipment Co. Ltd.
Share on (1601274660754):
Product Overview
Description
Technical Specifications
Rig Model | ZJ15CZ | ZJ20CZ | ZJ30CZ | ZJ40CZ | ||
NO. | ITEM | Specification | Specification | Specification | Specification | |
1 | Installed Power | 540HP (402KW) | 630HP (470KW) | 630 HP×2 (470 KW×2) | 630 HP×2 (470 KW×2) | |
2 | Max.Hook Load | 1350kN | 1580kN | 2250kN | 2250kN | |
3 | Max. Drill String Load | 500kN | 700KN | 1150KN | 1150KN | |
4 | Drawworks Rated Power | 450HP | 600HP | 1000HP | 1000HP | |
5 | Transmission Mode | Hydraulic+Mechanical | Hydraulic+Mechanical | Hydraulic+Mechanical | Hydraulic+Mechanical | |
6 | Drive Mode | 10×8 | 12×8 | 14×10 | 14×10 | |
7 | Nominal Drilling Depth (4 1/2"DP) | 1500m | 2000m | 4000m | 4000m | |
8 | Mast Height | 33m | 35m | 38m | 38m | |
9 | Rig Floor Height | 4.5m | 4.5m | 6m | 6m | |
10 | Wirerope Diameter | 26mm | 29mm | 32mm | 32mm | |
11 | Hydraulic System | 14MPa | 14MPa | 21MPa | 21MPa | |
12 | Pneumatic System | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa | |
13 | Overall Size | 19.37×3.05×4.49m (Including Mast) 14.6×3.05×3.1m (Without Mast) | 20.1×3.05×4.49m (Including Mast) 15.56×3.05×3.1m (Without Mast) | 23×3.2×4.8m (Including Mast) 16. 56×3.2×3.2m (Without Mast) | 23×3.2×4.8m (Including Mast) 16. 56×3.2×3.2m (Without Mast) | |

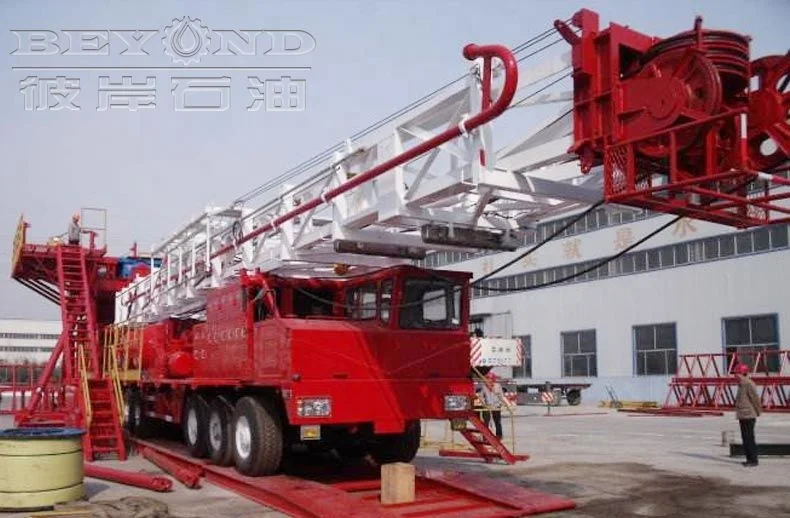

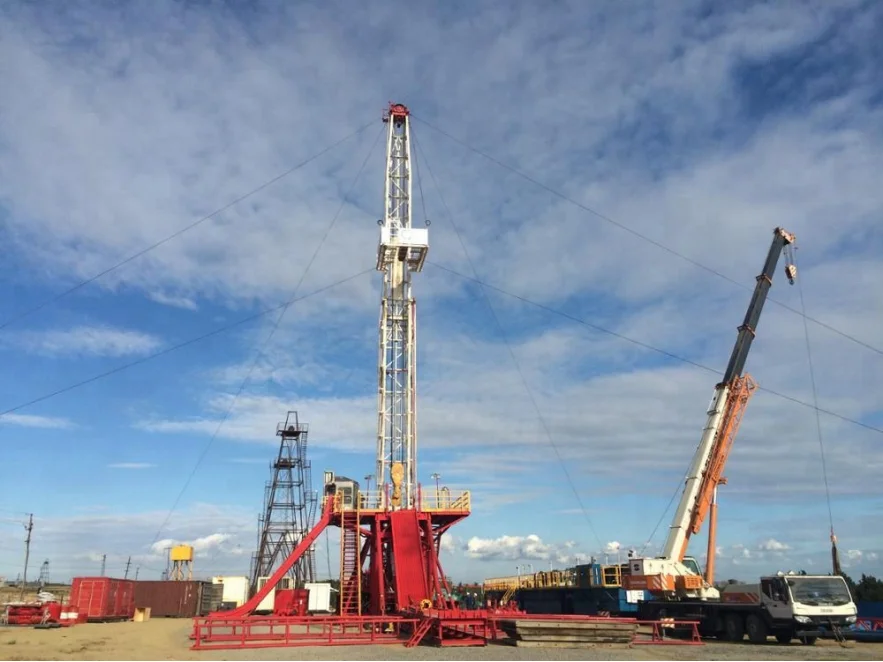

We suply a line of land diing igs skid-moumted,uuck-tmoumied and taileemoumed,Our skidmounted dilling nigs includeACNFD or DCSCR divendgs,mechanical electic combineddrnehsaincchanical nigs(BeltorChain transmission),power rang-ingfrom450HP1o3,000HP(Rated Dilling dpthe 1,500-9,000m)o ckmoumted diuingnigs angefom550HP to 1,000 HPrated
diing depth 1500-4000m.
diing depth 1500-4000m.
VR
What we provide:
1. OEM service
2. Overseas technical service is available
OUR ADVANTAGE:
XJ250 Drilling & Workover Rig features fast moving speed and high service efficiency. Equipped with Caterpillar C9 and Allison 4700 transmission, the XJ250 workover rig can reach up to 3,500m for workover and well service. The rig is rated by customer all over the world as the best economic workover rig for its reliable performance, innovative design and economical cost.
How to work ?
When digging a hole, the drill bit revolves around the vertical axis and makes the axial movement. Soil under the torque and axial force of drill bit will be cutting. During the process of working, under the action of centrifugal force and extrusion of the blade, soil are destroyed and brroke up. The formation of soil flows pressure to the pit wall, at the same time along the surface up to ground. When the soil flow moves to the place, where is no barrier of pit wall, the whole excavation process is completed due to the centrifugal force of the broken earth being thrown around the pit.
1. OEM service
2. Overseas technical service is available
OUR ADVANTAGE:
XJ250 Drilling & Workover Rig features fast moving speed and high service efficiency. Equipped with Caterpillar C9 and Allison 4700 transmission, the XJ250 workover rig can reach up to 3,500m for workover and well service. The rig is rated by customer all over the world as the best economic workover rig for its reliable performance, innovative design and economical cost.
How to work ?
When digging a hole, the drill bit revolves around the vertical axis and makes the axial movement. Soil under the torque and axial force of drill bit will be cutting. During the process of working, under the action of centrifugal force and extrusion of the blade, soil are destroyed and brroke up. The formation of soil flows pressure to the pit wall, at the same time along the surface up to ground. When the soil flow moves to the place, where is no barrier of pit wall, the whole excavation process is completed due to the centrifugal force of the broken earth being thrown around the pit.
Why Choose Us
We are one professional supplier for oilfield equipment from China. I see that your company is also in
the same sector, so I am writing to see whether any opportunity for future cooperation.
Now please allowe me to make a simple introduction about BEYOND.
* Business focusing on One-stop drilling equipment supply;
* 12+ years of career experience in this sector;
* 15+employees for export business;
* 30+cooperating countries & Region ;
* 40+clients with close cooperation;
* 150+cooperating factory as supplier;
* ISO9001:2015 Certified & Self-owned Brand;
* Covering different areas like petroleum, water & HDD;
* Strategic partnership & Exclusive Overseas Distributor with some factories;
* Overseas after-sale services available upon client request;
* Multiple payment method available, T/T, L/C, Alibaba Trade-assurance Order;
* Quick-action, competitive-price, fast-delivery;
the same sector, so I am writing to see whether any opportunity for future cooperation.
Now please allowe me to make a simple introduction about BEYOND.
* Business focusing on One-stop drilling equipment supply;
* 12+ years of career experience in this sector;
* 15+employees for export business;
* 30+cooperating countries & Region ;
* 40+clients with close cooperation;
* 150+cooperating factory as supplier;
* ISO9001:2015 Certified & Self-owned Brand;
* Covering different areas like petroleum, water & HDD;
* Strategic partnership & Exclusive Overseas Distributor with some factories;
* Overseas after-sale services available upon client request;
* Multiple payment method available, T/T, L/C, Alibaba Trade-assurance Order;
* Quick-action, competitive-price, fast-delivery;
