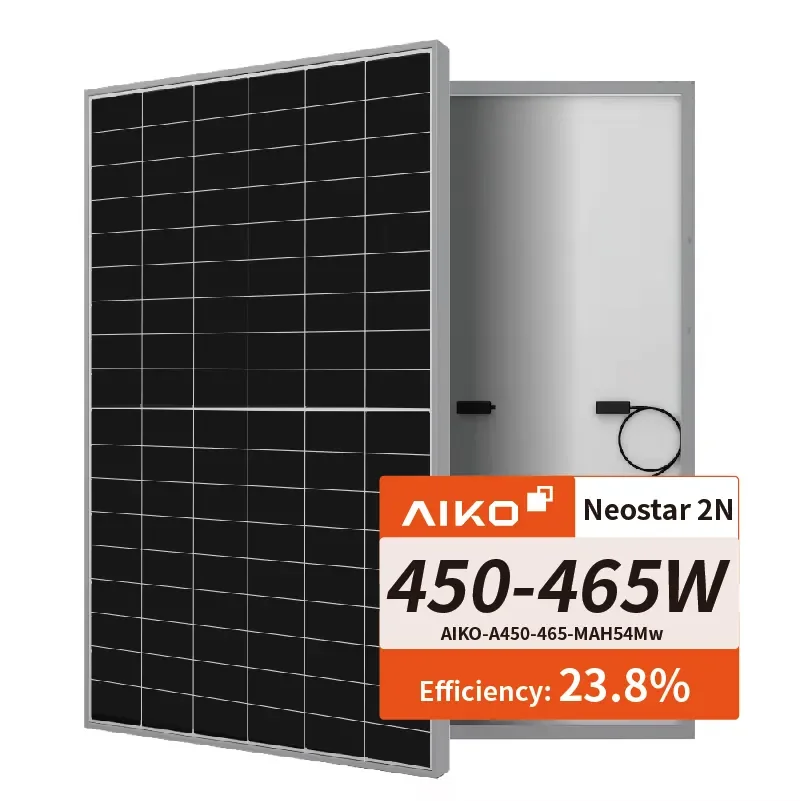

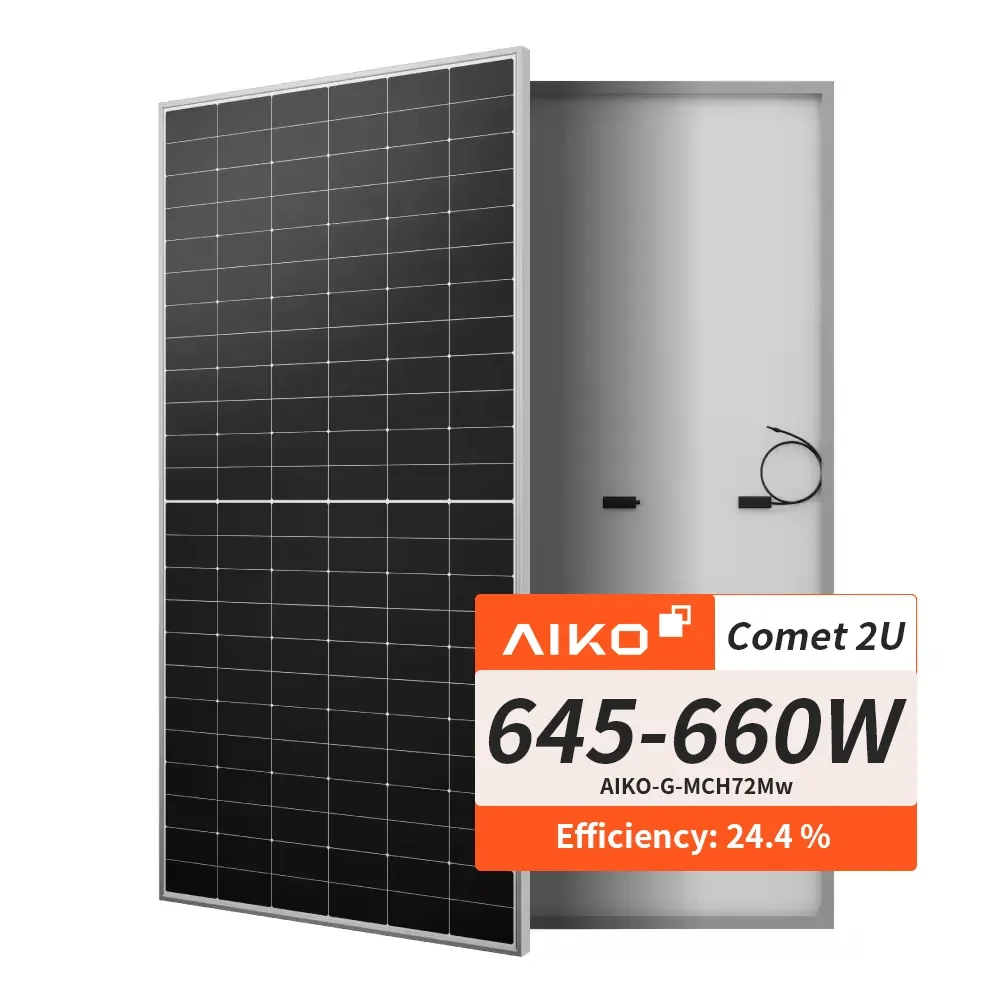

Aiko Solar Panel Half Cell ABC Dual Glass Panel Solar 650W 635W 640W 650W 655W N Type Stellar Series Bifacial Solar Panels
- Category: >>>
- Supplier: Hefei Pinergy Solar Technology Co. Ltd.
Share on (1601274688014):
Product Overview
Description
Product Specifications
Key Characteristics
* Efficiency: up to 24.4%
* Low performance degradation: ≤1% in the first year, and ≤ 0.35%/year in the following years
* Premium warranty: 15-year product warranty and 30-year performance warranty
* Better temperature coefficient: -0.26%/°C
* Low performance degradation: ≤1% in the first year, and ≤ 0.35%/year in the following years
* Premium warranty: 15-year product warranty and 30-year performance warranty
* Better temperature coefficient: -0.26%/°C
* For the same area, the installed capacity is 5.0%+ higher than TOPCon and 12.5%+ higher than PERC.
* For the same area, the power generation is 7%+ higher than TOPCon and 15%+ higher than PERC.
* The BOS cost per watt is 4.76% lower than TOPCon and 11.11% lower than PERC.
* Lower O&M cost High temperature restriction and micro-crack resistance, front grid free, ensuring roof safety, reducing module failure rate. The same DC capacity with connection points reduced by about 5.5%.
* For the same area, the power generation is 7%+ higher than TOPCon and 15%+ higher than PERC.
* The BOS cost per watt is 4.76% lower than TOPCon and 11.11% lower than PERC.
* Lower O&M cost High temperature restriction and micro-crack resistance, front grid free, ensuring roof safety, reducing module failure rate. The same DC capacity with connection points reduced by about 5.5%.

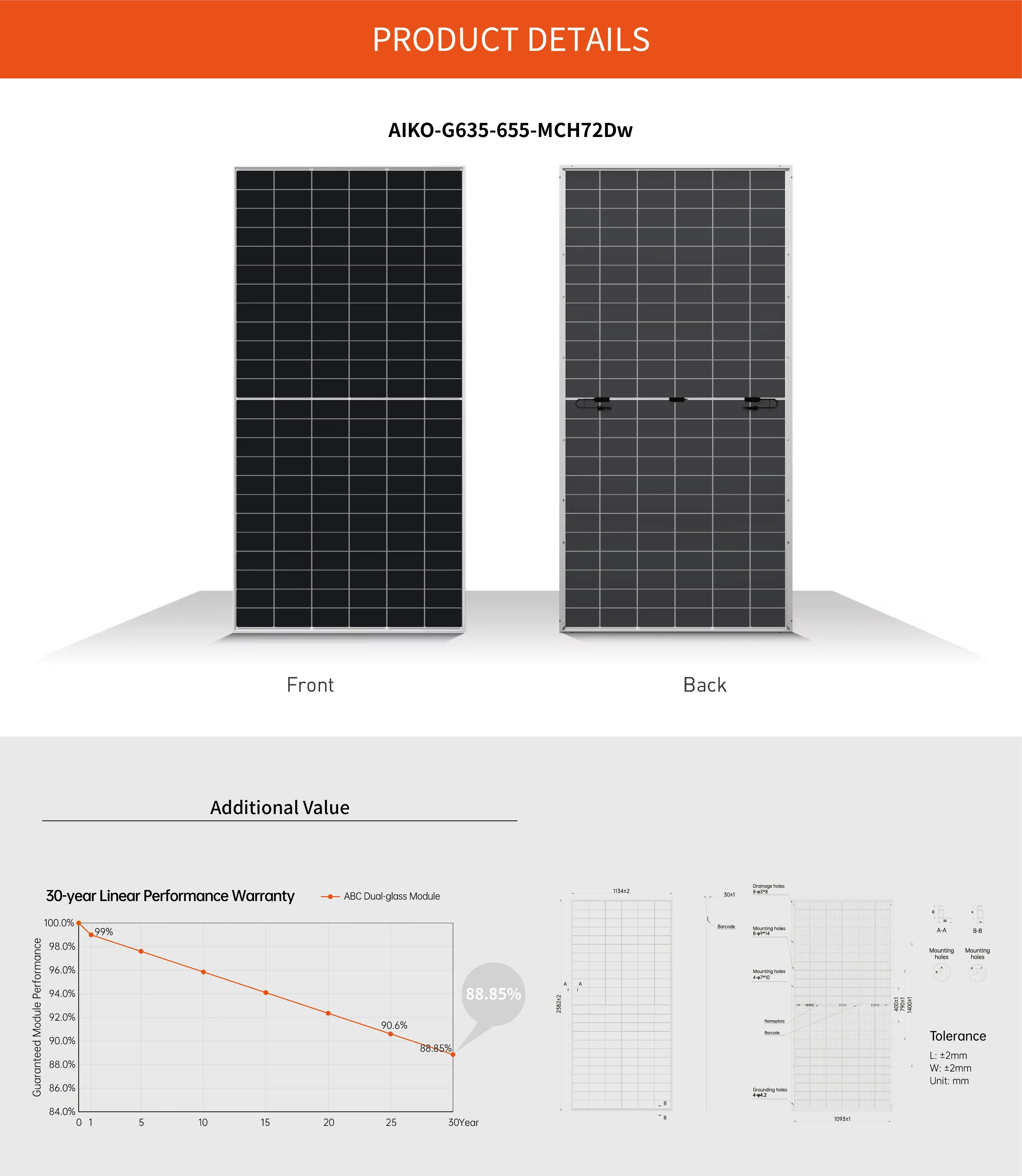

Module Type | AIKO-G635-MCH72Dw | AIKO-G640-MCH72Dw | AIKO-G645-MCH72Dw | AIKO-G650-MCH72Dw | AIKO-G655-MCH72Dw | ||||||||||||
Pmax (W) | 635 | 640 | 645 | 650 | 655 | ||||||||||||
Voc(V) | 54.20 | 54.30 | 54.40 | 54.50 | 54.60 | ||||||||||||
Vmp(V) | 45.01 | 45.11 | 45.21 | 45.31 | 45.41 | ||||||||||||
Isc (A) | 14.90 | 14.96 | 15.02 | 15.08 | 15.14 | ||||||||||||
Imp(A) | 14.11 | 14.19 | 14.27 | 14.35 | 14.43 | ||||||||||||
Module Efficiency | 23.5% | 23.7% | 23.9% | 24.1% | 24.2% | ||||||||||||
Operating Temperature（℃） | -40℃~+85℃ | ||||||||||||||||
Maximum System Voltage | 1500VDC (IEC) | ||||||||||||||||
Maximum Series Fuse Rating | 30A | ||||||||||||||||
Temperature Coefficients of Pmax | -0.26%/℃ | ||||||||||||||||
Temperature Coefficients of Voc | -0.22%/℃ | ||||||||||||||||
Temperature Coefficients of Isc | +0.05%/℃ | ||||||||||||||||
Bifacial Factor | 65±5% | ||||||||||||||||
NOCT: Irradiance 800W/m2, Ambient Temperature 20centidegree, AM=1.5, Wind speed 1m/s.
Module Type | AIKO-G635-MCH72Dw | AIKO-G640-MCH72Dw | AIKO-G645-MCH72Dw | AIKO-G650-MCH72Dw | AIKO-G655-MCH72Dw |
Pmax (W) | 478 | 482 | 486 | 490 | 493 |
Voc (V ) | 51.18 | 51.28 | 51.37 | 51.47 | 51.56 |
Vmp (V) | 42.51 | 42.60 | 42.70 | 42.79 | 42.89 |
Isc (A) | 12.05 | 12.10 | 12.15 | 12.60 | 12.24 |
Imp (A) | 11.26 | 11.33 | 11.39 | 11.46 | 11.51 |
Production Process
Authorization Letter

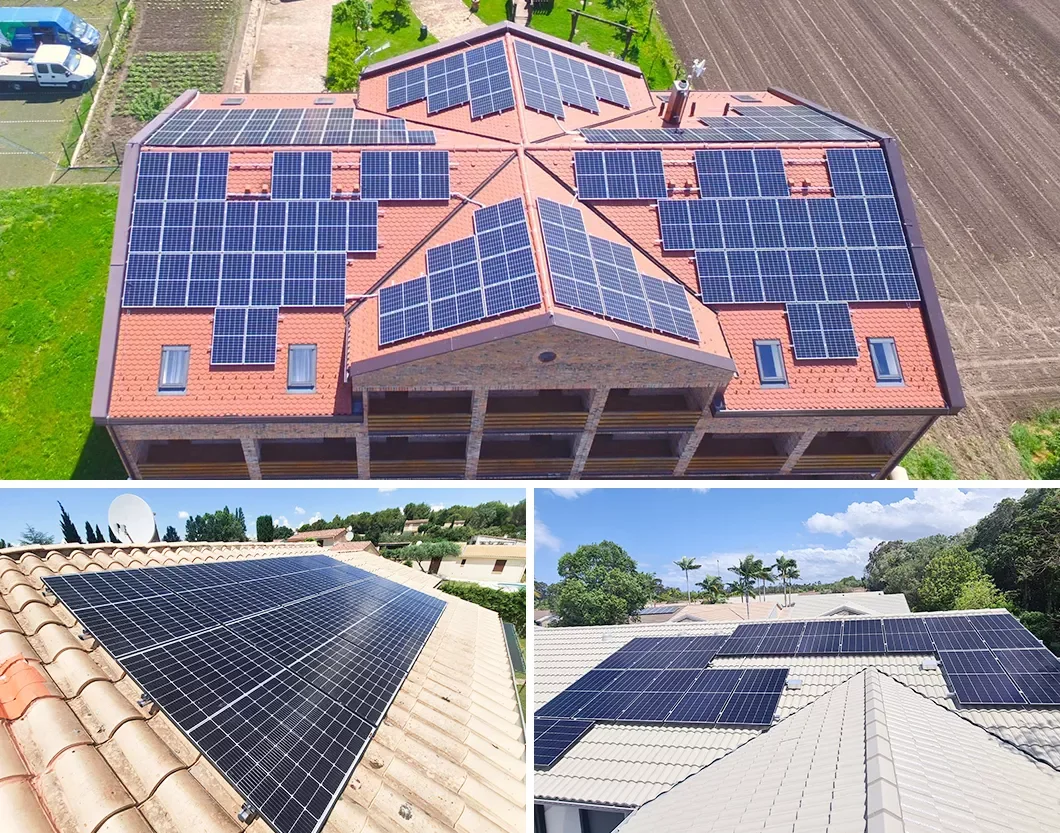

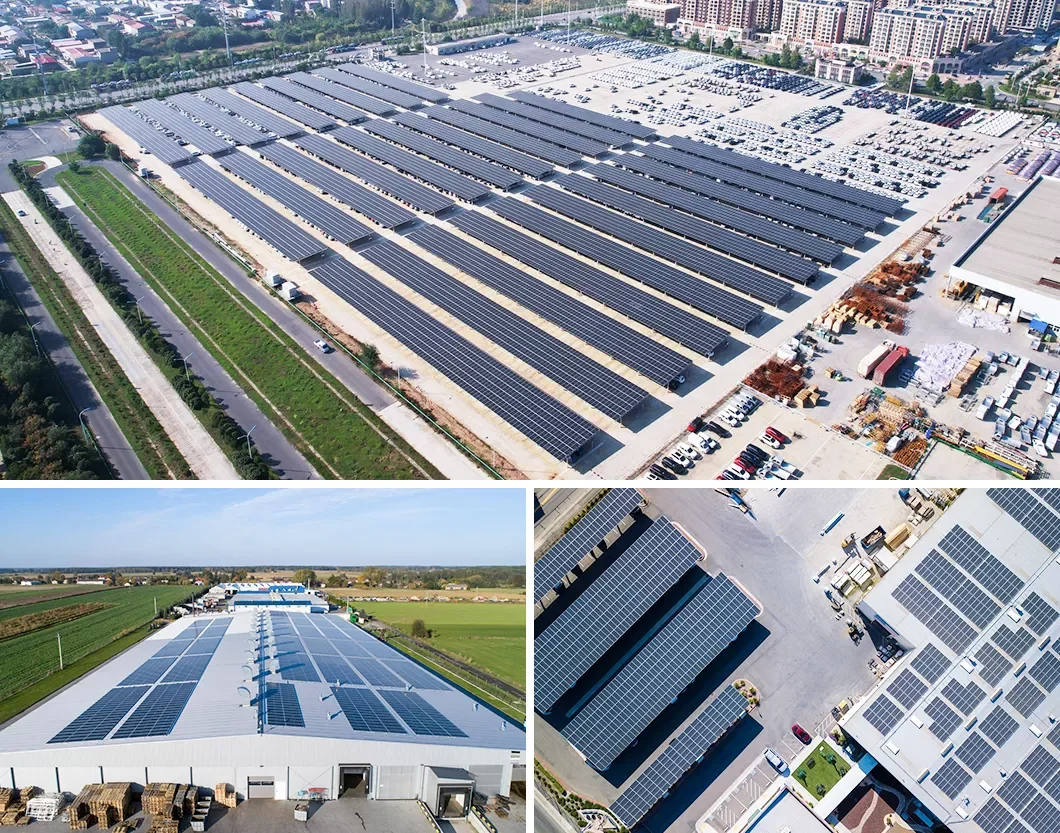

Product Cases

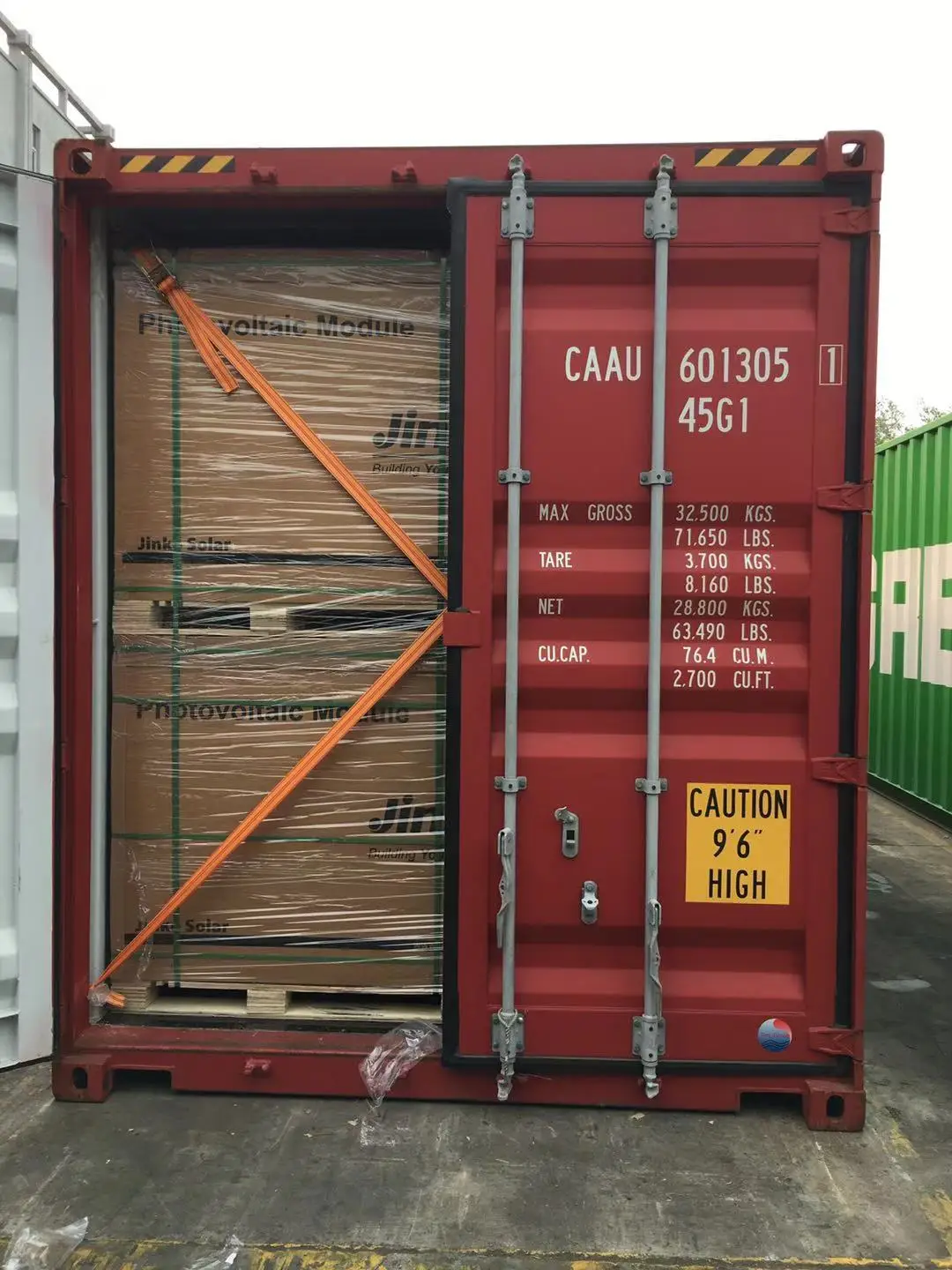

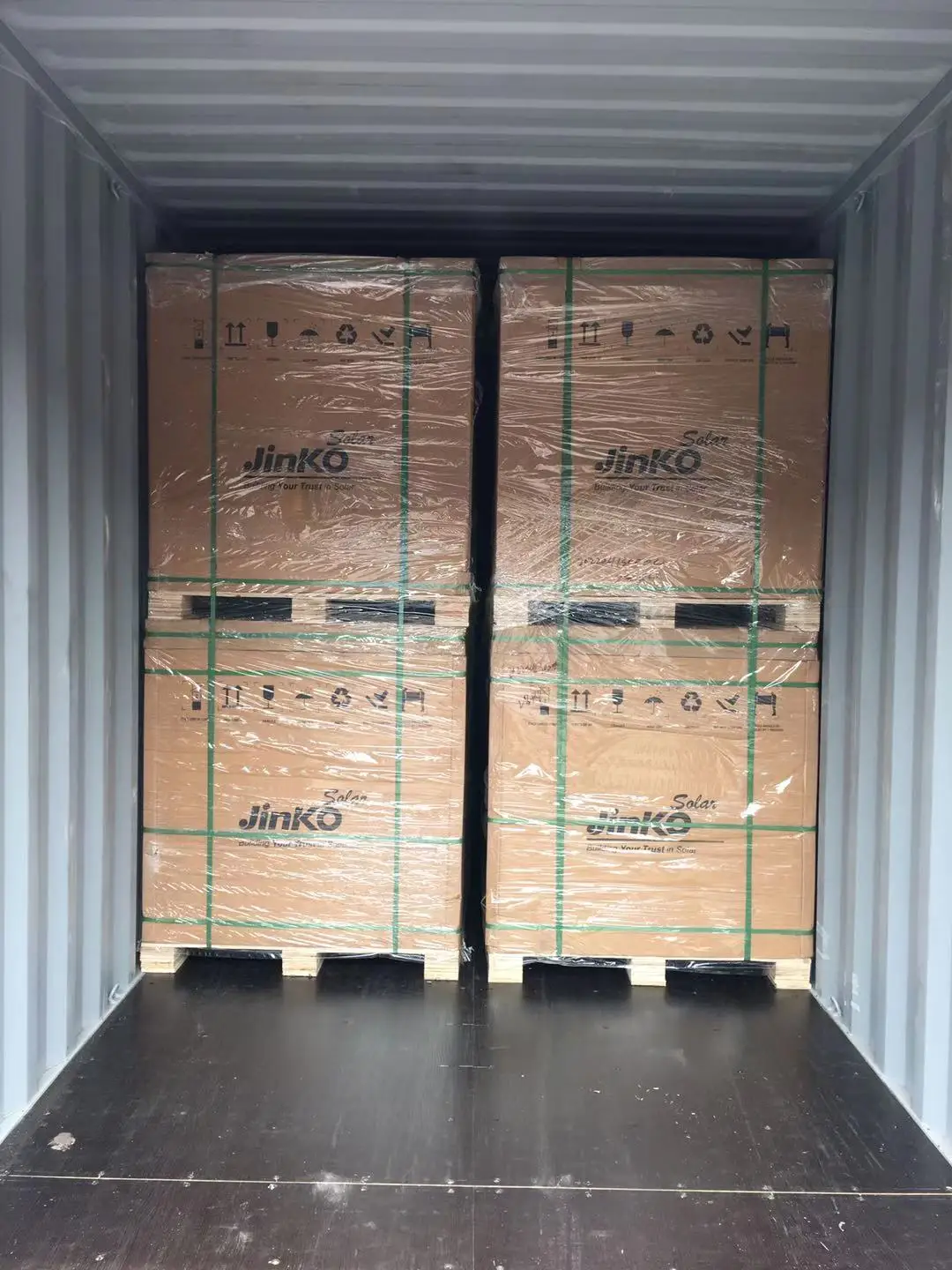

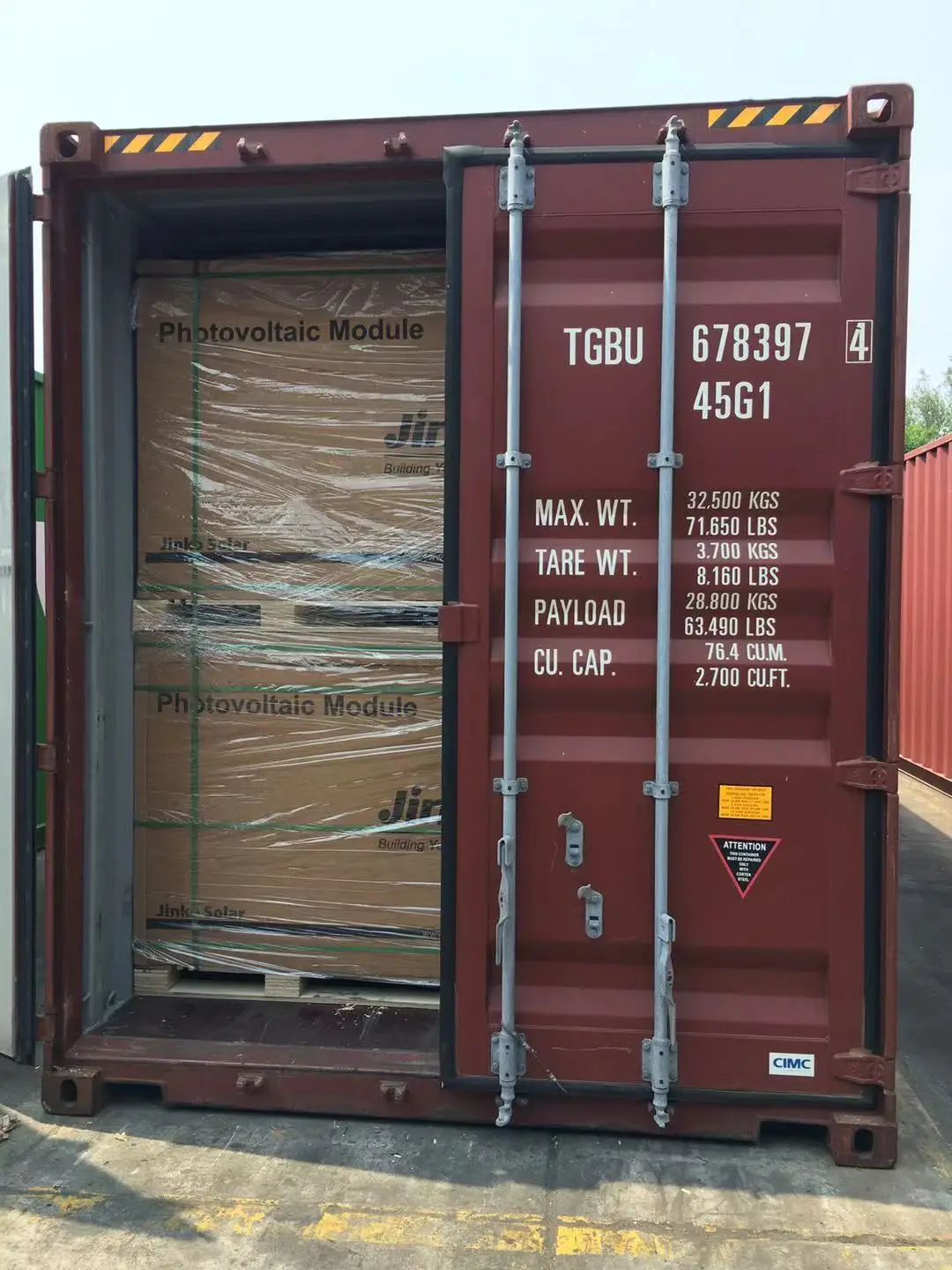

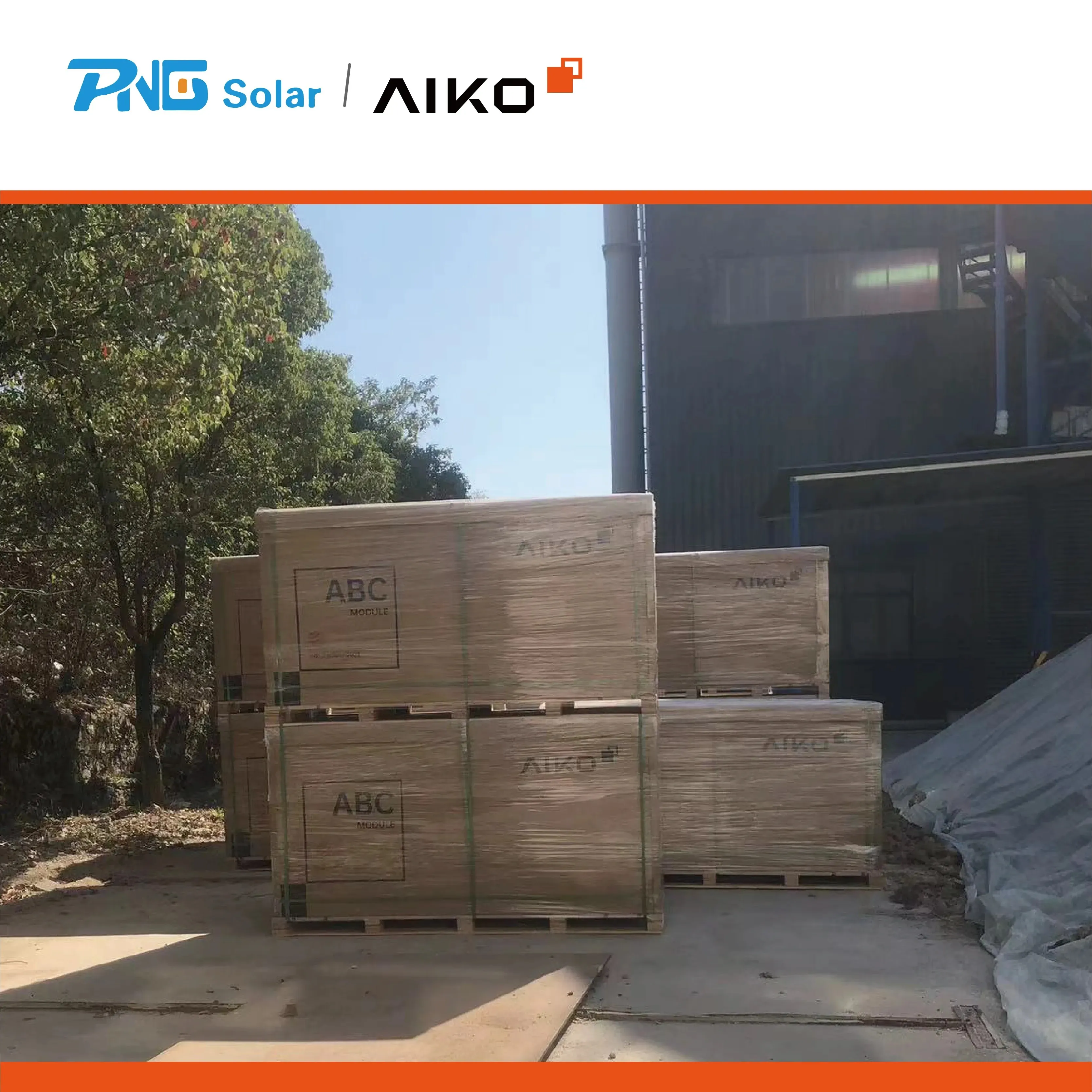

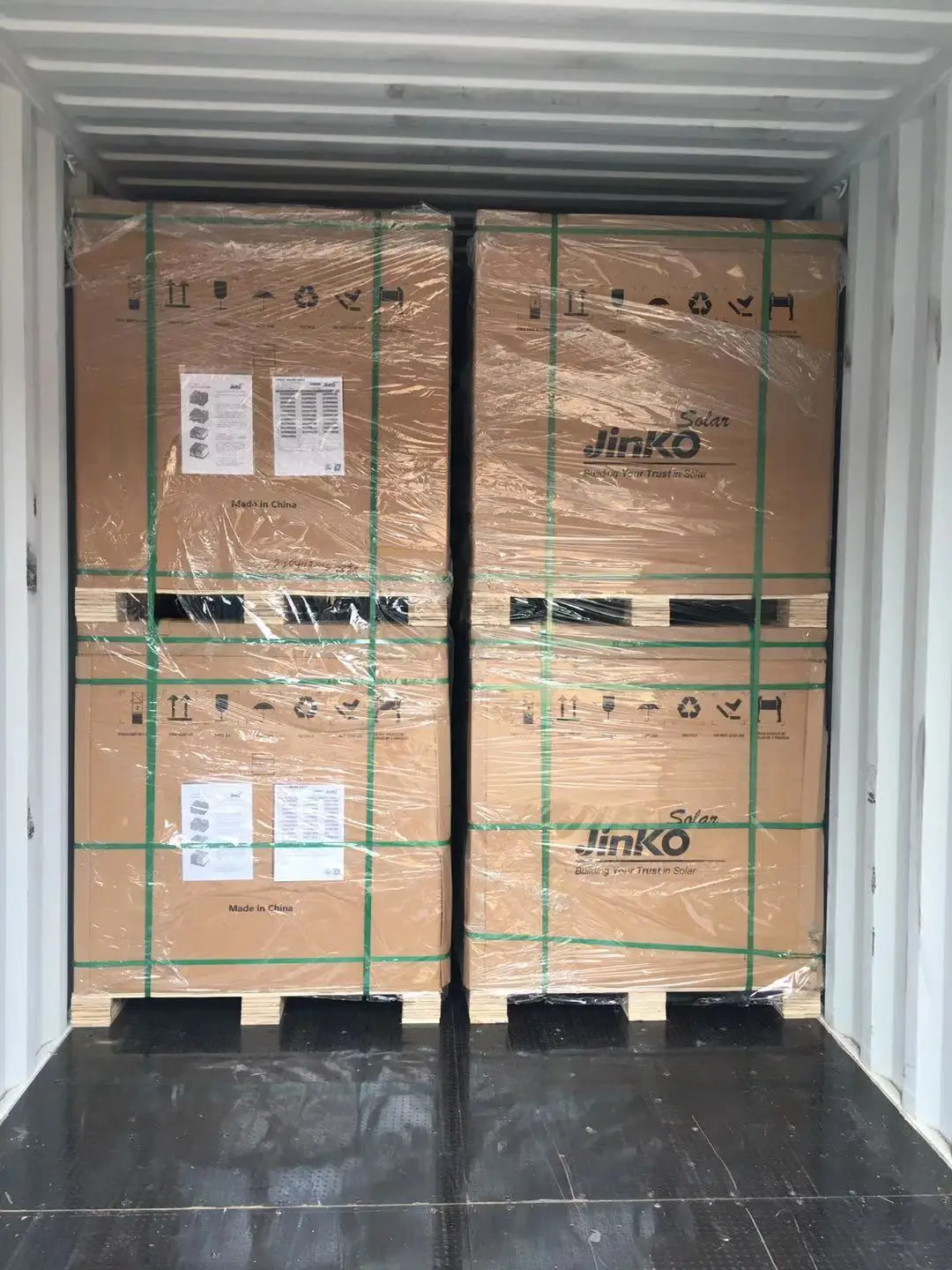

Package and Delivery
Company Profile
Hefei Pinergy Solar Technology Co.,Ltd was established in 2016, a professional and leading manufacturer of quality solar moduls. PNG SOLAR is located in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. Jinko, JA, GCL, Sungrow and BYD all sit here . PNG SOLAR has been certified by Alibaba several years ago. The business covers the R&D, production and sales of PV modules, residential, commercial and large scale solar plants. We supply turn-key service for domestic customers and all the materials for overseas markets.
3 production lines with annual capacity 1.2GW facilitate the lead produciton time .
Sophistificated production experience and global sales network is attracting more and more customers from worldwide. In 2022, the company achieved sales vloume with USD 1.5billion. And listed in the top 5 producer and exporter in our county.
For residential and commercial solar energy system, including on-grid, off-grid and hybrid solar energy system. PNG SOLAR cooperate with famous brands, like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials . Quality is our soul.
Our principles: Integrity, Win-Win, Innvation !
3 production lines with annual capacity 1.2GW facilitate the lead produciton time .
Sophistificated production experience and global sales network is attracting more and more customers from worldwide. In 2022, the company achieved sales vloume with USD 1.5billion. And listed in the top 5 producer and exporter in our county.
For residential and commercial solar energy system, including on-grid, off-grid and hybrid solar energy system. PNG SOLAR cooperate with famous brands, like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials . Quality is our soul.
Our principles: Integrity, Win-Win, Innvation !
FAQ
Q1: What is your annual turnover ?
A1: More than 1.4bln USD , including domestic and overseas markets .
Q2 : What is your advantage ?
A2: We are official agent of Longi, Jinko, JA and Astronergy .
Fast delivery and negotiable price and delivery date .
Q3: What is your payment term ?
TT, DA, DP, CAD, OA .
